Cisco i3 Manuel utilisateur
V R S
THEi3.com
Welcome!
Congratulations, you are now a new user
of our i3 device!
USER GUIDE
2
V R S
Table of Contents:
1. What is in the Package?
2. Setting up your i3
2.1 The i3 Remote Control:
2.2 Setting Up the i3
3. Understanding Your New i3
3.1 Camera Settings
3.2 “Do Not Disturb” Mode
3.3 Stand By Mode
3.4 Your Address Book
3.4.1 Directory
3.4.2 Recents
3.4.3 Favorites
3.5 Making a Call
3.5.1 From your Contacts List
3.5.2 Entering the Phone Number Manually
3.6 Receiving a Call
4. Frequently Asked Questions
3
5
5
5
10
10
10
11
12
13
14
15
16
16
16
18
19
3
V R S
1. What is in the Package?
To make sure you have everything you need before set up; the following items should be within the
package:

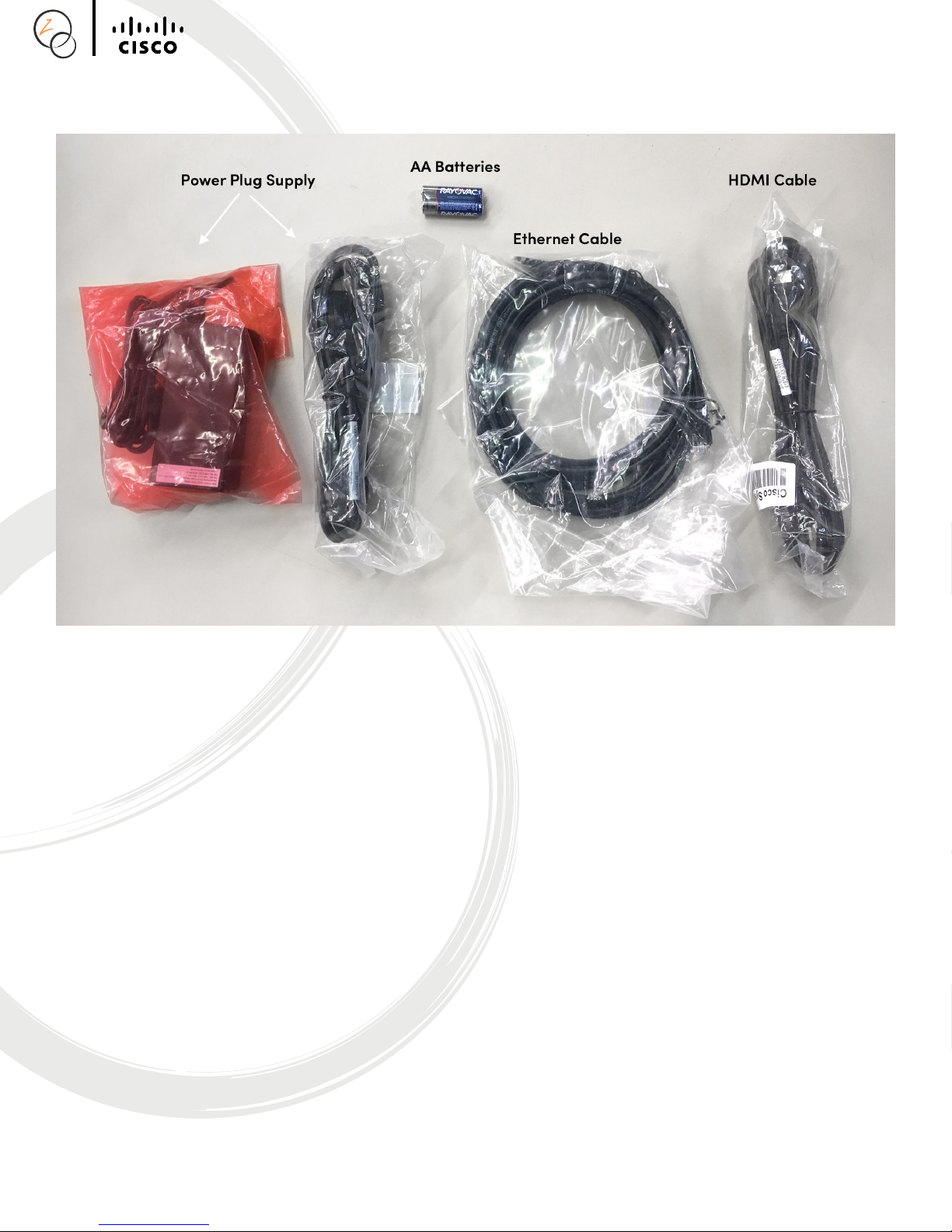

1 i3 Videophone.
2Remote.
3 Power adapter and Power Cable.
4AA Batteries for the Remote.
.
5Ethernet Cable.
6HDMI Monitor Cable.
4
V R S
The i3 will require a connection to a TV or a computer monitor that has HDMI capabilities, and the
TV or computer monitor is not something that will be provided to you.
The i3 has a built-in microphone which will enable a VCO user to speak directly to the TV or
monitor equipped with speakers, however the i3 does not have any built-in speakers. If desired, the
customer can use the speakers built into the TV or external speakers.
In order to have your i3 installed securely, we will also be including a mount with the shipment of the
i3. Make sure this mount is present before you start setting up the i3. There should be no assembly
required for the mount. You will only need to adjust the knob when it comes time to set up the
mount on top of the TV.
The POP Light is an accessory and is not always included with the package, if your order came
with a POP Light, you should see this with your i3. Instructions for setting up the POP Light will be
included in the POP Light package. If your order did not come with a POP Light, you should not be
expecting this.
Once you have confirmed you have everything, you are now ready to start setting up your new i3
device!
5
V R S
2. Setting up your i3
Now that you have everything you need to set up your new i3, let’s get started!
Make sure the TV or computer monitor that you plan to use with the i3 has an available HDMI port.
2.1 The i3 Remote Control:
Your i3 comes with a remote control.
1 Zoom Out. (when not in video mode,
this will lower the sound)
2Zoom In. (when not in video mode,
this will increase the sound)
3Outer Circle with Arrows to move
cursor.
4Inner Circle = OK.
5Back Button.
6Mute Button.
7Green Button = Make a Call or
Access your Address Book.
8Red Button = Hang Up.
9Numbers.
6
V R S
2.2 Setting Up the i3
1Carefully take the i3 out of the box.
2 Take the HDMI cable, and plug one end in the i3.
3Next, take the Ethernet Cable, and plug one end in the i3.
7
V R S
4Take the power supply and plug the round end in the i3.
8
V R S
5With all of the cables and plugs plugged in the i3, take the mount that came with the i3.
6 Remove the screw from the bottom of the i3, remove the silver bracket from the i3.
9
V R S
7Place the i3 on top of the mount, make sure to line up the holes so you can put the screw
back in.
8 Place the mounted i3 on top of the TV you are using for the i3, make adjustments to make sure
the i3 and the mount is safely secured.
9 Once the mounted i3 is safely secured, you can now plug in the opposite side of the HDMI
cable into an available port on your TV.
10 Next, take the opposite end of the Ethernet Cable and plug it in your modem, router or
Powerline. (the one you are using to connect the i3 to the network)
11 Lastly, take the other half of the power adapter, and plug it into the power supply and then plug
the opposite side into a power strip or into an outlet.
12 Insert batteries into the remote.
13 Using your TV remote, find the HDMI channel that your i3 is on.
14 You should see your phone number in the top left corner of your screen.
Now your i3 is set up!
10
V R S
3. Understanding Your New i3
3.1 Camera Settings
When you first receive your i3, it is usually a good idea to set up your preferred camera zoom settings.
*Do not physically move the camera!
1Using the Arrows on the remote, go to the Camera icon in the top right corner to access camera
settings.
2Click OK.
3Click OK again to make changes.
4Use the Zoom in / Zoom Out on the remote to zoom in and out.
5Use the Arrows to move the camera .
6Once your view is set, click on the back button on the remote two times to exit Camera Settings.
