Cisco Nexus C9316D-GX Manuel

Cisco Nexus C9316D-GX ACI-Mode Switch Hardware Installation Guide

First Published: 2017-10-31

Last Modified: 2019-09-30

Americas Headquarters

Cisco Systems, Inc.

170 West Tasman Drive

San Jose, CA 95134-1706

USA

http://www.cisco.com

Tel: 408 526-4000

800 553-NETS (6387)

Fax: 408 527-0883

CONTENTS

Preface vii

PREFACE

Audience vii

Documentation Conventions vii

Documentation Feedback viii

Communications, Services, and Additional Information viii

Overview 1

CHAPTER 1

Overview 1

Preparing the Site 5

CHAPTER 2

Temperature Requirements 5

Humidity Requirements 5

Altitude Requirements 5

Dust and Particulate Requirements 6

Minimizing Electromagnetic and Radio Frequency Interference 6

Shock and Vibration Requirements 7

Grounding Requirements 7

Planning for Power Requirements 7

Airflow Requirements 9

Rack and Cabinet Requirements 9

Clearance Requirements 10

Installing the Chassis 11

CHAPTER 3

Safety 11

Installation Options with Rack-Mount Kits 12

Airflow Considerations 12

Cisco Nexus C9316D-GX ACI-Mode Switch Hardware Installation Guide

iii

Installation Guidelines 12

Unpacking and Inspecting the Switch 14

Installing the Switch Using the NXK-ACC-KIT-1RU Rack-Mount Kit 14

Grounding the Chassis 18

Starting the Switch 19

Connecting the Switch to the Network 21

CHAPTER 4

Overview of Network Connections 21

Connecting a Console to the Switch 21

Creating the Initial Switch Configuration 23

Setting Up the Management Interface 24

Connecting Interface Ports to Other Devices 25

Replacing Components 27

CHAPTER 5

Replacing a Power Supply Module 27

Replacing an AC Power Supply 27

Rack Specifications 29

APPENDIX A

Overview of Racks 29

General Requirements for Cabinets and Racks 29

Requirements Specific to Standard Open Racks 30

Requirements Specific to Perforated Cabinets 30

Cable Management Guidelines 31

System Specifications 33

APPENDIX B

Environmental Specifications 33

Switch Dimensions 33

Switch and Module Weights and Quantities 33

Transceiver and Cable Specifications 34

Switch Power Input Requirements 34

Power Specifications 35

1100-W AC Power Supply Specifications 35

1100-W HVAC/HVDC Power Supply Specifications 35

1100-W DC Power Supply Specifications 36

Cisco Nexus C9316D-GX ACI-Mode Switch Hardware Installation Guide

Contents

Power Cable Specifications 36

Regulatory Standards Compliance Specifications 36

LEDs 39

APPENDIX C

Switch Chassis LEDs 39

Fan Module LEDs 40

Power Supply LEDs 40

Additional Kits 43

APPENDIX D

Rack Mount Kit NXK-ACC-KIT-1RU 43

Cisco Nexus C9316D-GX ACI-Mode Switch Hardware Installation Guide

Contents

Cisco Nexus C9316D-GX ACI-Mode Switch Hardware Installation Guide

Contents

Preface

•Audience, on page vii

•Documentation Conventions, on page vii

•Documentation Feedback, on page viii

•Communications, Services, and Additional Information, on page viii

Audience

This publication is for network administrators who install, configure, and maintain Cisco Nexus switches.

Documentation Conventions

Command descriptions use the following conventions:

DescriptionConvention

Bold text indicates the commands and keywords that you enter literally

as shown.

bold

Italic text indicates arguments for which the user supplies the values.Italic

Square brackets enclose an optional element (keyword or argument).[x]

Square brackets enclosing keywords or arguments separated by a vertical

bar indicate an optional choice.

[x | y]

Braces enclosing keywords or arguments separated by a vertical bar

indicate a required choice.

{x | y}

Nested set of square brackets or braces indicate optional or required

choices within optional or required elements. Braces and a vertical bar

within square brackets indicate a required choice within an optional

element.

[x {y | z}]

Indicates a variable for which you supply values, in context where italics

cannot be used.

variable

Cisco Nexus C9316D-GX ACI-Mode Switch Hardware Installation Guide

vii

DescriptionConvention

A nonquoted set of characters. Do not use quotation marks around the

string or the string will include the quotation marks.

string

Examples use the following conventions:

DescriptionConvention

Terminal sessions and information the switch displays are in screen font.screen font

Information you must enter is in boldface screen font.boldface screen font

Arguments for which you supply values are in italic screen font.italic screen font

Nonprinting characters, such as passwords, are in angle brackets.< >

Default responses to system prompts are in square brackets.[ ]

An exclamation point (!) or a pound sign (#) at the beginning of a line

of code indicates a comment line.

!, #

Documentation Feedback

To provide technical feedback on this document, or to report an error or omission, please send your comments

to . We appreciate your feedback.

Communications, Services, and Additional Information

• To receive timely, relevant information from Cisco, sign up at Cisco Profile Manager.

• To get the business impact you’re looking for with the technologies that matter, visit Cisco Services.

• To submit a service request, visit Cisco Support.

• To discover and browse secure, validated enterprise-class apps, products, solutions and services, visit

Cisco Marketplace.

• To obtain general networking, training, and certification titles, visit Cisco Press.

• To find warranty information for a specific product or product family, access Cisco Warranty Finder.

Cisco Bug Search Tool

Cisco Bug Search Tool (BST) is a web-based tool that acts as a gateway to the Cisco bug tracking system

that maintains a comprehensive list of defects and vulnerabilities in Cisco products and software. BST provides

you with detailed defect information about your products and software.

Cisco Nexus C9316D-GX ACI-Mode Switch Hardware Installation Guide

viii

Preface

Documentation Feedback

CHAPTER 1

Overview

•Overview, on page 1

Overview

The Cisco Nexus 9316D-GX switch (N9K-C9316D-GX) is a 1-RU, fixed-port switch designed for deployment

in data centers. This switch has 16 x 400/100-Gbps QSFP-DD ports.

To determine how to use and configure these ports, see the Cisco Nexus 9000 Series NX-OS Interfaces

Configuration Guide.

To determine which transceivers, adapters, and cables this switch supports, see the Cisco Transceiver Modules

Compatibility Information document.

This switch includes the following user-replaceable components:

• Fan modules (six) with the following airflow choices:

• Port-side exhaust airflow with blue coloring (NXA-FAN-35CFM-PE)

• Port-side intake airflow with red coloring (NXA-FAN-35CFM-PI)

Table 1: Fan Speeds for This Switch

Port-Side Exhaust

Fan Speed %

Port-Side Intake

Fan Speed %

80%60%Typical/Minimum

100%100%Maximum

Note

• Power supply modules (two—One for operations and one for redundancy [1+1]) with the following

choices:

• 1100-W AC power supply with port-side exhaust airflow (blue coloring) (NXA-PAC-1100W-PE2)

•1100-W AC power supply with port-side intake airflow (burgundy coloring) (NXA-PAC-1100W-PI2)

Cisco Nexus C9316D-GX ACI-Mode Switch Hardware Installation Guide

• 1100-W HVAC/HVDC power supply with port-side exhaust airflow (blue coloring)

(NXA-PHV-1100W-PE)

• 1100-W HVAC/HVDC power supply with port-side intake airflow (burgundy coloring)

(NXA-PHV-1100W-PI)

• 1100-W DC power supply with port-side exhaust airflow (blue coloring) (NXA-PDC-1100W-PE)

•1100-W DC power supply with port-side intake airflow (burgundy coloring) (NXA-PDC-1100W-PI)

Both power supplies use the same type of power source. Do not mix AC and DC

power sources.

Note

All fan modules and power supplies must use the same airflow direction during

operations.

Note

In the event that only one power supply is operating in an active system and a

second power supply is inserted, the system fan will slow down to 50% of Max

speed for 12 seconds. It can take up to 10 seconds for the second power supply

to become active. Please do not remove the first power supply during this

time-frame, in order to avoid system shutdown.

Note

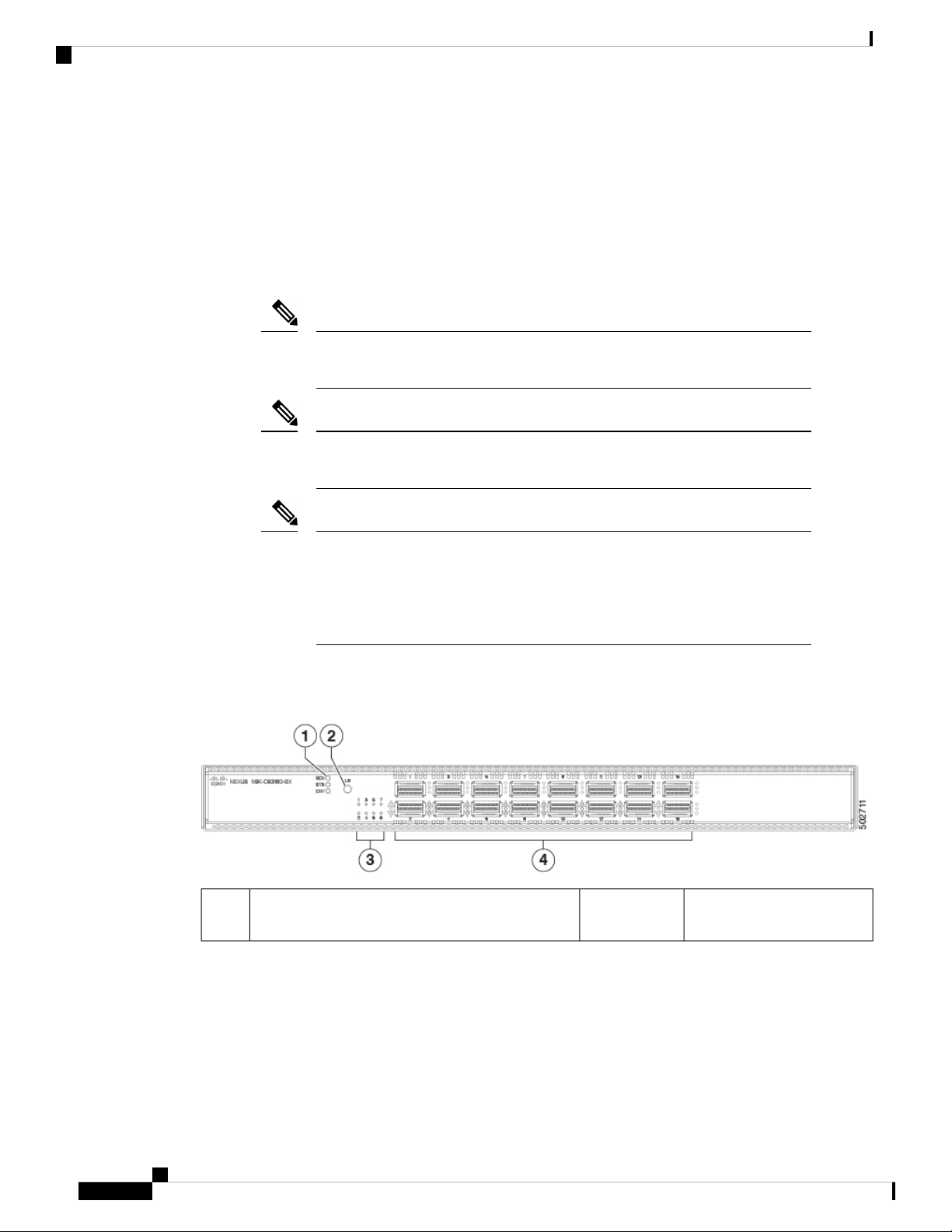

The following figure shows the hardware features seen from the port side of the chassis.

Figure 1: Port Side View of the Cisco Nexus 9316D-GX Switch

Lane selector LEDs3Chassis LEDs (Beacon [BCN], Status [STS], and

Environment [ENV])

Cisco Nexus C9316D-GX ACI-Mode Switch Hardware Installation Guide

Overview
