Cisco Nexus 1000V Manuel utilisateur

Installing Cisco Nexus 1000V for KVM

This chapter contains the following sections:

•Steps to Install the Cisco Nexus 1000V for KVM, page 1

•Installing and Configuring MAAS, page 2

•Installing and Configuring Juju, page 2

•Installing and Configuring the Cloud Archive OpenStack Services, page 3

•Installing and Configuring the Cisco Nexus 1000V for KVM, page 4

•Installing and Configuring the VXLAN Gateway Using Juju Charms, page 4

Steps to Install the Cisco Nexus 1000V for KVM

You can use the following high-level procedure to guide you through the installation process.

Before You Begin

•Decide on a deployment model. See Supported Topologies.

•Make sure that your network, servers, operating system, hypervisor, and MAAS deployment meet the

minimum requirements. See System Requirements.

•Gather the required network information for the Juju configuration file (config.yaml file). See Canonical

documentation at this URL: http://maas.ubuntu.com/docs/install.html.

•Gather the required network information for the global configuration file. See Preparing the Configuration

and Mapping Files.

•Gather any unique network information for the VEMs. See Mapping File Parameters.

Procedure

PurposeCommand or Action

See Installing and Configuring MAAS, on page 2.Install and configure MAAS.

Step 1

Cisco Nexus 1000V for KVM Installation Guide, Release 5.2(1)SK1(2.2)

OL-31677-01 1

PurposeCommand or Action

See Installing and Configuring Juju, on page 2.Install and configure Juju.

Step 2

See Installing and Configuring the Cloud Archive

OpenStack Services, on page 3.

Install and configure the Cloud Archive

OpenStack services.

Step 3

See Installing and Configuring the Cisco Nexus

1000V for KVM, on page 4.

Install and configure the Cisco Nexus

1000V for KVM.

Step 4

(Optional)

See Installing and Configuring the VXLAN Gateway

Using Juju Charms, on page 4.

Install and configure the VXLAN

Gateway.

Step 5

Installing and Configuring MAAS

You need to install and configure MAAS. For detailed information about this procedure, see the Canonical

documentation at this URL: http://maas.ubuntu.com/docs/install.html.

Procedure

Step 1 Install the following MAAS packages.

•maas

•maas-region-controller

•maas-cluster-controller

•maas-dhcp/maas-dns

Step 2 Set up the initial MAAS configuration:

a) Designate the MAAS server API URL.

b) Create a MAAS admin account.

c) Import the boot images (only necessary during the first time setup).

d) Configure DHCP.

e) Configure the immediate upstream switch to be in STP PortFast mode for fast convergence on ports in

the forwarding state.

Installing and Configuring Juju

You need to install and configure Juju. For detailed information about this procedure, see the Canonical

documentation at this URL http://juju.ubuntu.com/install.

The following procedure is required to deploy the Cisco Nexus 1000V for KVM.

Cisco Nexus 1000V for KVM Installation Guide, Release 5.2(1)SK1(2.2)

2OL-31677-01

Installing Cisco Nexus 1000V for KVM

Installing and Configuring MAAS

Procedure

Step 1 Install a stable Juju-core.

Step 2 Synchronize the Juju cloud tool.

Step 3 Configure Juju.

a) Generate the Juju configuration file.

b) Customize the Juju configuration file in MAAS mode.

c) Create a MAAS bootstrap node.

Installing and Configuring the Cloud Archive OpenStack

Services

You install and configure the Cloud Archive OpenStack services using the jujucharm-n1k Debian package

that you get from the Cisco Nexus 1000V for KVM Personal Package Archive.

For more details about this procedure, see the Canonical documentation at http://juju.ubuntu.com/docs/

config-openstack.html.

Procedure

Step 1 Set up the virtual machines, physical servers, and/or local containers based on your deployment model.

Step 2 Enter the following command:

sudo apt-add-repository

"https://user:password@private-ppa.launchpad.net/springfield-team/havana-staging-2013.2.2/ubuntu

main"

Step 3 Enter the following command:

sudo apt-key adv --keyserver hkp://keyserver.ubuntu.com:80 --recv -keys key-id

Step 4 Enter the following command:

sudo apt-get update

Step 5 Enter the following command:

All the charms are contained in the tar file brought in by the jujucharm-n1k.Note

sudo apt-get install jujucharm-n1k

Step 6 Enter the following command:

cd ~

Step 7 Enter the following command:

tar zxf /opt/cisco/n1kv/charms/jujucharm-n1k-precise_5.2.1.sk1.2.2.YYYYMMDDhhmm.tar.gz

Step 8 Enter the following command:

cd ./jujucharm-n1k/charms

Step 9 Deploy the OpenStack services.

Cisco Nexus 1000V for KVM Installation Guide, Release 5.2(1)SK1(2.2)

OL-31677-01 3

Installing Cisco Nexus 1000V for KVM

Installing and Configuring the Cloud Archive OpenStack Services

Certain OpenStack and Cisco Nexus 1000V for KVM services are packaged together in another

charm Debian package that you download and install locally. For information about installing these

services, see Installing and Configuring the Cisco Nexus 1000V for KVM, on page 4.

Note

juju deploy -u --config config-file --repository=. local:precise/service

Installing and Configuring the Cisco Nexus 1000V for KVM

Perform this procedure to install and configure the Cisco Nexus 1000V for KVM on a physical server or as

a VM. To deploy the Cisco Nexus 1000V for KVM on a Cisco Cloud Services Platform, see Installing VSM

on the Cisco Nexus Cloud Services Platform.

Before You Begin

Make sure that you have defined the necessary parameters in the global configuration file and mapping file

for your deployment.

Procedure

Step 1 Deploy the primary VSM.

juju deploy –u --config config-file --repository=. local:precise/vsm vsm-primary

Step 2 Deploy the secondary VSM.

juju deploy –u --config config-file --repository=. local:precise/vsm vsm-secondary

Step 3 Deploy VEMs.

a) juju deploy –u --config config-file --repository=. local:precise/vem

b) juju add-relation nova-compute vem

c) juju add-relation vsm:dvs vem:dvs

d) juju add-relation quantum-gateway vem

e) (Optional) juju set vem mapping=`cat host-mapping-file `

Installing and Configuring the VXLAN Gateway Using Juju

Charms

If you want to deploy the VXLAN Gateway with the Cisco Nexus 1000V for KVM, you can install the

VXLAN Gateway using the vxlan-gateway charm. (Alternatively, you can install the VXLAN Gateway using

an ISO file. For more information, see Installing and Configuring the VXLAN Gateway.)

The VXLAN Gateway is an optional addition to the Cisco Nexus 1000V for KVM deployment.Note

Cisco Nexus 1000V for KVM Installation Guide, Release 5.2(1)SK1(2.2)

4OL-31677-01

Installing Cisco Nexus 1000V for KVM

Installing and Configuring the Cisco Nexus 1000V for KVM

Before You Begin

Make sure that the Nova cloud controller is started before deploying the VXLAN Gateway charm. To start

the Nova cloud controller, use the juju status nova-cloud-controller command.

Procedure

Step 1 Deploy the VXLAN Gateway.

a) juju deploy –u --config config-file --repository=. local:precise/vxlan-gateway

b) juju add-relation nova-cloud-controller vxlan-gateway

Step 2 Configure the VXLAN Gateway data and management interfaces.

For details, see Creating the VXLAN Gateway Data Interface and Creating a VXLAN Gateway Management

Interface.

Cisco Nexus 1000V for KVM Installation Guide, Release 5.2(1)SK1(2.2)

OL-31677-01 5

Installing Cisco Nexus 1000V for KVM

Installing and Configuring the VXLAN Gateway Using Juju Charms

Cisco Nexus 1000V for KVM Installation Guide, Release 5.2(1)SK1(2.2)

6OL-31677-01

Installing Cisco Nexus 1000V for KVM

Installing and Configuring the VXLAN Gateway Using Juju Charms

Autres manuels pour Nexus 1000V

Table des matières

Autres manuels Cisco Changer

Cisco

Cisco 11500 Series Manuel utilisateur

Cisco

Cisco Catalyst WS-C3850-24T-L Instructions d'utilisation et de sécurité

Cisco

Cisco Catalyst 3560 Manuel utilisateur

Cisco

Cisco UNIFIED COMMUNICATIONS UC320W Manuel utilisateur

Cisco

Cisco Catalyst 3560-24TS Manuel utilisateur

Cisco

Cisco Catalyst X5234 Manuel d'exploitation et d'entretien

Cisco

Cisco Catalist 3850 Series Instructions d'utilisation

Cisco

Cisco Catalyst 9600 Series Manuel utilisateur

Cisco

Cisco SRW2008MP Manuel utilisateur

Cisco

Cisco TrustSec Manuel utilisateur

Cisco

Cisco CGS 2520 Manuel

Cisco

Cisco ONS 15600 Manuel utilisateur

Cisco

Cisco MS420-24 Manuel utilisateur

Cisco

Cisco Nexus 9336C-FX2-E Manuel

Cisco

Cisco NCS 4200 Series Manuel utilisateur

Cisco

Cisco Catalyst 3550 Manuel utilisateur

Cisco

Cisco Catalyst 2960-XR Manuel utilisateur

Cisco

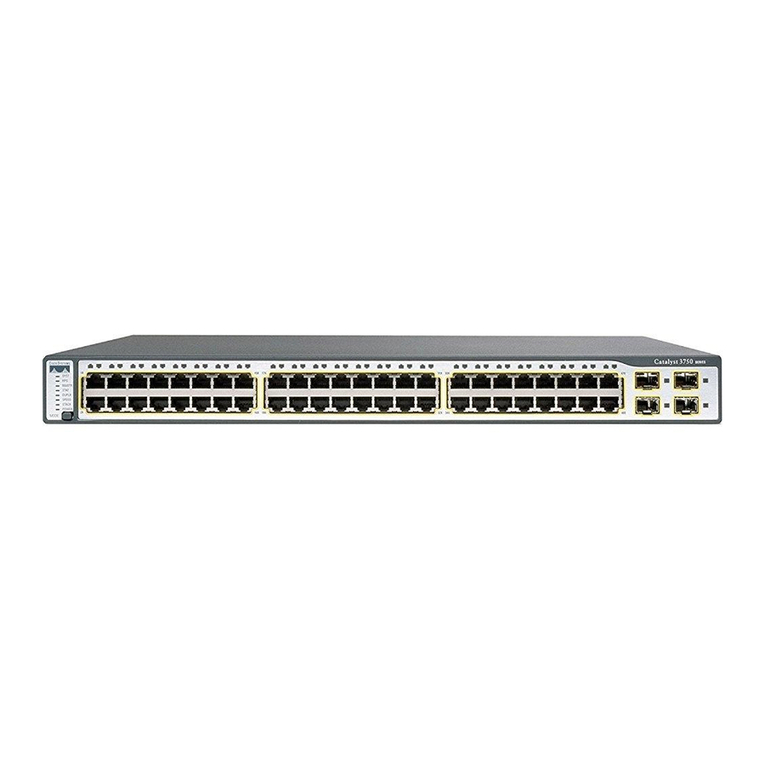

Cisco 3750 - Catalyst EMI Switch Manuel d'installation
