Data Sheet

Cisco SR224 24-Port 10/100 Switch

Cisco Small Business Unmanaged Switches

High-Speed 10/100 Switching for Rack-Mount or Desktop Installation

Highlights

●Designed for small businesses that require speed, reliablity, and simple management

●Connect up to 24 devices - PCs, printers, wireless APs, and servers with autosensing ports

●Works right out of the box with no software to configure

●Suitable for both desktop and rack-mount installation

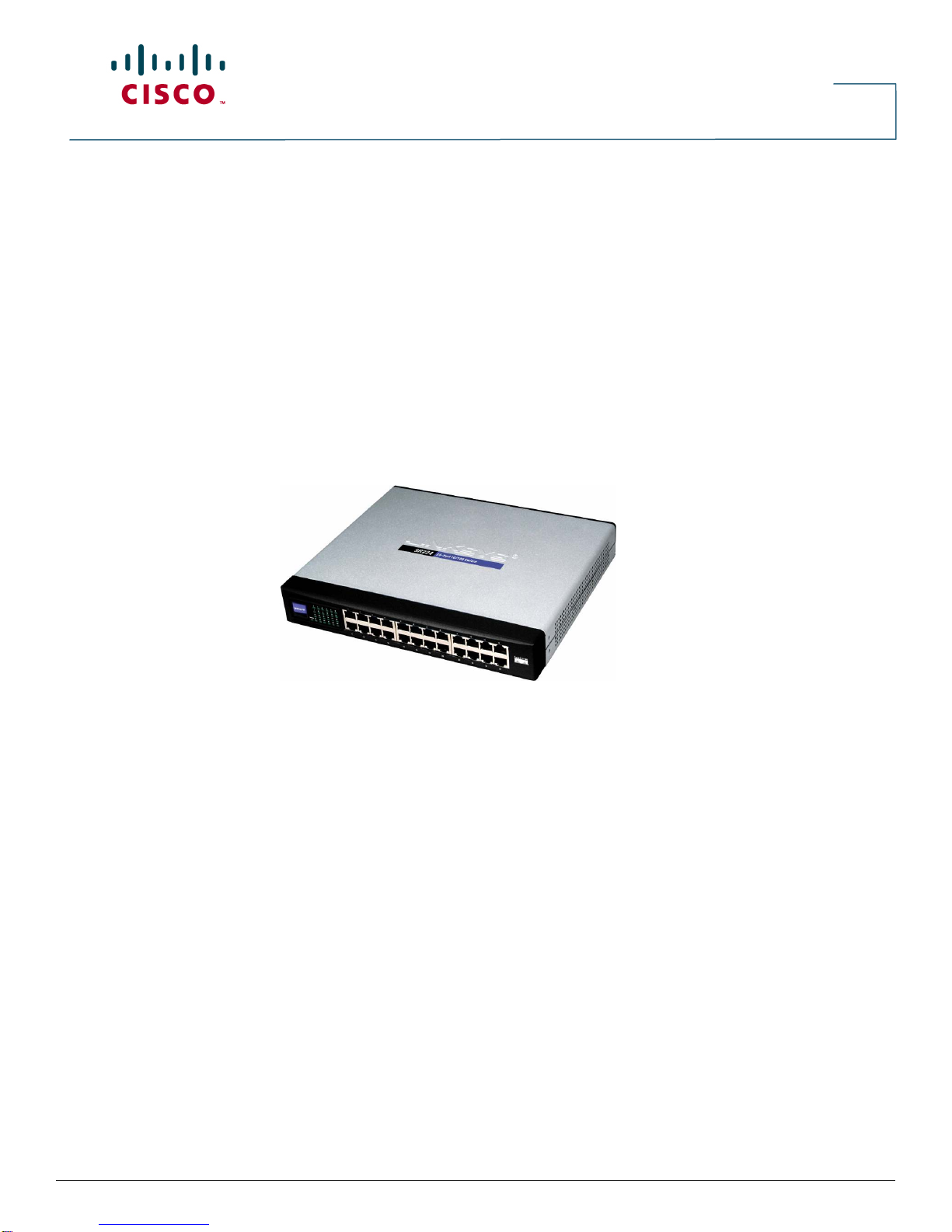

Figure 1. Cisco SR224 24-Port 10/100 Switch: 13-Inch Chassis

Product Overview

With its advanced switching technology, the Cisco®SR224 24-Port 10/100 Switch with a 13-Inch

Chassis (Figure 1) will boost your network performance with much more than just full-duplex data

transfer and dedicated bandwidth. It features nonblocking, wire-speed switching that forwards

packets as fast as your network can deliver them. Also included are Address Learning and Aging

to prevent data transfer errors and Data Flow Control to help prevent packet collisions.

You have several installation options. The compact switch fits onto your desktop, or use the wall-

mount slots to hang it out of the way. If your network equipment is in a rack, install it using the

included rack-mount brackets.

No matter how intensive your network demands, the Cisco®SR224 24-Port 10/100 Switch has

speed, flexibility, and reliability that you can count on.

Features

●Ideal for integrating your 10BASE-T and 100BASE-TX network hardware

●Twenty-four 10/100 ports provide dedicated bandwidth in half- or full-duplex mode

●Switched 10/100 ports run at up to 200 Mbps in full-duplex mode

●Each port supports automatic medium dependent interface (MDI) and MDI crossover (MDI-

X) cable detection

Data Sheet

●Compatible with all major network operating systems

●Advanced store-and-forward packet switching optimizes data transfers

●Auto partitioning protects PCs from downed network lines

●Signal regeneration ensures data transfer integrity

Specifications

Table 1 gives the specifications and package contents for the Cisco SR224 24-Port 10/100 Switch.

Table 1. Specifications for the Cisco SR224 24-Port 10/100 Switch: 13-Inch Chassis

Specifications

Standards IEEE 802.3, IEEE 802.3u

Ports Twenty-four 10/100 RJ-45

Cabling type Category 5 Ethernet or better

LEDs System, 1 through 24

Range 328 feet

Security features Security slot

Environmental

Dimensions

W x H x D 11 x 1.75 x 9.45 in.

(279 x 45 x 240 mm)

Unit weight 3.31 lb (1.5 kg)

Power 100V ~ 240V AC, internal 3.3V/5A

Certification FCC Class B, CE

Operating temperature 32º to 104ºF (0º to 40ºC)

Storage temperature -40º to 158ºF (-40º to 70ºC)

Operating humidity 20% to 95% noncondensing

Storage Humidity 5% to 90% noncondensing

Package Contents

●Cisco SR224 24-Port 10/100 Switch

●AC power cord

●User guide

●Registration card

Product Warranty

Limited lifetime hardware warranty with return to factoryreplacement and 1-year limited warranty for fans and power supplies

Cisco Limited Lifetime Hardware Warranty

Cisco Small Business products offer a limited lifetime hardware warranty with return to factory

replacement and a 1-year limited warranty for fans and power supplies. In addition, Cisco offers

software application updates for bug fixes and telephone technical support at no charge for the first

12 months following the date of purchase. To download software updates, go to:

http://www.cisco.com/go/smallbiz.

Product warranty terms and other information applicable to Cisco products are available at

http://www.cisco.com/go/warranty.

For More Information

For more information on Cisco Small Business products and solutions, visit:

http://www.cisco.com/smallbusiness.

Data Sheet

Printed in USA C78-500626-00 11/08
