Cisco Catalyst 2960-L Series

Easy Setup Guide

1 Connecting PC to Switch

2 Configuring Switch

You can easily set up your switch

in this step-by-step guide.

1-1 Before You Begin

Before you begin the installation, make sure that you have the following equipment:

●Catalyst 2960-L (the switch) ●AC Power Cord

●Ethernet Cable ●PC

Make sure that nothing is connected to the switch and your PC settings are

configured to use DHCP.

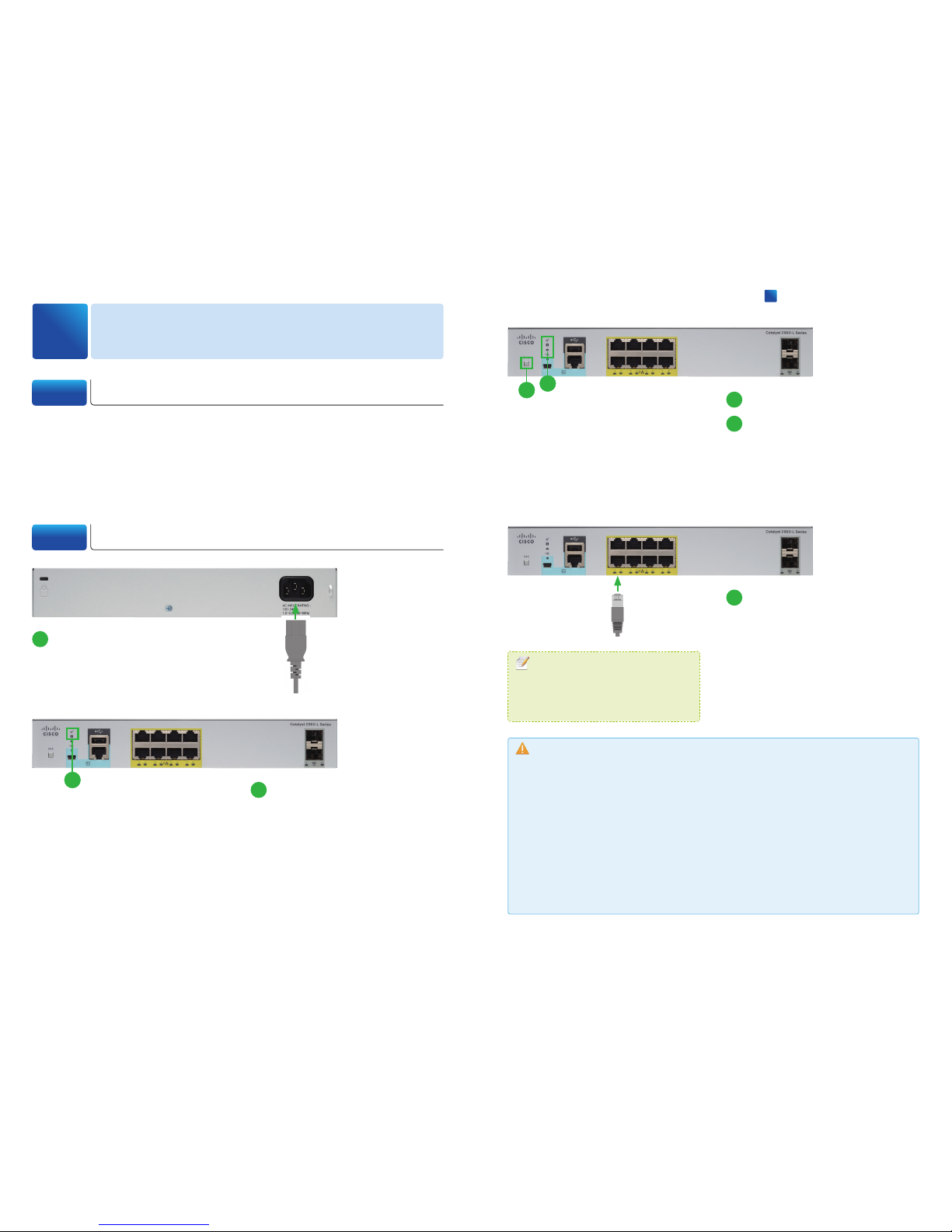

1-2 Connecting PC to Switch

ConnectingPCtoSwitch

1Connect the AC power cord to the

AC power connector of the switch

and a grounded AC outlet.

Power the switch.

2Confirm that the SYST LED and

STAT LED are solid green.

After the switch powers on, it begins

the power-on self-test (POST). During

POST, the each LED blinks. When POST is

completed, the SYST LED and STAT LED

turn solid green.

3Press and hold the Mode button.

4Confirm that all the LEDs turn

green.

Press the Mode button when the SYST

and STAT LED turn green, hold the Mode

button until all the LEDs next to the Mode

button turn green.

5Connect the Ethernet cable to the

Ethernet port of the switch, and

the other end of the cable to the

Ethernet port on your PC.

Wait until the port LEDs on the switch and

your PC are green or blinking green. Green

LEDs indicate a successful connection.

Caution

At step ❷, if the SYST LED does not turn solid green, or turns amber, the switch failed the

POST, reconnect the AC power cord to the switch AC power connector and a grounded AC

outlet. Nevertheless the SYST LED does not turn solid green, or turns amber, contact your

Cisco representative or reseller.

At step ❹, if the LEDs next to the Mode button blink when you press the button, release it.

Blinking LEDs indicate that the switch is already configured and cannot go into Express Setup

mode.

At step ❺, the switch port to connect an Ethernet cable is the RJ-45 Ethernet port, not the

RJ-45 console port. The RJ-45 Ethernet ports are numbered 1 to 8 on the 8-port model, 1 to

16 on the 16-port model, 1 to 24 on the 24-port model, 1 to 48 on the 48-port model.

MEMO

You can confirm the connection by the

"ping 10.0.0.1" command from your PC

to the switch.

Cisco Catalyst 2960-L Series Easy Setup Guide

1Connecting PC to Switch

2-1 Before You Begin

Before you begin the configuration, make sure that you have the following information.

●IP Address of the Default Gateway (Router)

●IP Address and Subnet Mask for the Switch

2-2

Logging in to Configuration Setup Wizard

When you first set up the switch, use the Configuration Setup Wizard to enter the

initial IP information. Launch a Web browser on your PC, and log in to the Web UI.

1Enter the IP address

"10.0.0.1" into a web

browser address bar, and

press Enter key.

The authentication dialog box

appears.

Configuring Switch

Caution

If the authentication dialog box does not appear, make sure that:

・All the LEDs next to the Mode button turn green.

・You connect a straight-through cable to an Ethernet port on the switch and the PC.

・Any pop-up blockers or proxy settings on your browser are disabled and that any

wireless client is disabled on your PC or laptop.

・Your PC settings use DHCP. During the Express Setup mode, the switch acts as a DHCP

server. If your PC has a static IP address, temporarily configure your PC settings to use DHCP.

2-3 Basic Configuration

After logging in to the Web UI, the Configuration Setup Wizard automatically appears

to help you perform initial configuration.

2Enter the default

username "cisco" in the

[Username].

3Enter the default

password "cisco" in the

[Password].

4Click [OK].

The Configuration Setup Wizard

window appears.

1Click [GO TO WIZARD].

The BASIC CONFIGURATION

window appears.

MEMO

The switch has a default IP address "10.0.0.1" and a secondary IP address "10.0.0.3".

Cisco Catalyst 2960-L Series Easy Setup Guide

2Configuring Switch

2Enter a Hostname.

3Enter a Username.

4Enter a Password.

5Enter a Enable Password.

6Select the time and date.

7Click [Interface

Configuration].

The INTERFACE

CONFIGURATION window

appears.

MEMO

The ❺[Enable Password] controls access to the privileged EXEC mode in the CLI (Command

Line Interface).

2-4 Interface Configuration

Configure the interface information. As a minimum information in order to connect the

switch to the network, the [Data Vlan] field is required.

1Enter a Data VLAN ID.

By default, the VLAN ID assigned

to the management interface for

your switch is 1.

2Enter a Voice VLAN ID.

You can skip this step if your

network does not use a VLAN

for voice traffic.

Cisco Catalyst 2960-L Series Easy Setup Guide

2Configuring Switch

3Select Access Ports.

You can skip this step if you want

to use all the RJ-45 Ethernet

ports as access ports.

4Click [PortFast Enable].

You can skip this step.

5Select Uplink Ports.

The uplink port functions as a

trunk port connecting to a switch

or router. You can skip this step.

6Click [Layer 3

Configurations]

The LAYER 3 CONFIGURATION

window appears.

MEMO

You can configure each ports in the Web UI or CLI (Command Line Interface) after

completing the Configuration Setup Wizard.

MEMO

The PortFast immediately

brings ports to the forwarding

state from a blocking state,

bypassing the listening and

learning states.

2-5 Layer 3 Configuration

Configure the Layer 3 information. As a minimum information in order to connect the

switch to the network, the [Default Gateway] field is required.

1Enter the IP address of

the Default Gateway.

2Enter the IP address

and subnet mask for

the switch in the [New

IP] and [Subnet] of

[VlanX] row.

You can configure only one L3

interface on the switch.

3Click

［Advanced

Configuration］.

The ADVANCED

CONFIGURATION window

appears.

MEMO

The step ❷is not required, but recommended. By assigning an IP address to the

switch here, you can easily access to the Web UI by entering the IP address into a web

browser address bar, after completing the Configuration Setup Wizard.

Cisco Catalyst 2960-L Series Easy Setup Guide

2Configuring Switch

2-6 Advanced Configuration

Configure the advanced information.

2-7 Confirming Settings

Review the settings that you configured, save and enable them on the switch.

1Click [Enable Telnet].

2Click [Summary].

The SUMMARY window

appears.

1Click [Submit].

The Redirecting pop-up window

appears. Connect the switch to

your network.

MEMO

If you want to reconfigure the siwtch, you must return the switch to the factory default

settings. You can reset the switch in the CLI (Command Line Interface). In order to

access to the CLI, the following environments are required.

・The terminal-emulation program such as Tera Term, PuTTY, Windows Command

Prompt.

・Connecting the switch and PC directly by the console cable or remotely through

network.

The example below is the commands to reset in case of using Windows Command

Prompt to connect to the switch with Telnet. Bold text indicates commands entered.

C:\Windows\system32>telnet 10.10.10.2 *Enter the IP address of the step 2-5 ❷

Username: cisco *Enter the username of the step 2-3 ❸

Password: cisco *Enter the password of the step 2-3 ❹

cisco#erase startup-config

Erasing the nvram filesystem will remove all configuration files! Continue? [confirm]

[OK]

Erase of nvram: complete

The example below is the commands to reset in case of connecting to the switch by

the console cable and using Tera Term. Bold text indicates commands entered.

cisco>enable

Password: cisco1234 *Enter the enable password of the step 2-3 ❺

cisco#erase startup-config

Erasing the nvram filesystem will remove all configuration files! Continue? [confirm]

[OK]

Erase of nvram: complete

When the "Erase of nvram: completemessage is shown, reboot the switch by

entering the "reload" command or reconnecting the AC power cord.

MEMO

The switch has a new IP address after configuration (the IP address of the step 2-5 ❷).

Your PC still has an IP address which was assigned by the switch during the Express

Setup mode and needs to have an appropriate IP address to reach the new IP address

of the switch. To do so, simply restart your PC.

Cisco Catalyst 2960-L Series Easy Setup Guide

2Configuring Switch

view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word

partner does not imply a partnership relationship between Cisco and any other company. (1110R)

Appendix Transition Guide Settings

The Cisco Catalyst 2960-L Series Switches are ideal for the replacement of the existing Cisco Catalyst Switches, especially Cisco Catalyst 2960-C/SF/S/Plus Series LAN Lite models.

You can upgrade these Fast Ethernet switches to Gigabit Ethernet switches without impairing their functions.

Legacy Models Current Models

Catalyst 2960-C Catalyst 2960-SF Catalyst 2960-S Catalyst 2960-Plus Catalyst 2960-X Catalyst 2960-L

WS-C2960C-8TC-S - - - - WS-C2960L-8TS-LL

-----WS-C2960L-8PS-LL

-----WS-C2960L-16TS-LL

-----WS-C2960L-16PS-LL

- WS-C2960S-F24TS-S WS-C2960S-24TS-S WS-C2960+24TC-S WS-C2960X-24TS-LL WS-C2960L-24TS-AP

---WS-C2960+24LC-S

WS-C2960+24PC-S -WS-C2960L-24PS-AP

- WS-C2960S-F48TS-S WS-C2960S-48TS-S WS-C2960+48TC-S WS-C2960X-48TS-LL WS-C2960L-48TS-AP

- - - WS-C2960+48PST-S - WS-C2960L-48PS-AP
