Cisco C9200CX-8P-2X2G-A Manuel

Cisco Catalyst 9200CX Compact Series Switches Hardware Installation

Guide

First Published: 2022-08-11

Americas Headquarters

Cisco Systems, Inc.

170 West Tasman Drive

San Jose, CA 95134-1706

USA

http://www.cisco.com

Tel: 408 526-4000

800 553-NETS (6387)

Fax: 408 527-0883

Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Cisco Catalyst

C9200CX C9200CX-8P-2X2G-A o cerca il tuo prodotto tra le migliori offerte di Switch

CONTENTS

Preface v

PREFACE

Document Conventions v

Related Documentation vii

Obtaining Documentation and Submitting a Service Request vii

Product Overview 1

CHAPTER 1

Switch Models 1

Front Panel Components 1

10/100/1000 Ports 3

PoE and PoE+ Ports 3

C9200CX-12T only PD Port 4

USB Type A Port 4

USB Micro-B Port 4

SD Card Slot 4

Uplink Ports 5

Rear Panel 6

RFID Tag 6

Auxiliary Power Adapter 6

Internal Power Supply 7

Network Configurations 7

Preparing for Installation 9

CHAPTER 2

Safety Warnings 9

Installation Guidelines 11

Site Requirements 12

Cisco Catalyst 9200CX Compact Series Switches Hardware Installation Guide

Contents

Temperature 12

Humidity 13

Altitude 13

Dust and Particles 13

Air Quality 13

Corrosion 14

EMI and Radio Frequency Interference 15

Power Source Interruptions 16

System Grounding 17

Maintaining Safety with Electricity 18

Verifying Switch Operation 19

Installing a Compact Switch 21

CHAPTER 3

Shipping Box Contents 21

Mounting the Switch 23

Mounting on a Desk or Shelf Without Mounting Screws 23

Mounting using the Mounting Tray and Screws 24

Mounting using the Mounting Tray and Magnet 27

Mounting Under a Desk or a Shelf 30

Mounting the Switch Using Rack Mount Brackets 34

Mounting the Switch on a DIN Rail 35

Connecting the System Ground 37

Attaching the Adapter Bracket to the Switch (Optional) 38

Installing the Power Cord Retainer (Optional) 41

Installing the Cable Guard (Optional) 43

Installing an SFP or SFP+ Module 45

10/100/1000 PoE and PoE+Port Connections 46

10/100/1000 Ethernet Port Connections 47

Auto-MDIX Connections 48

Configuring the Switch 49

CHAPTER 4

Configuring the Switch Using the Web User Interface 49

Configuring the Switch Using the CLI 49

Accessing the CLI Through the Console Port 49

Cisco Catalyst 9200CX Compact Series Switches Hardware Installation Guide

iii

Contents

Connecting the RJ45 Console Port 49

Connecting the USB Console Port 50

Installing the Microsoft Windows USB Device Driver 50

Installing the Cisco Microsoft Windows USB Driver 51

Uninstalling the Cisco Microsoft Windows USB Driver 51

Technical Specifications 53

APPENDIX A

Environmental and Physical Specifications 53

Switch LEDs 55

APPENDIX B

LEDs 55

System LED 56

Status (STAT) LED 57

Speed LED 57

PoE LED 57

Port LEDs and Modes 57

PD Power LED 59

Beacon LED 59

Cisco Catalyst 9200CX Compact Series Switches Hardware Installation Guide

Contents

Preface

This preface describes the conventions of this document and information on how to obtain other documentation.

It also provides information on what's new in Cisco product documentation.

•Document Conventions , on page v

•Related Documentation, on page vii

•Obtaining Documentation and Submitting a Service Request, on page vii

Document Conventions

This document uses the following conventions:

DescriptionConvention

Both the ^symbol and Ctrl represent the Control (Ctrl) key on a keyboard. For

example, the key combination ^D or Ctrl-Dmeans that you hold down the Control

key while you press the D key. (Keys are indicated in capital letters but are not

case sensitive.)

^ or Ctrl

Commands and keywords and user-entered text appear in bold font.bold font

Document titles, new or emphasized terms, and arguments for which you supply

values are in italic font.

Italic font

Terminal sessions and information the system displays appear in courier font.Courier font

Bold Courier font indicates text that the user must enter.Bold Courier font

Elements in square brackets are optional.[x]

An ellipsis (three consecutive nonbolded periods without spaces) after a syntax

element indicates that the element can be repeated.

...

A vertical line, called a pipe, indicates a choice within a set of keywords or

arguments.

Optional alternative keywords are grouped in brackets and separated by vertical

bars.

[x | y]

Cisco Catalyst 9200CX Compact Series Switches Hardware Installation Guide

DescriptionConvention

Required alternative keywords are grouped in braces and separated by vertical

bars.

{x | y}

Nested set of square brackets or braces indicate optional or required choices within

optional or required elements. Braces and a vertical bar within square brackets

indicate a required choice within an optional element.

[x {y | z}]

A nonquoted set of characters. Do not use quotation marks around the string or

the string will include the quotation marks.

string

Nonprinting characters such as passwords are in angle brackets.< >

Default responses to system prompts are in square brackets.[ ]

An exclamation point (!) or a pound sign (#) at the beginning of a line of code

indicates a comment line.

!, #

Reader Alert Conventions

This document may use the following conventions for reader alerts:

Means reader take note. Notes contain helpful suggestions or references to material not covered in the

manual.

Note

Means the following information will help you solve a problem.

Tip

Means reader be careful. In this situation, you might do something that could result in equipment damage

or loss of data.

Caution

Means the described action saves time. You can save time by performing the action described in the

paragraph.

Timesaver

IMPORTANT SAFETY INSTRUCTIONS

Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be

familiar with standard practices for preventing accidents. Read the installation instructions before using,

installing, or connecting the system to the power source. Use the statement number provided at the end

of each warning statement to locate its translation in the translated safety warnings for this device.

Statement 1071

SAVE THESE INSTRUCTIONS

Warning

Cisco Catalyst 9200CX Compact Series Switches Hardware Installation Guide

Preface

Related Documentation

Cisco Catalyst 9200CX Compact Series Switches Hardware Installation Guide

viii

Preface

Obtaining Documentation and Submitting a Service Request

CHAPTER 1

Product Overview

•Switch Models, on page 1

•Front Panel Components, on page 1

•Rear Panel, on page 6

•Network Configurations, on page 7

Switch Models

The Cisco Catalyst 9200CX Series switches have three compact (C9200CX) switch models. The following

tables describe all the available Cisco Catalyst 9200CX Series switches and the features supported.

Table 1: C9200CX Compact Switch Models and Descriptions

DescriptionSwitch Model

8x1G PoE+ ports; 2x1G and 2x10G SFP+ fixed uplink ports; powered

using 315W internal power supply unit; fanless.

C9200CX-8P-2X2G

12x1G PoE+ ports; 2x1G and 2x10G SFP+ fixed uplink ports;

powered using 315W internal power supply unit; fanless.

C9200CX-12P-2X2G

12x1G Ethernet ports; 3x1G Copper and 2x10G SFP+ uplink ports;

provides power either from one of the 3 copper uplink ports as Class

6 PD port or using an external auxiliary power adapter; fanless.

C9200CX-12T-2X2G

Front Panel Components

This section describes the front panel components of Cisco Catalyst 9200CX Series switches :

• 8 or 12 downlink ports of one of the following types:

• 10/100/1000

• 10/100/1000 PoE+

• 1G/10G Uplink ports

Cisco Catalyst 9200CX Compact Series Switches Hardware Installation Guide

• USB Type A storage port

• USB micro-Type B console port

• LEDs

• Blue Beacon

• SD card slot

• Internal power supply connector for compact switches

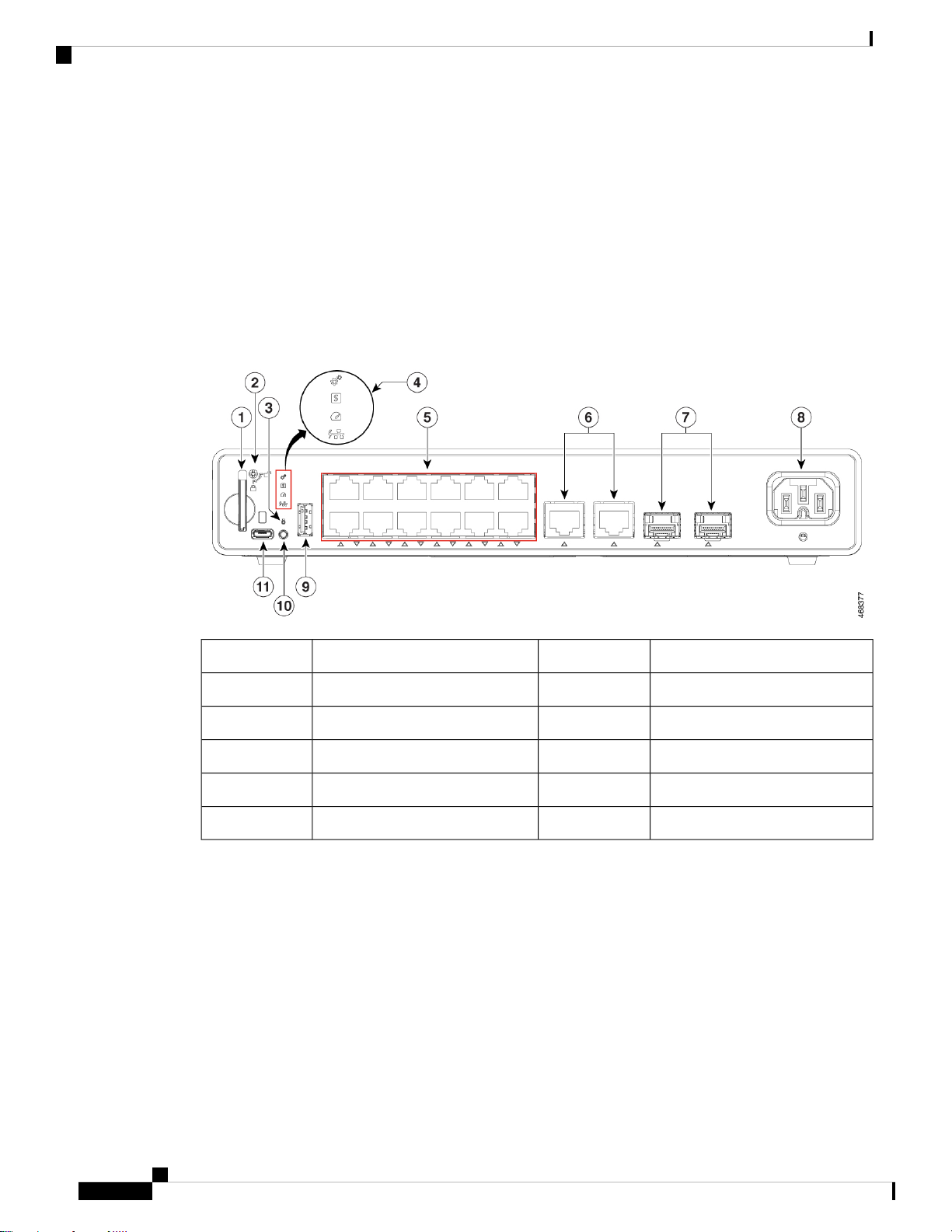

Front Panel of a C9200CX-12P-2X2G Switch

2x10G SFP+ uplink ports7SD Card slot1

Internal power supply connector8SD Card security lock2

USB Type A connector9Blue Beacon3

Mode button10Status LEDs4

USB micro-Type B (console) port1110/100/1000 PoE+ ports5

--2x1G copper uplink ports6

Cisco Catalyst 9200CX Compact Series Switches Hardware Installation Guide

Product Overview

Front Panel Components
