Preparing for Installation
•Safety Recommendations and Warnings, on page 1
•Safety with Electricity, on page 2
•Site Requirements, on page 3
•Mounting Requirements, on page 4
•Power Guidelines and Requirements, on page 5
•Network Cabling Specification, on page 5
•Required Tools and Equipment, on page 5
Safety Recommendations and Warnings
Review the safety warnings listed in Regulatory Compliance and Safety Information for the Cisco 5100
Enterprise Network Compute System before installing, configuring, or maintaining the device.
Please read the following safety guidelines before you install this product:
This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work
on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard
practices for preventing accidents. Use the statement number provided at the end of each warning to locate
its translation in the translated safety warnings that accompanied this device. Statement 1071
Warning
Read the installation instructions before you connect the system to its power source. Statement 1004
Warning
Ultimate disposal of this product should be handled according to all national laws and regulations. Statement
1040
Warning
Installation of the equipment must comply with local and national electrical codes. Statement 1074
Warning
Preparing for Installation
1
Always follow these electrostatic discharge (ESD) prevention procedures when removing and replacing
modules:
• Ensure that the chassis is electrically connected to ground.
• Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact. Connect the clip to an
unpainted surface of the chassis frame to channel unwanted ESD voltages safely to ground. To guard
against ESD damage and shocks, the wrist strap and cord must operate effectively.
• If no wrist strap is available, ground yourself by touching a metal part of the chassis.
For the safety of your equipment, periodically check the resistance value of the anti-static strap. It should be
between 1 and 10 megohms (Mohm).
Note
Safety with Electricity
Follow these general guidelines when working on equipment that is powered by electricity:
• Locate the emergency power-off switch in the room in which you are working. If an electrical accident
occurs, you can quickly turn off the power.
• Disconnect all power before doing the following:
• Installing or removing a chassis.
• Working near power supplies.
• Look carefully for possible hazards in your work area, such as moist floors, ungrounded power extension
cables, frayed power cords, and missing safety grounds.
• Do not work alone if hazardous conditions exist.
• Never assume that power is disconnected from a circuit. Always check.
• Never open the enclosure of the internal power supply.
• If an electrical accident occurs, proceed as follows:
• Turn off power to the device.
• Call for help.
•Determine if the person needs rescue breathing or external cardiac compressions; then take appropriate
action.
Follow these guidelines when working with any equipment that is disconnected from a power source but is
still connected to telephone wiring or other network cabling:
• Never install telephone wiring during a lightning storm.
• Never install telephone jacks in wet locations unless the jack is specifically designed for it.
Preparing for Installation
2
Preparing for Installation
Safety with Electricity
• Never touch uninsulated telephone wires or terminals unless the telephone line is disconnected at the
network interface.
• Use caution when installing or modifying telephone lines.
• Remove power cables from all installed power supplies before opening the chassis.
Always follow these electrostatic discharge (ESD) prevention procedures when removing and replacing
modules:
• Ensure that the router chassis is electrically connected to ground.
• Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact. Connect the clip to an
unpainted surface of the chassis frame to channel unwanted ESD voltages safely to ground. To guard
against ESD damage and shocks, the wrist strap and cord must operate effectively.
• If no wrist strap is available, ground yourself by touching a metal part of the chassis.
For the safety of your equipment, periodically check the resistance value of the anti-static strap. It should be
between 1 and 10 megohms (Mohm).
Caution
Site Requirements
Follow the general precautions listed below when installing or working with your device:
• Do not block cooling vents.
• Route system cables, and the power supply cable and plug so that they cannot be stepped on or tripped
over. Be sure that nothing else rests on your system component cables or power cable.
• If you turn off your system, wait at least 30 seconds before turning it on again to avoid system component
damage.
•
This product relies on the building’s installation for short-circuit (overcurrent)
protection. Ensure that the protective device is rated not greater than: 20A
Statement 1005
Warning
•
To prevent the system from overheating, do not operate it in an area that exceeds
the maximum recommended ambient temperature of: 40 degrees C. Statement
1047
Warning
Temperature, humidity, altitude, and vibration can affect the performance and reliability of the chassis. After
installation, ensure that the site maintains the environmental characteristics shown in this table:
Preparing for Installation
3
Preparing for Installation
Site Requirements
MaximumMinimumEnvironmental Characteristic
40 degree C
(40 degrees C at 10,000
feet)
0 degree CSteady State Operating
+70 degrees C-20 degrees CStorage
90%10%Humidity operating (noncondensing)
95%5%Humidity nonoperating (noncondensing)
10,000 feet-500 feetAltitude operating: over allowable temperature range
(0 to 40 degrees C)
50,000 feet-1000 feetAltitude, nonoperating: over allowable temperature
range
+70 degrees C-25 degrees CThermal shock non-operating with change over time
of 3 minute
+40 degrees C0 degrees CThermal Shock - Operating at 2.5 degree C per minute
Mounting Requirements
The height, width, depth and weight of the chassis are displayed in this table:
MeasurementCharacteristic
1.73 inches (4.39 cm) — 1RU rack-mountHeight
12.70 inches (32.258 cm)Width
10.0 inches (25.4 cm)Depth
6.6 lbs. (2.99 kg)Weight
To place the system in a proper location, it is necessary to know the dimensions of the device's chassis.
The Cisco 5100 ENCS can be placed on a desktop or installed in a rack. The mounting ears for the device are
designed for #12-24 UNC screws.
The location of your device and the layout of your equipment rack or wiring room are extremely important
considerations for proper operation. Equipment placed too close together, inadequate ventilation, and
inaccessible panels can cause malfunctions and shutdowns, and can make maintenance difficult. Plan for
access to both front and rear panels of the device.
This information can help you plan the rack configuration for your equipment:
• Allow clearance around the rack for maintenance.
• Allow at least one rack unit of vertical space between devices.
Preparing for Installation
4
Preparing for Installation
Mounting Requirements
•Enclosed racks must have adequate ventilation. Ensure that the rack is not congested, because each device
generates heat. An enclosed rack should have louvered sides and a fan to provide cooling air. Heat
generated by equipment near the bottom of the rack can be drawn upward into the intake ports of the
equipment above it.
• When mounting a chassis in an open rack, ensure that the rack frame does not block the intake or exhaust
ports. If the chassis is installed on slides, check the position of the chassis when it is seated in the rack.
Power Guidelines and Requirements
Check the power at your site to ensure that you are receiving "clean" power (free of spikes and noise). Install
a power conditioner if necessary.
The AC power supply supports either 110V or 220V operation. All units include a 6-foot (1.8-meter) electrical
power cord.
Network Cabling Specification
• Ethernet cables for RJ45 ports
• Serial or console cables used to connect devices like routers
• Shielded USB cables with properly terminated shields for the USB port
Required Tools and Equipment
You will need the following equipment to install the device and its equipment:
• ESD-preventive cord and wrist strap
• Phillips screwdrivers: small, 3/16-in. (4 to 5 mm), and medium, 1/4-in. (6 to 7 mm)
• Screws that fit your rack
• Wire crimper for chassis grounding - to be used along with the ground lug kit
• One 14 AWG cable for the ground lug kit
In addition, depending on the type of modules you plan to use, you might need the following equipment to
connect a port to an external network
• Cables for connection to the WAN and LAN ports (dependent on the configuration)
If you order the required cables when you purchase the device, the cables ship
along with the product.
Note
Preparing for Installation
5
Preparing for Installation
Power Guidelines and Requirements
Preparing for Installation
6
Preparing for Installation
Required Tools and Equipment
Autres manuels pour 5100
1
Table des matières
Autres manuels Cisco Serveur
Cisco

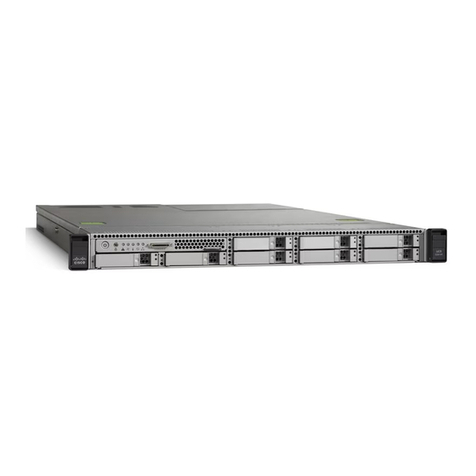

Cisco C220 Manuel
