Installing the Controller

This chapter describes how to install the controller.

IMPORTANT SAFETY INSTRUCTIONS

This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work

on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard

practices for preventing accidents. Use the statement number provided at the end of each warning to locate

its translation in the translated safety warnings that accompanied this device.

Statement 1071

Warning

SAVE THESE INSTRUCTIONS

•Unpacking and Inspecting the Controller, on page 1

•Preparing for Controller Installation, on page 2

•Installing the Controller In a Rack, on page 5

•Initial Controller Setup , on page 9

•System BIOS and Cisco IMC Firmware, on page 9

Unpacking and Inspecting the Controller

When handling internal controller components, wear an ESD strap and handle modules by the carrier edges

only.

Caution

Keep the shipping container in case the controller requires shipping in the future.

Tip

The chassis is thoroughly inspected before shipment. If any damage occurred during transportation or any

items are missing, contact your customer service representative immediately.

Note

Installing the Controller

Step 1 Remove the controller from its container and save all packaging material.

Step 2 Compare the shipment to the equipment list provided by your customer service representative. Verify that you have all

items.

Step 3 Check for damage and report any discrepancies or damage to your customer service representative. Have the following

information ready:

• Invoice number of shipper (see the packing slip)

• Model and serial number of the damaged unit

• Description of damage

• Effect of damage on the installation

Preparing for Controller Installation

This section provides information about preparing for controller installation.

Installation Guidelines

Read the installation instructions before using, installing or connecting the system to the power source.

Statement 1004

Warning

This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that the

protective device is rated not greater than: 20A. Statement 1005

Warning

The plug-socket combination must be accessible at all times, because it serves as the main disconnecting

device. Statement 1019

Warning

A readily accessible two-poled disconnect device must be incorporated in the fixed wiring. This is applicable

to systems with DC power supply only. Statement 1022

Warning

This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence

of a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician

if you are uncertain that suitable grounding is available. Statement 1024

Warning

Installing the Controller

Preparing for Controller Installation

This unit might have more than one power supply connection. All connections must be removed to de-energize

the unit. Statement 1028

Warning

Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement

1030

Warning

Ultimate disposal of this product should be handled according to all national laws and regulations. Statement

1040

Warning

To prevent the system from overheating, do not operate it in an area that exceeds the maximum recommended

ambient temperature of: 40° C (104° F). Statement 1047

Warning

Invisible Laser Radiation. Do not expose users of telescopic optics. Class 1/1M Laser Products. Statement

1055

Warning

Invisible laser radiation may be emitted from the end of the unterminated fiber cable or connector. Do not

view directly with optical instruments. Viewing the laser output with certain optical instruments (for example,

eye loupes, magnifiers, and microscopes) within a distance of 100 mm may pose an eye hazard. Statement

1056

Warning

Installing the Controller

Installation Guidelines

Installation of the equipment must comply with local and national electrical codes. Statement 1074

Warning

Pluggable optical modules comply with IEC 60825-1 Ed. 3 and 21 CFR 1040.10 and 1040.11 with or without

exception for conformance with IEC 60825-1 Ed. 3 as described in Laser Notice No. 56, dated May 8, 2019.

Statement 1255

Warning

To ensure proper airflow it is necessary to rack the controllers using rail kits. Physically placing the units on

top of one another or “stacking” without the use of the rail kits blocks the air vents on top of the controllers,

which could result in overheating, higher fan speeds, and higher power consumption. We recommend that

you mount your controllers on rail kits when you are installing them into the rack because these rails provide

the minimal spacing required between the controllers. No additional spacing between the controllers is required

when you mount the units using rail kits.

Caution

Avoid UPS types that use ferroresonant technology. These UPS types can become unstable with systems such

as the Cisco UCS, which can have substantial current draw fluctuations from fluctuating data traffic patterns.

Caution

Rack Requirements

This section provides the requirements for the standard open racks.

The rack must be of the following type:

• A standard 19-in. (48.3-cm) wide, four-post EIA rack, with mounting posts that conform to English

universal hole spacing, per section 1 of ANSI/EIA-310-D-1992.

•The rack post holes can be square 0.38-inch (9.6 mm), round 0.28-inch (7.1 mm), #12-24 UNC, or #10-32

UNC when you use the supplied slide rails.

• The minimum vertical rack space per controller must be two RUs, equal to 3.5 in. (88.9 mm).

Equipment Requirements

The slide rails supplied by Cisco Systems for this controller do not require tools for installation if you install

them in a rack that has square 0.38-inch (9.6 mm), round 0.28-inch (7.1 mm), or #12-24 UNC threaded holes.

Slide Rail Adjustment Range

The slide rails for this controller have an adjustment range of 26 to 36 inches (660 to 914 mm).

Installing the Controller

Rack Requirements

Installing the Controller In a Rack

Installing the Slide Rails

This section describes how to install the controller in a rack using the rack kits that are sold by Cisco.

To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to

ensure that the system remains stable. The following guidelines are provided to ensure your safety:

This unit should be mounted at the bottom of the rack if it is the only unit in the rack.

When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest

component at the bottom of the rack.

If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in

the rack.

Statement 1006

Warning

Step 1 Attach the inner rails to the sides of the controller:

a) Align an inner rail with one side of the controller so that the three keyed slots in the rail align with the three pegs on

the side of the controller.

b) Set the keyed slots over the pegs, and then slide the rail toward the front to lock it in place on the pegs. The front slot

has a metal clip that locks over the front peg.

c) Install the second inner rail to the opposite side of the controller.

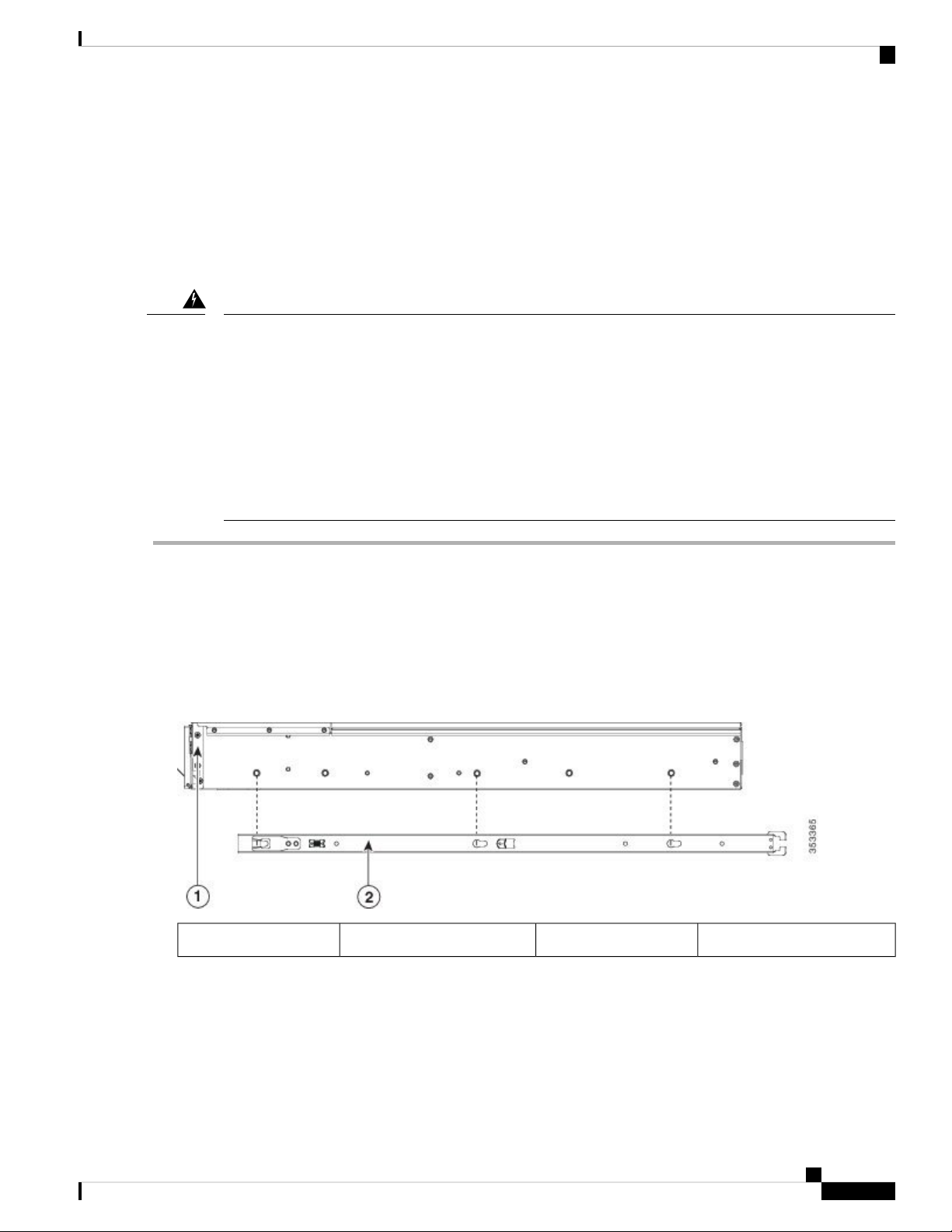

Figure 1: Attaching Inner Rail to Side of Controller

Locking clip on inner rail2Front of controller1

Step 2 Open the front securing plate on both slide-rail assemblies. The front end of the slide-rail assembly has a spring-loaded

securing plate that must be open before you can insert the mounting pegs into the rack-post holes.

On the outside of the assembly, push the green arrow button toward the rear to open the securing plate.

Installing the Controller

Installing the Controller In a Rack

Figure 2: Front Securing Mechanism, Inside of Front End

Securing plate shown pulled back to

open position

3Front mounting pegs1

Rack post2

Step 3 Install the slide rails into the rack:

a) Align one slide-rail assembly front end with the front rack-post holes that you want to use.

The slide rail front-end wraps around the outside of the rack post and the mounting pegs enter the rack-post holes

from the outside-front (see Figure 2: Front Securing Mechanism, Inside of Front End, on page 6).

The rack post must be between the mounting pegs and the open securing plate.

Note

b) Push the mounting pegs into the rack-post holes from the outside-front.

c) Press the securing plate release button, marked “PUSH.” The spring-loaded securing plate closes to lock the pegs in

place.

d) Adjust the slide-rail length, and then push the rear mounting pegs into the corresponding rear rack-post holes. The

slide rail must be level front-to-rear.

The rear mounting pegs enter the rear rack-post holes from the inside of the rack post.

e) Attach the second slide-rail assembly to the opposite side of the rack. Ensure that the two slide-rail assemblies are at

the same height with each other and are level front-to-back.

f) Pull the inner slide rails on each assembly out toward the rack front until they hit the internal stops and lock in place.

Step 4 Insert the controller into the slide rails:

This controller can weigh up to 44 pounds (approximately 20 kilograms) when fully loaded with components.

We recommend that you use a minimum of two people or a mechanical lift when lifting the controller. Attempting

this procedure alone could result in personal injury or equipment damage.

Caution

a) Align the rear of the inner rails that are attached to the controller sides with the front ends of the empty slide rails on

the rack.

b) Push the inner rails into the slide rails on the rack until they stop at the internal stops.

c) Slide the release clip toward the rear on both inner rails (Figure 3: Inner Rail Release Clip, on page 7), and then

continue pushing the controller into the rack until its front slam latches engage with the rack posts.

Installing the Controller

Installing the Slide Rails

Figure 3: Inner Rail Release Clip

Outer rail attached to rack post3Inner rail release clip1

Inner rail attached to controller2

Step 5 (Optional) Secure the controller in the rack more permanently by using the two screws that are provided with the slide

rails. Perform this step if you plan to move the rack with controllers installed.

With the controller fully pushed into the slide rails, open a hinged slam latch lever on the front of the controller and insert

the screw through the hole that is under the lever. The screw threads into the static part of the rail on the rack post and

prevents the controller from being pulled out. Repeat for the opposite slam latch.

Installing the Cable Management Arm (Optional)

The CMA is reversible left to right. To reverse the CMA, see Reversing the Cable Management Arm (Optional),

on page 8 before installation.

Note

Step 1 With the controller pushed fully into the rack, slide the CMA tab of the CMA arm that is farthest from the controller onto

the end of the stationary slide rail that is attached to the rack post (see Figure 4: Attaching the Cable Management Arm

to the Rear of the Slide Rails, on page 8). Slide the tab over the end of the rail until it clicks and locks.

Step 2 Slide the CMA tab that is closest to the controller over the end of the inner rail that is attached to the controller (see Figure

4: Attaching the Cable Management Arm to the Rear of the Slide Rails, on page 8). Slide the tab over the end of the

rail until it clicks and locks.

Step 3 Pull out the width-adjustment slider that is at the opposite end of the CMA assembly until it matches the width of your

rack (see Figure 4: Attaching the Cable Management Arm to the Rear of the Slide Rails, on page 8).

Step 4 Slide the CMA tab that is at the end of the width-adjustment slider onto the end of the stationary slide rail that is attached

to the rack post (see Figure 4: Attaching the Cable Management Arm to the Rear of the Slide Rails, on page 8). Slide

the tab over the end of the rail until it clicks and locks.

Step 5 Open the hinged flap at the top of each plastic cable guide and route your cables through the cable guides as desired.

Installing the Controller

Installing the Cable Management Arm (Optional)

Figure 4: Attaching the Cable Management Arm to the Rear of the Slide Rails

CMA tab on width-adjustment slider

and end of stationary outer slide rail

3CMA tab on arm farthest from controller

and end of stationary outer slide rail

Rear of controller4CMA tab on arm closest to the controller

and end of inner slide rail attached to

controller

Reversing the Cable Management Arm (Optional)

Step 1 Rotate the entire CMA assembly 180 degrees. The plastic cable guides must remain pointing upward.

Step 2 Flip the tabs at the end of each CMA arm so that they point toward the rear of the controller.

Step 3 Pivot the tab that is at the end of the width-adjustment slider. Depress and hold the metal button on the outside of the tab

and pivot the tab 180 degrees so that it points toward the rear of the controller.

Installing the Controller

Reversing the Cable Management Arm (Optional)

Figure 5: Reversing the CMA

Metal button for rotating2CMA tab on end of width-adjustment slider1

Initial Controller Setup

For instructions on performing initial setup of controller, see the Cisco 8540 Wireless Controller Deployment

Guide .

System BIOS and Cisco IMC Firmware

Updating the BIOS and Cisco IMC Firmware

The BIOS and Cisco IMC firmware need not be upgraded when you first bring up the unit.

When you upgrade the BIOS firmware, you must also upgrade the Cisco IMC firmware to the same version

or the controller does not boot. Do not power off the controller until the BIOS and Cisco IMC firmware are

matching or the controller does not boot.

Cisco provides the Cisco Host Upgrade Utility to assist with simultaneously upgrading the BIOS, Cisco IMC,

and other firmware to compatible levels.

Caution

After the firmware is upgraded, do not reset the system to factory default. Doing so will delete the initial BIOS

setup and boot orders.

Warning

The controller uses firmware obtained from and certified by Cisco. Cisco provides release notes with each

firmware image.

Installing the Controller

Initial Controller Setup

The only supported method to update the firmware is using the Cisco Host Upgrade Utility.

Accessing the System BIOS

You can change the BIOS settings for your controller. Detailed instructions are also printed on the BIOS

screens.

Step 1 Enter the BIOS setup utility by pressing the F2 key when prompted during bootup.

The version and build of the current BIOS are displayed on the Main page of the utility.

Note

Step 2 Use the arrow keys to select the BIOS menu page.

Step 3 Highlight the field to be modified by using the arrow keys.

Step 4 Press Enter to select the field that you want to change, and then modify the value in the field.

Step 5 Press the right arrow key until the Exit menu screen is displayed.

Step 6 Follow the instructions on the Exit menu screen to save your changes and exit the setup utility (or Press F10). You can

exit without saving changes by pressing Esc.

Installing the Controller

Accessing the System BIOS

Autres manuels pour 8540 - Catalyst Campus Switch Router Modular Expansion...

Table des matières

Autres manuels Cisco Contrôleurs

Cisco

Cisco 2100 Series Manuel utilisateur

Cisco

Cisco 521G - Unified IP Phone VoIP Manuel utilisateur

Cisco

Cisco ONS 15454 DWDM Manuel utilisateur

Cisco

Cisco SCE 2000 Manuel de l'opérateur

Cisco

Cisco 2505 Manuel utilisateur

Cisco

Cisco Identiv ICPAM EM-100 Manuel utilisateur

Cisco

Cisco SCE 1000 and Manuel utilisateur

Cisco

Cisco Firepower 4100 Series Manuel utilisateur

Cisco

Cisco Cisco mds 9216 - fabric switch Manuel utilisateur

Cisco

Cisco 5520 Guide de référence rapide

Cisco

Cisco CLG-8202-SEC Manuel utilisateur

Cisco

Cisco Catalyst 8500 Series Guide de référence rapide

Cisco

Cisco Webex Room CE9.15 Manuel utilisateur

Cisco

Cisco ONS 15454 Series Manuel utilisateur

Cisco

Cisco AIR-WLC4402-50-K9 Manuel de l'opérateur

Cisco

Cisco SFS 3504 Manuel utilisateur

Cisco

Cisco Catalyst C9800-L Manuel

Cisco

Cisco 2100 Series Manuel utilisateur

Cisco

Cisco CS-MARS-20-K9 - Security MARS 20 Manuel utilisateur

Cisco

Cisco CSC-MEC Manuel utilisateur

Cisco

Cisco Catalyst 9800-80 Manuel utilisateur

Cisco

Cisco AIR-WLC2106-K9 - Wireless LAN Controller... Manuel utilisateur

Cisco

Cisco AIR-PCM342 Manuel

Cisco

Cisco WS-C5008B - Power Supply - 1100 Watt Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
