Model 6585 Handheld Controller Quick Reference Guide

Overview

Scope of this guide

This guide contains the following topics.

Topic See Page

Operating the Handheld Controller 4

Program Mode 5

Introduction

The Model 6585 Handheld Controller is a portable terminal. It is used in the field to

enter the transponder ID into the Status Monitoring System. It also checks the alarm

status of a transponder and monitors analog channels, controls, and switches.

Note: The handheld controller does not contain any stored transponder data.

Model 6585 Handheld Controller Quick Reference Guide 573109 Rev C

Overview, Continued

Handheld controller display and keypad

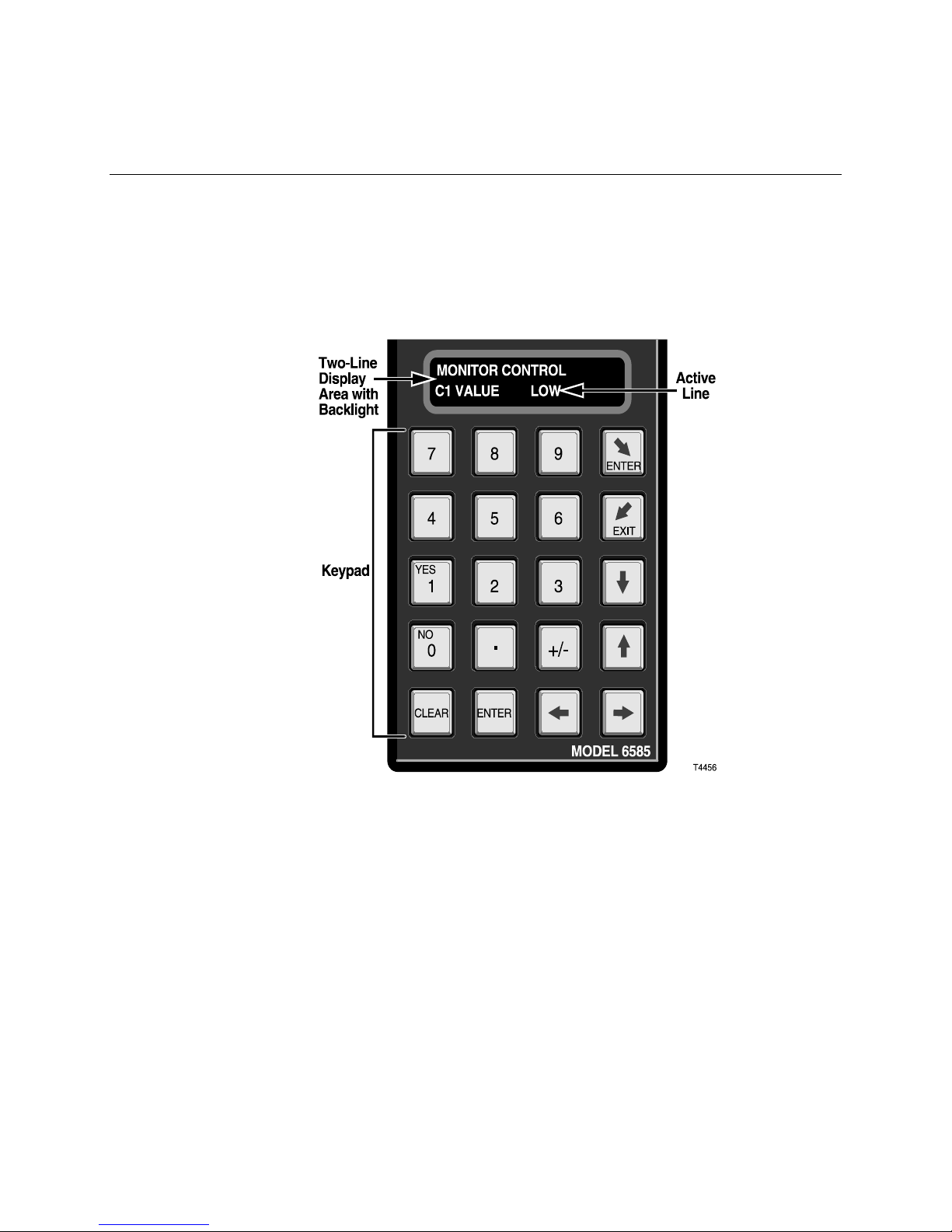

The handheld controller has a 20-key keypad and a two line by 16 character backlit

LCD. The first line is known as the previous active line and the second line is known

as the active data entry line.

573109 Rev C Model 6585 Handheld Controller Quick Reference Guide

Overview, Continued

Keypad functions

The following table describes the handheld controller’s function keys.

Note: When the active data entry line displays the prompt, use the keys shown

below in the table to enter the data.

Key Function

0 – 9 Digit keys for data entry.



ENTER

Accepts data entry or displays a lower menu level.



EXIT

Cancels data entry or displays a higher menu level.

 Scrolls down a menu list.

 Scrolls up a menu list.

 Increases channel number.

 Decreases channel number.

ENTER Accepts data entry on the current display line.

CLEAR Clears the current data entry.

YES/1 Selects YES at a YES/NO prompt or LOW at a LOW/HIGH

prompt.

NO/0 Selects NO at a YES/NO prompt or HIGH at a LOW/HIGH

prompt.

•

Displays the ID Number prompt.

+/- Not used.

Model 6585 Handheld Controller Quick Reference Guide 573109 Rev C

Operating the Handheld Controller

Mode of operation

The Model 6585 Handheld Controller is powered by a transponder. To operate the

handheld controller it must be connected to a transponder via the 9-pin cable.

The handheld controller operates in two modes: the Program Mode and the

Terminal Mode. The Program Mode enables you to test the handheld controller and

change its operating characteristics. The Terminal Mode enables you to use the

handheld controller as a terminal to enter data into the transponder.

Note: This Quick Reference Guide provides information about the Model 6585

Handheld Controller during operation in the Program Mode.

To enter the… You have to…

Program Mode hold down the CLEAR key on handheld controller

for three seconds.

Terminal Mode plug the controller into the transponder.

Note: Follow the instructions given in the specific

Transponder Installation and Operating Guide.

573109 Rev C Model 6585 Handheld Controller Quick Reference Guide

Program Mode

Program mode menu configuration

The menu configuration below illustrates how the handheld controller keypad

functions operate in the Progam Mode.

Model 6585 Handheld Controller Quick Reference Guide 573109 Rev C

Program Mode, Continued

Initial menu items

The Program Mode allows you to test the handheld controller and change its

operating characteristics. The table below describes the initial menu items and

explains their functions.

Primary Menu Items Function

Date Code Displays the firmware version of the handheld controller.

Note: It is not user changeable.

Backlight The YES or NO option enables you to turn the backlight on

or off.

Note: The YES or NO

option has to be followed by pressing

ENTER.

Install and Test Points to the Setup or Test menu.

Quit This function can be used after you have finished setting

up and testing the handheld controller.

Note: It also enables you to return to the Terminal Mode.

573109 Rev C Model 6585 Handheld Controller Quick Reference Guide

Program Mode, Continued

Secondary menu items

The table below indicates the functions you can perform when you are in the Setup

phase.

Secondary

Menu Item

Function

Setup It enables you to change the following operating characteristics of

the handheld controller.

Erase Memory Sets the handheld controller to default

setting in Program Mode. It also erases

the EEPROM memory.

Note: The EEPROM memory contains

the operating characteristics of the

handheld controller.

Baud Rate Sets the communication baud rate

within the range of 300 to 9600 baud.

Note: The current version will function

with the default value of 300 baud.

Parity The YES/NO option is not suppported

at this time.

Echo The YES/NO option is not suppported

at this time.

Key Beep The YES/NO option is not suppported

at this time.

Keyboard Setup Enables you to change the keyboard

setup.

Note: This function is not used with the

Status Monitoring System.

Program Mode, Continued

Testing phase

The table below indicates the functions you can perform when you are in the Test

phase.

Secondary

Menu Item

Function

Test This phase allows you to test the following characteristics of the

handheld controller.

Test RAM

The YES/NO option tests the RAM

which is a small part of U113.

Note: The result is indicated by

PASS/FAIL.

Test ROM

The YES/NO option executes a check

test on the EPROM (U108).

Note: The result is indicated by

PASS/FAIL.

Test EEPROM

The YES/NO option erases and rewrites

each word on the EEPROM (U108).

Note: The result is indicated by

PASS/FAIL.

Compliance criteria

The handheld controller may display unrecognizable characters due to an

electrostatic discharge (ESD) event, especially a discharge on the top part where the

interface cable is connected. The user should disconnect and reinsert the interface

cable from the equipment that is being accessed. This resets the handheld controller

so that it may resume its function.
