Data Sheet

Cisco TelePresence MCU 4200 Series

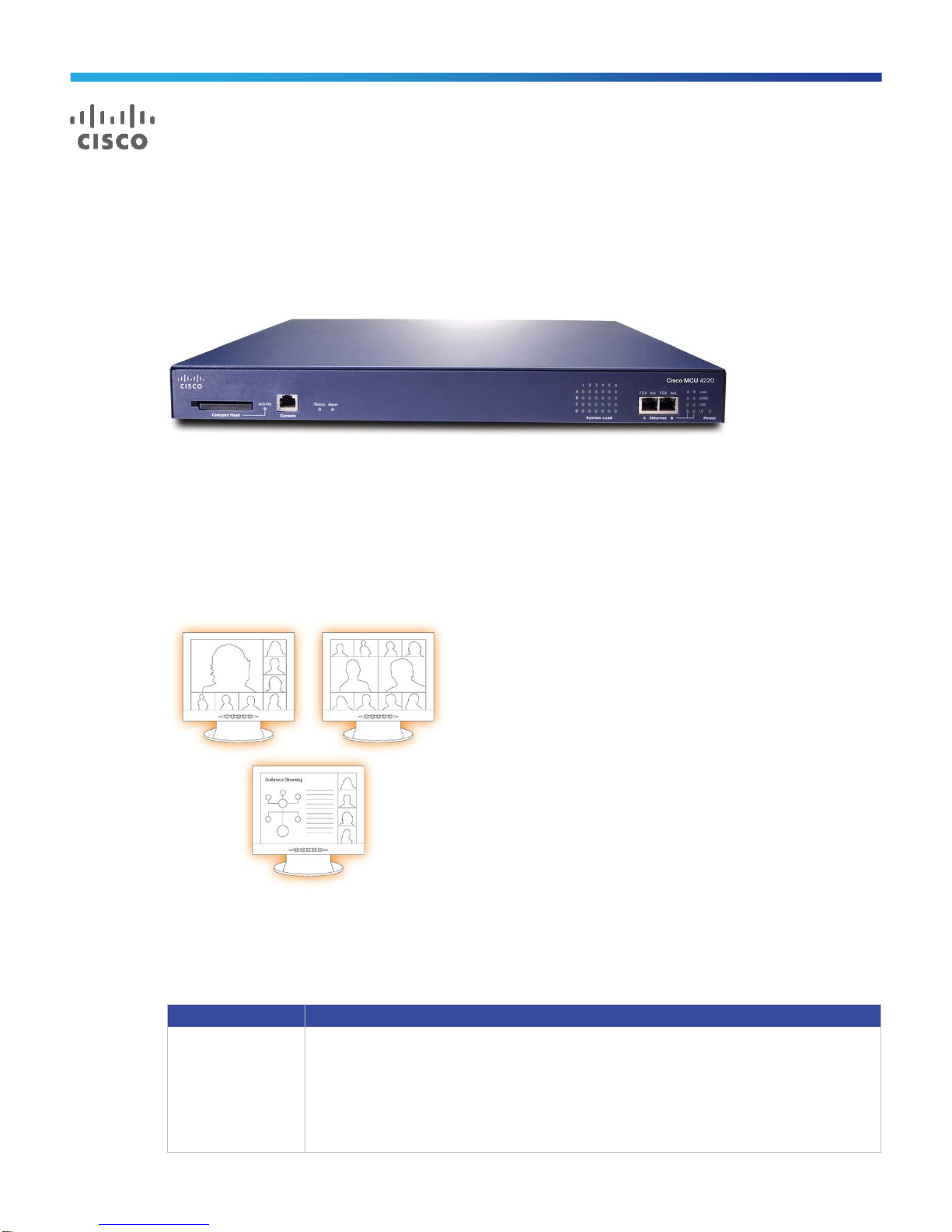

Figure 1. Cisco TelePresence MCU 4200 Series

Product Overview

The Cisco TelePresence®MCU 4200 Series is the industry’s leading standard-definition (SD) multimedia

conferencing bridge (Figure 1). It delivers high-quality voice and video with an easy-to-use, versatile management

interface. Compatible with all major vendors’ endpoints, each model maintains its capacity and performance in

every configuration, delivering an excellent experience for each participant, every time.

Figure 2. Standards-Based and Compatible with All Major Vendors’ Endpoints

Features and Benefits

Table 1 summarizes the key features of the Cisco TelePresence MCU 4200 Series, and Table 2 lists the

models available.

Table 1. Cisco TelePresence MCU 4200 Series Feature Summary

Feature Benefit

Design Features ●Standards-based and compatible with all major vendors’ endpoints

●Easy-to-use, versatile, management interface

●Up to 40 video plus 40 voice ports

●More than 50 custom layouts

●Comprehensive wideband audio support

●Support for both Session Initiation Protocol (SIP) and H.323 endpoints

●Compact size: One rack unit (1U) tall and 19-in. rack-mountable

Feature Benefit

Application Features ●Supports Cisco TelePresence ConferenceMe for multipoint desktop video

●Integrated with Cisco TelePresence Management Suite

●Offers full interoperability with ISDN networks using standalone Cisco TelePresence ISDN Gateways

●Compatible with Microsoft Office Communications Server

●Fully integrated, with built-in gatekeeper and streaming server

●Supports Cisco®PacketSafe technology, which minimizes effects of network packet loss

●Supports Cisco TelePresence Multiway technology

Performance Features ●Cisco TelePresence Universal Port technology, which ensures each participant receives an excellent experience

●Constant high capacity

●Bandwidth per site up to 4 Mbps

●Video resolutions: 720p at up to 15 fps, and 480p at up to 30 fps

●Standard-definition continuous presence

●Latency as low as 60 ms

Table 2. Cisco TelePresence MCU 4200 Series Models

Model Continuous Presence Video

Participants2Additional Voice Participants Video Streaming Unicast1/

Multicast

CTI-4203-MCU-K9 6 6 24/unlimited

CTI-4205-MCU-K9 12 12 24/unlimited

CTI-4210-MCU-K9 20 20 40/unlimited

CTI-4215-MCU-K9 30 30 60/unlimited

CTI-4220-MCU-K9 40 40 80/unlimited

Using high bandwidth or resolution, H.264 or advanced continuous presence does not reduce the number of sites or conferences

supported.

1Maximum number of unicast streams depends on network topology. When using the web conferencing option feature, the

maximum number of unicast streams supported by the Cisco TelePresence MCU 4215 and MCU 4220 is 50.

2Allows up to 12 simultaneous ConferenceMe connections. On Cisco TelePresence MCU 4203 allows up to six simultaneous

ConferenceMe connections.

Product Specifications

Table 3 lists the product specifications; Table 4 gives video and audio specifications; Table 5 gives network,

security, and management specifications; and Table 6 lists the physical specifications for the Cisco TelePresence

MCU 4200 Series.

Table 3. Product Specifications

Product Compatibility ●Standards-based and compatible with all major vendors’ endpoints

Universal Transcoding and

Transrating

●All calls are automatically transcoded and transrated for audio and video

●Any bandwidth, any resolution, or anyvideo or audio codec can be used on any video call within the same

conference

●All participants have their own personal encodes

●The series offers extremely low latency - as low as 60 ms

Streaming Video ●Built-in streaming server

●Ability to view using Windows Media Player, RealPlayer, or QuickTime

●Streaming of slides (H.239 and Virtual Network Computing [VNC])

●Text chat

●Unicast and multicast

●User Datagram Protocol (UDP), TCP, or HTTP

●Independent choice of bandwidth and codec

Localization and

Customization

●Custom interactive voice response (IVR)/auto attendant audio prompts and graphics

●Uploadable multilanguage support

Built-In Gatekeeper ●Resolution of E.164 numbers

●Registration of conferences, endpoints, and gateways

●Ability to register up to 25 devices

Built-In Web Server ●Complete configuration, control, and monitoring of the system and conferences

Multipoint-Control-Unit

(MCU) Features

●H.323 dial in, or dial out from web server

●Standalone or with gatekeeper/registrar/proxy

●Configurable audio and video auto attendant

●Advanced continuous presence as standard on all ports

●Automatic selection of best layout

●Individual layout selection using remote control or webpages

●More than 50 custom layouts

●Active speaker selection using remote control or voice activated

●Floor assignment through webpage or management application

●Far-end camera control tunneling using remote control or web

●Text identification of sites

●On-screen text messaging to individual or all sites

●Built-in conference scheduling and reservation

●On-demand and ad hoc conferences

●On-screen list of participants

●Automatic lecture mode

●Preview of conference and individual camera on webpages

●Web conferencing option - those without endpoints can still interact

●Uploadable bitmaps for audio participants

●Video association for IP and traditional private branch exchanges (PBXs)

●Automatic connection to audio conferences

●Cisco TelePresence Multiway technology, which enables many Cisco video endpoints to initiate ad hoc

multiparty calls

●Linked voice and video calls

●Automatic redialing

Content Features ●Dual video using H.239 and BFCP content sharing

●Presentation mode: You can add slides from your PC using VNC

●Automatic content handover

●Widescreen (16:9) support

●Passthrough content option to maximize capacity

●Content transcoding for interoperability

●Participants with no content support can receive transcoded content in main video

Cisco Telepresence

ConferenceMe

●Video, audio, and content sharing

●Multiple layouts

●Firewall friendly

●Independent transcode per participant

●Up to 12 simultaneous connections

High Performance ●720p up to 15 fps H.263 continuous presence; 480p up to 30 fps

●Comprehensive HD audio codecs

Language ●English as standard, with option to load alternative language packs

Table 4. Video and Audio Specifications

Bandwidth ●H.263 up to 4 Mbps, H.264 up to 2 Mbps for each site in all conference modes, including advanced (symmetric)

continuous presence

Video Standards ●H.261, H.263, H.263+, H.263++, and H.264

Video Resolution ●From QCIF to 480p at up to 30 fps and 720p (1280 x 720) at up to 15 fps, including interlaced iCIF and iSIF

●4:3 and 16:9 aspect ratios

Frame Rates ●Up to 30 frames per second

Audio Standards ●G.711, G.722, G.722.1, G.723.1, G.728, G.729, MPEG-4 AAC-LC, MPEG-4 AAC-LD, and Polycom

Siren14/G.722.1 Annex C

Audio Features ●Wideband audio mixing

●Built-in and uploadable auto attendant voice prompts

●Adjustable gain and individual audio mute using remote control or web pages

●Power indication and automatic gain control using webpages

Table 5. Network, Security, and Management Specifications

Protocols ●H.323, SIP, H.235 (Advanced Encryption Standard [AES]), Secure Real-Time Transport Protocol (SRTP),

Transport Layer Security (TLS), H.239 (dual video), VNC, BinaryFloor Control Protocol (BFCP), H.243 (chair

control), FTP, Real-Time Transport Protocol (RTP), (Real-Time Streaming Protocol (RTSP), HTTP, Secure

HTTP (HTTPS), Dynamic Host Configuration Protocol (DHCP), Simple Network Management Protocol (SNMP),

Network Time Protocol (NTP), IPv4, and IPv6

Quality of Service (QoS) ●Configurable differentiated services code point (DSCP) or type of service (ToS)/IP Precedence

Security Features ●Seven levels of access rights and privileges for users

●Password-protected conferences

●Conference locking through remote control or web interface or management application

●Secure non-PC hardware and operating system

●AES encryption, 128-bit key, and H.235

●SIP encryption

●TLS certificate verification

●Video firewall option - second Ethernet port

●Certificate-based login with OCSP certificate checking

Interfaces ●Two RJ-45 Ethernet, 10-/100-/1000-Mbps full and half duplex, manual or autosensing

●RJ-45 serial port

●CompactFlash socket

●Thirty-nine status LEDs

System Management ●XML - RPC management application programming interface (API)

●Management through built-in web server

●RS-232 for local control and diagnostics

●Syslog for diagnostics

●Configurable event logs and full H.323 and SIP decoding

●Configuration backup to network

●Secure upgrades through Ethernet or CompactFlash

●Call detail records (CDRs)

●SNMP

Network Resilience ●Cisco TelePresence PacketSafe technology, which provides intelligent down-speeding, packet pacing, and

packet-loss concealment to ensure optimum video and audio quality

●Dynamic jitter buffering

●Alternate gatekeepers

●DNS SRV failover for SIP

Table 6. Physical Specification

Physical Dimensions (H x W

x D)

●Physical dimensions: 1.73 x 17.2 x 12.3 in. (44 x 437 x 312 mm) (1U)

●19-in. rack-mountable (kit supplied) or standalone

Weight ●9 lb (4 kg)

Power ●100-240 VAC, 50/60 Hz, 380 BTU/h (111W) maximum heat dissipation

Environmental Data ●Operating temperature: 0 to 35°C) ambient

●Relative humidity below 95% (noncondensing)

Approvals and Compliance ●European safety: EN 60950-1

●USA/Canada safety: UL 60950-1

●CB, CE

●EMC: EN55022 class A, EN61000-3-2, EN61000-3-3, EN55024: EN61000-4-2,-3,-4,-5,-6,-11, FCC Part 15

class A, VCCI class A, AS/NZS 3548, CCC: GB4943, GB9254, YD/T993

●NAL Certificate (China)

●RoHS compliant

Warranty Information

Find warranty information on Cisco.com at the Product Warranties page.

Ordering Information

To place an order, visit the Cisco Ordering Home Page and refer to Table 7 or contact your local Cisco

representative. To download software, visit the Cisco Software Center.

Table 7. Ordering Information

Product Name Part Number

Cisco TelePresence MCU 4203 CTI-4203-MCU-K9

Comes with: Cisco MCU 4203 - 6 port MCU, High Resolution and Web Conferencing software license feature options and cables

Software License Feature Options for Cisco TelePresence MCU 4203

Video Firewall Option for enabling second Ethernet port on MCU 4203 LIC-4203-VFO

Conference Director Option for MCU 4203 LIC-4203-CCD

AES and HTTPS Enable Option for MCU 4203 LIC-AESCDN1-K9

Cisco TelePresence MCU 4205 CTI-4205-MCU-K9

Comes with: Cisco MCU 4205 - 12 port MCU, High Resolution and Web Conferencing software license feature options and cables

Software License Feature Options for Cisco TelePresence MCU 4205

Video Firewall Option for enabling second Ethernet port on MCU 4205 LIC-4205-VFO

Conference Director Option for MCU 4205 LIC-4205-CCD

AES and HTTPS Enable Option for MCU 4205 LIC-AESCDN1-K9

Cisco TelePresence MCU 4210 CTI-4210-MCU-K9

Comes with: Cisco MCU 4210 - 20 port MCU, High Resolution and Web Conferencing software license feature options and cables

Software License Feature Options for Cisco TelePresence MCU 4210

Video Firewall Option for enabling second Ethernet port on MCU 4210 LIC-4200-VFO

Conference Director Option for MCU 4210 LIC-4210-CCD

AES and HTTPS Enable Option for MCU 4210 LIC-AESCDN1-K9

Cisco TelePresence MCU 4215 CTI-4215-MCU-K9

Comes with: Cisco MCU 4215 - 30 port MCU, High Resolution and Web Conferencing software license feature options and cables

Software License Feature Options for Cisco TelePresence MCU 4215

Video Firewall Option for enabling second Ethernet port on MCU 4215 LIC-4200-VFO

Conference Director Option for MCU 4215 LIC-4215-CCD

AES and HTTPS Enable Option for MCU 4215 LIC-AESCDN1-K9

Cisco TelePresence MCU 4220 CTI-4220-MCU-K9

Comes with: Cisco MCU 4220 - 40 port MCU, High Resolution and Web Conferencing software license feature options and cables

Software License Feature Options for Cisco TelePresence MCU 4220

Video Firewall Option for enabling second Ethernet port on MCU 4220 LIC-4200-VFO

Conference Director Option for MCU 4220 LIC-4220-CCD

Product Name Part Number

AES and HTTPS Enable Option for MCU 4220 LIC-AESCDN1-K9

Cisco TelePresence MCU 4200 Series License PAK (Product Authorization Key) for post initial sale

feature option upgrades L-MCU4200-UPG-PAK

For post initial sales of software feature options please start with L-MCU4200-UPG-PAK (product authorization key) in the ordering systems to

view the corresponding post initial sales part numbers for the software feature options listed above apart from LIC-AESCDN1-K9.

AES and HTTPS Enable Upgrade for MCU 4200 Series L-AESCDN1-K9=

Cisco Services

Cisco and our partners provide a broad portfolio of intelligent, personalized services and support that can help you

realize the full value of your Cisco TelePresence investment by increasing business agility and network availability.

This portfolio of services accelerates business innovation through a network-based collaboration platform that

enables businesses to collaborate anywhere, anytime. For more information about these services, please visit:

http://www.cisco.com/go/telepresenceservices.

For More Information

For more information about the Cisco TelePresence MCU 4200 Series, please visit

http://www.cisco.com/go/telepresence or contact your local Cisco account representative or authorized Cisco

partner. Product specifications are estimates and subject to change without notice.

Printed in USA C78-716096-00 09/12

Table des matières

Autres manuels Cisco Système de conférence

Cisco

Cisco TelePresence Manuel utilisateur

Cisco

Cisco TelePresence Profile 55 Manuel utilisateur

Cisco

Cisco MX300 G2 Manuel utilisateur

Cisco

Cisco TelePresence SX20 Manuel de service

Cisco

Cisco EX90 Manuel utilisateur

Cisco

Cisco TelePresence Profile Series Manuel utilisateur

Cisco

Cisco TelePresence DX80 Manuel utilisateur

Cisco

Cisco TelePresence System 1100 Manuel utilisateur

Cisco

Cisco TelePresence SX20 Manuel utilisateur

Cisco

Cisco MX200 Series Manuel utilisateur

Cisco

Cisco 7935 - IP Conference Station VoIP Phone Mode d’emploi

Cisco

Cisco TelePresence MX300G2 Manuel utilisateur

Cisco

Cisco Telepresence MX800 Mode d’emploi

Cisco

Cisco TelePresence SX10 Manuel utilisateur

Cisco

Cisco Webex Room 70 Dual Manuel utilisateur

Cisco

Cisco TelePresence SX20 Manuel de service

Cisco

Cisco TelePresence IX5000 Manuel utilisateur

Cisco

Cisco TelePresence SX10 Manuel utilisateur

Cisco

Cisco SX80 Manuel utilisateur

Cisco

Cisco CTS-3010 Mode d’emploi

Cisco

Cisco TelePresence Codec C-series Manuel utilisateur

Cisco

Cisco TelePresence SX20 Manuel utilisateur

Cisco

Cisco EX60 Manuel utilisateur

Cisco

Cisco Spark Board 55 Manuel utilisateur

Manuels Système de conférence populaires d'autres marques

Kramer

Kramer VIA GO Manuel utilisateur

AVT

AVT MAGIC AC1 Go Manuel utilisateur

ProSoft Technology

ProSoft Technology AN-X4-AB-DHRIO Manuel utilisateur

Sony

Sony PCS-I150 Manuel utilisateur

Middle Atlantic Products

Middle Atlantic Products VTC Series Manuel utilisateur

Prentke Romich Company

Prentke Romich Company Vanguard Plus Mode d’emploi

Speakerbus

Speakerbus iD 712 Manuel utilisateur

Trelleborg

Trelleborg SafePilot CAT PRO Manuel utilisateur

Sennheiser

Sennheiser ADN Manuel utilisateur

ADTRAN

ADTRAN NetVanta 7100 Manuel utilisateur

AINA

AINA PTT Voice Responder Manuel utilisateur

Yamaha

Yamaha ProjectPhone PJP-100H Manuel utilisateur

vissonic

vissonic VLI Series Manuel utilisateur

Panasonic

Panasonic KX-VC500 Manuel utilisateur

Poly

Poly Trio 8300 Manuel utilisateur

Crestron

Crestron Mercury CCS-UCA-SMK Dessin dimensionnel

Inmarsat

Inmarsat mini M Manuel utilisateur

Tenveo

Tenveo ALL-IN-ONE Manuel utilisateur
