Cisco Tandberg 1700 MXP Instructions de montage

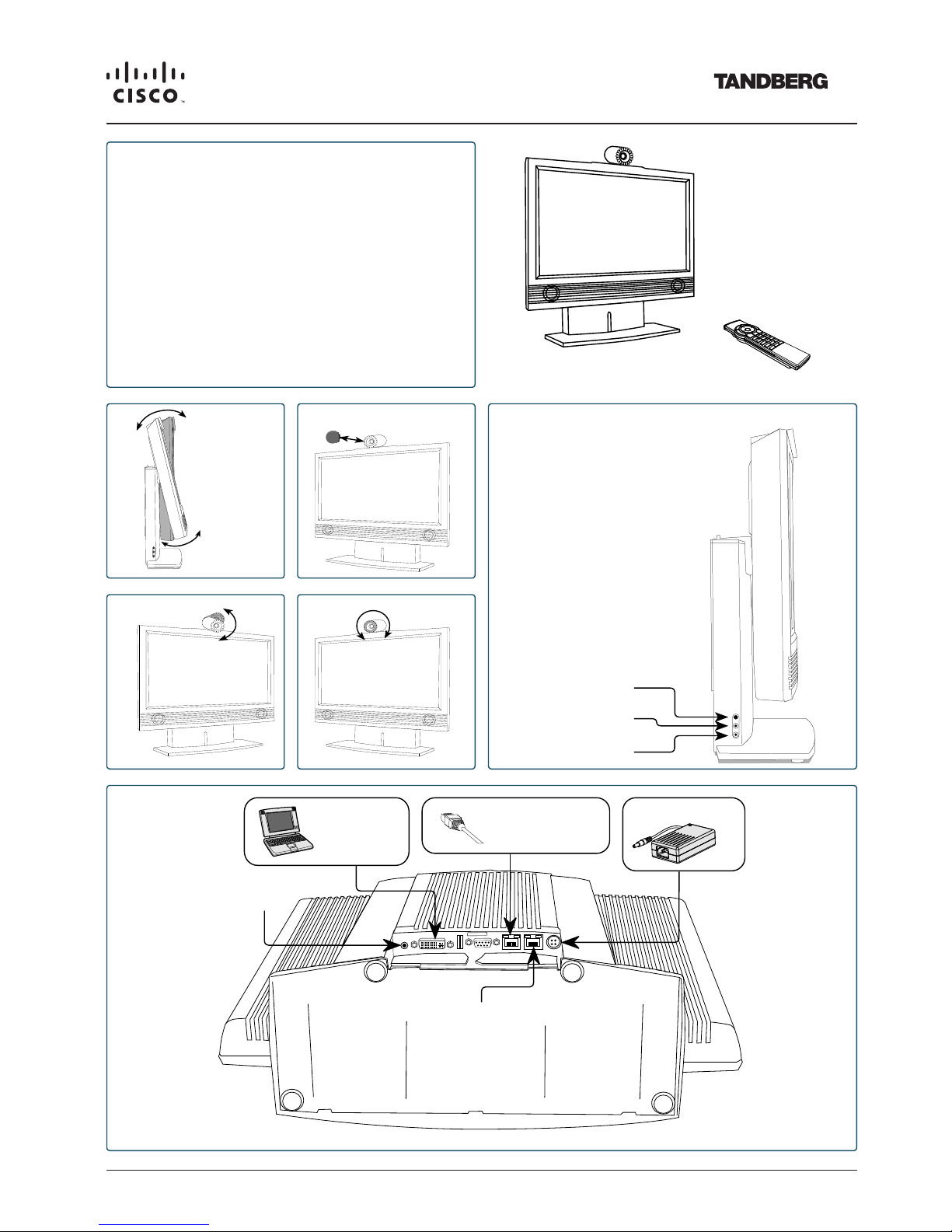

Installation sheet 1700 MXP

Content of the box:

• The 1700 MXP unit

• Designers lens cap

• Remote control

• Installation sheet

• Country specic power cable

• Accessories box:

• 1 VGA - DVI cable (w/ audio)

• 1 LAN/Ethernet cable

• Power supply

• Batteries for the remote control

Tilt the display

manually to get a

better view angle.

The lens cap (privacy

cover) is held in

place by a magnet.

Tilt the camera

manually to make

it point at you.

Turn the ring to focus

the camera. To see

yourself, press the

Selfview key on the

remote control.

Headset recommendations

Standard PC headsets with 3.5 mm jacks

are compatible with the 1700 MXP. Having

a headset with microphone is optional.

See the user documentation for more

information about using a headset with

1700 MXP and for technical headset

recommendation.

Headset toggle button

Headset microphone

Headset out

DVI-I for PC

presentations

Connect the video

system to your LAN

Power

To let the PC and the

video system share a

single LAN connection,

connect your PC to the

LAN through the video

system.

Audio/Line in

Installation sheet 1700 MXP

Getting started

The 1700 MXP turns on automatically when you power up the system. Use the

remote control to navigate in the menu.

Installation wizard

The Installation Wizard starts automatically when the video system is installed at

the rst time and guides you through the basic conguration of the system in the

following steps:

• Welcome page

• Select Language

• Enter System Name

• Enter Software Option Keys

• Enter IP Settings

• Obtain IP Address Automatically

• Static IP Address (address, subnet, gateway)

• Enter SIP Settings

• Enter External Management settings

• On: Enter information for your TMS server (address, path)

• O: Select from the list:

• Gatekeeper and enter the gatekeeper settings

• Call Manager and enter the call manager settings

• Direct

• Finish the wizard. The system will automatically restart the system.

The Installation Wizard can be run any time from the Control Panel menu.

User documentation

See the user documentation for more information: http://www.tandberg.com/docs

and http://www.cisco.com/go/telepresence/docs
