CIS VISION:mini VCC-G22U21ACL Guide de démarrage rapide

VCC-G22U21ACL Rev.900-612-32-00

UXGA B/W Camera

49MHz Pixel Clock Camera Link

VCC-G22U21ACL

Product Specification

& Operational Manual

CIS Corporation

lish

VCC-G22U21ACL Rev.900-612-32-00

Table of Contents

1. Scope of Application...............................................................................................................................3

2. Handling Precautions .............................................................................................................................3

3. Product Outline......................................................................................................................................5

4. Specification..........................................................................................................................................6

4.1. General Specification .......................................................................................................................6

4.2. Camera Output Signal Specification.....................................................................................................8

4.3. CCD Spectral Response (Representative value).....................................................................................9

5. Function Settings................................................................................................................................. 10

6. External Connector Pin Assignment ....................................................................................................... 12

6.1. 6 pins Circular Connector HR10-7R-6PA (HIROSE) .............................................................................. 12

6.2. 26pins camera Link connector 12226-1100-00 PL (SUMITOMO 3M) .............................................. 12

7. Timing Chart........................................................................................................................................ 13

7.1. Horizontal Synchronous Signal Timing................................................................................................ 13

7.2. Vertical Synchronous Signal Timing.................................................................................................... 13

7.2.1. Normal Shutter Mode (Trigger Shutter Mode OFF) ........................................................................... 13

7.2.2. Trigger Shutter Mode..................................................................................................................... 14

8. Remote Interface Function ................................................................................................................... 15

9. Initial Settings ..................................................................................................................................... 16

10. CCD Optical Axis Accuracy .................................................................................................................. 17

11. Dimensions........................................................................................................................................ 18

12. Cases for Indemnity (Limited Warranty)............................................................................................... 19

13. CCD Pixel Defect ................................................................................................................................ 20

14. Product Support................................................................................................................................. 20

VCC-G22U21ACL Rev.900-612-32-00

1. Scope of Application

This is to describe VCC-G22U21ACL Power Over Camera Link B/W CCD Camera. All specifications contained

herein are subject to change without prior notice. Reproduction in whole or in part is prohibited.

2. Handling Precautions

The camera must not be used for any nuclear equipments or aerospace equipments with which mechanical

failure or malfunction could result in serious bodily injury or loss of human life. Our warranty does not apply to

damages or defects caused by irregular and/or abnormal use of the product.

Please observe all warnings and cautions stated below.

Our warranty does not apply to damages or malfunctions caused by neglecting these precautions.

zDo not use or store the camera in the following extreme conditions:

¾Extremely dusty or humid places.

¾Extremely hot or cold places (operating temperature –5 to +45 )℃℃

¾Close to generators of powerful electromagnetic radiation such as radio or TV transmitters.

¾Places subject to fluorescent light reflections.

¾Places subject to unstable (flickering, etc.) lighting conditions.

¾Places subject to strong vibration.

zRemove dust or dirt on the surface of the lens with a blower.

zDo not apply excessive force or static electricity that could damage the camera.

zDo not shoot direct images that are extremely bright (e.g., light source, sun, etc.), and when camera

is not in use, put the lens cap on.

zFollow the instructions in Chapter 6, “External connector pin assignment” for connecting the camera.

Improper connection may cause damages not only to the camera but also to the connected devices.

zConfirm the mutual ground potential carefully and then connect the camera to monitors or computers.

AC leaks from the connected devices may cause damages or destroy the camera.

zDo not apply excessive voltage. (Use only the specified voltage.) Unstable or improper power supply

voltage may cause damages or malfunction of the camera.

VCC-G22U21ACL Rev.900-612-32-00

zThe voltage ripple of camera power DC +12V±10% shall be within ±50mV. Improper power

supply voltage may cause noises on the video signals.

zThe rising time of camera power supply voltage shall be less than +10V, Max 60ms. Please

avoid noises like chattering when rising.

In case of abnormal operation, contact the distributor from whom you purchased the product.

10 4020 30 50

[V]

Voltage Rising Time [ms]

60 70

Power Supply Voltage

VCC-G22U21ACL Rev.900-612-32-00

3. Product Outline

VCC-G22U21ACL is a high-resolution industrial B/W digital video camera module utilizing a 1/1.8 type PS IT CCD.

2M pixels CCD image sensor with on-chip micro-lenses realizes high sensitivity and high resolution.

At Full Frame Scan Mode, entire pixels can be read out within approx. 1/20s. Interface of G22U21ACL complies

with camera link standard.

Key Features

□ Camera settings can be changed via serial communications.

□ Selectable 8 bit or 10 bit.

□ 1/20～1/40,000s shutter speeds can be set per 1H.

□ Full frame scan mode and three different partial scan modes are available.

□ Approx. 20 fps at full frame scan mode.

□ Only 29mm cubic in size (excluding projection), light weight 50g, and speed makes it a best match for

use in embedded systems.

VCC-G22U21ACL Rev.900-612-32-00

4. Specification

4.1. General Specification

Item Specification

Pickup device

Device Type 1/1.8 type Interline Transfer B/W CCD, Sony ICX274AL

Effective Pixel Number 1628(H) x 1236 (V)

Recommended Pixels 1620(H) x 1200(V)

Unit Cell Size 4.40μm (H) x 4.40μm (V)

Chip Size 8.50mm (H) x 6.80mm (V)

Video output frequency

Pixel Clock 49.0908 MHz

Horizontal Frequency 25.568KHz Pixel Clock: 1920 CLK

Vertical Frequency

Full Frame Scan Mode: 1252H, approx 20 Hz

Partial Scan Mode 1: 1029H, approx 25 Hz

Partial Scan Mode 2: 837H, approx 30 Hz

Partial Scan Mode 3: 629H, approx 40 Hz

Sync. system Internal Sync. System

Video output standard PoCL or PoCL-Lite

Resolution 1000 TV lines

Resolving power 8bit / 10bit

Sensitivity F5.6 400 lx (Shutter 1/20s, Gain 0dB)

Minimum illumination F1.4 1.0 lx (Shutter 1/20s, Gain +12dB)

Dust or stains in

optical system

No dust or stain shall be detected on the testing screen with setting the camera

aperture at F16.

Power requirements DC +12V ±10% (Max voltage not to exceed 15V)

Power consumption 2.7 W (DC +12V IN)

Dimension Refer to overall dimension drawing (Clause 11)

29mm x 29mm x 29mm (excluding projection)

Mass Approx. 50 g

Lens mount C mount (Refer to overall dimension drawing )

Optical axis accuracy Refer to drawing for CCD Optical Axis Accuracy (Clause 10)

Gain variable range -1～+12dB

Shutter speed

variable range

OFF (1/20), 1/50, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000,

1/18000, 1/40000s

Trigger shutter mode ・Fixed Trigger Shutter Mode ・Pulse Width Trigger Shutter Mode

*Trigger pulse width shall be over 1H and less than 1/2s.

VCC-G22U21ACL Rev.900-612-32-00

Item Specification

Safety/Quality

standards

UL: Conform to UL Standard including materials and others.

RoHS: Conform to RoHS

CE: Conform to EN55022:2006 (Class A): Emission

Conform to EN61000-6-2:2005: Immunity

FCC: To be applied to FCC Class A digital Device

This device complies with Part 15 of the FCC Rules. Operation is subject to the

followin

two conditions: (1) this device may not cause harmful interference, and

(2) this device must accept any interference received, includin

interference that

may cause undesired operation.

Durability

Vibration

Acceleration 98 m/s2(10.0G)

Frequency 20～200 Hz

Direction XYZ 3 directions

Testing time 120 min for each direction

Shock No malfunction shall be occurred with 490m/s2(50G) for ±X, ±

Y, and ±Z, 6 directions. (without package)

Operation environment

Temperature Operation guaranteed: -5℃～+45℃

Performance guaranteed: 0℃～+40℃

Humidity RH 20～80% with no condensation

Storage environment Temperature -25℃～+60℃

Humidity RH 20～80% with no condensation

VCC-G22U21ACL Rev.900-612-32-00

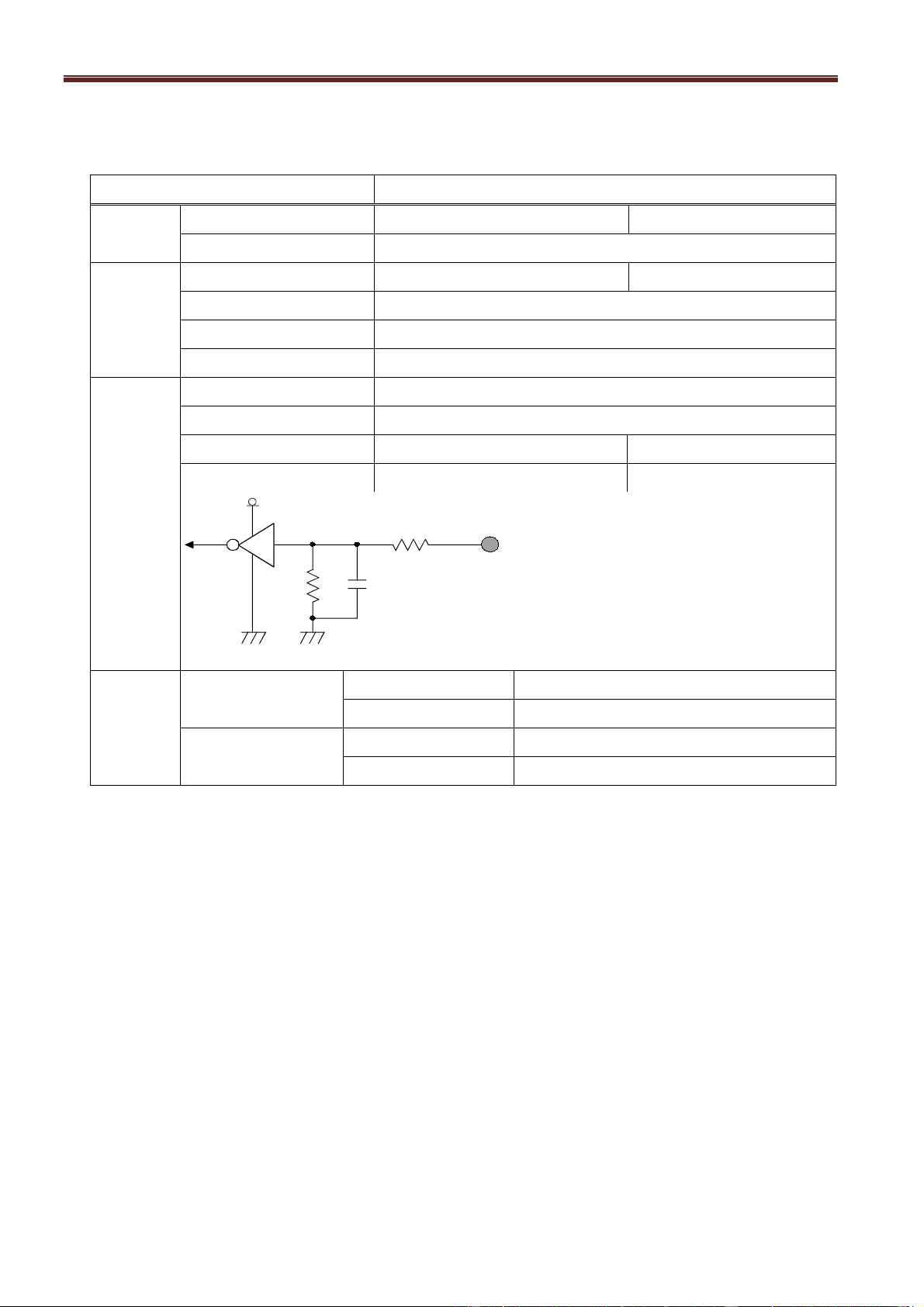

4.2. Camera Output Signal Specification

Item Specification

Video

output data

Video out 1628 (H) x 1236 (V) At Full Frame Scan Mode

Recommended 1600 (H) x 1200 (V)

Sync.

Signal I/O

LVAL output LVDS Camera Link connector

FVAL output LVDS

DVAL output LVDS

HD/VD input None

Trigger

input

Polarity POSI/NEGA Selectable

Min. Trigger Pulse width Over 1 HD

Camera Link input LVDS: CC1 input Camera Link connector

TTL Input Refer to the following drawing HR10-7R-6PA

100 Ω

Ω470p

Input

Trigger

+5V

VIH Min2.0V

VIL Max0.8V

Video

output

signal

White Clip Level Digital 8bit : FFh

Digital 10bit : 3FFh

Setup Level Digital 8bit : 08 ±03h

Digital 10bit : 020 ±00Ch

5 seconds shall be waited after turning on power to get proper camera operation.

VCC-G22U21ACL Rev.900-612-32-00

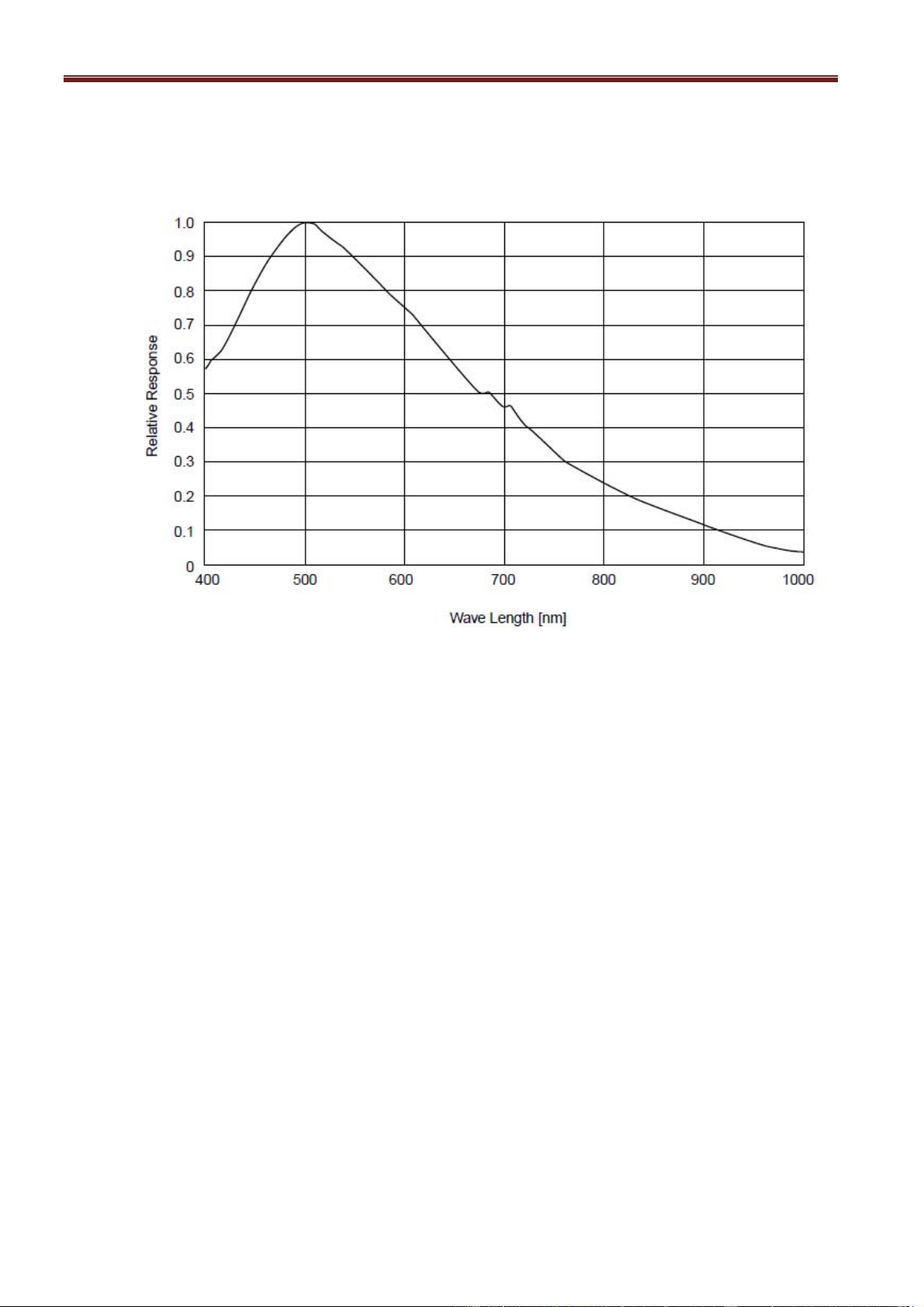

4.3. CCD Spectral Response (Representative value)

※ Lens characteristics and illuminant characteristics are not considered.

VCC-G22U21ACL Rev.900-612-32-00

5. Function Settings

Camera functions can be set with serial data communications.

Gain 001

0: -1 dB

1: 0 dB

2: +6 dB

3: +12 dB

4: Manual Gain (Refer to Address 008)

E-Shutter 002

0: 1/20s (Off)

1: 1/50s

2: 1/100s

3: 1/250s

4: 1/500s

5: 1/1000s

6: 1/2000s

7: 1/4000s

8: 1/10000s

9: 1/18000s

10: 1/40000s

11～

15: 1/20s (Off)

16: Manual Shutter (Refer to Address 009&010)

No Function 003 0: Fixed. Do not change.

Trigger Mode 004

0: Normal Shutter Mode (Trigger Shutter Mode Off)

1: Fixed Trigger Shutter Mode

(Shutter speed can be set with address 002.)

2: Pulse Width Trigger Shutter Mode

(Shutter speed can be set with trigger pulse width.)

Scan Mode 005

0: Full Frame Scan Mode

1: Partial Scan Mode 1

2: Partial Scan Mode 2

3: Partial Scan Mode 3

No Function 006 0: Fixed. Do not change.

No Function 007 0: Fixed. Do not change.

Manual Gain Control 008 0～

255: -1dB～+12dB ※Set the data of address 001 to 004.

Manual Shutter Control 009&

010

0～

1251:

1/20s～1/40000s

※Set the data of address 002 to 016.

Address 009 MSB and address 010 LSB makes 10bit in total.

Shutter Speed = (1251.6-Data) x 39.11μs

Max Data = 4E3h = 1251

Trigger Polarity 011 0: Positive Input

1: Negative Input

No Function 012 0: Fixed. Do not change.

Table des matières

Autres manuels CIS Appareil photo numérique

CIS

CIS VCC-GC21FR11PCL Guide de démarrage rapide

CIS

CIS VCC-GC60L231CL Guide de démarrage rapide

CIS

CIS VISION:elite VCC-FC41SX29CL Guide de démarrage rapide

CIS

CIS VISIONmini VCC-G22V31APCL Guide de démarrage rapide

CIS

CIS VCC-SXCXP3M Guide de démarrage rapide

CIS

CIS VCC-G20E30B Guide de démarrage rapide

CIS

CIS VCC-SXCXP5R Guide de démarrage rapide

CIS

CIS VCC-5CXP4M Guide de démarrage rapide

CIS

CIS VCC-5CL1R Guide de démarrage rapide

CIS

CIS VISION:elite VCC-FM60FV19CL Guide de démarrage rapide

CIS

CIS VCC-120CXP1M Guide de démarrage rapide

CIS

CIS VCC-5CXP4R Guide de démarrage rapide

CIS

CIS DCC-4K2 Guide de démarrage rapide

CIS

CIS VCC-5CL5M Guide de démarrage rapide

CIS

CIS VISION:mini VCC-GC20V41CL Guide de démarrage rapide

CIS

CIS Vision Elite VCC-FM60FV19CL Instructions d'installation

CIS

CIS VCC-5CL5M Guide de démarrage rapide

CIS

CIS VCC-SXCXP3R Guide de démarrage rapide

CIS

CIS VCC-SXCXP5M Guide de démarrage rapide

CIS

CIS VCC-G20E20B Guide de démarrage rapide

CIS

CIS VCC-4K2 Guide de démarrage rapide

CIS

CIS Vision:Elite VCC-F32FV19CL Guide de démarrage rapide

CIS

CIS VCC-4K2 Guide de démarrage rapide

CIS

CIS VISION:mini VCC-G22S21APCL Guide de démarrage rapide

Manuels Appareil photo numérique populaires d'autres marques

Mercury

Mercury 350K Manuel utilisateur

Pentax

Pentax Optio LS 465 Manuel utilisateur

Sanyo

Sanyo VPC-S1085 Manuel utilisateur

GE SMART A1255 Manuel utilisateur

Point Grey

Point Grey Gazelle Manuel utilisateur

Nikon

Nikon COOLPIX A Manuel utilisateur

Pentax

Pentax P-5 Manuel utilisateur

BlazeVideo

BlazeVideo A280 Manuel utilisateur

Sony

Sony MCA-20 Manuel utilisateur

Sony

Sony Alpha DSLR-A290 Manuel utilisateur

ATIK Cameras

ATIK Cameras One Manuel utilisateur

CohuHD Costar

CohuHD Costar 3930 Series Manuel utilisateur

Leica

Leica M10-R Manuel utilisateur

FujiFilm

FujiFilm FinePix A700 Manuel utilisateur

Lorex

Lorex LNZ81P25 Series Manuel utilisateur

GE J1470S Manuel utilisateur

Sony

Sony A6700 Guide de l'utilisateur

Canon

Canon EOS ELAN7 Manuel utilisateur
