CID Bio-Science CI-203CA Manuel utilisateur

DECLARATION OF CONFORMITY

Manufacturer:

CID Bio Science, Inc.

1554 NE 3rd Ave

Camas, WA 98607

Declares that the CE-marked Product:

Product Model(s):

Model CI-203

Model CI-203CA

FCC Compliance Statement:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

Complies With: 89/336/EEC Electromagnetic Compatibility Directive

73/23/EEC Low Voltage Directive

Compliance Standards:

EN 55027 RF Emissions Information

Technology Equipment

EN 50082-1 EMC Immunity Standard

EN 60950 Safety of Information

Technology Equipment

Including Electrical

Business Equipment

December 18, 2013

Leonard Felix

President

CI-203 Instruction Manual rev. 8/9/2016

1554 NE 3rd Ave, Camas, WA 98607, USA

Phone (360) 833-8835 Fax (360) 833-1914 sales@cid-inc.com http://www.cid-inc.com

DOCUMENT OVERVIEW

DOCUMENT OVERVIEW..........................................................................................................................................1

INTRODUCTION.........................................................................................................................................................4

Specifications ......................................................................................................................................... 4

Features.................................................................................................................................................. 4

OPERATING INSTRUCTIONS.................................................................................................................................6

Menus and What They Do.................................................................................................................... 7

MEASURE MENU.......................................................................................................................................................8

SETUP INSTRUMENT MENU................................................................................................................................10

Setup AutoSave Feature .................................................................................................................... 10

Setup Measure..................................................................................................................................... 10

Setup Scanner Thresholds................................................................................................................. 10

Threshold Adjustment (Width Calibration)................................................................................... 11

Calibration of the Scanner Length................................................................................................ 12

Re-computing the CI-203 Parameters.......................................................................................... 12

Setup Scanner Filter............................................................................................................................ 13

Setup Scanner Adjustment Menu...................................................................................................... 13

Setup Storage (SPI Flash Management)......................................................................................... 14

Format Storage................................................................................................................................ 15

Setup Time and Date .......................................................................................................................... 15

Setup SDcard....................................................................................................................................... 16

VIEW MENU..............................................................................................................................................................17

View Files.............................................................................................................................................. 17

GPS System Features.................................................................................................................... 18

Other View Menu Options.............................................................................................................. 18

FILE MENU................................................................................................................................................................20

Clear a File............................................................................................................................................ 20

Delete a File.......................................................................................................................................... 20

CI-203 Instruction Manual rev. 8/9/2016

1554 NE 3rd Ave, Camas, WA 98607, USA

Phone (360) 833-8835 Fax (360) 833-1914 sales@cid-inc.com http://www.cid-inc.com

Create a File......................................................................................................................................... 21

Transfer Data to a Computer ............................................................................................................. 22

Wireless Transfer............................................................................................................................. 23

How Data Appears in a File................................................................................................................ 25

How to Work With or Manipulate Data Files.................................................................................... 25

THEORY OF OPERATION .....................................................................................................................................26

Overview of the Parts of the Instrument........................................................................................... 26

The Width Scanner.......................................................................................................................... 26

The Length Step (Roller System).................................................................................................. 26

Computing the Parameters............................................................................................................ 26

Computing Aspect Ratio and Shape Factor Information........................................................... 27

CARE AND CLEANING...........................................................................................................................................28

Charging the Battery............................................................................................................................ 28

Taking Care of the Rubber Roller in the CI-203.............................................................................. 28

CI-203 Firmware Upgrade.......................................................................................................................................29

CI-203 Driver Installation.........................................................................................................................................30

TROUBLESHOOTING.............................................................................................................................................31

Technical Support................................................................................................................................ 31

Customer Service ................................................................................................................................ 31

Error Message...................................................................................................................................... 32

Frequently Asked Questions.............................................................................................................. 33

APPENDIX I: OPERATING THE CI-203 LASER LEAF AREA METER WITH THE CI-203CA CONVEYOR

ATTACHMENT..........................................................................................................................................................36

Hardware Setup................................................................................................................................... 36

Measure................................................................................................................................................. 40

CI-203 Conveyor Calibration.............................................................................................................. 41

Setup Instrument.................................................................................................................................. 42

Changing the CI-203CA Springs....................................................................................................... 42

CI-203 Instruction Manual rev. 8/9/2016

1554 NE 3rd Ave, Camas, WA 98607, USA

Phone (360) 833-8835 Fax (360) 833-1914 sales@cid-inc.com http://www.cid-inc.com

Unavailable Parameters...................................................................................................................... 42

Setup Scanner Threshold................................................................................................................... 42

APPENDIX II: RESOTRING SET-UP DATA FOR THE CI-203.........................................................................43

Restoring Set-Up Data for the CI-203CA Conveyor Attachment.................................................. 44

WARRANTY INFORMATION .................................................................................................................................45

CI-203 PRODUCTION TEST CHECK SHEET.....................................................................................................46

WARRANTY REGISTRATION CARD...................................................................................................................48

CI-203 Instruction Manual rev. 8/9/2016

1554 NE 3rd Ave, Camas, WA 98607, USA

Phone (360) 833-8835 Fax (360) 833-1914 sales@cid-inc.com http://www.cid-inc.com

INTRODUCTION

Congratulations on the purchase of your new CI-203 Portable Laser Area Meter. Making leaf

measurements, in the field or laboratory, is now very easy with the CI-203 Portable Laser Area

Meter. This state-of-the-art instrument has been designed to be the most portable leaf area

measurement system available. Although you may be anxious to use your new meter, please

take the time to read this manual first. This manual is for instruments with firmware version

4.03.

Specifications

Maximum Capacities:

Thickness: 1.4 cm

Width: 15 cm

Length: 3 m

Area: 1 m2

Resolution: 1 mm2

Computer Interface: Full speed USB interface 12MBit/s

Area Units: cm2

RAM Memory Size: 64KB

SPI Flash: 1024KB

Storage: HD SD card 16GB

File System: Fat32

Display: TFT LCD 320x240

Scanning Speed: 200 mm/sec

Battery: 7.2 V rechargeable Nickel Metal Hydride (NiMH)

Battery Capacity Over 250 scans per charge

Operating Temperature: 0~50oC

Dimensions: 355L x 45W x 50H mm

Weight: 975 g

Features

Non-destructive measurements

Measures area, length, width and perimeter, saves and displays synthesized images

Calculates shape factor, aspect ratio and voids number in object

CI-203 Instruction Manual rev. 8/9/2016

1554 NE 3rd Ave, Camas, WA 98607, USA

Phone (360) 833-8835 Fax (360) 833-1914 sales@cid-inc.com http://www.cid-inc.com

Records GPS location of measurement

Area resolution down to 0.01 cm2

Unlimited storage capacity (replaceable 4GB SD card)

USB port for viewing/copying files, upgrading firmware and debugging the output

Supports USB mass-storage device class

Serial Flash to store non-volatile scan/file parameters

Single self-contained instrument with built-in LCD display

Measure objects up to 150 mm wide and 25 mm thick of virtually unlimited length

Easy calibration when required

Rechargeable battery through USB port

See specifications for maximum length and area capabilities.

CI-203 Instruction Manual rev. 8/9/2016

1554 NE 3rd Ave, Camas, WA 98607, USA

Phone (360) 833-8835 Fax (360) 833-1914 sales@cid-inc.com http://www.cid-inc.com

OPERATING INSTRUCTIONS

The CI-203 is a self-contained, hand-held, battery-powered instrument with a built-in display. It

contains an optical scanner to measure leaf width, a roller with a shaft encoder to measure

length, and a microcomputer to coordinate the measurement functions, calculate results, and

store collected data.

Taking a measurement is as simple as turning the instrument on, inserting a leaf in the

objective, and drawing it out. The instrument does the rest.

Figure 1. CI-203 Laser Area Meter

To turn the instrument on, press the power button. When the instrument powers on, a copyright

notice will appear for 0.5 seconds. Following this, a menu will appear on the display with the

following options: Measure, Setup, View and File. You are now in the CI-203 menu system.

Figure 2. CI-203 Keypad

CI-203 Instruction Manual rev. 8/9/2016

1554 NE 3rd Ave, Camas, WA 98607, USA

Phone (360) 833-8835 Fax (360) 833-1914 sales@cid-inc.com http://www.cid-inc.com

Error messages should rarely appear during normal operation of the CI-203. However, in the

event that the display does not show the “Measure” prompt after displaying the copyright notice,

see the Error Message section of this manual.

Note: To force a power off and reset of the instrument at any point, a user may press and hold

the POWER button for 10 seconds. This “emergency hard shut-down” feature exists to address

hardware or software problems and should not be used except when needed, in general, simply

pressing the Power button in the typical manner will power off the CI-203.

Note: User must create a file (usually blank) before measurements can be taken. Failure to do

so will hang the system in ‘Measurement’ mode, requiring a hard shutdown.

Menus and What They Do

The CI-203 menu system allows you to quickly and easily operate the instrument without

repeatedly consulting the manual. It is recommended to read through the entire manual with the

instrument before performing measurements in the field. The screen associated with a menu

item will give you information about the choices that you can make or the options that are

available. Pressing the right arrow or forward key will select a menu option and move you to the

next menu. Pressing the left arrow or backward key will move you back to the previous menu

screen.

CI-203 Instruction Manual rev. 8/9/2016

1554 NE 3rd Ave, Camas, WA 98607, USA

Phone (360) 833-8835 Fax (360) 833-1914 sales@cid-inc.com http://www.cid-inc.com

MEASURE MENU

In the measure mode, the top line of the screen will read “Measure” on the left with the name of

a file on the right. The bottom line of the screen will have the word “arm” in brackets on the left,

and the four direction arrows on the right.

Measure

file00

<arm>

The options are:

to select another file with the UP or DOWN arrow keys

to go back to the main menu with the LEFT arrow key

to take measurements by lifting the arm

To start measuring, open the measurement arm until extended completely, and then allow it to

slowly close upon the leaf to be measured. This begins the measurement process. The motor

will start spinning up to speed as soon as the arm opens, and the display will read “Spinning

Up”, “Stabilizing”, and “Arm Open” in quick succession, then “Measurement” near the top line.

When the arm closes, the laser will power on and the display will read “Measuring”. At this

point, draw the leaf being measured through the instrument. When the leaf has been drawn out

completely, the instrument will stop automatically and display the results of the measurement.

With ‘Autofile’ = ON, the measurement is automatically stored to the currently selected file. With

‘Autofile’ = off, the user must press the ‘SAVE’ button to save the measurement to the currently

selected file.

The display will show the name of the current file in the upper left-hand corner of the screen and

the sequence number of the measurement in the upper right-hand corner. Below these the

parameter names appear on the left and parameter values on the right of the screen.

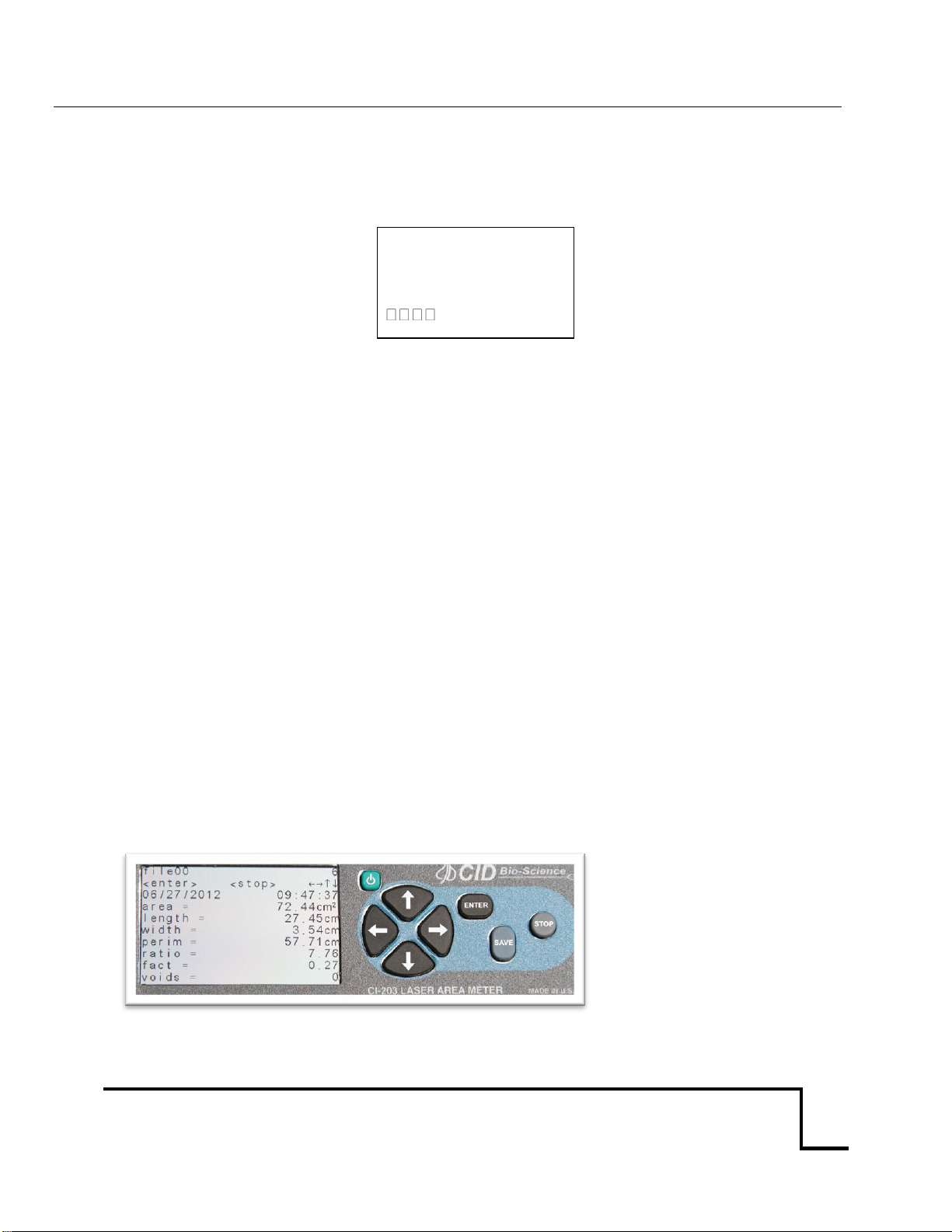

Figure 3. CI-203 display read out and key pad

CI-203 Instruction Manual rev. 8/9/2016

1554 NE 3rd Ave, Camas, WA 98607, USA

Phone (360) 833-8835 Fax (360) 833-1914 sales@cid-inc.com http://www.cid-inc.com

To bring an image into view, press the RIGHT arrow key. Pressing the RIGHT arrow key again

will display the barcode data. Pressing the LEFT arrow key from any screen will return the

instrument to the ready to measure mode. To discard the last measurement, press the STOP

button. Now another measurement may be taken, if required. Depending on the setup of the

automatic save function of the instrument, the measurement will or will not be saved.

Figure 4. Image of measured leaf on CI-203 display screen

To save the measurement, press the SAVE button; the word “saved” will be shown near the top

line of the display to confirm that the data is saved. Make sure the SDcard is present when

saving data to a file. The user may verify and transfer files by connecting the instrument to a

computer using the USB port on the CI-203, or by mounting the SDcard into the SD slot on the

computer and using it as a local drive; then open the file explorer to view the files. Files should

be copied from the SDcard and saved to the hard drive before proceeding with any calculations

or data manipulation.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels CID Bio-Science Instrument de mesure

CID Bio-Science

CID Bio-Science CI-203 Manuel utilisateur

CID Bio-Science

CID Bio-Science F-750 Manuel utilisateur

CID Bio-Science

CID Bio-Science CI-340 Manuel utilisateur

CID Bio-Science

CID Bio-Science CI-202 Manuel utilisateur

CID Bio-Science

CID Bio-Science CI-600 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
