CIARRA CBCS6803 Manuel utilisateur

Model Number:

CBCS6903

CBCB6903

www.ciarraappliances.com

Dear customer:

Thank you so much for your purchase, please read

this instruction manual carefully before installation

& use.

If you have any question, please contact us at:

E-mail: [email protected]

INSTALLATION AND USER'S MANUAL Page

3-18

BENUTZERHANDBUCH&INSTALLATION

SANLEITUNG

Seite

20-37

MANUEL DE L’UTILISATEUR ET

D’INSTALLATION

Page

39-56

ENGLISH

DEUTSCH

FRANÇAIS

ITALIANO

ESPAÑOL

NEDERLANDS

SVENSKA

POLSKI

INSTALLAZIONE E MANUALE

DELL’UTENTE

Pagina

MANUAL DE USUARIO E

INSTRUCCIONES DE INSTALACIÓN

Página

INSTALLATIE- EN

GEBRUIKERSHANDLEIDING

Pagina

INSTALLATION- OCH

BRUKSANVISNING Sida

INSTRUKCJA INSTALACJI I

UŻYTKOWANIA

Strona

CONTENTS

Safety------------------------------------------- 3-4

Specifications--------------------------------------5

Before Using the Cooker Hood ---------------------6

Prepare for Installation ----------------------------7

Installation--------------------------------------8-12

Install the Hood-------------------------------------------8-10

Carbon Filter Installation----------------------------------11-12

Operation----------------------------------------- 13

Cleaning and Maintenance --------------------14-16

Grease Filter------------------------------------------------14

Carbon Filter -----------------------------------------------14

Stainless Steel Cleaning ------------------------------------14

Painted Finish Cleaning-------------------------------------14

LED Replacement----------------------------------------15-16

Troubleshooting-----------------------------------17

Environmental Protection -------------------------18

Safety

!WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR

INJURY TO PERSONS, OBSERVE THE FOLLOWING:

Use this unit only in the manner intended by the

manufacturer. If you have questions, contact the

manufacturer at the address or telephone number listed in

the warranty.

Before servicing or cleaning unit, unplug or disconnect the

cooker hood from the power supply.

This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

Installation work and electrical wiring must be done by a

qualified person(s) in accordance with all applicable codes

and standards, including fire-rated construction.

Sufficient air is needed for proper combustion and

exhausting of gases through the flue (chimney) of fuel

burning equipment to prevent back drafting.

When cutting or drilling into a wall or ceiling, do not damage

electrical wiring and other hidden utilities.

Ducted fans must always be vented to the outdoors.

Ensure the requirements of the local authorities are adhered

to concerning the discharge of exhaust air.

This unit must be grounded.

When applicable local regulations comprise more restrictive

installation and/or certification requirements, the

aforementioned requirements prevail on those of this

document and the installer agrees to conform to these at his

own expense.

Clean cooker hood frequently. Grease should not be allowed

to accumulate on fans, filters or in exhaust ducts.

Warning: Failure to install the screws or fixing device in

accordance with these instructions may result in electrical

hazards.

Safety

WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT

OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING*:

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet or

metal tray, then turn off the burner. BE CAREFUL TO

PREVENT BURNS. IF THE FLAMES DO NOT GO OUT

IMMEDIATELY, EVACUATE AND CALL THE FIRE

DEPARTMENT.

2. NEVER PICK UP A FLAMING PAN — You may be burned.

3. DO NOT USE WATER, including wet dishcloths or towels —

This could cause a violent steam explosion.

4. Use an extinguisher ONLY if:

a) You own a Class ABC extinguisher and you know how to

operate it.

b) The fire is small and contained in the area where it

started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

!CAUTION

For indoor use only.

For general ventilating use only. Do not use to exhaust hazardous or

explosive materials and vapors.

To avoid motor bearing damage and noisy and/or unbalanced fan

blade, keep drywall spray, construction dust, etc. off cooker hood.

Your hood motor has a thermal overload which will automatically

shut off the motor if it becomes overheated. The motor will restart

when it cools down. If the motor continues to shut off and restart,

have the hood serviced.

Always follows the cooking equipment manufacturer’s requirements

regarding the ventilation needs.

To reduce the risk of fire and to properly exhaust air, be sure to duct

air outside — Do not exhaust air into spaces within walls or ceiling or

into attics, crawl space or garage.

When installing, servicing or cleaning the unit, it is recommended to

wear safety glasses and gloves.

Please read specification label on product for further information

and requirements.

Specifications

Voltage 220V-240V~ 50Hz

Power of Motor 1 x 75W

Power of lamps 1 x 2W

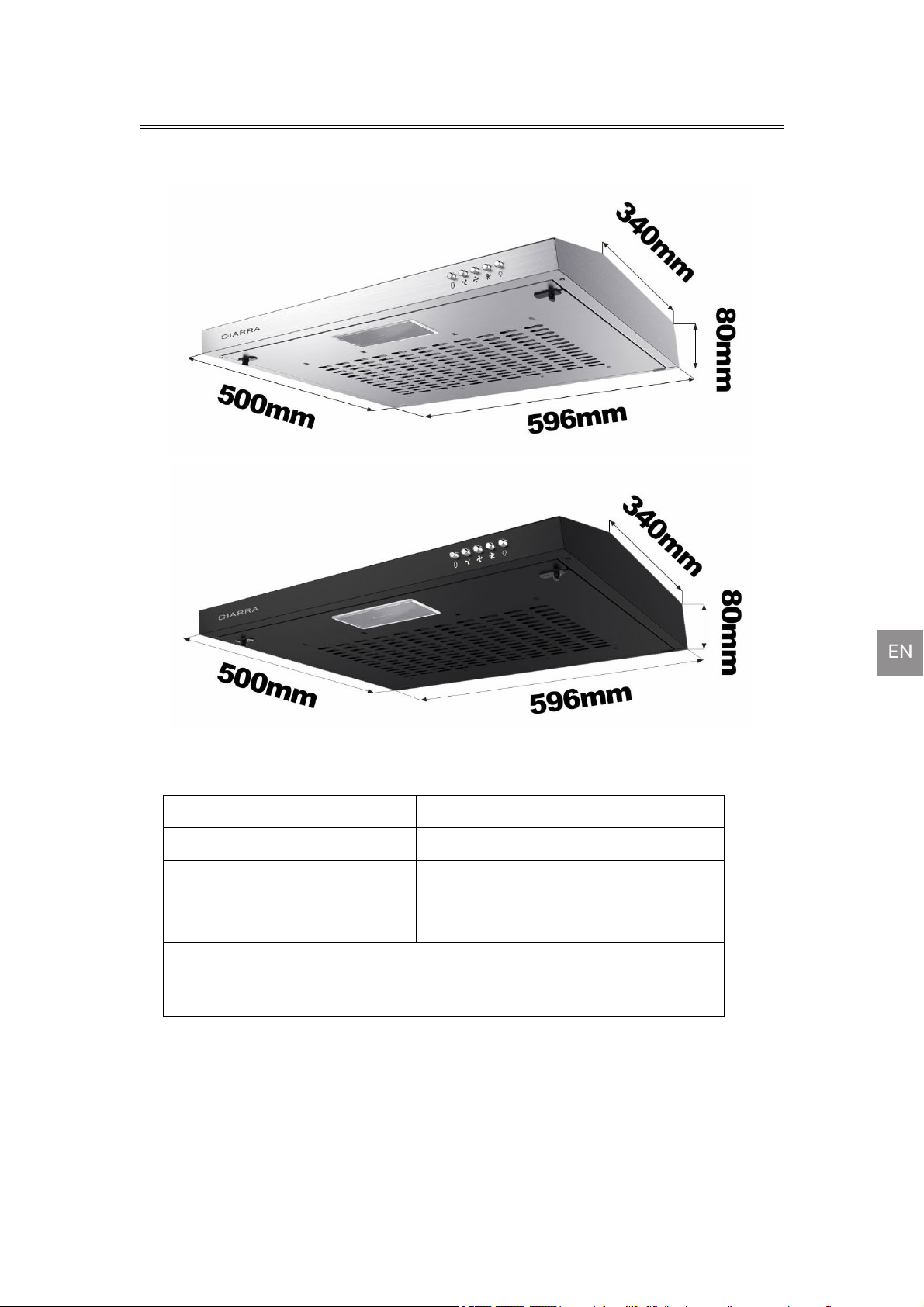

Appliance Dimension 596*500*80mm

(W x D x H)

Note: The manufacturer reserves the right to change any

technological improvement or modification without prior

notice.

Before Using the Cooker Hood

CAUTION: Before proceeding to the installation, check if items

are missing or damaged, contact the manufacturer.

Observe all governing codes and ordinances. Have a qualified

technician install the cooker hood. It is the installer’s

responsibility to comply with installation clearances specified on

the model/serial rating plate. The manufacturer declines all

responsibility for improper installation and does not accept

responsibility for appliance warranty in the event of damage

caused by incorrect installation.

COMPONENTS:

Part 1: Wall Plug X 4

Part 2: 4*20mm Screws X 6

Part 3: Installation Manual X 1

Part 4: Cooker Hood Body X 1

Part 6: Windbreak Blade X 1

Part 5: Outlet X 1

Part 7: Outlet coverX 1

YOU WILL BE NEEDING THESE TOOLS FOR INSTALLATION

1.Protective Gloves

2.Spirit Level Ruler

3.Measuring Tape

4.Double Sided Tape or Tape

5.Cross-Head Screwdriver Set

6.Electric drill and 8mm drill

Prepare for Installation

Prepare for Installation:

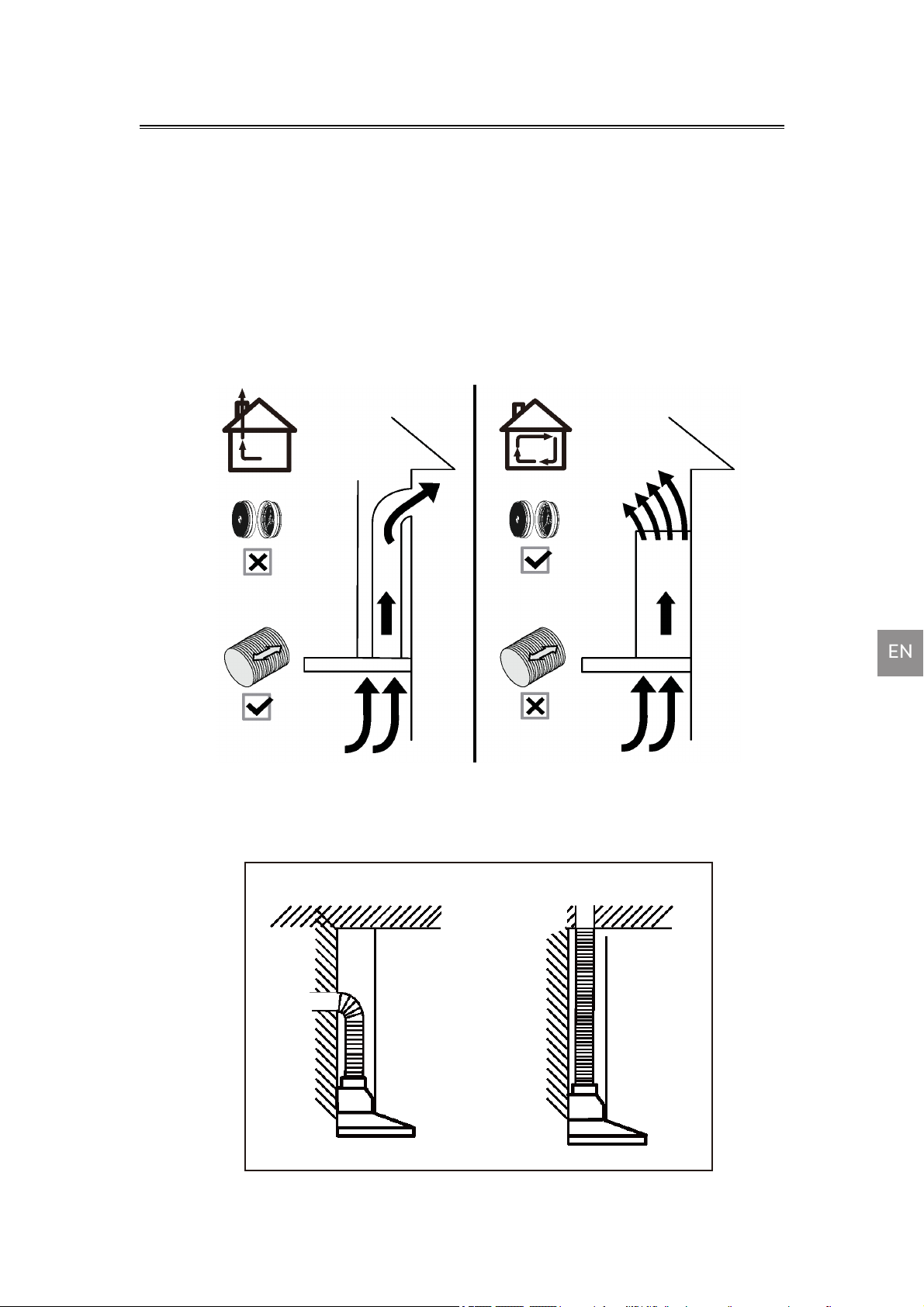

a) Ventilation Mode

Recirculation Mode: Recirculating with carbon filter (required), the

smells and odors can be filtered and vented through the top vented

hole and the exhaust pipe is not required.

Extraction Mode: You can install the 1.5m long and 120mm diameter

aluminum exhaust pipe for extracting, which is included in the

installation kit.

b) When possible, use at least 60cm straight runs before any turns.

Larger duct work may be required for best performance with longer

duct runs.

c) Before installation, don't connect the power.

Installation

Install the Hood（Extraction）:

1) Remove all protective poly film from the hood and/or parts.

2) Recommend installation height: 65~75cm above the cooktop for

best extraction.

Required height over gas hob: 750mm;

Required height over electric hob: 650mm.

650mm

750mm
