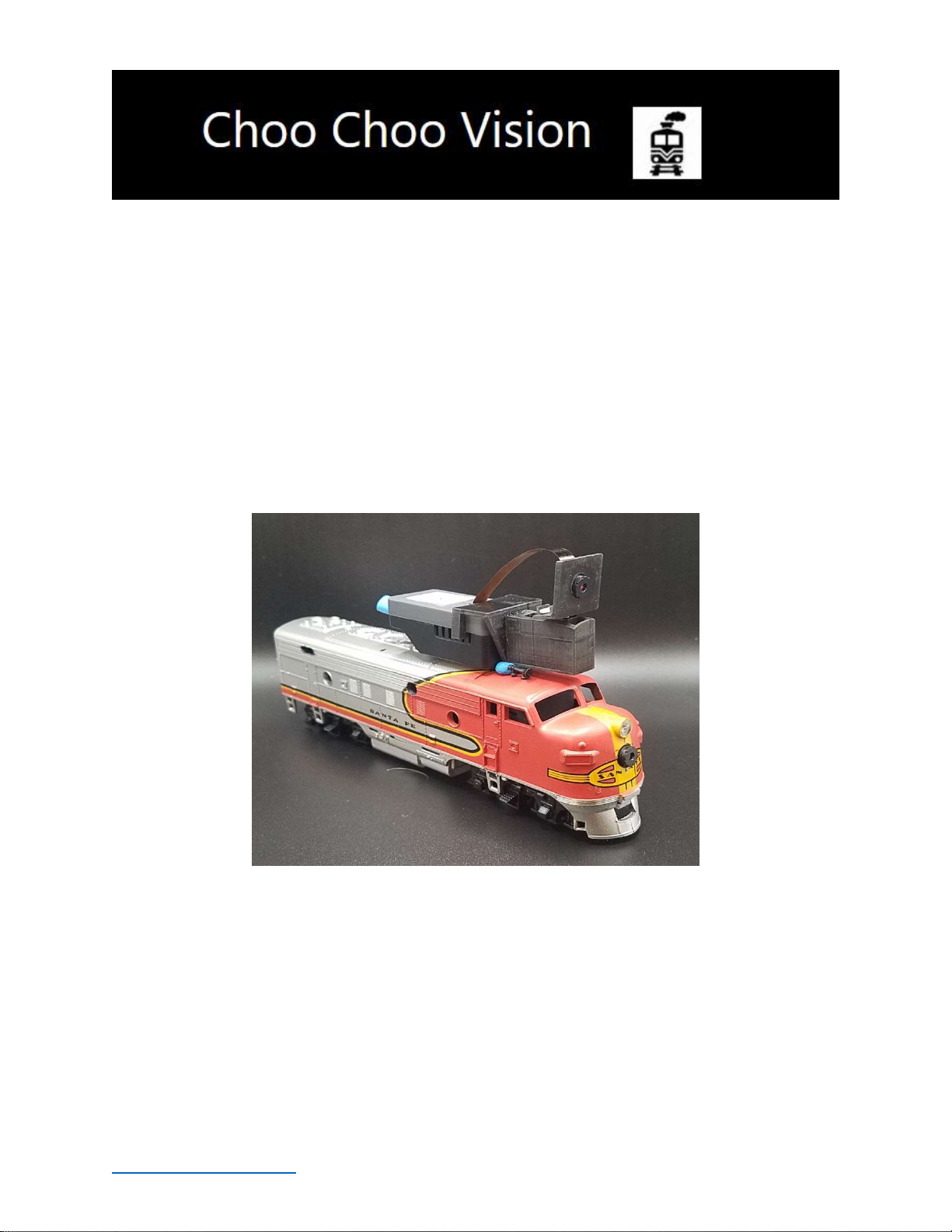

Introduction

Congratulations! You have purchased a unique technological advancement for Model Railroading that

immerses you into the world of your layout. The PAN-CAM accessory allows you to rotate the view of

your CCV Camera. It easily attaches to CCV Trackside and CAB-CAMs

Pre-Requisites:

The Choo Choo Vision PAN-CAM accessory can be used with a CAB-CAM or a Trackside Camera that has

the following features:

 The camera must have a 3” lens installed.

 The camera must have the larger 400mAh battery installed or be powered externally (via our

DCC Convertor or USB 5V Power). The larger power source is required due to the current draw

of the PAN-CAM servo.

www.choochoovision.com 3 Released 12/15/2021

Using your Choo Choo Vision Camera:

Menus:

The Choo Choo Vision cameras is controlled by two menu screens, the Main User Screen, and an Admin

Screen.

The Choo Choo Vision Admin screen allows you to manage camera settings and control what types of

controls are displayed on the User Screen.

The Choo Choo Vision Main User Screen is the primary screen for viewing video and controlling the

camera.

The following sections detail how to access and utilize the Admin Screen and the Main User Screen:

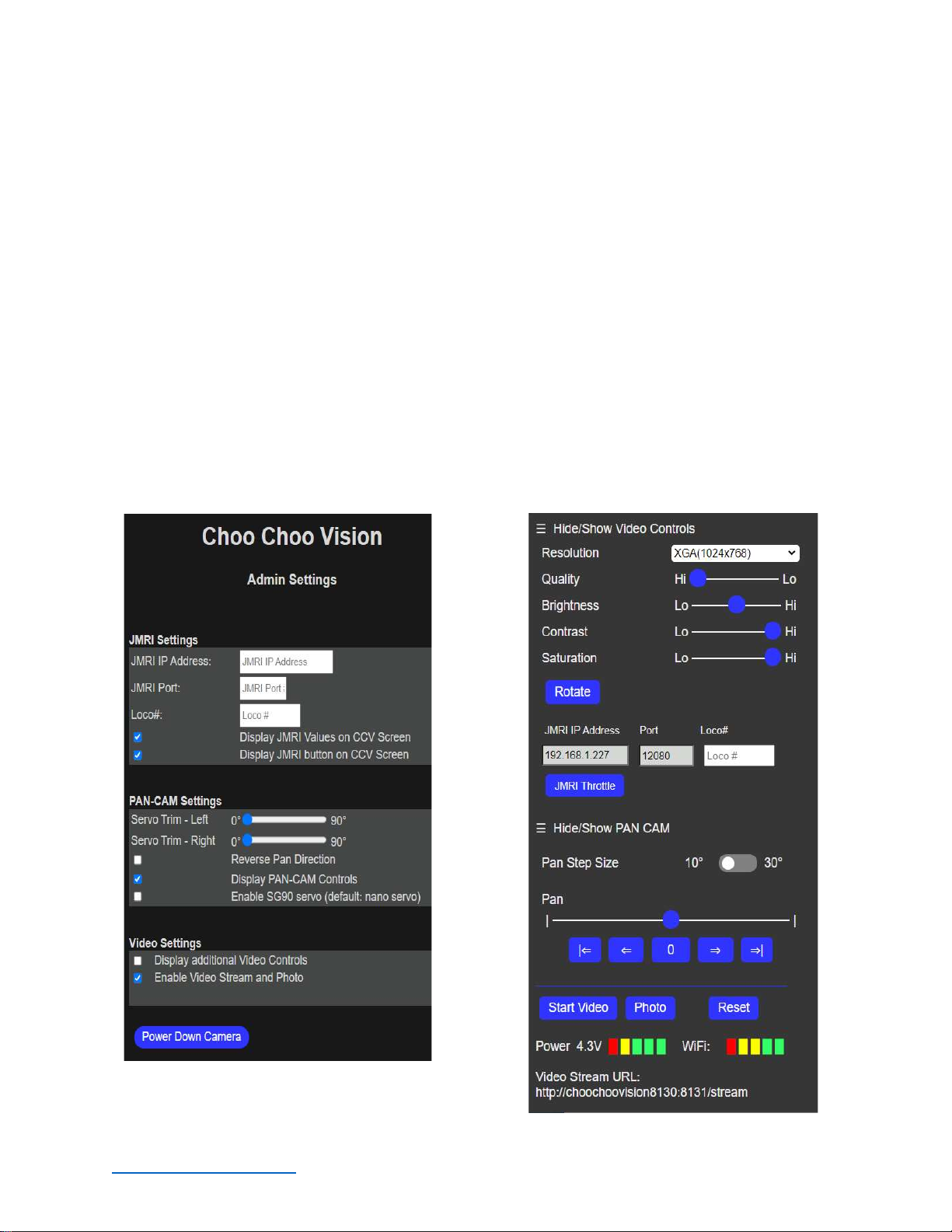

Choo Choo Vision Admin Screen Choo Choo Vision Main User Screen

www.choochoovision.com 4 Released 12/15/2021

Admin Screen

The Choo Choo Vision Admin screen allows you to manage camera settings and control what types of

controls are displayed on the Main User Screen.

Accessing the Choo Choo Vision Admin Screen

To access the Admin Screen:

 Turn the camera ON

 Open a web browser on a computer or mobile phone. Note: The computer or mobile phone

must be on the same WiFi network as the camera.

 Locate the camera’s ID number (printed on the back of the camera).

 Enter the camera’s URL into your web browser The proper format is

http://ChooChooVisionxxxx:xxxx/admin where xxxx is your camera ID. Notice the colon “:”

between the ID numbers.

 For example, if your camera ID is 8012, you would enter

http://ChooChooVision8012:8012/admin into the web browser address. Take notice of the

colon “:” between the two camera id values.

 Book-mark this screen for future use.

www.choochoovision.com 5 Released 12/15/2021

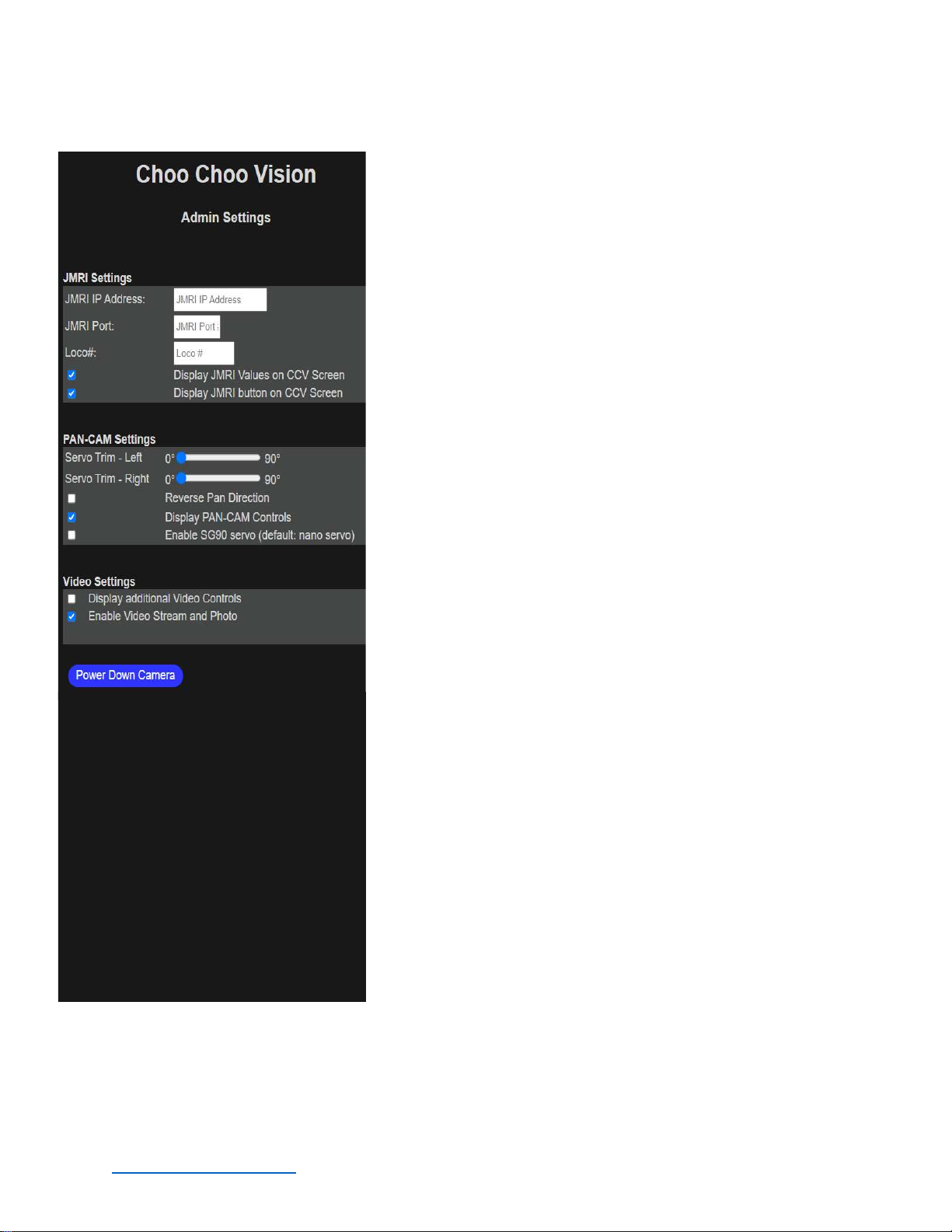

Admin Screen Settings

JMRI Settings

 JMRI IP Address: Enter the IP address of your JMRI Server.

Note: JMRI’s Web Server and WIThrottle services must be ON

within JMRI (see the JMRI manual for more information)

 JMRI IP PORT: Port Number for the JMRI WiThrottle. This is

typically 12080 or 12090, but can be set to any value within JMRI.

 LOCO #: DCC Address of the locomotive you wish to control

with the JMRI throttle. If you leave this blank, the JMRI system

will launch a list of all the JMRI Locos.

PAN-CAM Settings

 Servo Trim – Left: Adjusts the brightness level of the image

 Servo Trim – Right: Adjusts the contrast level of the image

 Pan Direction: Reverses the direction of the PAN controls

Left/Right to Right/Left

 Display PAN-CAM Controls: Show the PAN-CAM controls on

the Choo Choo Vision User Screen

 Enable SG90 servo: Adjusts the CCV Software to use an SG90

Servo instead of the default PAN-CAM nano servo.

Video Settings

 Display Video Settings: Displays additional video image

controls on the Choo Choo Vision User Screen (AEC Sensor, ASP,

AE Level, etc)

 Enable Video Stream and Photo: IMPORTANT: This setting

enables / disables the video and photo capabilities on the main

page. It should normally be “checked” to allow you to view

video on the main page. You may wish to disable the video if

you don’t want remote viewers to see video.

 Power Down Camera – Turn the camera power off from the

user screen. Note, in order to turn the camera back on, you must

either press the ON button located on the left side of the camera,

or use the magnet while under USB power. See Powering your

CCV camera for further details.

www.choochoovision.com 6 Released 12/15/2021

User Screen Controls and Operation

The User Screen is the primary screen for controlling the camera.

The Choo Choo Vision user screen allows you to view the video feed, take still images, and manage

camera settings. This page also is remotely viewable via the internet (with firewall port forwarding

enabled on your router).

The Choo Choo Vision User Screen adjusting camera settings, opens a JMRI throttle, runs the PAN-CAM

and start/stop the video feed, and take still images.

Accessing the Choo Choo Vision User Screen

To access the User Screen:

 Turn the camera ON

 Open a web browser on a computer or mobile phone. Note: The computer or mobile phone

must be on the same WiFi network as the camera.

 Locate the camera’s ID number (printed on the back of the camera).

 Enter the camera’s URL into your web browser The proper format is

http://ChooChooVisionxxxx:xxxx where xxxx is your camera ID. Notice the colon “:” between

the ID numbers.

 For example, if your camera ID is 8012, you would enter http://ChooChooVision8012:8012 into

the web browser address. Take notice of the colon “:” between the two camera id values.

 Book-mark this screen for future use.

www.choochoovision.com 7 Released 12/15/2021

Choo Choo Vision User Screen

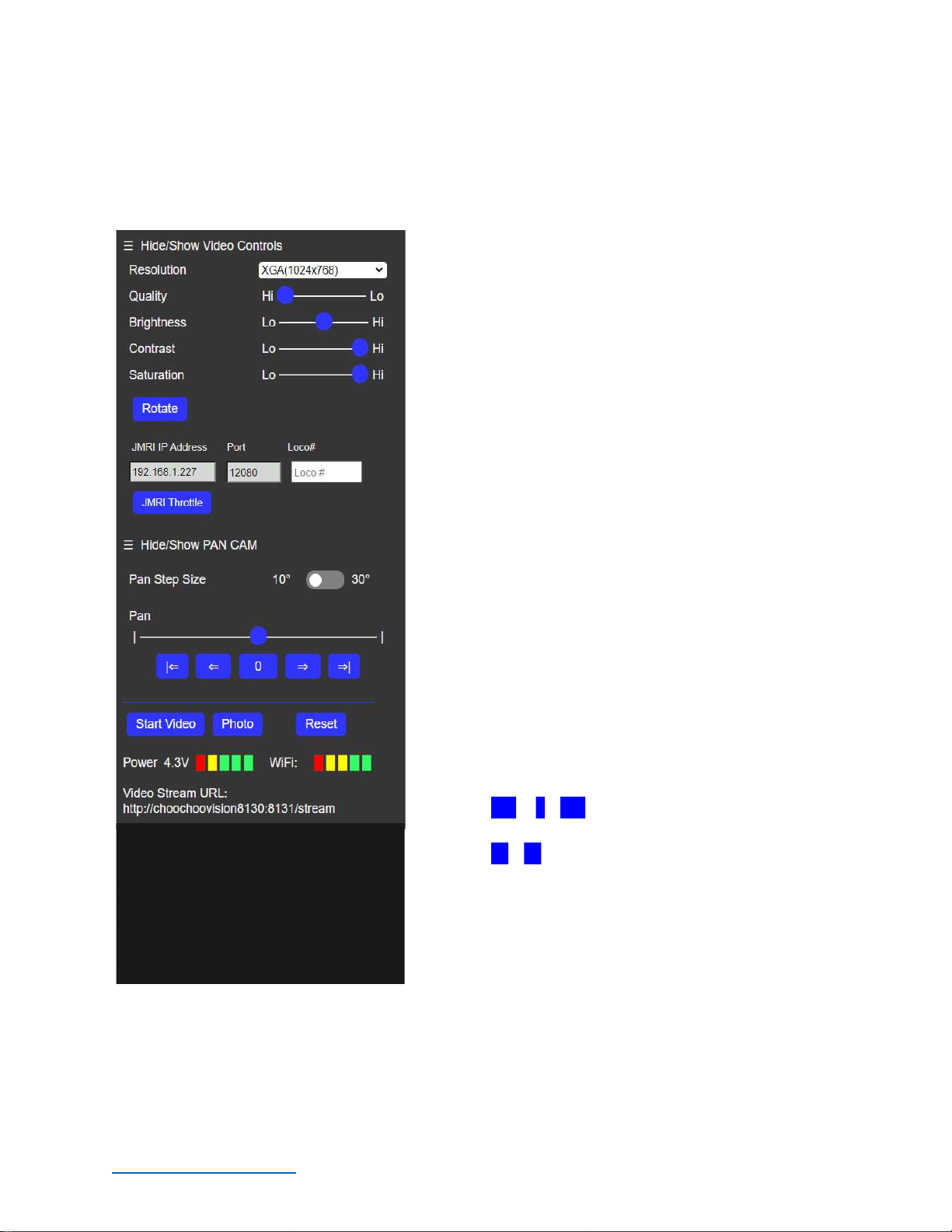

Camera Main User Screen Controls

The Choo Choo Vision Main User Screen contains controls for adjusting camera settings, open a JMRI

throttle, run the PAN-CAM and start/stop the video feed, and take still images.

Adjusting Camera Image Settings

 Resolution: Sets the image size for the camera.

Depending upon your internet speed, VGA mode may

perform the best.

 Quality: Adjusts the image quality. Depending on your

internet speed, you may need to adjust the Quality level.

 Brightness: Adjusts the brightness level of the image

 Contrast: Adjusts the contrast level of the image

 Saturation: Adjusts the saturation level of the image

 Rotate: Rotates the image 90 degrees.

 JMRI IP Address: IP Address of your JMRI Server

 PORT: Port for your JMRI Server

 Loco#: DCC address for the LOCO you wish to control.

Leave blank to display all JMRI Locos.

 JMRI Throttle: Opens the JMRI throttle to control your

locomotive. You must have JMRI’s Webserver and

WiThrottle running on the JMRI server.

 Pan Step Size: Sets the number of degrees the PAN

CAM will move when using the <= or => buttons.

 Pan Slider: Moving the Pan slider will move the Pan-

Cam left or right.

 Pan ( |<= , 0 , =>| ) buttons: Pans the camera to

preset angles of -90 degrees, 0 degrees, or +90 degrees.

 Pan ( <= , => ) buttons: Pans the camera in

increments of 10 or 30 degrees.

 Start Video: Starts the video stream.

 Photo: Takes a single photo from the camera.

 Reset Camera: Remotely reboots the camera module.

 Power Meter: Displays the power available to the camera. Under external power, the Power

Meter will typically read 4.0 to 4.2 volts. Under battery power, the Power Meter will display

the battery voltage. The camera will automatically shut down when the voltage is less than 3.5

volts.

www.choochoovision.com 8 Released 12/15/2021

 WiFi Meter: Displays the strength of the WiFi signal received by the camera. The WiFi Meter

can help you identify areas on your layout with poor WiFi coverage.

 Video Stream URL: Displays the raw video feed without the control panel. Enter the IP address

into a web browser to view the camera control screen and display the video. Note: Only one

web browser at a time can be connected to the camera.

www.choochoovision.com 9 Released 12/15/2021

Connecting your PAN-CAM Accessory

The basic steps to connect your PAN-CAM are:

Steps:

 Power OFF the camera.

 Attach the PAN-CAM unit to the front of the camera body.

o Slide the PAN-CAM accessory it touches the end of the camera.

o Ensure the clips on the PAN-CAM accessory are seated to the camera body.

 Plug the PAN-CAM accessory into the camera:

o Locate the wires and connector plug on the PAN-CAM accessory.

o Locate the white GROVE port on the bottom of the camera

o Plug the PAN-CAM connector into the GROVE port.

 Insert Lens into PAN-CAM

o Locate the round hole in the PAN-CAM lens mount

o Gently insert the lens thru the hole

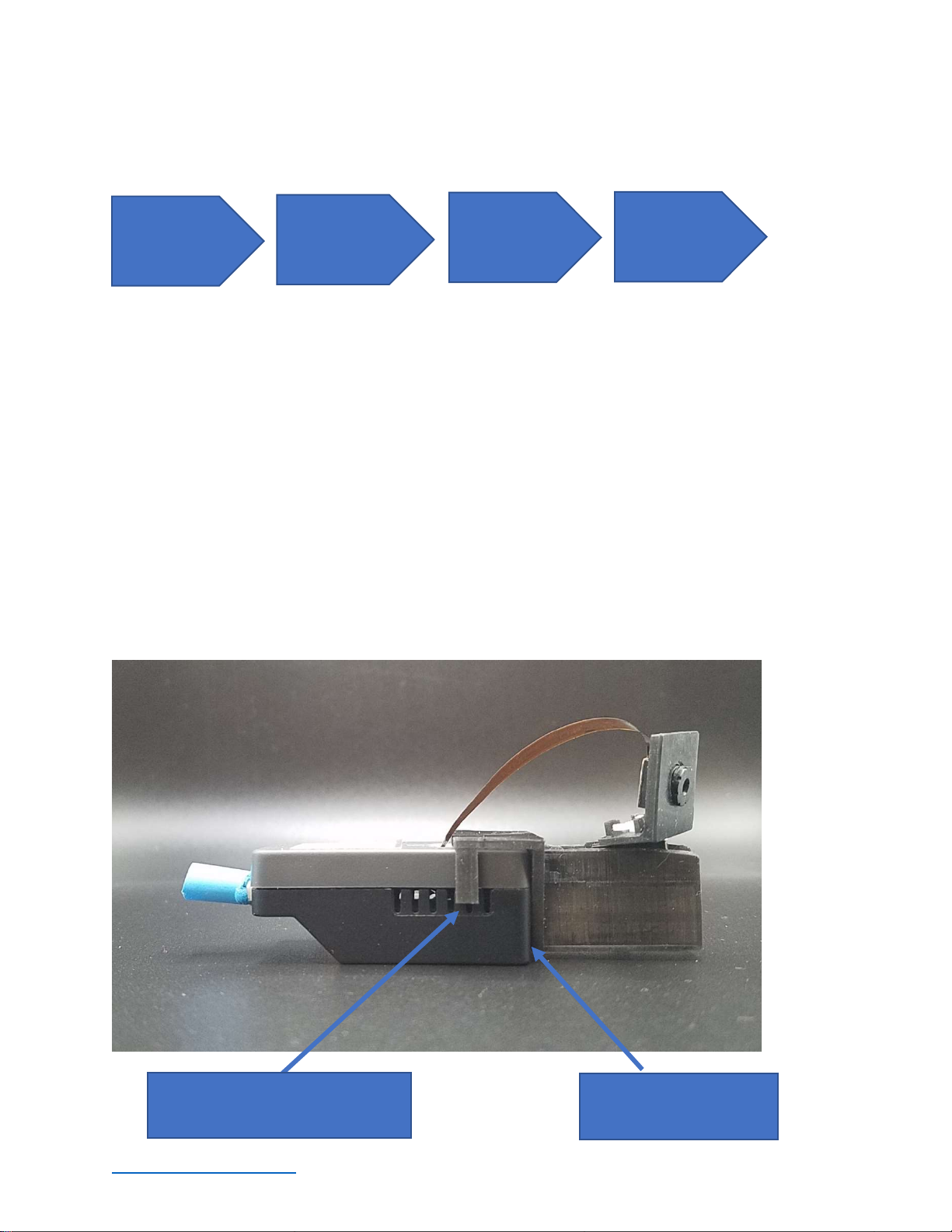

Power OFF the

Camera

Attach the

PAN-CAM to

the camera

Plug the

PAN

CAM into the

Grove Port

Insert the Lens

into the PAN-

CAM mount

Place PAN

CAM against

the end of the camera.

Mounting clips will “click” when

fully seated.

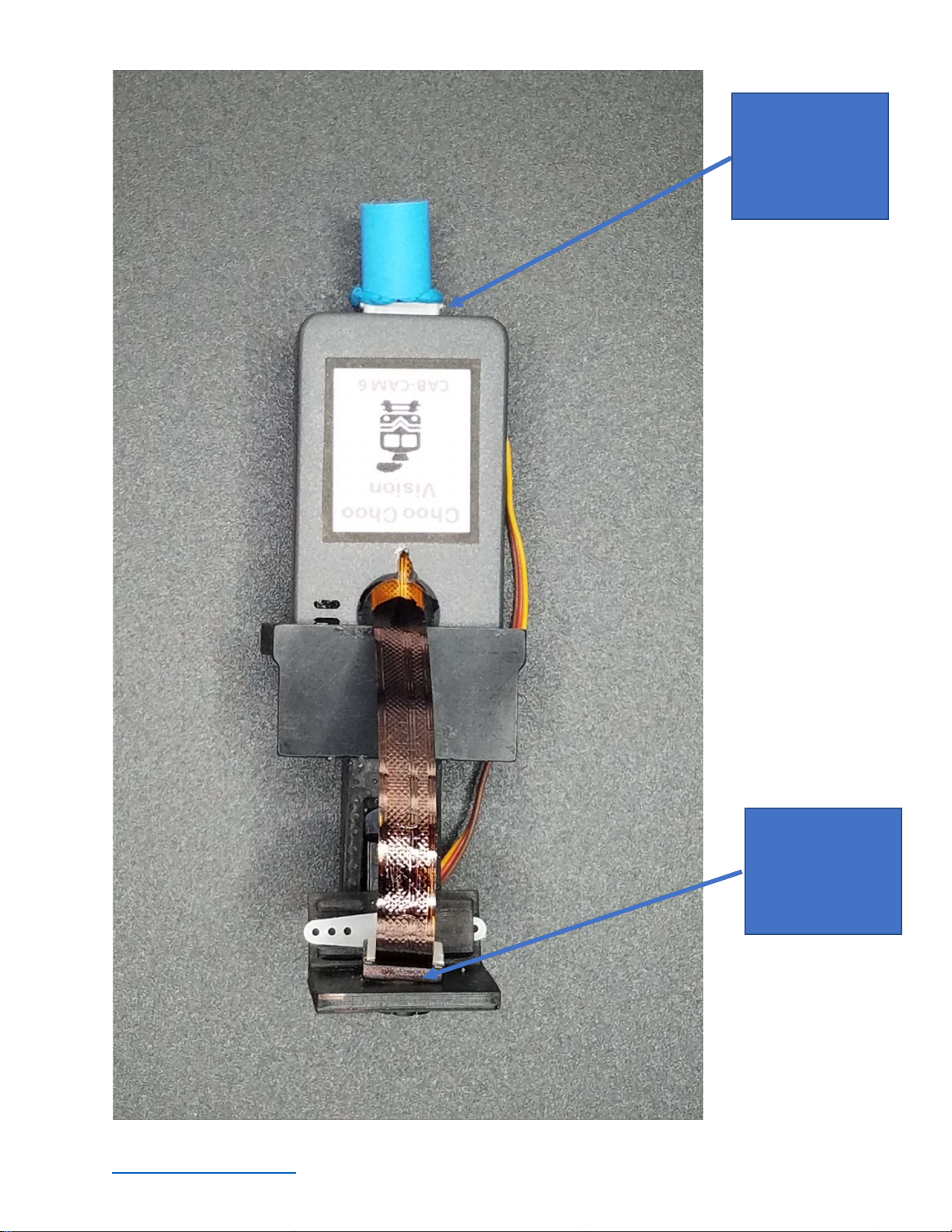

www.choochoovision.com 10 Released 12/15/2021

Insert PAN

CAM

plug into the white

connector on the

back of the

camera

Insert lens into

mounting hole
