MSA/MTA Series

MSA/MTA Series Installation Instructions

DISCLAIMER

Milestone AV Technologies, and its affiliated corporations and

subsidiaries (collectively "Milestone"), intend to make this

manual accurate and complete. However, Milestone makes no

claim that the information contained herein covers all details,

conditions or variations, nor does it provide for every possible

contingency in connection with the installation or use of this

product. The information contained in this document is subject

to change without notice or obligation of any kind. Milestone

makes no representation of warranty, expressed or implied,

regarding the information contained herein. Milestone assumes

no responsibility for accuracy, completeness or sufficiency of

the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies.

IMPORTANT WARNINGS AND

CAUTIONS!

WARNING: A WARNING alerts you to the possibility of

serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of

damage or destruction of equipment if you do not follow the

corresponding instructions.

WARNING: Failure to read, thoroughly understand, and

follow all instructions can result in serious personal injury,

damage to equipment, or voiding of factory warranty! It is the

installer’s responsibility to make sure all components are

properly assembled and installed using the instructions

provided.

WARNING: Failure to provide adequate structural strength

for this component can result in serious personal injury or

damage to equipment! It is the installer’s responsibility to

make sure the structure to which this component is attached

can support five times the combined weight of all equipment.

Reinforce the structure as required before installing the

component. The wall to which the mount is being attached

may have a maximum drywall thickness of 5/8" (1.6cm).

WARNING: Exceeding the weight capacity can result in

serious personal injury or damage to equipment! It is the

installer’s responsibility to make sure the combined weight of

all components located between the MSA/MTA up to (and

including) the display does not exceed 125 lbs (56.7 kg) for

dual stud attachment and concrete, and 75 lbs (34.0 kg) for

single stud attachment.

Installation Instructions MSA/MTA Series

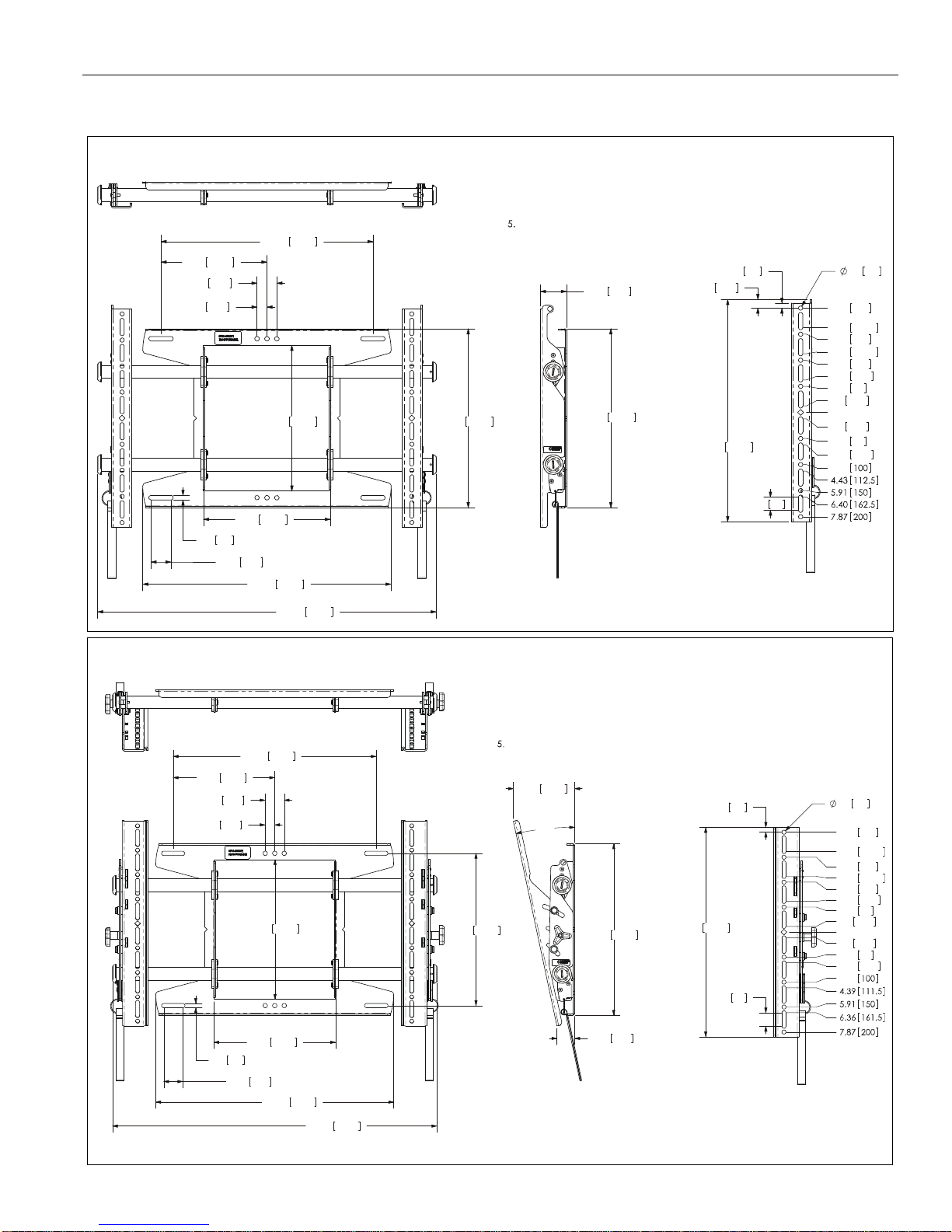

DIMENSIONS

12.00 304.8

9.58 243.4

.75 19.1

1.50 38.1

25.57 649.5

18.75 476.2

1.50 38.1

.34 8.6

11.00 279.4

16.00 406.4

8.00 203.2

13.50 342.9

4.83 122.6

12°

1.40 35.5

1.06 27

.32

8.1

.38

9.5

16.50

419.1

.45 11.5

1.97 50

2.42 61.5

3.94 100

4.39

111.5

5.91 150

6.36

161.5

7.87 200

.45 11.5

1.97 50

2.42 61.5

3.94

NOTES:

MAX MOUNTING PATTERN IS 22"[558.8mm] WITHOUT REVERSING UPRIGHTS.

1. MAX MOUNTING PATTERN IS 26.5"[673.1mm] WITH REVERSING UPRIGHTS.2. FOR RECESSED APPLICATIONS, MINIMUM VERTICAL LIFT FOR HOOK3. ENGAGEMENT IS .56"[14.2mm].

MOUNT RAILS CAN BE SLID LEFT OR RIGHT FOR OFFSET APPLICATIONS.4. MOUNT IS 1.99"[50.5mm] DEEP WHEN FLAT TO WALL.

MTA

DIMENSIONS: [MILLIMETERS]

INCHES

25.57 649.5

18.75 476.2

.75 19.1

1.50 38.1

.34 8.6

9.58 243.4

11.00 279.4 13.50 342.9

16.00 406.4

8.00 203.2

1.96 49.8

13.50 342.9

16.78 426.1

.32

8.1

.38

9.6

.65

16.5

.98 25

.49

12.5

1.97 50

2.46

62.5

3.94 100

4.43

112.5

5.91 150

6.40

162.5

7.87 200

.49 12.5

1.97 50

2.46 62.5

3.94

NOTES:

MAX MOUNTING PATTERN IS 22.9"[581.6mm] WITHOUT REVERSING UPRIGHTS.

1. MAX MOUNTING PATTERN IS 25.5"[647.7mm] WITH REVERSING UPRIGHTS.2. FOR RECESSED APPLICATIONS, MINIMUM VERTICAL LIFT FOR HOOK3. ENGAGEMENT IS .56"[14.2mm].

MOUNT RAILS CAN BE SLID LEFT OR RIGHT FOR OFFSET APPLICATIONS.4. MOUNT IS 1.96"[49.8mm] DEEP WHEN FLAT TO WALL.

DIMENSIONS: [MILLIMETERS]

INCHES

MSA

Installation Instructions MSA/MTA Series

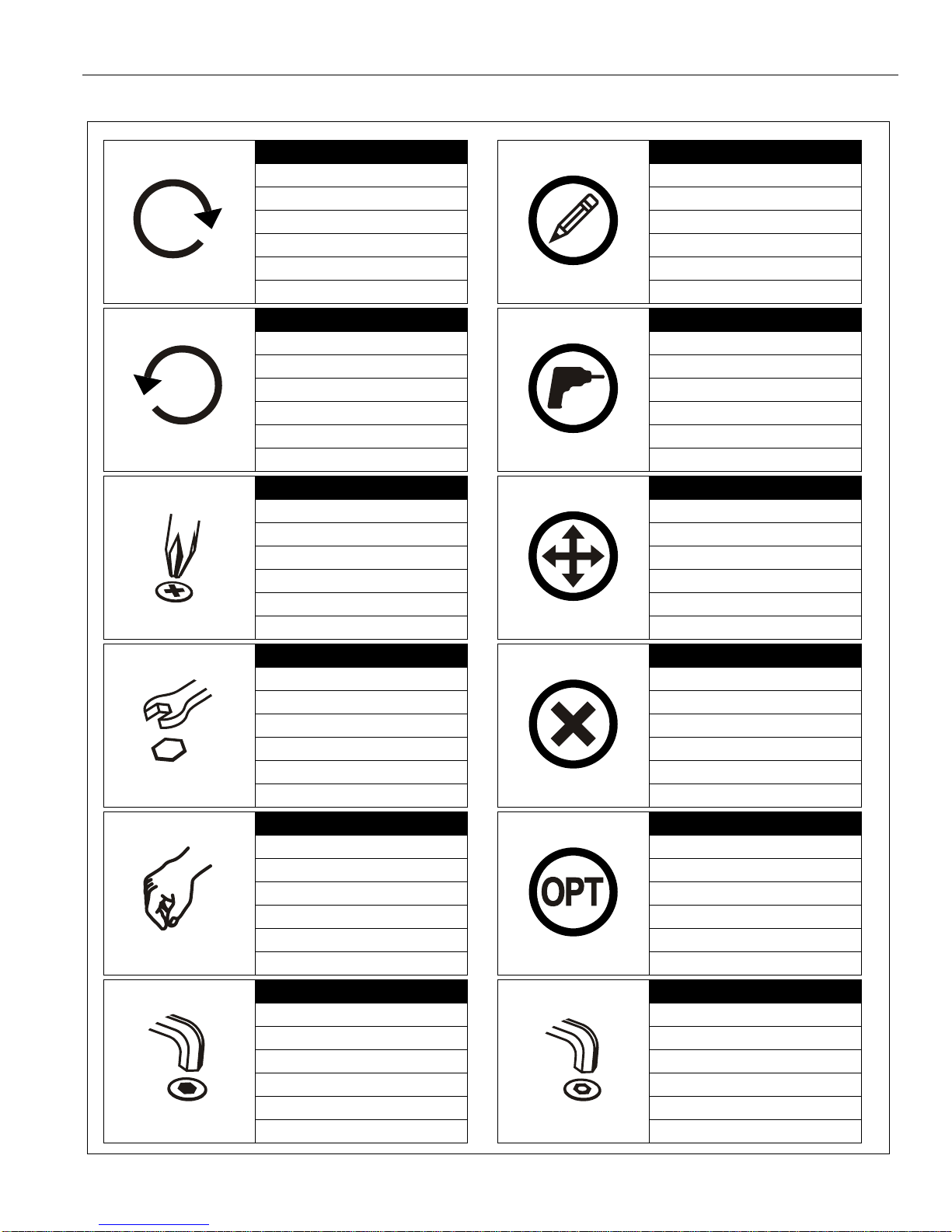

LEGEND

Tighten Fastener

Apretar elemento de fijación

Befestigungsteil festziehen

Apertar fixador

Serrare il fissaggio

Bevestiging vastdraaien

Serrez les fixations

Loosen Fastener

Aflojar elemento de fijación

Befestigungsteil lösen

Desapertar fixador

Allentare il fissaggio

Bevestiging losdraaien

Desserrez les fixations

Phillips Screwdriver

Destornillador Phillips

Kreuzschlitzschraubendreher

Chave de fendas Phillips

Cacciavite a stella

Kruiskopschroevendraaier

Tournevis à pointe cruciforme

Open-Ended Wrench

Llave de boca

Gabelschlüssel

Chave de bocas

Chiave a punte aperte

Steeksleutel

Clé à fourche

By Hand

A mano

Von Hand

Com a mão

A mano

Met de hand

À la main

Hex-Head Wrench

Llave de cabeza hexagonal

Sechskantschlüssel

Chave de cabeça sextavada

Chiave esagonale

Zeskantsleutel

Clé à tête hexagonale

Pencil Mark

Marcar con lápiz

Stiftmarkierung

Marcar com lápis

Segno a matita

Potloodmerkteken

Marquage au crayon

Drill Hole

Perforar

Bohrloch

Fazer furo

Praticare un foro

Gat boren

Percez un trou

Adjust

Ajustar

Einstellen

Ajustar

Regolare

Afstellen

Ajuster

Remove

Quitar

Entfernen

Remover

Rimuovere

Verwijderen

Retirez

Optional

Opcional

Optional

Opcional

Opzionale

Optie

En option

Security Wrench

Llave de seguridad

Sicherheitsschlüssel

Chave de segurança

Chiave di sicurezza

Veiligheidssleutel

Clé de sécurité

MSA/MTA Series Installation Instructions

TOOLS REQUIRED FOR INSTALLATION

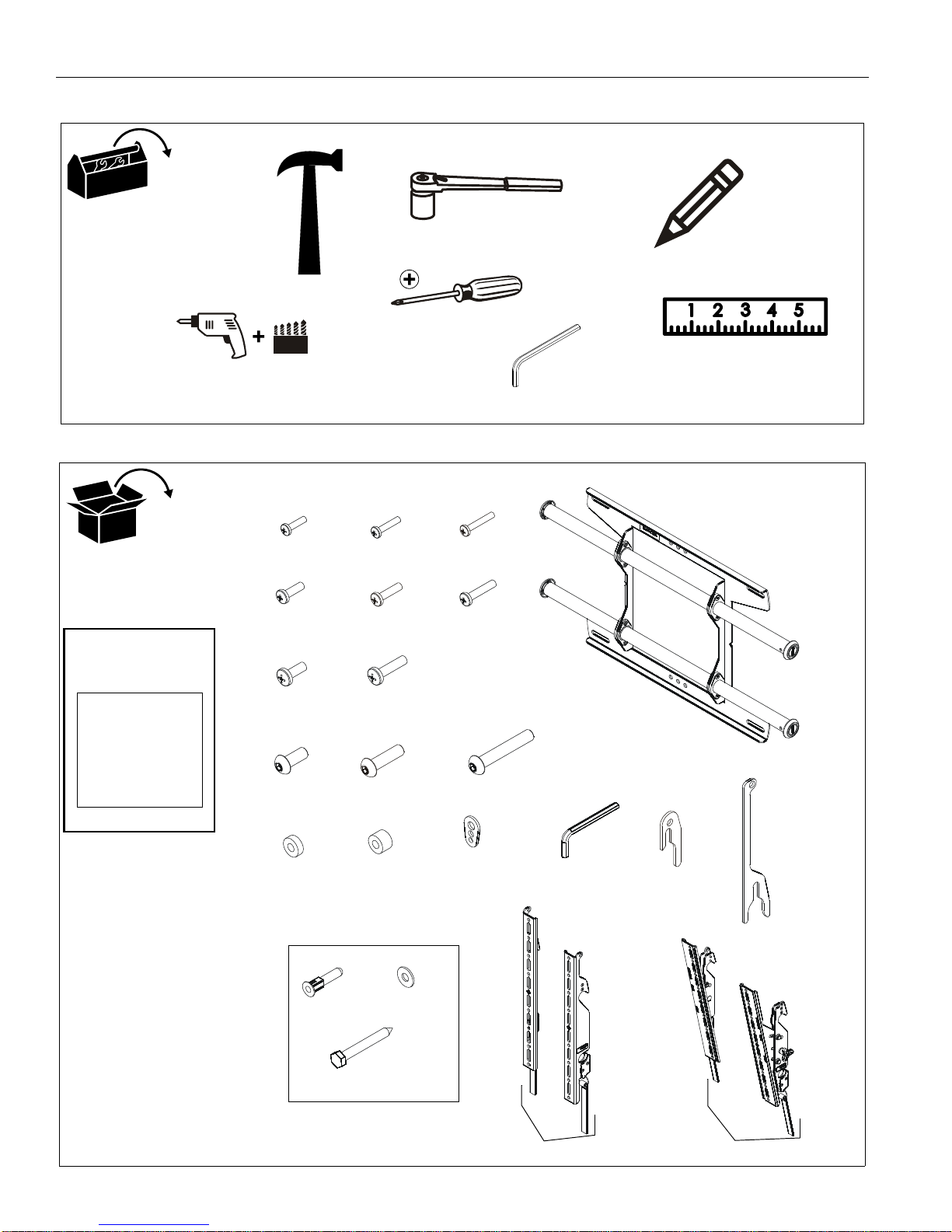

PARTS

7/32" (5.5mm) Wood Stud

5/16" (7.9mm) Concrete M5

(included)

Custom

MSA6XXX/

MTA6XXX

Hardware

[Included with

MSA6XXX/MTA6XXX

Models Only]

C (6)

E (6)

(MSA Only) (MTA Only)

T (1)

S (1)

(MSA Only)

(MTA Only)

A (8)

M4x16mm B (6)

M4x20mm M4x25mm

D (6)

M5x16mm M5x20mm F (6)

M5x25mm

G (6)

M6x16mm

H (6)

M6x25mm

P (1)

I (6)

M8x20mm J (6)

M8x30mm

K (4)

M8x50mm

L (8)

.750x.323x.250 M (8)

.750x.344x.500

N (8)

QA (4)

5/16"

QB (4)

5/16"

QC (4)

5/16" x 2-1/2"

[A-N used on MSAU/MTAU Models Only]

R (1)

U (1)

V (1)

W (1)

X (1)

MSA/MTA Series Installation Instructions

INSTALLATION

The MTA and MSA have been designed to be mounted directly

onto either a wood stud or concrete wall. The MTA has brackets

which allow the TV to be tilted. The MSA has static brackets

which keep the TV in an upright position.

Locate Mounting Site

WARNING: IMPROPER INSTALLATION CAN LEAD TO

MOUNT FALLING CAUSING SEVERE PERSONAL INJURY

OR DAMAGE TO EQUIPMENT! It is the installers

responsibility to make certain the structure to which the

mount is being attached is capable of supporting five times

the weight of the MSA/MTA not to exceed 125 lbs (56.7 kg)

for dual stud attachment, and 75 lbs (34.0 kg) for single stud

attachment.

WARNING: Proceed to either the Installing to a Wood

Stud Wall section or the Installing to a Concrete Wall

section.

Installing to a Wood Stud Wall

1. Determine the center of the TV screen, and where it should

be located on the wall.

2. Locate the closest stud to the left and right of the selected

location.

NOTE: If the screen area lies over a stud, use that stud if using

the single stud installation method.

NOTE: Use that stud and the stud to either the left or right of it

if using the dual stud installation method.

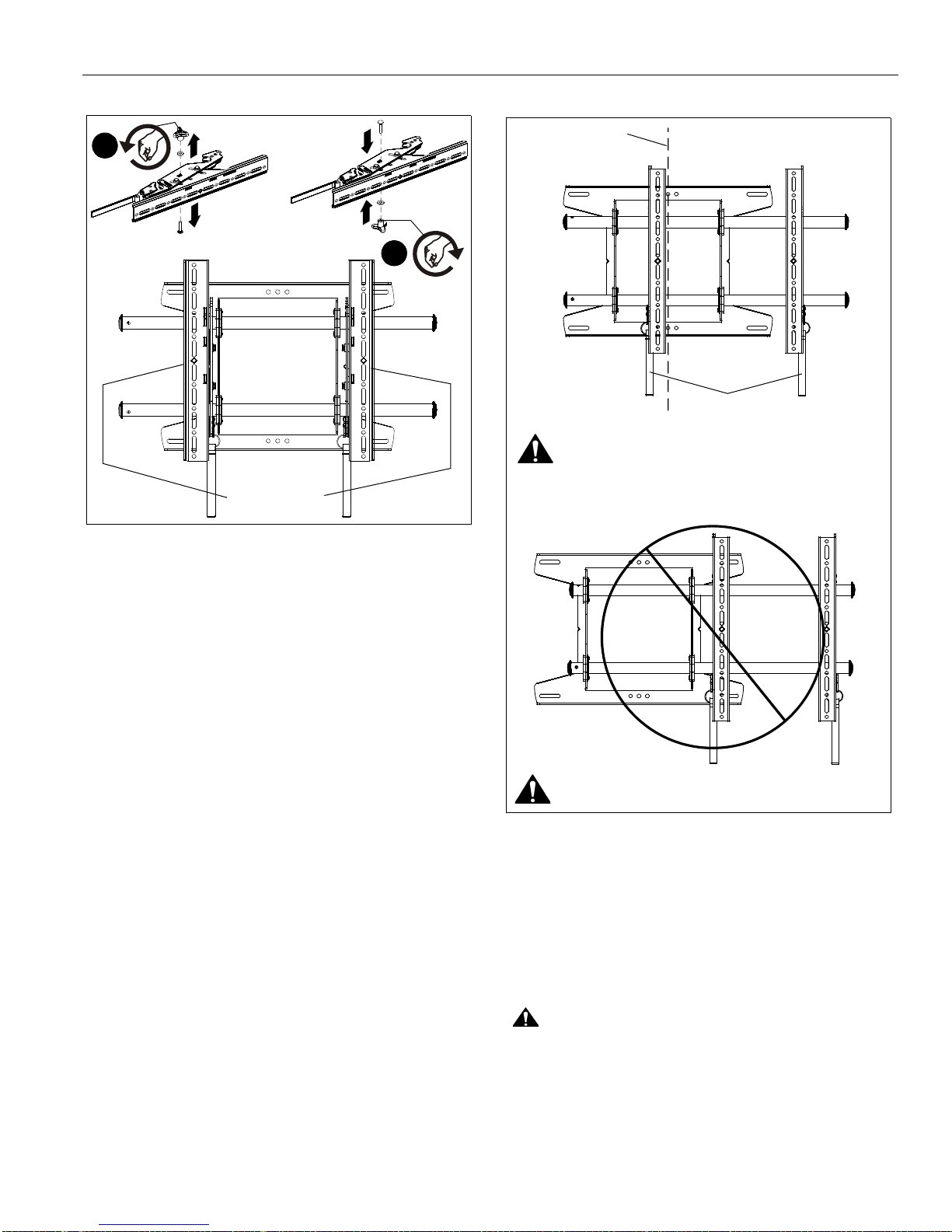

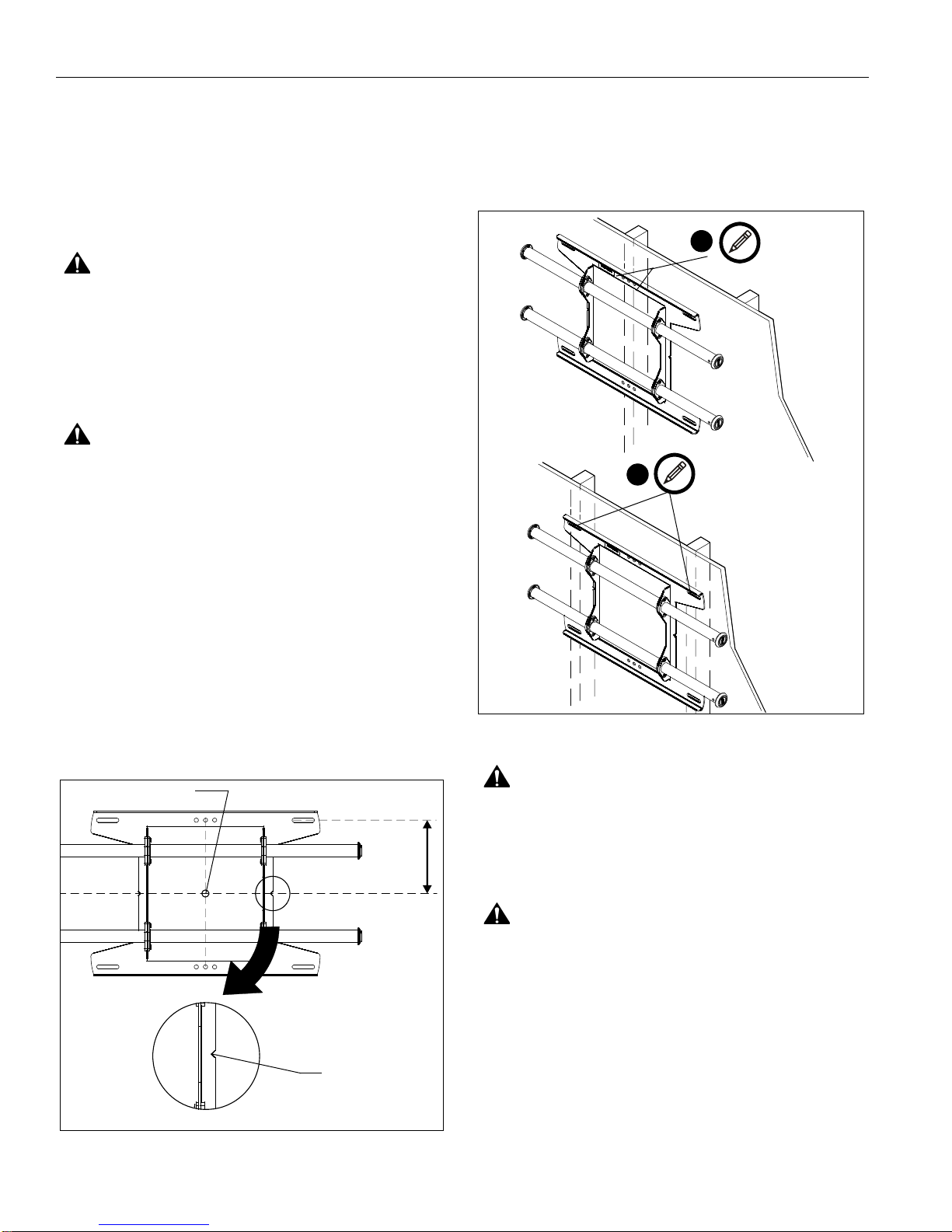

3. Line up the notches on mount with center of screen marking

to determine vertical center. (See Figure 1)

4. Measure up 6" (152.4mm) from the center point to mark

location of the upper mounting slots.

Figure 1

5. Using a level, mark the wall on each stud to attach the

mount through the upper mounting slots. (See Figure 2)

NOTE: The MSA and MTA may be attached through the

mounting slots on dual studs, or through the center

mounting holes on a single stud. (See Figure 2)

Figure 2

WARNING: ELECTRICAL SHOCK HAZARD! CUTTING

OR DRILLING INTO ELECTRICAL CORDS OR CABLES

CAN CAUSE DEATH OR SERIOUS PERSONAL INJURY!

ALWAYS make certain area behind mounting surface is free

of electrical wires and cables before drilling or installing

fasteners.

WARNING: EXPLOSION AND FIRE HAZARD! CUTTING

OR DRILLING INTO GAS PLUMBING CAN CAUSE DEATH

OR SERIOUS PERSONAL INJURY! ALWAYS make certain

area behind mounting surface is free of gas, water, waste, or

any other plumbing before cutting, drilling, or installing

fasteners.

Center of screen

Vertical center

of mount

Single Stud

Installation

Dual Stud

Installation

Installation Instructions MSA/MTA Series

Figure 3

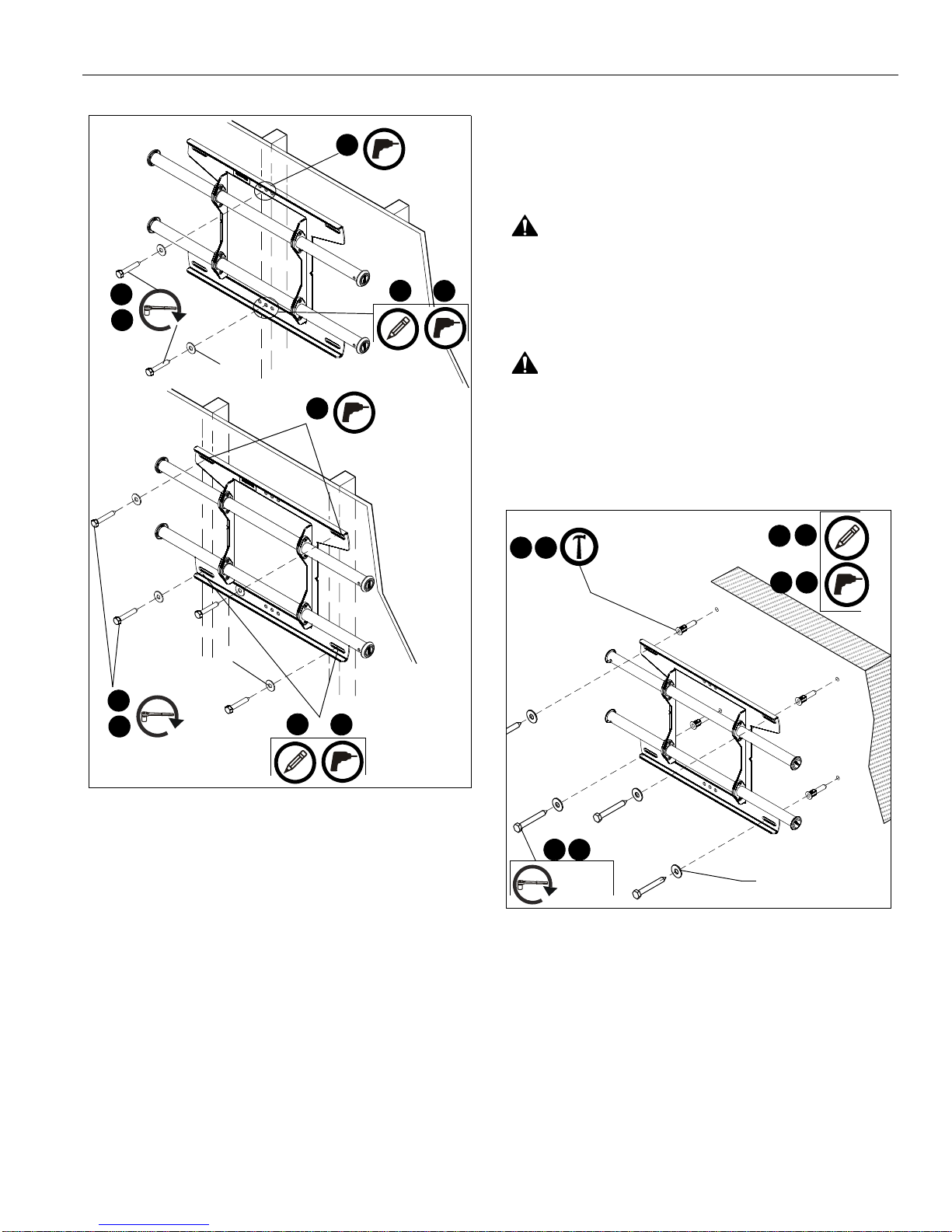

6. Drill one 7/32" (5.5mm) pilot hole in each stud.

7. Use two 5/16 x 2-1/2" lag bolts (QC) and two 5/16" flat

washers (QB) [one lag bolt and washer for single stud

installation] to attach top of mount to wall. (See Figure 3)

8. Mark the attachment points for the lower mounting slots,

making sure the attachment points are located on the studs.

(See Figure 3)

9. Drill 7/32" (5.5mm) pilot holes at markings for lower

mounting holes. (See Figure 3)

10. Use two 5/16 x 2-1/2" lag bolts (QC) and two 5/16" flat

washers (QB) [one lag bolt and washer for single stud

installation] to attach the mount to the wall through the lower

mounting holes. (See Figure 3)

11. Slide rails to approximate center of screen location.

Installing to a Concrete Wall

1. Determine the center of the TV screen, and where it should

be located on the wall.

2. Line up the notches on mount with center of screen marking

to determine vertical center. (See Figure 1)

3. Measure up 6" (152.4mm) from the center point to mark

location of the upper mounting slots. (See Figure 1)

4. Using a level, mark the wall through both upper mounting

slots. (See Figure 4)

WARNING: ELECTRICAL SHOCK HAZARD! CUTTING

OR DRILLING INTO ELECTRICAL CORDS OR CABLES

CAN CAUSE DEATH OR SERIOUS PERSONAL INJURY!

ALWAYS make certain area behind mounting surface is free

of electrical wires and cables before drilling or installing

fasteners.

WARNING: EXPLOSION AND FIRE HAZARD! CUTTING

OR DRILLING INTO GAS PLUMBING CAN CAUSE DEATH

OR SERIOUS PERSONAL INJURY! ALWAYS make certain

area behind mounting surface is free of gas, water, waste, or

any other plumbing before cutting, drilling, or installing

fasteners.

Figure 4

5. Drill one 5/16" (7.9mm) pilot hole at each marking.

6. Install an anchor (QA) into each pilot hole using a hammer.

7. Use two 5/16 x 2-1/2" lag bolts (QC) and two 5/16" flat

washers (QB) to attach top of mount to anchors in wall.

8. Mark the attachment points for the lower mounting slots.

(See Figure 4)

9. Drill one 5/16" (7.9mm) pilot hole at each marking for lower

mounting holes. (See Figure 4)

10. Install an anchor (QA) into each pilot hole using a hammer.

(QB) x 4

(QC) x 4

(QC) x 2

(QB) x 2

(QA) x 4

711

(QC) x 4 (QB) x 4

MSA/MTA Series Installation Instructions

11. Use two 5/16 x 2-1/2" lag bolts (QC) and two 5/16" flat

washers (QB) to attach the mount to the wall through the

lower mounting holes. (See Figure 4)

12. Slide rails to approximate center of screen location.

Attaching Interface Brackets to TV

1. Align the center of the bracket with center of screen.

(See Figure 4)

NOTE: The diamond-shape hole in the bracket corresponds to

the center of the mount.

Figure 5

WARNING: IMPROPER INSTALLATION CAN LEAD TO

DISPLAY FALLING CAUSING SERIOUS PERSONAL

INJURY OR DAMAGE TO EQUIPMENT! Using screws of

improper size may damage your display. Properly sized

screws will easily and completely thread into display

mounting holes. If spacers are required, be sure to use longer

screws of the same diameter.

2. Select correct screws, spacers (if necessary) and washers

from the hardware bag (A-N) and attach brackets to back of

screen. (See Figure 5)

Switching Interface Brackets (Optional)

If an installation situation makes adjusting the location of

interface brackets necessary, there are several options.

1. The wall bracket may be adjusted side to side at the points

of attachment. (See Figure 6)

2. The location of the left and right interface brackets may be

switched, with the knobs on the MTA interface brackets

facing the inside of the mount. (See Figure 6)

Figure 6

3. If necessary, the tilt interface bracket knobs may be

switched to allow the interface brackets to be reversed.

(See Figure 7)

a. Remove display from mount.

b. Remove interface brackets from display.

c. Hold the right interface bracket horizontally, tightly

gripping it so that spacers do not move.

d. Remove the knob, washer and screw.

e. Replace the knob, washer and screw in the opposite

order, with the knob on the inside of the bracket.

f. Switch the right interface bracket to the left side of the

wall mount.

g. Repeat Steps 3c through 3f with the left interface

bracket.

Center of bracket

Pull strap

Knobs

Installation Instructions MSA/MTA Series

Figure 7

Attaching Screen to Wall Mount

1. Adjust Velcro® pull strap (if necessary) so it does not extend

beyond bottom of screen. (See Figure 8)

NOTE: Do NOT allow both interface brackets to be located on

same side of wall bracket. (See Figure 8)

NOTE: NEVER place both interface brackets to one side of the

wall mount center line! (See Figure 8)

Figure 8

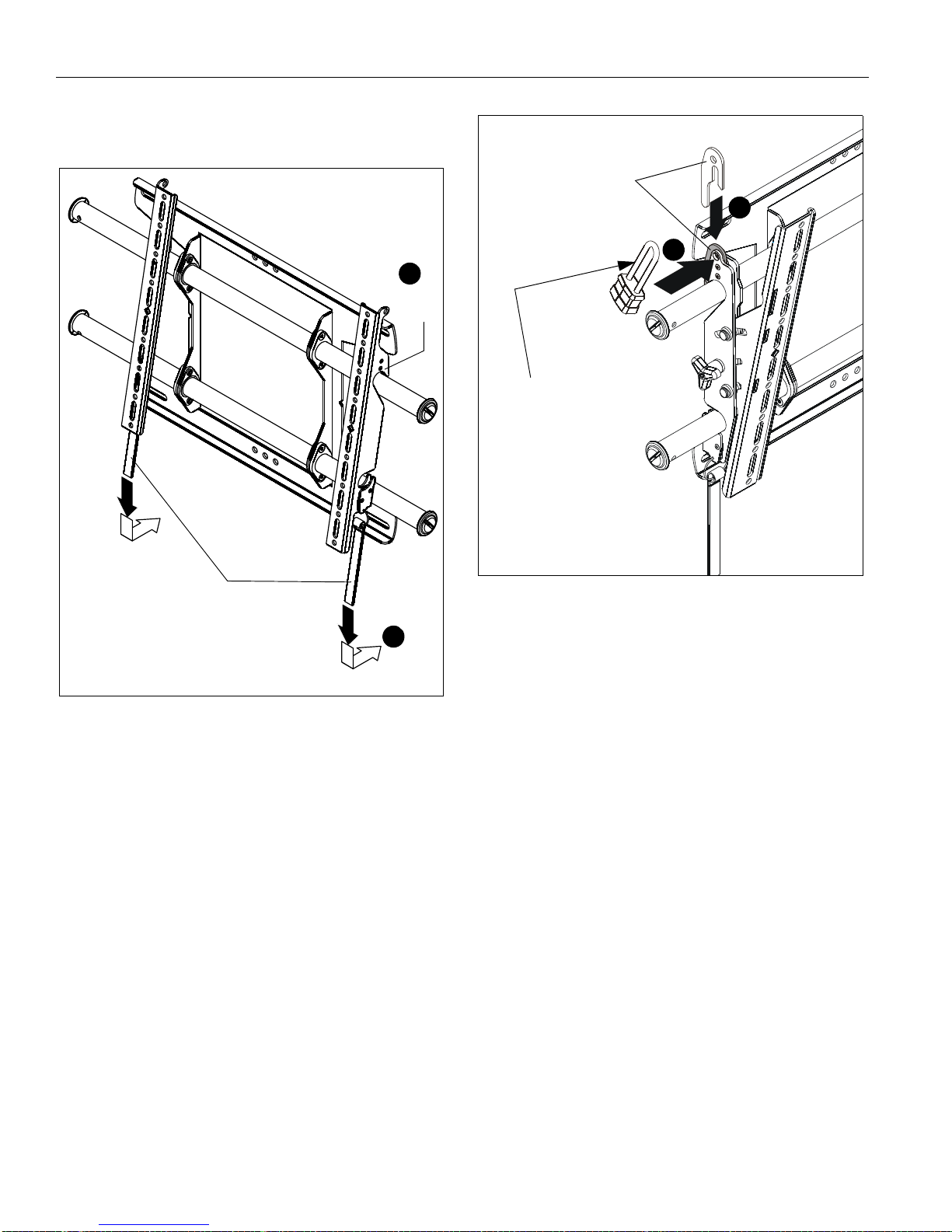

2. Hang top hook of interface brackets onto the top bar of the

mount. (See Figure 9)

NOTE: The screen initially installs into the "kickstand mode" to

allow easy cable access.

3. Slide screen and bars to desired viewing position.

4. Route cables between wall and bars.

CAUTION: PINCH POINTS! Keep fingers, hands and

cables out of pinch point areas.

Knobs to outside

of brackets

Both interface brackets must NEVER be located

to one side of the wall brackets!

Pullstraps

NEVER place both interface brackets to one

side of the wall mount center line (CL)!

Center Line (CL)

MSA/MTA Series Installation Instructions

5. Pull downward on the pullstraps and swing inward toward

wall, latching interface brackets to lower bar and locking

bottom of screen to the mount. (See Figure 9)

Figure 9

Locking Mount (Optional)

1. Add optional security bracket (S or T) to the mount. (See

Figure 10)

2. Add padlock (not included) to complete security.

Figure 10

(Screen not shown for clarity)

Top

Hook

Pullstraps

(S)

(MTA Shown)

Padlock shackle diameter:

- Min: 1/4" (6.3mm)

- Max: 5/16" (7.9mm)

Autres manuels pour Wall Mount PDWP MB 40 L

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels CHIEF Support et étagère

CHIEF

CHIEF FCA103 Manuel utilisateur

CHIEF

CHIEF K0 Series Manuel utilisateur

CHIEF

CHIEF FTRV4100 Manuel utilisateur

CHIEF

CHIEF NS1F1223 Manuel utilisateur

CHIEF

CHIEF CMS490 Manuel utilisateur

CHIEF

CHIEF FSR Series Manuel utilisateur

CHIEF

CHIEF LDB1U Manuel utilisateur

CHIEF

CHIEF FSR Series Manuel utilisateur

CHIEF

CHIEF KWK-110 Manuel utilisateur

CHIEF

CHIEF Fusion FCA820 Manuel utilisateur

CHIEF

CHIEF JHS Series Manuel utilisateur

CHIEF

CHIEF FDP Series Manuel utilisateur

CHIEF

CHIEF QMP1T Manuel utilisateur

CHIEF

CHIEF FCA613 Manuel utilisateur

CHIEF

CHIEF FSM SERIES Manuel utilisateur

CHIEF

CHIEF AA Series Manuel utilisateur

CHIEF

CHIEF KSA-1020 Manuel utilisateur

CHIEF

CHIEF FSA-1015 Manuel utilisateur

CHIEF

CHIEF NW2F8-12 Manuel utilisateur

CHIEF

CHIEF KWT110 Manuel utilisateur

CHIEF

CHIEF PACLR2 Manuel utilisateur

CHIEF

CHIEF Flat Panel Display Security Kit FSA-100 Manuel utilisateur

CHIEF

CHIEF ER Rack Series Manuel utilisateur

CHIEF

CHIEF PWS Manuel utilisateur

Manuels Support et étagère populaires d'autres marques

Salamander

Salamander Acadia AC/W/L400/WH Manuel utilisateur

Fohhn

Fohhn VAT-09 Guide de l'utilisateur

ricoo

ricoo FS0522 Manuel utilisateur

AMSOIL

AMSOIL BMK-22 Guide rapide

Kargo Master

Kargo Master 48220 Manuel utilisateur

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur

ricoo

ricoo S1222 Manuel utilisateur

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuel utilisateur

VidaBox

VidaBox VB MNT FFS2 Manuel utilisateur

Welch Allyn

Welch Allyn 48960 Manuel utilisateur

Arkon

Arkon CM035-ST-2 Manuel utilisateur

PROEL

PROEL PLWIN60C Manuel utilisateur

Agilent Technologies

Agilent Technologies E2609B Manuel utilisateur

Mustang

Mustang MV-ARM4 Manuel utilisateur

Mounting Solutions

Mounting Solutions WRM-320 Manuel utilisateur

Pyle

Pyle PMKSPAD1 Manuel utilisateur

ShelterIt

ShelterIt 21208 Manuel utilisateur

SPL

SPL RackPack?4 1040 Manuel utilisateur
