CHIEF Fusion Series Manuel utilisateur
FIXED & TILT MOUNTING SOLUTIONS
fusion™sERiEs
Chief’s Fusion™Series of installer-inspired fixed and tilt flat panel TV mounts solve the top flat panel installation problems.
Innovative features like Centerless™lateral shift and ControlZone™height and roll adjustment provide perfect TV placement,
and reduce installation time. A full line of supporting accessories can be integrated in a wide variety of AV configurations.
www.chiefmfg.com
Shipping January 2009!
FUSION
FIXED & TILT MOUNTING SOLUTIONS
FLAT PANEL MOUNTS
More information on these fixed & tilt solutions, and other Chief products located on the web at www.chiefmfg.com.

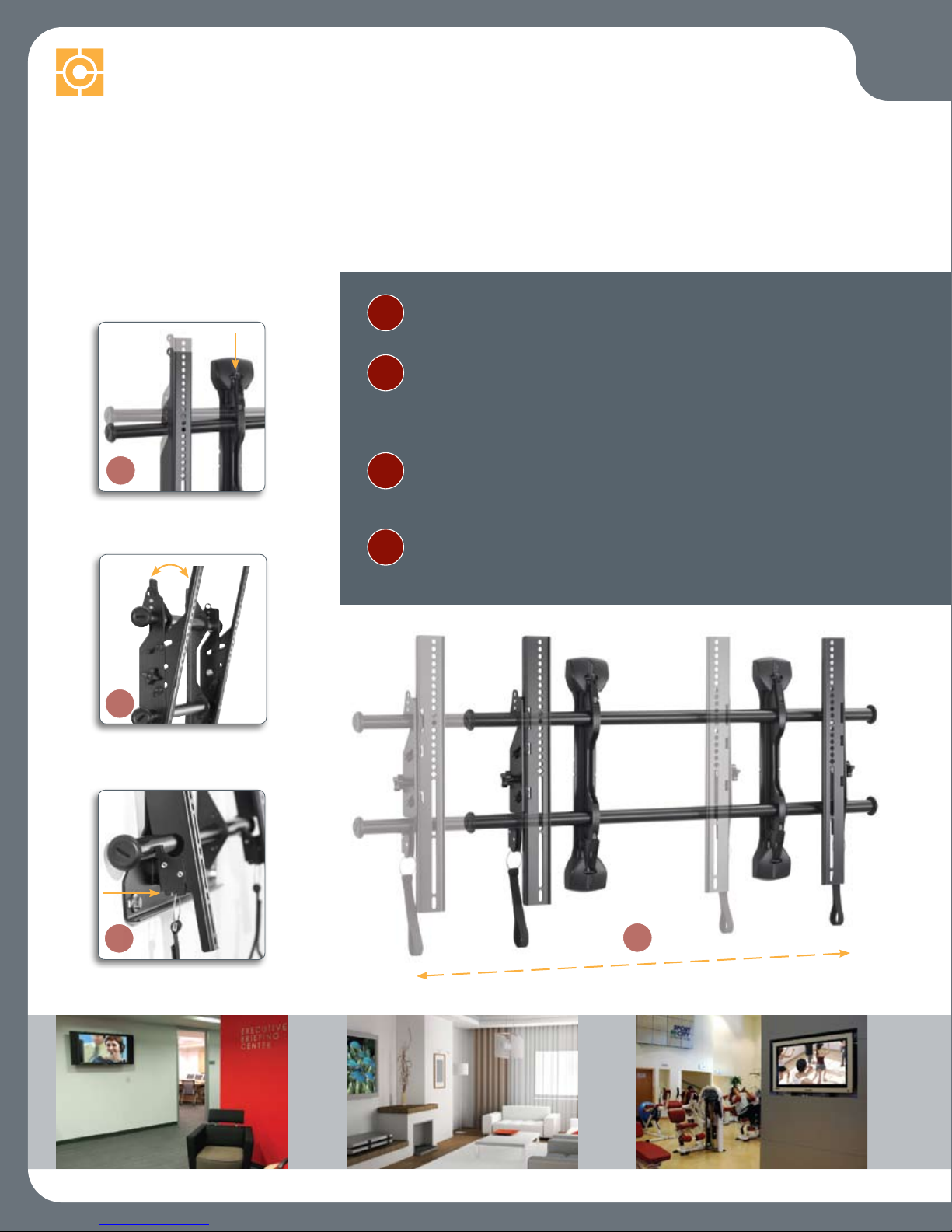

CENTERLESS™LATERAL SHIFT
Get up to 16” of post installation lateral shift - 8” left/right of uprights.
CONTROLZONE™HEIGHT & ROLL ADJUSTMENT
This industry-first feature allows post-installation fine-tuning of height and
leveling by inserting an Allen key into the ports at the top of the wall plate
uprights. Adjustments are applied to the entire configuration, not just the TV.
CENTRIS™LOW-PROFILE TILT
Provides effortless tilting by using the center of gravity to balance the
screen – no tools necessary!
CLICK-CONNECT™TOOL-LESS LATCHING
Hear an audible click when the screen safely engages with the mount. Use
the built-in cable stand to gain easy access under the screen.
DISCOVER THE 4 C’S OF MOUNTING:
3
4
1
2
3
41
2
FUSION SERIES
*Varies with screen mounting pattern and stud placement. **Varies with screen height.
LTM XTMMTM

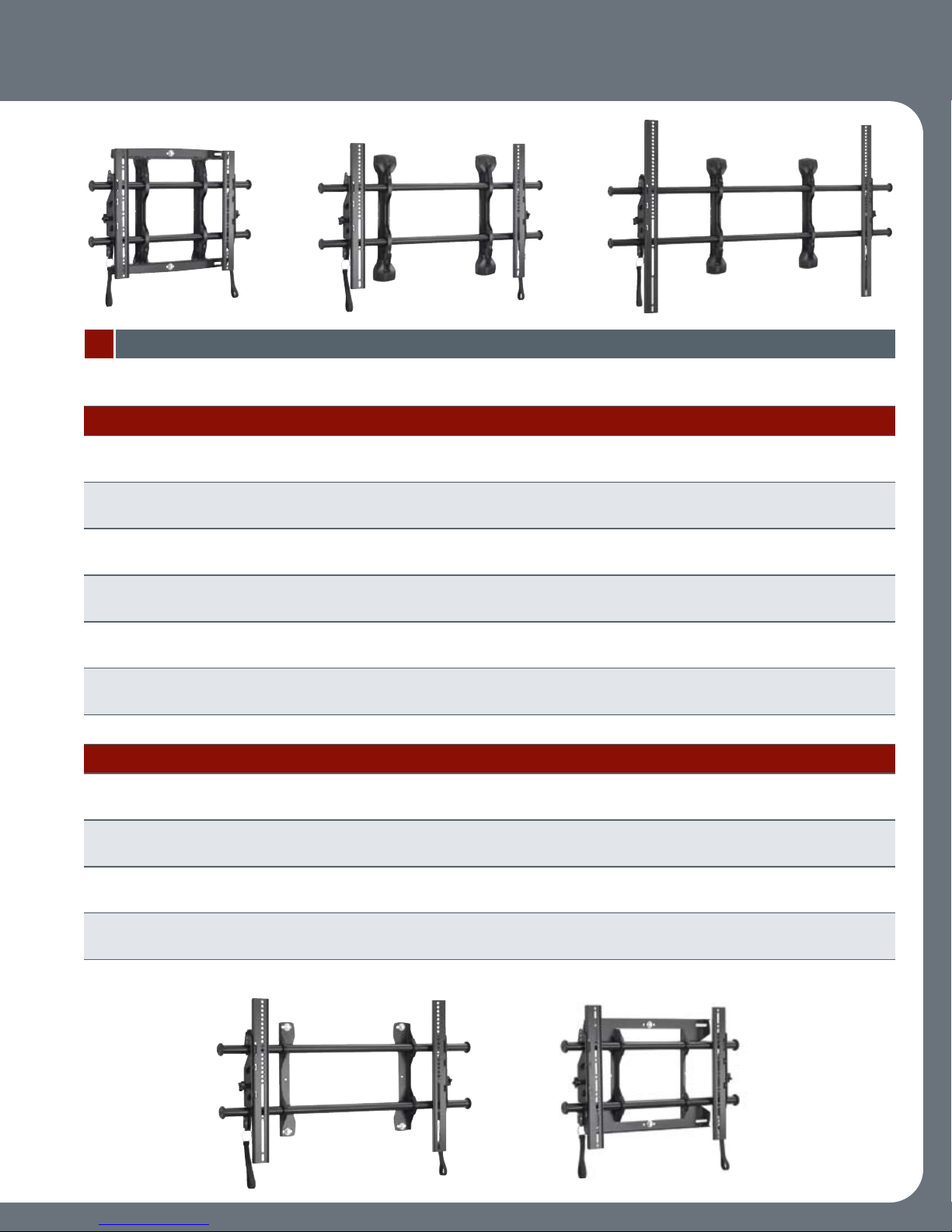

SPECIFICATIONS
LTA MTA
TV Size Centerless Centris Max Mounting Weight Capacity
Model Range Depth from Wall Lateral Shift* Low-Profile Tilt** Pattern (H,W) (single stud, dual stud)
FUSION Series Fixed & Tilt Mounts with ControlZone
MSM 26 - 47” 1.96” (50 mm) 14.5” (368 mm) – 15.75” (400 mm), 75 lbs (34 kg),
25.6” (650 mm) 125 lbs (56.7 kg)
MTM 26 - 47” 1.99” (51 mm) 14.5” (368 mm) 0-12˚ 15.75” (400 mm), 75 lbs (34 kg),
26.25” (667 mm) 125 lbs (56.7 kg)
LSM 37 - 63” 1.96” (50 mm) 17.5” (445 mm) – 19.9” (506 mm), 200 lbs (90.7 kg)
34.6” (879 mm)
LTM 37 - 63” 1.99” (51 mm) 17.5” (445 mm) 0-12˚ 19.9” (506 mm), 200 lbs (90.7 kg)
35.35” (895 mm)
XSM 55 - 75” 1.96” (50 mm) 23.5” (597 mm) – 25.6” (650 cm), 250 lbs (113 kg)
48.6” (124 cm)
XTM 55 - 75” 1.99” (51 mm) 23.5” (597 mm) 0-12˚ 25.6” (650 mm), 250 lbs (113 kg)
49.25” (126 cm)
FUSION Series Fixed & Tilt Mounts
MSA 26 - 47” 1.96” (50 mm) 14.5” (368 mm) – 15.75” (400 mm), 75 lbs (34 kg),
25.6” (650 mm) 125 lbs (56.7 kg)
MTA 26 - 47” 1.99” (51 mm) 14.5” (368 mm) 0-12˚ 15.75” (400 mm), 75 lbs (34 kg),
26.25” (667 mm) 125 lbs (56.7 kg)
LSA 37 - 63” 1.96” (50 mm) 17.5” (445 mm) – 19.9” (506 mm), 200 lbs (90.7 kg)
34.6” (879 mm)
LTA 37 - 63” 1.99” (51 mm) 17.5” (445 mm) 0-12˚ 19.9” (506 mm), 200 lbs (90.7 kg)
35.35” (895 mm)
CHIEF MANUFACTURING n A DIVISION OF MILESTONE AV TECHNOLOGIES n www.chiefmfg.com
USA/INTERNATIONAL nP 800.582.6480/952.894.6280 n F 877.894.6918/952.894.6918 n [email protected]
©2008 Milestone AV Technologies, a Duchossois Group Company. 800205A 8/08. Chief is a registered trademark of Milestone. All other brand names or marks are used
for identification purposes and are trademarks of their respective owners. All patents are protected under existing designations. Other patents pending.
end-user focused faster installation superior service proven quality

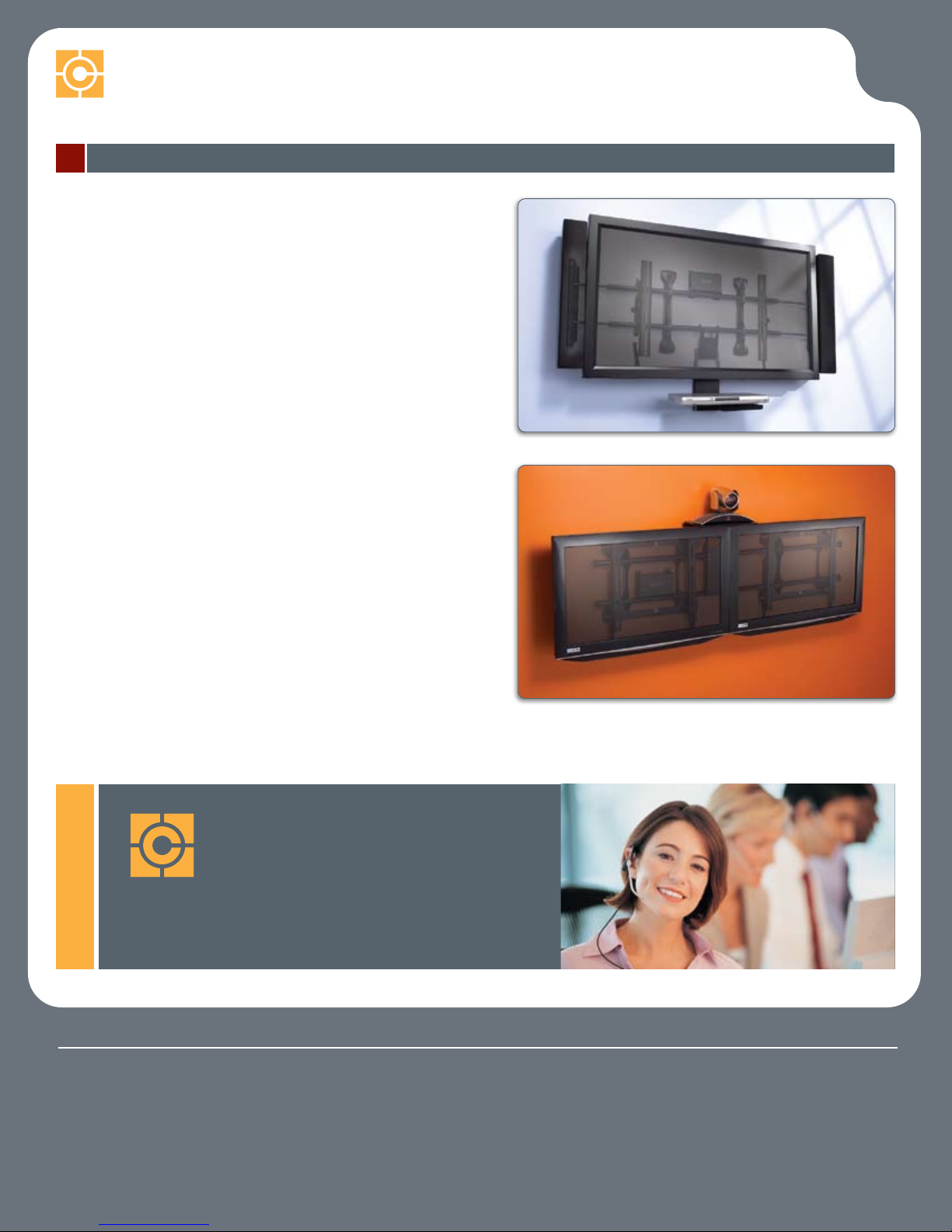

FLAT PANEL ACCESSORIES
CUSTOMIZABLE FUSION ACCESSORY SYSTEM
Fusion Center Channel and Left/Right Speaker Adapters
Expandable to fit flat panels up to 71”n
Universal design accommodates most speaker brandsn
Low profile design does not add depth to installationn
Fusion CAT 5/ Surge Adapter
Compatible with Fusion fixed and tilt wall mountsn
Fusion Component Shelf
Height adjustable to accommodate different flat panelsn
Attaches directly onto Fusion wall mounts for easy centeringn
Fusion Video Conferencing Shelf
Height adjustable to accommodate different flat panelsn
Attaches directly onto Fusion wall mounts for easy centeringn
Slotted shelf allows for secure camera attachmentn
Fusion LTAPU Portrait Tilt Mount
Enables vertical positioning of flat panel displayn
Centris fingertip tilt technology uses the center of gravity ton
balance the screen while maintaining a low profile under 2” deep!
Up to 11.5” (292 mm) of post-installation lateral shift – 5.75”n
(146 mm) left/right of uprights
FIXED & TILT MOUNTING SOLUTIONS
A full line of supporting accessories can be integrated with Fusion Fixed
& Tilt Wall Mounts, extending the same adjustment benefits to the entire
configuration. Mix and match accessories with any Fusion mount for the
perfect installation in every application.
SERVICE EXCELLENCE
FOCUSING ON
Chief products are backed by the best in customer service.
Contact any of our Customer Service team members M-F,
7am to 7pm (CST) for assistance.
For more information on these and other products from Chief, the industry leader in AV mounting solutions, visit www.chiefmfg.com.
