CHIEF SLB-9000 Manuel utilisateur

LB-9000

eiling Bracket

BEFORE YOU BEGIN

•CAUTION: To prevent damage to the SLB-9000, which could affect or void the Factory warranty, thoroughly study all

instructions and illustrations before you begin to install the SLB-900. Pay particular attention to the “Important Pre-

cautions” on Page 1.

• The maximum weight to be installed on the SLB-9000 is 50 pounds (22.68 Kg).

• If you have any questions about this assembly, contact Chief Manufacturing at 1-800-582-6480.

I N S T R U C T I O N M A N U A L

The Chief SLB Projector Mount provides a unique, simplified

method of mounting your LCD/DLP projector. This low pro-

file design offers three easy mounting methods (1”NPT, flush

or threaded rod); roll, pitch and yaw adjustment; and cable

management system; that allow quick projector disconnect

without loss of registration.

The mount is constructed of heavy gauge steel and designed to

ensure proper projector ventilation. Fast and precise image reg-

istration is achieved through the easy roll, pitch and yaw

adjustments built into the Chief SLB Projector Mount.

Please read and follow these installation instructions carefully

before installing products.

LOGO

CHIEF MANUFACTURING INC.

1-800-582-6480 952-894-6280 FAX 952-894-6918

12800 HIGHWAY 13 SOUTH, SUITE 500

SAVAGE, MINNESOTA 55378 USA

PART NO. 8802-000118 (Rev. A)

2003Chief Manufacturing

www.chiefmfg.com

Printed in USA 12-03

Instruction Manual SLB-9000

IMPORTANT WARNINGS AND CAUTIONS!

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: ACAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the cor-

responding instructions.

•WARNING: Improper installation can result in serious personal injury! Make sure that the structural members can

support a redundant weight factor five times the total weight of the equipment. If the structure can not

support this weight, reinforce the structure before installing the SLB-9000.

•WARNING: You must use proper attaching hardware and installation procedures. Failure to use proper attaching

hardware and installation procedures may result in equipment damage or serious personal injury.

• WARNING: Be aware of the potential for personal injury or damage to the unit if it is not adequately mounted.

•WARNING: The installer is responsible for verifying that the mounting surface structural members to which the

mount is anchored will safely support the combined load of all attached components or other equip-

ment.

•CAUTION: Inspect the unit for shipping damage.

•CAUTION: When attaching the mount, be careful not to overtighten mounting screws.

•CAUTION: Changes or modifications not approved by Chief Manufacturing could void user’s warranty.

TOOLS REQUIRED FOR INSTALLATION

• Phillips screwdrivers, No. 1 and No. 2

NOTE: Other tools may be required depending on the

method of installation.

Instruction Manual SLB-9000

CONTENTS

INSPECT THE BRACKET AND

ATTACHING HARDWARE BEFORE

INSTALLING ...................................................... 3

SELECT PROJECTOR MODEL AND

DETERMINE PARTS .......................................... 3

BRACKET INSTALLATION PROCEDURES .. 5

Group A Installation Procedures: ..................... 5

Group B Installation Procedures: ..................... 5

Group C Installation Procedures: ..................... 6

Group D Installation Procedures: ..................... 6

Group E Installation Procedures: ..................... 7

PARTS .................................................................. 8

Instruction Manual SLB-9000

INSPECT THE BRACKET AND ATTACHING HARDWARE BEFORE INSTALLING

1. Carefully inspect the SLB-9000 for shipping damage. If any

damage is apparent, call your carrier claims agent and do not

continue with the installation until the carrier has reviewed the

damage.

NOTE: Read all instructions before starting installation.

2. Lay out components to ensure you have all the required parts

before proceeding (see “PARTS” on page 8).

SELECT PROJECTOR MODEL AND DETERMINE PARTS

This interface bracket is designed to fit a wide variety of projector models. Study the following information carefully to select the

proper hardware and assembly procedures for your specific projector model. To determine the correct hardware and procedures,

perform the following:

1. Using Table 1 on page 4, locate your projector model.

2. Note and record the group letter for your projector model.

NOTE: Not all hardware will be used for every installation. Do not discard extra hardware until installation is complete.

3. Using the group number determined in Step 2, proceed to

“BRACKET INSTALLATION PROCEDURES” on page 5

and follow the instructions for your projector model

Instruction Manual SLB-9000

Manufacturer Model

Group

Manufacturer Model

Group

A + K AstroBeam S120 DGeha Compact 280 A

A + K AstroBeam S230 AGeha Compact 290 C

A + K AstroBeam X120 DGeha Compact 690 B

A + K AstroBeam X201 EIBM

Conference

Room

A + K AstroBeam X211 EIBM iL C200 A

A + K AstroBeam X220 CIBM iL C300 C

A + K AstroBeam X230 AIBM iL V200 A

A + K AstroBeam X310 BIBM iL V300 B

A + K AstroBeam X311 BIBM Value Based A

ASK C100 EInfocus LP 240 D

ASK C105 EInfocus LP 250 D

ASK C200 CInfocus LP 340 A

ASK C300 BInfocus LP 340B A

ASK C40 DInfocus LP 350 A

ASK C420 CInfocus

500

SERIES

ASK C50 DInfocus LP 530 A

ASK C80 EInfocus LP 650 C

ASK C90 EInfocus LP 690 E

ASK C95 EInfocus LP 790 B

Boxlight 12SF AInfocus LP 790HB B

Boxlight CD-454m AInfocus LP 820 C

Boxlight CD-455m AInfocus LS 110 A

Boxlight CD-555m AInfocus

Screenplay

110

Boxlight CD-600m AInfocus

Screenplay

4800

Boxlight CD-750m AInfocus

Screenplay

5700

Boxlight CD-850m CInfocus

Screenplay

7200

Boxlight CD-875m CInfocus

Screenplay

7205

Boxlight Cinema 12SF AInfocus X1 B

Boxlight SP-45m DKnoll HD-101 B

Boxlight XP-55m DKnoll HD-110 A

Dataview E200 EKnoll HD-177 C

Dataview E220 EKnoll HD-272 C

Dataview E221 EKnoll HT-202 A

Dataview E231 EProxima DP 2000s D

Dataview M320 BProxima DP 2000x D

Dream Vision Dream Weaver CProxima DP 6150 E

Dream Vision Dream Weaver II CProxima DP 6155 E

Dukane ImagePro 7100HC BProxima DP 6500x C

Dukane ImagePro 8043A DProxima DP 8000 B

Dukane ImagePro 8048 AProxima DP 8000HB B

Dukane ImagePro 8750 AProxima DP 8200x C

Dukane ImagePro 8753A DToshiba TDP-MT100 B

Dukane ImagePro 8757 CToshiba TDP-MT5 A

Geha Compact 105 DToshiba TDP-MT8U C

Geha Compact 107 BToshiba TDP-S2 A

Geha Compact 205 DToshiba TDP-S2V A

Geha Compact 210 Plus EToshiba TDP-S3 A

Geha Compact 211 Plus EToshiba TDP-T1 A

Geha Compact 280 AToshiba TDP-T3 A

Geha Compact 290 CYokogawa D-1500X E

Instruction Manual SLB-9000

BRACKET INSTALLATION PROCEDURES

Group A Installation Procedures:

1. Turn your projector over and place it on a clean, flat, suitable

surface.

2. Find and open the hardware kit (parts) for your projector model

(see “SELECT PROJECTOR MODEL AND DETERMINE

PARTS” on page 3).

3. Place a 3/8” X 1/2” Nylon spacer over each threaded insert in

the bottom of your projector.

4. Using Figure 1, find the proper mounting holes in SLB-9000

for your projector.

5. Place the SLB-9000 on the 3 Nylon spacers, aligning the

proper mounting holes in SLB-9000 with the Nylon spacers.

CAUTION: When attaching the mount, be careful not to over-

tighten mounting screws.

6. Secure the SLB-9000 to your projector using three M4-20mm

pan-head screws and three M4 flat washers.

7. See InFocus Universal Projector Mount Instructions.

Group B Installation Procedures:

1. Turn your projector over and place it on a clean, flat, suitable

surface.

2. Find and open the hardware kit (parts) for your projector model

(see “SELECT PROJECTOR MODEL AND DETERMINE

PARTS” on page 3).

3. Place a 3/8” X 1/2” Nylon spacer over each threaded insert in

the bottom of your projector.

4. Using Figure 2, find the proper mounting holes in SLB-9000

for your projector.

5. Place the SLB-9000 on the 3 Nylon spacers, aligning the

proper mounting holes in SLB-9000 with the Nylon spacers.

CAUTION: When attaching the mount, be careful not to over-

tighten mounting screws.

6. Secure the SLB-9000 to your projector using two M4-20mm

pan-head screws, one 20mm flat head screw, and two M4 flat

washers.

7. See RPA and/or Smart-Lift Instructions.

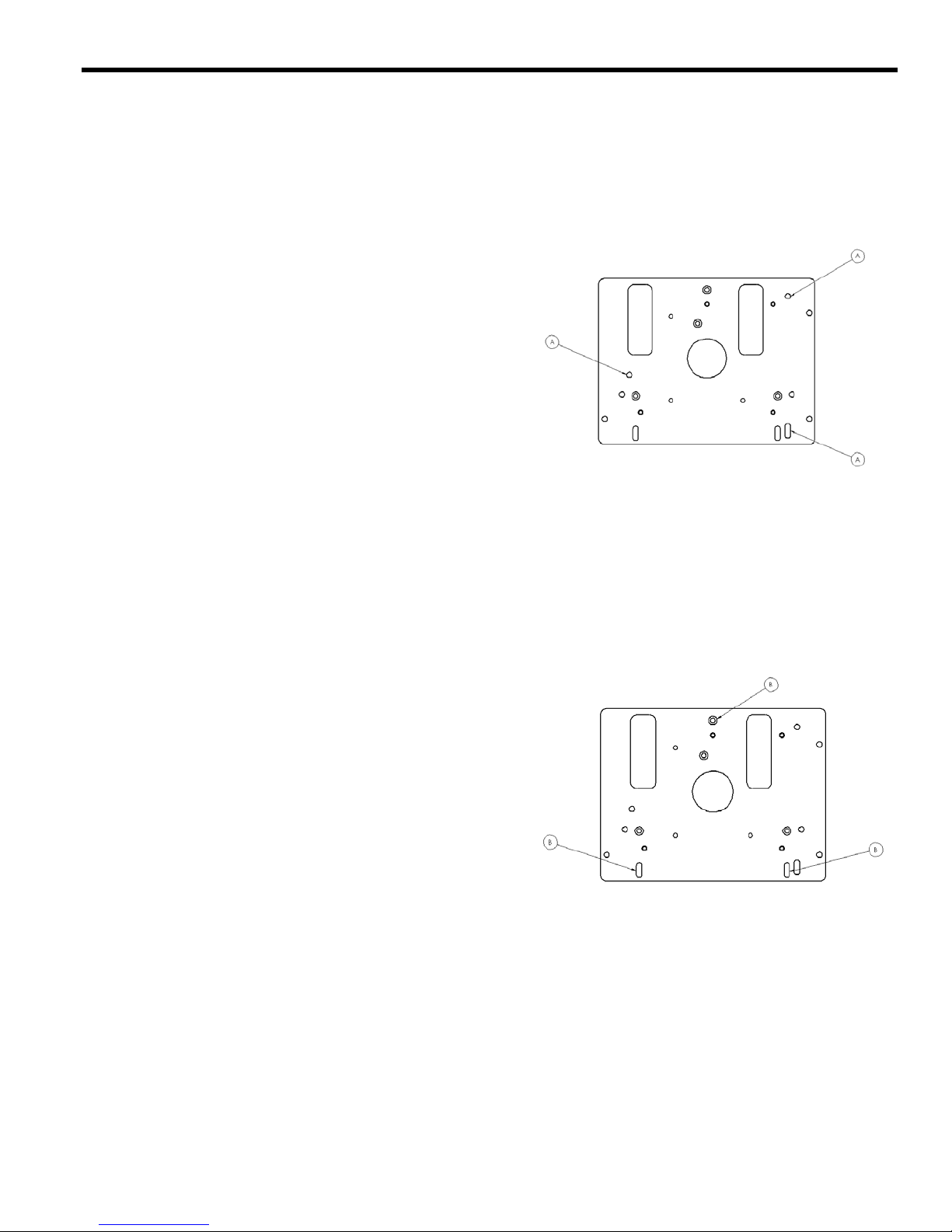

Figure 1. Group A Hole Alignment

Figure 2. Group B Hole Alignment

Instruction Manual SLB-9000

Group C Installation Procedures:

1. Turn your projector over and place it on a clean, flat, suitable

surface.

2. Find and open the hardware kit (parts) for your projector model

(see “SELECT PROJECTOR MODEL AND DETERMINE

PARTS” on page 3).

3. Place a 3/8” X 1/2” Nylon spacer over each threaded insert in

the bottom of your projector.

4. Using Figure 3, find the proper mounting holes in SLB-9000

for your projector.

5. Place the SLB-9000 on the 3 Nylon spacers, aligning the

proper mounting holes in SLB-9000 with the Nylon spacers.

CAUTION: When attaching the mount, be careful not to over-

tighten mounting screws.

6. Secure the SLB-9000 to your projector using three M4-20mm

pan-head screws, three M4 flat washers, and three 3/8” X 1/2”

Nylon spacers provided.

7. See RPA and/or Smart-Lift Instructions.

Group D Installation Procedures:

1. Turn your projector over and place it on a clean, flat, suitable

surface.

2. Find and open the hardware kit (parts) for your projector model

(see “SELECT PROJECTOR MODEL AND DETERMINE

PARTS” on page 3).

3. Place a 3/8” X 1/2” Nylon spacer over each threaded insert in

the bottom of your projector.

4. Using Figure 4, find the proper mounting holes in SLB-9000

for your projector.

5. Place the SLB-9000 on the 3 Nylon spacers, aligning the

proper mounting holes in SLB-9000 with the Nylon spacers.

CAUTION: When attaching the mount, be careful not to over-

tighten mounting screws.

6. Secure the SLB-9000 to your projector using two M4-20mm

pan-head screws, one 20mm flat head screw, and two M4 flat

washers.

7. See RPA and/or Smart-Lift Instructions.

Figure 3. Group C Hole Alignment

Figure 4. Group D Hole Alignment

Instruction Manual SLB-9000

Group E Installation Procedures:

1. Turn your projector over and place it on a clean, flat, suitable

surface.

2. Find and open the hardware kit (parts) for your projector model

(see “SELECT PROJECTOR MODEL AND DETERMINE

PARTS” on page 3).

3. Place a 3/8” X 1/2” Nylon spacer over each threaded insert in

the bottom of your projector.

4. Using Figure 5, find the proper mounting holes in SLB-9000

for your projector

5. Place the SLB-9000 on the 3 Nylon spacers, aligning the

proper mounting holes in SLB-9000 with the Nylon spacers.

CAUTION: When attaching the mount, be careful not to over-

tighten mounting screws.

6. Secure the SLB-9000 to your projector using three M4-20mm

pan-head screws and three M4 flat washers.

7. See RPA and/or Smart-Lift Instructions.

Figure 5. Group E Hole Alignment

Instruction Manual SLB-9000

PARTS

Table 1: Parts

No. Nomenclature Qty. No. Nomenclature Qty.

1 SLB-9000 1 5 SPACER, Nylon, 3/8” X 1/2” 3

2 SCREW, pan head, M4-20mm 3 6 NUT, thumb 4

3 SCREW, flat head, M4-20mm 3 7 KIT, All-Points (not shown) 1

4WASHER,M4 3

Table des matières

Autres manuels CHIEF Accessoires pour projecteur

CHIEF

CHIEF HB-52D Manuel utilisateur

CHIEF

CHIEF SMART-LIFT SL-236 Manuel utilisateur

CHIEF

CHIEF NAV-1 Lens Support Manuel utilisateur

CHIEF

CHIEF Projector Ceiling Kit Manuel utilisateur

CHIEF

CHIEF HB-43E Manuel utilisateur

CHIEF

CHIEF HB-75P Manuel utilisateur

CHIEF

CHIEF PG1A Manuel utilisateur

CHIEF

CHIEF KITE Series Manuel utilisateur

CHIEF

CHIEF RPA Elite Series Manuel utilisateur

CHIEF

CHIEF RPE Manuel utilisateur

CHIEF

CHIEF VCM Manuel utilisateur

CHIEF

CHIEF PL-4 Manuel utilisateur

CHIEF

CHIEF RPAA1 Manuel utilisateur

CHIEF

CHIEF HB-35B Manuel utilisateur

CHIEF

CHIEF Cable Lock Kit LC-1 Manuel utilisateur

CHIEF

CHIEF KRAMS K1W110 Manuel utilisateur

CHIEF

CHIEF SYSAUxP2 Manuel utilisateur

CHIEF

CHIEF SLEU PROJECTOR LIFT Manuel utilisateur

CHIEF

CHIEF SL151-SK1 Manuel utilisateur

CHIEF

CHIEF RSM A-D Manuel utilisateur

CHIEF

CHIEF RSME Elite Series Manuel utilisateur

CHIEF

CHIEF RPAA1 Manuel utilisateur

CHIEF

CHIEF CMA348 Manuel utilisateur

CHIEF

CHIEF MSP-DUK9000 Manuel utilisateur

Manuels Accessoires pour projecteur populaires d'autres marques

Optoma

Optoma BX-AL133B Manuel utilisateur

PEERLESS

PEERLESS PE 1120 Mode d’emploi

Osram

Osram SIRIUS HRI Series Manuel

Presentation Switchers

Presentation Switchers PS111 Manuel utilisateur

Kramer

Kramer VIA GO Manuel utilisateur

Yamaha

Yamaha PJL-112 Manuel de la liste des pièces

Swedstyle

Swedstyle CL23AA02ZA25E Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric 236CB Manuel du propriétaire

Epson

Epson BrightLink 475Wi Manuel utilisateur

Acer

Acer WP100 Manuel utilisateur

i3 i3board Manuel utilisateur

Biamp

Biamp Modena Hub Manuel de service

NEC

NEC MP10RX Manuel utilisateur

Panamorph

Panamorph DCR-S3 Manuel utilisateur

Exact solutions

Exact solutions FRAME-EVO-P10 Manuel utilisateur

InFocus

InFocus LP70+ Mode d’emploi

Sharp

Sharp AN-PH20EZ Manuel utilisateur

Ipevo

Ipevo WPS-HD Manuel utilisateur
