CHIEF PL-1 Manuel utilisateur

Chief Manufacturing, a division of Milestone AV Technologies

8401 Eagle Creek Parkway, Savage, MN 55378

P: 800.582.6480 / 952.894.6280 F: 877.894.6918 / 952.894.6918

8803-000065 Rev C

05/08

INSTALLATION INSTRUCTIONS

Projector

Lock

(PL-1)

The PL-1 projector lock, constructed with heavy gauge

steel, is designed to prevent access to projector mounts.

The projector lock protects against disconnecting

projectors from their mounts in most high-risk

environments, minimizing the probabilities theft.

The design of the PL-1 ensures proper ventilation for

your projector while providing excellent security and

protection.

PL-1

BEFORE YOU BEGIN

•CAUTION: To prevent damage to your display, which could affect or void the Factory warranty,

thoroughly study all instructions and illustrations before you begin to install the mount brackets. Pay

particular attention to the “Important Warnings and Cautions” on Page 2.

•If you have any questions about this installation, contact Chief Manufacturing.

Installation Instructions PL-1

IMPORTANT WARNINGS and CAUTIONS!

WARNING A WARNING alerts you to the possibility of serious injury or death if you do not follow

the instructions.

CAUTION A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not

follow the corresponding instructions.

•WARNING Improper installation can result in serious personal injury! Make sure that the

mounting surface can support a redundant weight factor five times the total weight of

the equipment. If not, reinforce the mounting surface structural members before

installing the mount.

•WARNING Make sure the mount is correctly oriented.

•CAUTION Check the unit for shipping damage before you begin the installation.

DIMENSIONAL DRAWING

Installation Instructions PL-1

CONTENTS

DIMENSIONAL DRAWING...............................................2

TOOLS REQUIRED FOR INSTALLATION.......................3

PARTS LIST......................................................................3

INSPECT INSTALLATION LOCATION.............................3

INSTALLATION.................................................................4

TOOLS REQUIRED FOR

INSTALLATION

•Allen wrench set

NOTE: Other tools may be required depending on your

method of installation.

PARTS LIST

Prior to assembly, unpack the carton completely. Verify

contents listed in Table 1.

Read installation instructions completely. If you are

missing any of the listed parts, contact Customer Service

at: 1-800/582-6480.

Table 1. Parts List

REF DESCRIPTION QTY

10 PL-1 Projector Lock 1

20 Screws 4

30 Spacers 4

PL1A* Key C346A 2

PL1B* Key C346B 2

PL1C* Key C346C 2

*The PL-1 is shipped with two matching keys: PL1A, or

PL1B, or PL1C. To ensure security, the PL-1 is shipped

with one of three different keys.

INSPECT INSTALLATION

LOCATION

Because of the wide variety of possible mounting

situations, Chief Manufacturing only provides general

guidelines for the typical pole-mounted installation.

Study the following information carefully, and make

adjustments as necessary to fit your specific installation.

WARNING

There is a potential for personal injury or equipment

damage if the projector is not adequately mounted.

Be aware of the overall weight of the equipment,

including weight of projector and all attaching

hardware.

Installation Instructions PL-1

INSTALLATION

This manual contains installation procedures that cover

pole-mounted applications:

NOTE: Omit Step1 thru 3 and proceed to Step 4 if the

projector is already installed on the 1-1/2” NPT pipe.

1. If projector is mounted, remove projector and SLB.

2. Loosen the thumbnuts and disconnect your projector

from the RPA.

3. Install the RPA mount on the 1-1/2” NPT pipe as

described in the instructions for your RPA mount.

4. Unlock and open the PL-1.

5. Align set screw of RPA with key lock of cage (see

Figure 1).

6. Tilt the lock side of the PL-1 down and route the RPA

thru the hole in the PL-1 (see Figure 2).

7. Set PL-1 on RPA (see Figure 3).

Figure 1. Align Set Screw & Key Lock

Figure 2. Place PL-1 on RPA

Figure 3. PL-1 on RPA

Set Screw

Key Lock

Installation Instructions PL-1

INSTALLATION (CONT’D)

8. Install the projector (see Figure 4).

9. Tightening the center thumb screw first, make sure

all thumb screws are tight.

Installation Instructions PL-1

INSTALLATION (CONT’D)

10. Route the cables (Figure 5).

11. Slide PL-1 halves together (see

Figure 6).

12. Insert key.

13. To operate the lock, do the following:

a. To lock the PL-1, turn the key (supplied) 90°

clockwise.

b. To unlock the PL-1, turn the key (supplied) 90°

counterclockwise.

14. Remove key.

Figure 4. Install Projector

Figure 5. Route Cables

Figure 6. Lock Unit

Cable Route Access

Side Cable

Route Access

Side Cable

Route Access

Lock (CW)

90°

Unlock (CCW)

Installation Instructions PL-1

Table des matières

Autres manuels CHIEF Accessoires pour projecteur

CHIEF

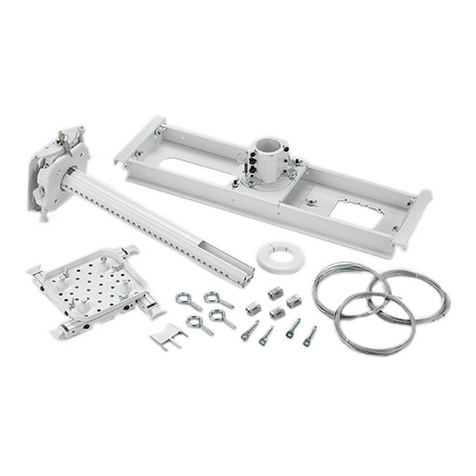

CHIEF SYSAU Manuel utilisateur
