Chicco Fit 2 Manuel utilisateur

WARNING: Avoid serious injury or death to your child. Never

use your Fit 2 Child Restraint without the softgoods in place. You

must read and understand the Softgood Removal instructions and

the instructions in the User Guide. If you do not understand these

instructions, DO NOT attempt to remove the softgoods, STOP

and call Chicco at 1-877-424-4226.

INSTRUCTIONS: Fit 2 Softgood Removal

IMPORTANT: Please also refer to the instructions that came with your product.

Rotate the Carry Handle up into the carry position.

Press the button on the Canopy Mount and remove the

Canopy. Then rotate the Carry Handle back into

stationary position.

Refer to User Guide if needed.

Undo the hook and loop fasteners on BOTH sides of

the Comfort Kit.

Press the Harness Adjuster Button and loosen the

Harness Straps and then undo the buckle and chest clips.

Remove the Crotch Strap Pad by pushing the fabric Tab

through the slot on the BACK of the Harness Buckle. Then

pull Tab out of the FRONT and remove Crotch Strap Pad.

IMPORTANT! If Crotch Strap Pad prevents harness from properly

ﬁtting small Infant, it should be removed.

Remove the optional Head Rest Insert and Newborn

Positioner.

Refer to User Guide if needed.

Remove the Shoulder Pads. Then adjust the Head Rest

into the lowest position.

Refer to User Guide if needed.

SS0002.A.E

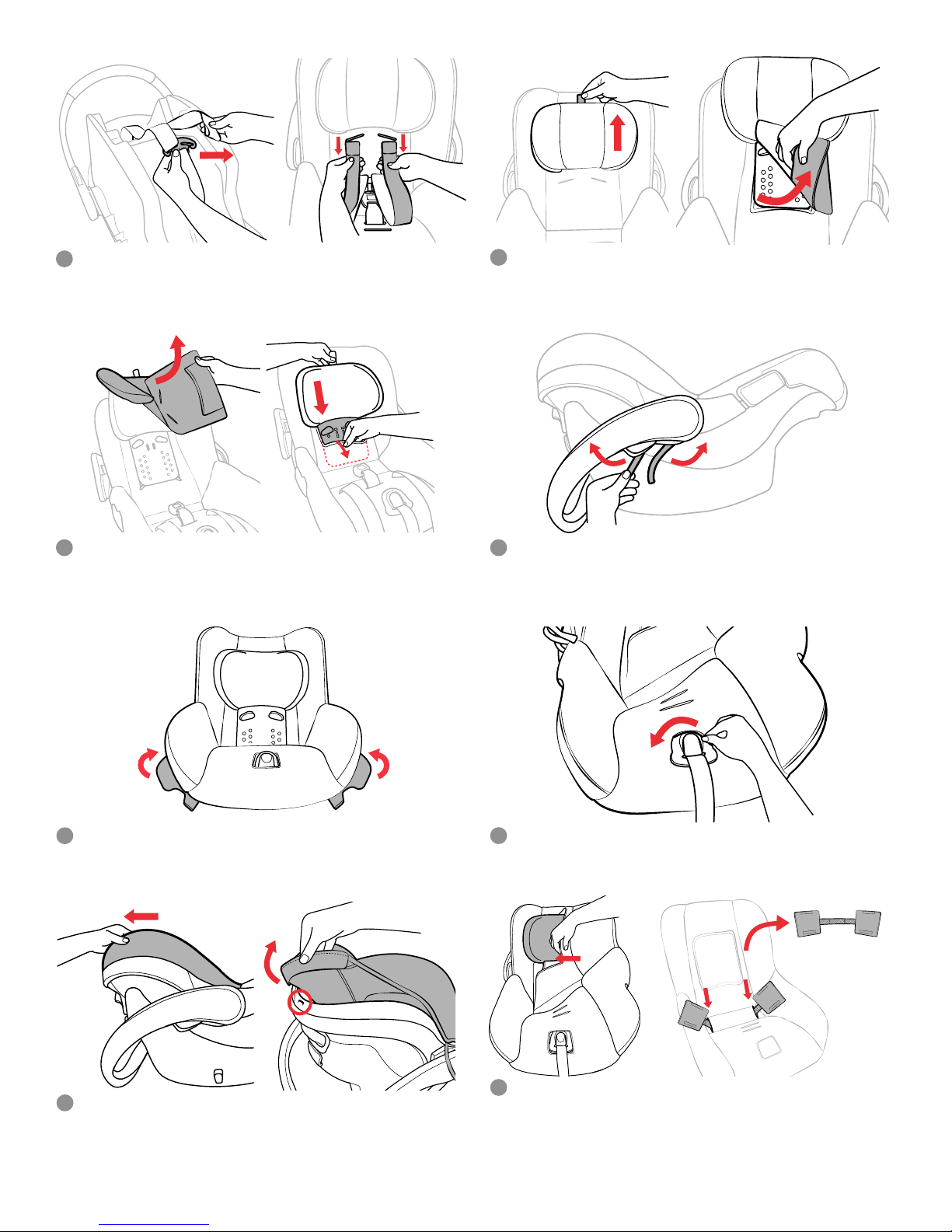

Pull the FABRIC around the Harness Adjuster Strap

Cover.

Note: The plastic Harness Adjuster Strap Cover is

NOT removable.

While pulling back on the seat pad, lift up to unhook

the Fabric Plastic Tab from the clip on the top of the

Carrier. Rocking the fabric side to side may help.

13 Remove the seat pad from the Carrier, Making sure

to gently guide the Seat Pad around the Head Rest. Push

the Comfort Kit pads through the slots in the seat pad and

remove the Comfort Kit.

WARNING - NEVER use Child Restraint without the seat pad.

Flip the Carrier over and remove BOTH Shoulder Harness

Straps from the Splitter Plate. Then ﬂip the Carrier upright

and pull the Shoulder Harness Straps to front of Carrier.

7Adjust Head Rest into the highest position. Then pull

down on and un-tuck the bottom fabric pocket from the

Head Rest Back Plate.

Remove the Head Rest fabric. Then adjust the Head

Rest to the lowest position, making sure that the Head

Rest Back Plate slides BEHIND the Seat Fabric.

9Place the Carrier on its side and unhook the Fabric

Straps, located just below the Handle’s rotating hinge.

Repeat for the other side.

Un-fold the Fabric Plastic Tabs from the Foot of the

Carrier.

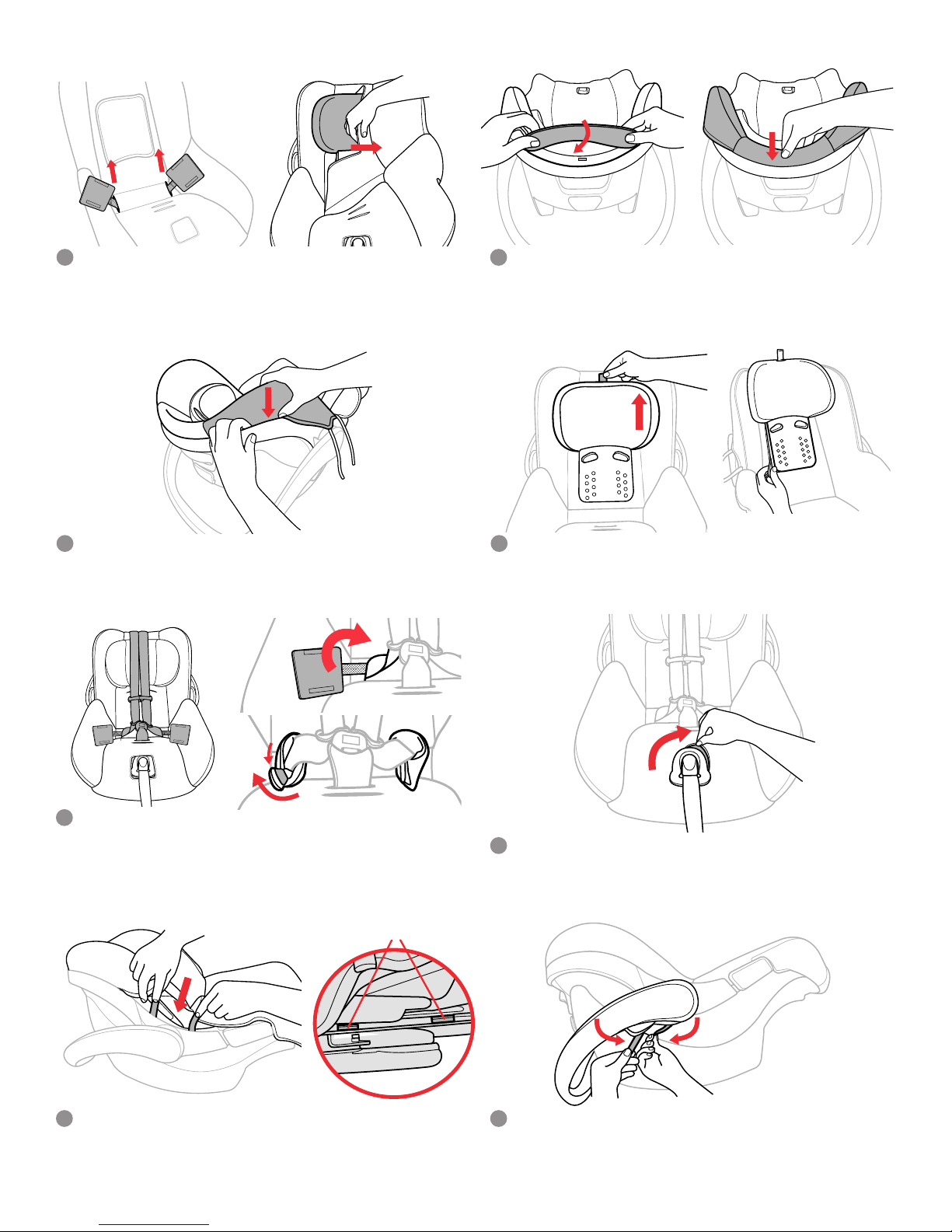

Thread Comfort Flex pads through the seat pad. Adjust

Head Rest to lowest position and place the seat pad onto the

Carrier shell. Slide fabric opening around the Head Rest Frame.

Guide the edge of the fabric into the groove around

the entire top of the Carrier frame. A ruler or card may be

needed to help press the fabric into place.

17 Adjust the Head Rest to the highest position. Then

pull the fabric behind the Head Rest Back Plate to make

sure the Head Rest Back Plate sits on TOP of the seat pad.

On the top of the Carrier, fold the plastic tab under the

fabric and tuck it into the Carrier frame. Press down ﬁrmly. A

ruler or card may be needed to lock the plastic tab into place.

Thread the crotch strap and the Harness Straps

through the correct openings. Wrap both Comfort Flex

pads around each waist strap and re-attach the Hook and

Loop fastener.

Fit the fabric around the edges of the Harness

Adjuster Strap Cover.

Thread the hook and loop Fabric Straps through the

two slots on the Carrier shell, as shown.

Pull down ﬁrmly on the Fabric Straps to help guide the

fabric further into the Carrier shell. Wrap straps around the

bottom of the Handle and attach. Repeat for the other side.

TO RE-ATTACH THE FABRIC:

Fabric Strap Slot

Flip the Carrier over and push both ﬁngers of the

plastic tab into the correct slots, as shown.

WARNING - Make sure the pad and all attachment tabs do not

interfere with the latch points on the Child Restraint.

HEAD REST

CROSS BAR

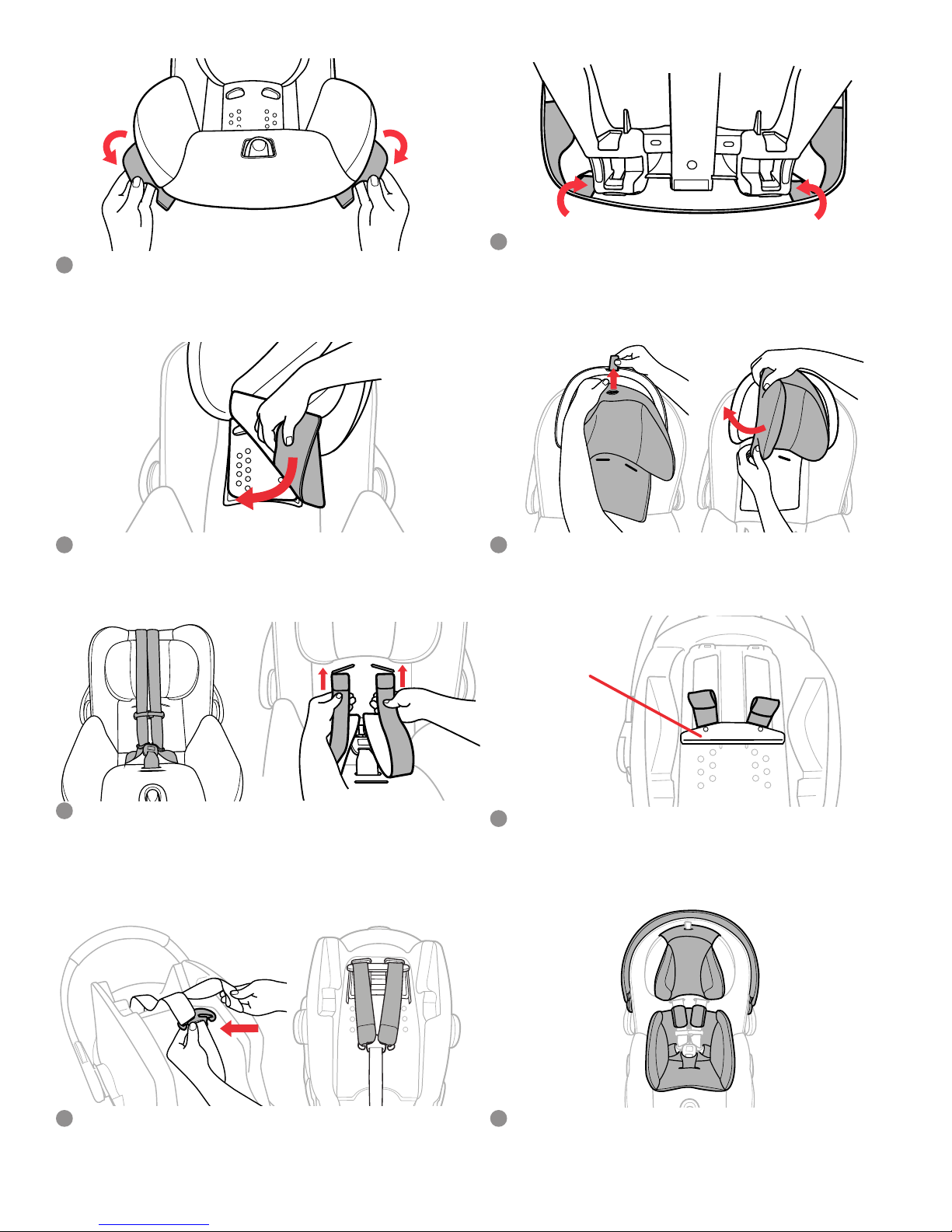

Fold the 2 plastic tabs under the edge of the Carrier

shell.

Attach the Head Rest Fabric by sliding the Adjustment

Strap through the button hole on the top of the fabric and

then wrapping the fabric around the Head Rest frame.

Locate the pocket on the back of the Head Rest fabric,

slide the bottom edge of the Head Rest Back Plate into the

pocket.

Flip the Carrier over and pull the Harness Straps

through the openings. Make sure the Harness Straps are

not twisted and above the Head Rest Cross Bar.

Lay Harness Straps over the seat back to make

sure the Harness Straps are NOT twisted and oriented as

shown. With the Head Rest in the lowest position, thread

Harness Strap ends into the openings on the Head Rest

Back Plate.

Re-attach the Shoulder Pads and Crotch Strap Pad.

Re-attach the Head Rest Insert, Newborn Positioner and

Canopy, if needed.

Refer to User Guide if needed.

Attach BOTH Harness Straps to the Splitter Plate.

WARNING - Make sure Harness Straps are not twisted and

both Harness Straps are securely attached to splitter plate.

Fabrics may be spot-cleaned with mild soap and water, or machine washed

in cold water on delicate cycle using mild detergent. Attach hook and loop

parts together before washing. Hang to dry. DO NOT BLEACH.

Please consult your product manual for additional care and maintenance

instructions.

Contact Chicco Customer Service at 1-877-424-4226 for assistance in

removing or replacing the softgoods.

Cleaning Instructions:

TO REMOVE THE HARNESS STRAPS:

Complete steps 1-14 before removing the Harness Straps, then locate the Harness Strap Attachment Pins

(31a). Lift up and slide both Harness Strap Attachment Pins out towards the foot area of the Carrier shell (31b).

Remove both Harness Straps from the Carrier (31c). Re-attach Harness Straps following these steps in reverse. When

re-attaching harness straps make sure they are in the correct orientation, as shown in (31a). Pull out on BOTH Harness

Straps after re-attachment to make sure they are secure (31d). Sponge clean using warm water and mild soap. Air dry.

Do NOT machine wash or use detergents. Make sure BOTH Harness Straps are securely attached before re-attaching

fabric!

31a 31b 31c 31d
