15000 and 23000 Appliances

Replacing Power Supply Units

Protected

2020

Check Point 15000 and 23000 appliances have a redundant power supply unit

(PSU). 15000 and 23000 appliances support AC and DC PSUs.

If necessary, you can replace a PSU. Note that both PSUs on an appliance must

be of the same type (both AC or both DC). Mixing AC and DC PSUs is not

supported and can cause damage to the appliance.

Important - Make sure you are electromagnetically grounded before

you install, uninstall, or replace a PSU. ESD (electrostatic discharge)

can damage the appliance.

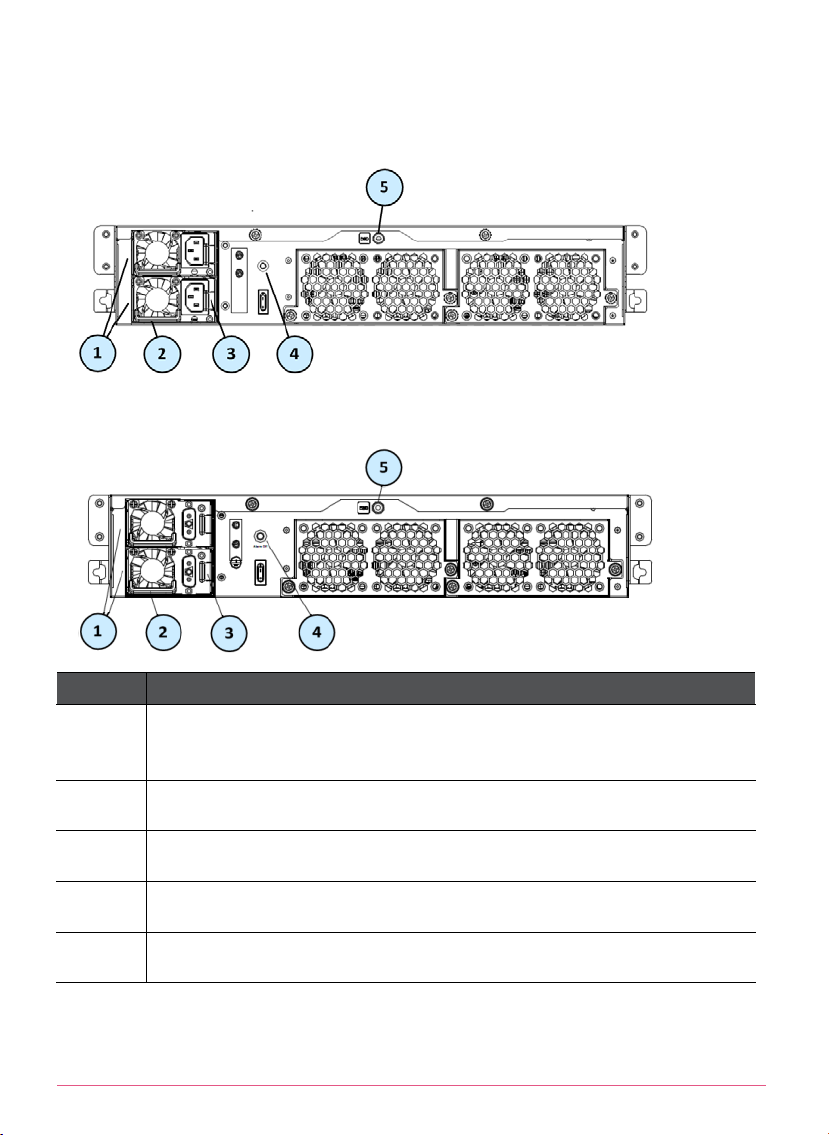

15000 and 23000 Appliances Rear Panel with AC PSUs

15000 and 23000 Appliances Rear Panel with DC PSUs

Item

Description

1 AC/DC Power supply units. The top PSU is identified as number 1

and the bottom PSU is identified as number 2.

2 Extractor handle.

3 Release lever.

4 Alarm off button for power supply units.

5 ESD grounding point.

Removing a Power Supply Unit

Before you remove a power supply unit, we recommend that you make sure that

either:

•A second power supply of the same type (AC or DC) is installed and

connected to a working power source

•Shutdown the appliance

To remove a power supply unit:

1. Remove the power cord from the power supply unit.

2. If the alarm sounds, press the alarm off button to the right of the power

supply units.

The alarm stops.

3. Press and hold the release lever down as shown.

The illustration shows AC PSUs, but the same procedure applies to

appliances with DC PSUs.

4. While holding the release lever, pull the extraction handle to remove the

power supply unit.

Note - Remove the power supply unit only with the extraction handle

to prevent any possible damage.

Installing a Power Supply Unit

To install a replacement power supply unit:

1. Insert the power supply unit into the power supply slot.

2. Push the power supply unit in until the release lever clicks.

The illustration shows AC PSUs, but the same procedure applies to

appliances with DC PSUs.

3. Insert the power cord into the power supply socket.

4. For DC PSUs - Tighten the screws attached to the connector to make sure

the connector is fastened to the power supply.

5. Make sure that the power LED is illuminated.
