Channel Vision Aria A0350 Manuel utilisateur

A0350

Flush Mount Amplifier

By C H AN N E L VI S I O N

Aria

Local In

Active

Spkrs 24VDC

IR In

Flush Mount Amplifier

CAT5

Audio

Input

RCA

Output

The A0350 Flush Mount Amplifier can be used with Channel Vision’s CAT5

audio hubs to provide a powerful 50Watts per channel in the listening zone.

Alternatively, the A0350 can be added to the SP525, SP650, and SP800

Free Standing Speakers to create a high-quality amplified speaker system.

Features:

!Pre-amp audio outputs for easy connection to powered subwoofer

!Local audio input to override the wireless audio signal

!Input for compatibility with Channel Vision’s CAT5 audio systems

!Easy installation

100 Watt integrated class D amplifier

Rear Panel Features and Connections:

A0350

Left & Right Audio Trim Pots...

Control the maximum output level of

the amplifier. If audio input level is

quiet, the trim pots will have little

noticeable effect.

Front RCA Input Sensitivity...

Control the sensitivity of the front

RCA input. Adjust trim pot clockwise

for least sensitivity. Adjust trim pot

counter-clockwise for most sensitivity.

Keypad Input... Connect an IR control keypad, such as A0127,

here

Rear Speaker Outputs... Connect in-wall speakers to these

jacks

Jumper 17 & 18 Locations

J17 Pin 1

J18 Pin 1

Volume Jumper...

Set J6 to pins 1&2 to select default

power up volume. Set J6 to pins 2&3

to select previous volume level on

power up. (J7 is currently not

implemented)

RCA outputs... Connect to powered subwoofer or external

amplifier

CAT5 Audio Input... Connect the output of your CAT5 audio hub

here

J17 & J18 Input Select Jumpers...

to allow primary input from the CAT5 audio jack. Pin 1&2 are not

implemented on the A0350.

The front RCA inputs will always function as a local source

override.

Set J17 and J18 to pins 2&3

24VDC Power Input...

be connected from the rear of the unit. When these terminals are

used, the front power connection should not be used. Follow the

voltage polarity markings on the screw terminals.

These terminals allow the power supply to

IR Input... Connect IR receiver

here (optional)

Power In... Connect power supply here

Local Audio In... Line-level

audio sensing input that

overrides the primary

wireless or CAT5 audio

Speaker Outputs...

Connect speakers here TM

By C H AN NE L VI SIO N

A ria

Local In

Active

Spkrs 24VDCIR In

Flush Mount Amplifier

B y CHA NN EL V ISIO N

A ria

Local In

Active

Spkrs 24VDCIR In

Flush Mount Amplifier

Accessories

Power Supply

Screws

Speaker Terminal

Connectors

CAT5

Audio

Input

RCA

Output

The A0350 Flush Mount Amplifier can be used with Channel Vision’s CAT5

audio hubs to provide a powerful 50Watts per channel in the listening zone.

Alternatively, the A0350 can be added to the SP525, SP650, and SP800

Free Standing Speakers to create a high-quality amplified speaker system.

Features:

!Pre-amp audio outputs for easy connection to powered subwoofer

!Local audio input to override the wireless audio signal

!Input for compatibility with Channel Vision’s CAT5 audio systems

!Easy installation

100 Watt integrated class D amplifier

Rear Panel Features and Connections:

A0350

Left & Right Audio Trim Pots...

Control the maximum output level of

the amplifier. If audio input level is

quiet, the trim pots will have little

noticeable effect.

Front RCA Input Sensitivity...

Control the sensitivity of the front

RCA input. Adjust trim pot clockwise

for least sensitivity. Adjust trim pot

counter-clockwise for most sensitivity.

Keypad Input... Connect an IR control keypad, such as A0127,

here

Rear Speaker Outputs... Connect in-wall speakers to these

jacks

Jumper 17 & 18 Locations

J17 Pin 1

J18 Pin 1

Volume Jumper...

Set J6 to pins 1&2 to select default

power up volume. Set J6 to pins 2&3

to select previous volume level on

power up. (J7 is currently not

implemented)

RCA outputs... Connect to powered subwoofer or external

amplifier

CAT5 Audio Input... Connect the output of your CAT5 audio hub

here

J17 & J18 Input Select Jumpers...

to allow primary input from the CAT5 audio jack. Pin 1&2 are not

implemented on the A0350.

The front RCA inputs will always function as a local source

override.

Set J17 and J18 to pins 2&3

24VDC Power Input...

be connected from the rear of the unit. When these terminals are

used, the front power connection should not be used. Follow the

voltage polarity markings on the screw terminals.

These terminals allow the power supply to

IR Input... Connect IR receiver

here (optional)

Power In... Connect power supply here

Local Audio In... Line-level

audio sensing input that

overrides the primary

wireless or CAT5 audio

Speaker Outputs...

Connect speakers here TM

By C H AN NEL VI SIO N

A ri a

Local In

Active

Spkrs 24VDCIR In

Flush Mount Amplifier

B y CHA NN EL V ISIO N

A ria

Local In

Active

Spkrs 24VDCIR In

Flush Mount Amplifier

Accessories

Power Supply

Screws

Speaker Terminal

Connectors

A0501, A0502, or A0505 ... Remote control. Contains IR

codes for controlling the Amplified Wireless Audio Receiver

as well as many other Channel Vision audio products.

IR-2400 ... Plasma-Proof IR receiver.

A0127 ... IR repeating keypad.

codes to operate the volume controls in the Amplified

Wireless Audio Receiver. You may also use a standard IR

receiver or a 3rd party keypad. When using a simple IR

receiver, you will need to use the A0505 remote control

which contains the IR codes to control the WA-350, WA-351,

and A0350. IR codes can be downloaded from

www.channelvision.com, or learned from an A0505 remote

control.

The A0127 contains the IR

Pwr Mute

Vid 1

Vid 2

Vid 3

Vid 4

Vol

CHA NN EL VI SI ON

ZONE

POWER

MUTE

VOL

MODEL

A0501

POWER

Accessories & Complementary Products (sold separately)

In-wall, In-ceiling Speakers, and Free Standing

Speakers... Channel Vision offers a full line of premium

speakers. These speakers are perfect for whole-house music

or home theater applications.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions for future reference.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this device near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with these

instructions.

8. Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including amplifiers) that produce heat.

9. This apparatus must not be exposed to dripping or splashing and no

objects filled with liquids, such as vases, shall be placed on the

apparatus.

10. Protect the power cord from being walked on or pinched particularly at

plugs, convenience receptacles, and the point where they exit from the

apparatus.

11. Unplug this apparatus during lightning storms or when unused for long

periods of time.

12.

Warning: To reduce the risk of electric shock, do not remove the cover (or

back), no user serviceable parts inside, refer servicing to qualified service

personnel.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN !

A0501, A0502, or A0505 ... Remote control. Contains IR

codes for controlling the Amplified Wireless Audio Receiver

as well as many other Channel Vision audio products.

IR-2400 ... Plasma-Proof IR receiver.

A0127 ... IR repeating keypad.

codes to operate the volume controls in the Amplified

Wireless Audio Receiver. You may also use a standard IR

receiver or a 3rd party keypad. When using a simple IR

receiver, you will need to use the A0505 remote control

which contains the IR codes to control the WA-350, WA-351,

and A0350. IR codes can be downloaded from

www.channelvision.com, or learned from an A0505 remote

control.

The A0127 contains the IR

Pwr Mute

Vid 1

Vid 2

Vid 3

Vid 4

Vol

CHA NN EL VI SI ON

ZONE

POWER

MUTE

VOL

MODEL

A0501

POWER

Accessories & Complementary Products (sold separately)

In-wall, In-ceiling Speakers, and Free Standing

Speakers... Channel Vision offers a full line of premium

speakers. These speakers are perfect for whole-house music

or home theater applications.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions for future reference.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this device near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with these

instructions.

8. Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including amplifiers) that produce heat.

9. This apparatus must not be exposed to dripping or splashing and no

objects filled with liquids, such as vases, shall be placed on the

apparatus.

10. Protect the power cord from being walked on or pinched particularly at

plugs, convenience receptacles, and the point where they exit from the

apparatus.

11. Unplug this apparatus during lightning storms or when unused for long

periods of time.

12.

Warning: To reduce the risk of electric shock, do not remove the cover (or

back), no user serviceable parts inside, refer servicing to qualified service

personnel.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN !

By CHAN NE L VISIO N

A r ia

Local In

Active

Spkrs 24VDC

IR In

Flush Mount Amplifier

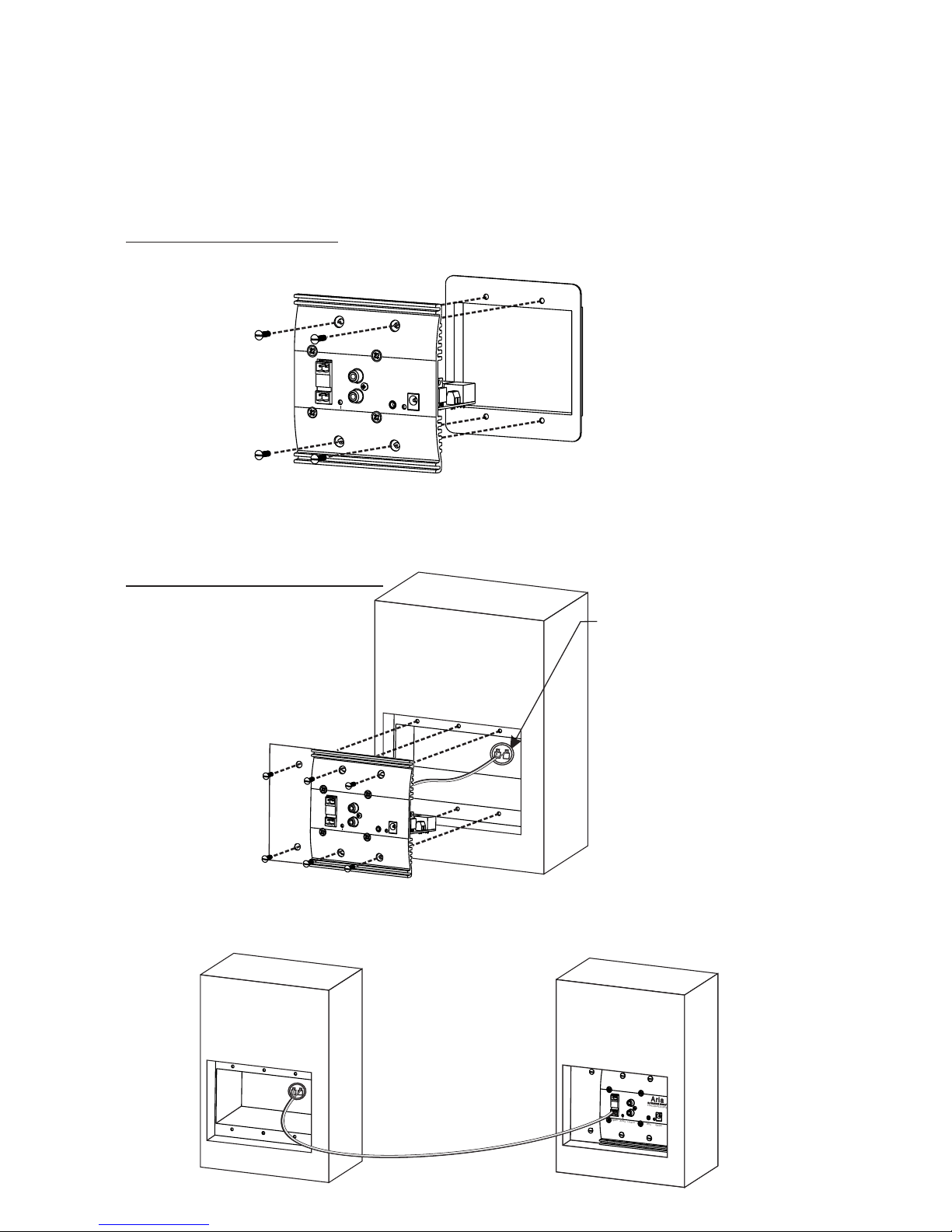

A0350 Installation

The A0350 can be installed in the wall using a standard 2-gang junction box or

low-voltage mounting ring. The Flush Mount Amplifier can also be installed into

the back of Channel Vision’s SP525, SP650, or SP800 Free Standing

Speakers.

In-Wall Installation

In-Speaker Installation

Standard 2-gang ring or extra deep

j-box (not included)

Attach unit with the

provided screws

Attach unit with the

provided screws

One Amplified Receiver can serve one pair of speakers.

Connect speaker wire to

one rear speaker terminal

and connect it to the

terminals on the speaker

Connect a second

speaker wire to

one front speaker

terminal and connect

the other end to the

terminals on the

second speaker

Note: if using a j-box,

it must have a minimum

depth of 3.5”

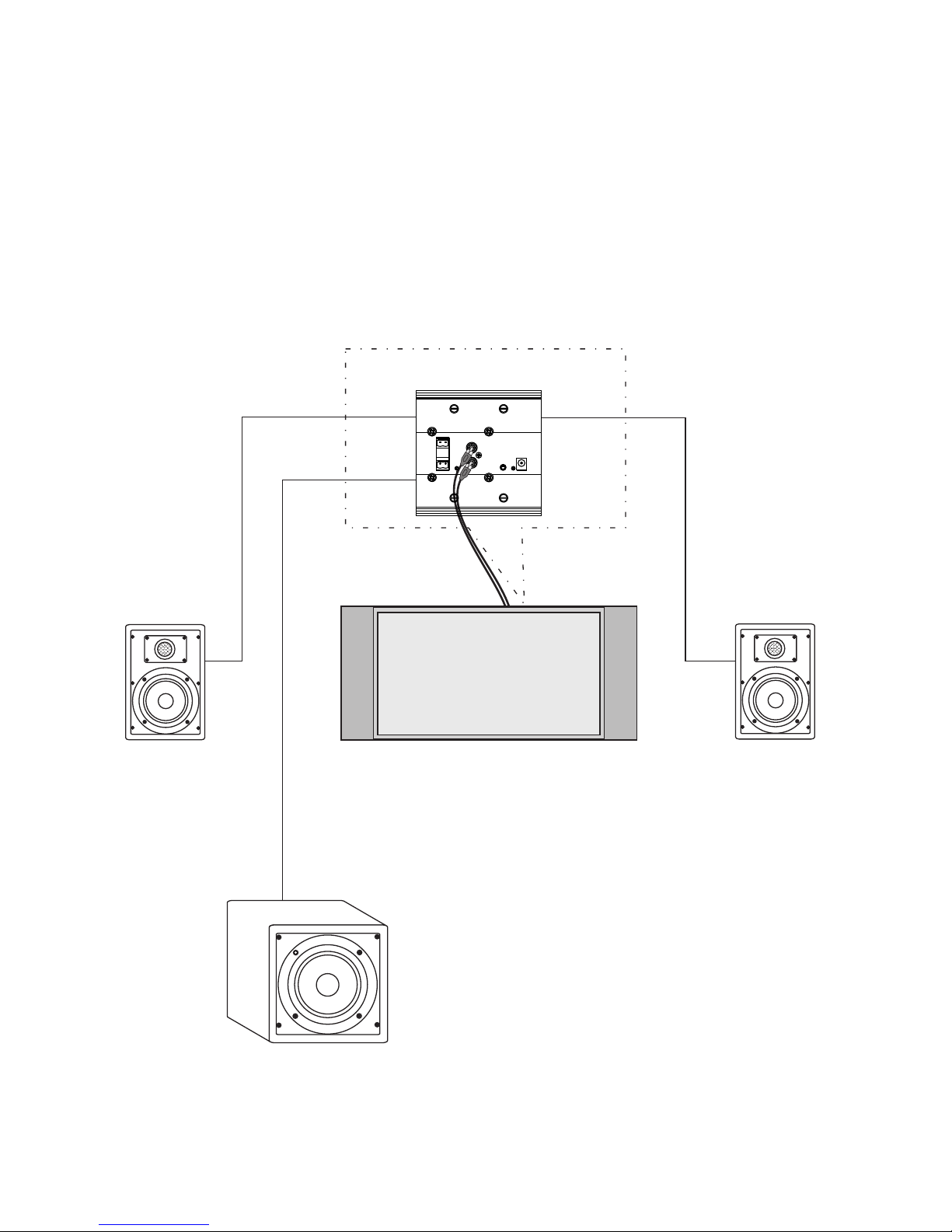

Using the A0350 Behind a TV

The A0350 can be flush-mounted behind a wall-mounted TV to power in-wall

speakers. By connecting the audio outputs from the TV to the RCA inputs of

the A0350, the TV’s audio signal will be amplified to the in-wall speakers. If the

TV has variable audio outputs, the sound level will simply be controlled by the

TV’s volume buttons. If the TV only offers a fixed audio output, A0350 volume

level can be adjusted by connecting an IR-2400 and using a compatible

remote such as model A0505. The RCA audio outputs on the back of the

A0350 can be connected to a powered subwoofer to add more bass to your

audio system.

By CHA N NEL VISI O N

A ri a

Local In

Active

Spkrs 24VDC

IR In

Flush Mount Amplifier

B y CHANNEL VI SION

Aria

Local In

Active

Spkrs 24VDC

IR In

Flush Mount Amplifier

Behind the TV

Variable

Line output

from the TV

The TV volume control determines

the volume of the speakers

The TV volume control will determine

the volume of the powered subwoofer.

Front Left Front Right

A0350

B y CH ANN EL V ISI ON

A r i a

Local In

Active

Spkrs 24VDCIR In

Flush Mount Amplifier

Powered

Subwoofer

Take care not to pinch

wires when installing

into 2-gang box.
