Champion I DH200 Manuel utilisateur

(1M) 7/05 Printed in U.S.A.

CH910-I

Door-type

High Temperature

Dishwashing Machine

I DH200

STANDARD FEATURES

• Field convertible to corner model

• Top mounted controls

• 1 Hp pump motor water proof

• Door safety switch

• Easy lift door system

• Interchangeable upper and lower spray arms

• Common utility connections

• Two dish racks

• Self-draining pump

• 40°F/22°C final rinse booster (single phase

and three phase available)

• Front mounted scrap screen and

waste collector

• Front mounted wash and rinse

temperature gauge

Champion Industries, Inc.

P. O. Box 4149, Winston-Salem, NC 27115 USA

Tel: 336/661-1556 Fax: 336/661-1979

www.championindustries.com

SPECIFIER STATEMENT

Specified unit will be Champion model I DH200 high

temperature door-type dishwashing machine.

Constructed of Type 304 stainless steel. Features

1 Hp pump motor water proof, top mounted controls,

easy lift door system, common utility connections

and interchangeable upper and lower spray arms.

I DH200 DOOR-TYPE

Project

Item No.

Quantity

OPTIONS & ACCESSORIES

70°F/39°C built-in rise stainless steel

electric booster (3 phase only)

Detergent pump and rinse pump

Minimum

Clearance

Minimum

Clearance

Door-type

High Temperature

Dishwashing Machine

I DH200

I DH200 DOOR-TYPE

Dimensions shown in

inches and [millimeters]

Utilities

1Electrical 220/50/3, 220/60/1,

220/60/3 36.0 Machine Load Amps

2Hot Water 3/4" NPT 140°F/60°C

hot water connection

3Drain 1-7/8" [48] connection.

Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice.

Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 USA • 800/532-8591 • Fax: 336/661-1979 • www.championindustries.com

SPECIFICATIONS

Capacities

Racks per hour 37

Motor horsepower

1 Hp

Water consumption

Gal. per rack US gal.

(liters) 1.7 (6.4)

Temperatures °F/°C

Wash 150/66

Rinse 180/82

Time cycle in seconds

Wash 55

Dwell 12

Rinse 23

Total cycle 90

Warning: Plumbing and electrical connection

should be made by qualified personnel who will

observe all the applicable plumbing, sanitary

and safety codes.

1-1/4" [32]

1-1/8" [29]

2-1/8" [54]

7-1/4" [184]

Roll

20-7/8" [530]

24-1/4" [616]

13-1/2"

6-1/4" 7-1/4"

6-1/4"

5-3/4"

11-3/4"

25-1/2"

27"

20-1/4"

Inside

Track

4" Minimum Clearance

81-1/2"

Door

Removal

74-1/2"

Doors Up

17"

Clearance

34"

Load

Height

63"

Machine

Height

62"

19"

7-1/2"

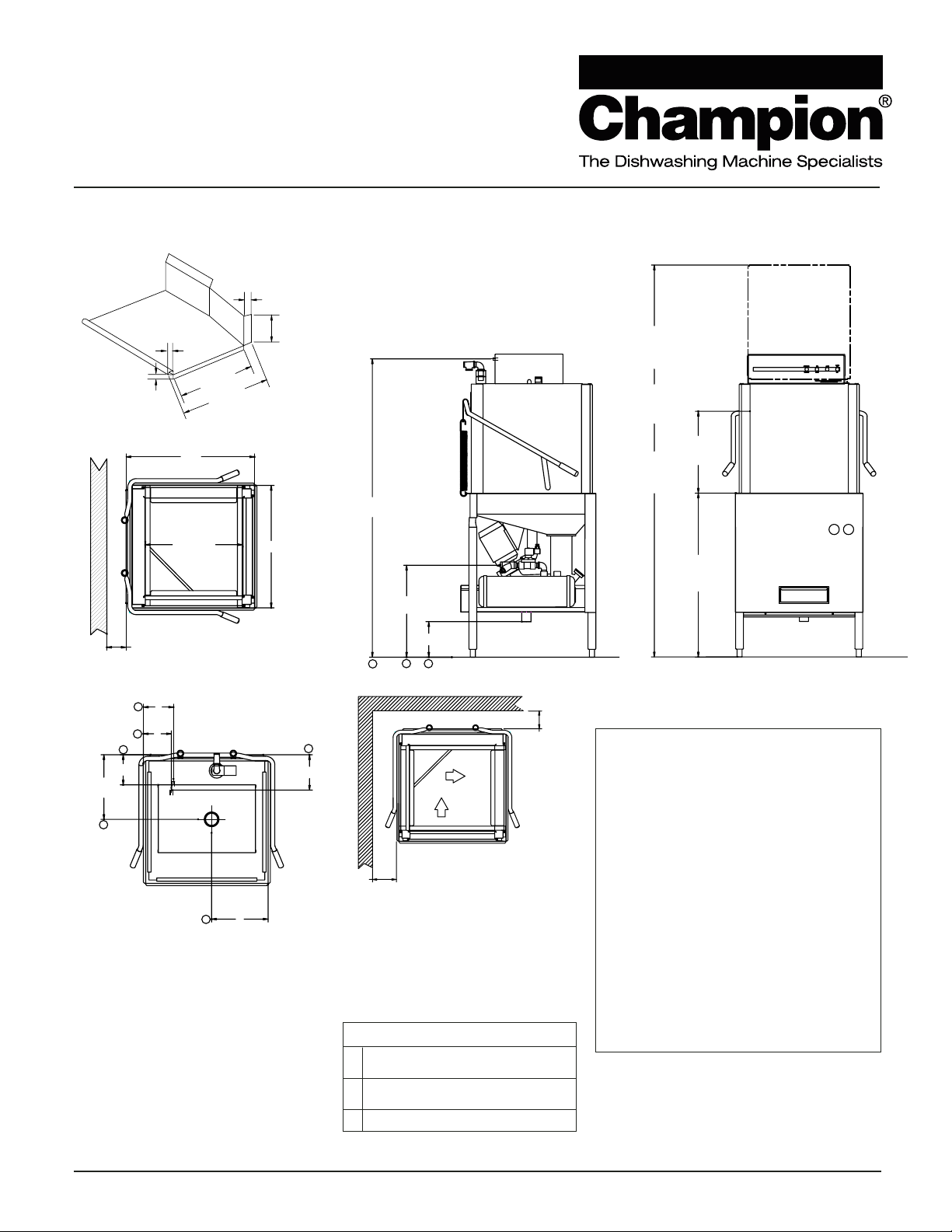

SIDE VIEW

Plan View

Side View

Front View

Typical Table Construction

Straight Through

Corner Configuration

Volume crated: 45 cu. ft./1.3 cu.m.

Shipping weight crated: 242 lbs./110 kg.

Distance between tables: 25-3/8"/645mm
