Chamberlain LiftMaster 361LM Manuel utilisateur

To prevent possible SERIOUS INJURY or

DEATH from a moving gate or garage door:

• ALWAYS keep remote controls out of

reach of children. NEVER permit children

to operate, or play with remote control

transmitters.

• Activate gate or door ONLY when it can be

seen clearly, is properly adjusted, and

there are no obstructions to door travel.

• ALWAYS keep gate or garage door in sight

until completely closed. NEVER permit

anyone to cross path of moving gate or

door.

INTRODUCTION

This product is for use with gate operators, commercial door operators and any LiftMaster® product

that uses a 315 MHz fixed code. The single-button remote control will activate one device, the

2-button remote control will activate up to 2 devices, and the 3-button remote control will activate

up to 3 devices.

Model 361LM & 361LMC

Model 362LM & 362LMC

Model 363LM, 363LMC,

333LM, & 333LMC

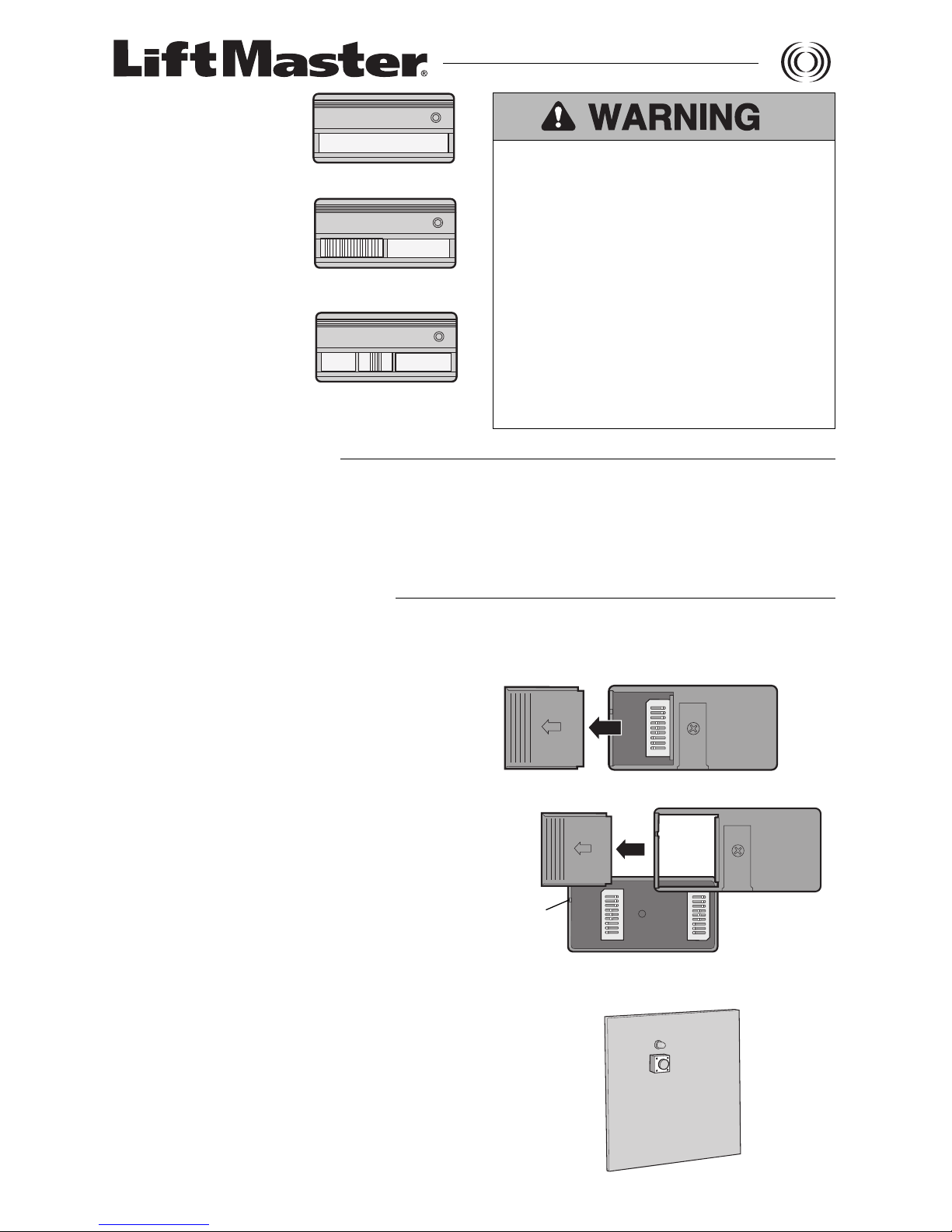

Locate the Dip Switches on Your Remote Control

BEFORE YOU BEGIN

Locate the Smart/Learn Button for Your Product

Single-Button and 3-Button

Remote Controls:

Slide the battery cover open to access the dip

switches in the remote control.

2-Button Remote Control:

The 2-button remote control has two sets of

dip switches.

Slide the battery cover open to access the dip

switches for the smooth button. Remove the

screw on the back of the remote control and

remove the cover by pressing the tab. This will

access the dip switches for the ribbed button.

–

123456789

–

123456789

–

123456789

Tab

Single and 3-Button Remote Controls

2-Button Remote Controls

NOTE: Your product may look different than

the products illustrated.

The Smart/Learn button is typically located on

the logic board of the operator or external

receiver. Refer to your product owner’s manual

for the exact location of the Smart/Learn

button.

Smart/Learn Button

SET THE DIP SWITCHES

1Press and release the Smart/Learn button

on your product. The LED will light.

2Within 30 seconds press and hold the

button on the remote control that you

wish to activate your product.

Programming is complete.

Repeat the steps above for each button and/or

remote control you would like to program.

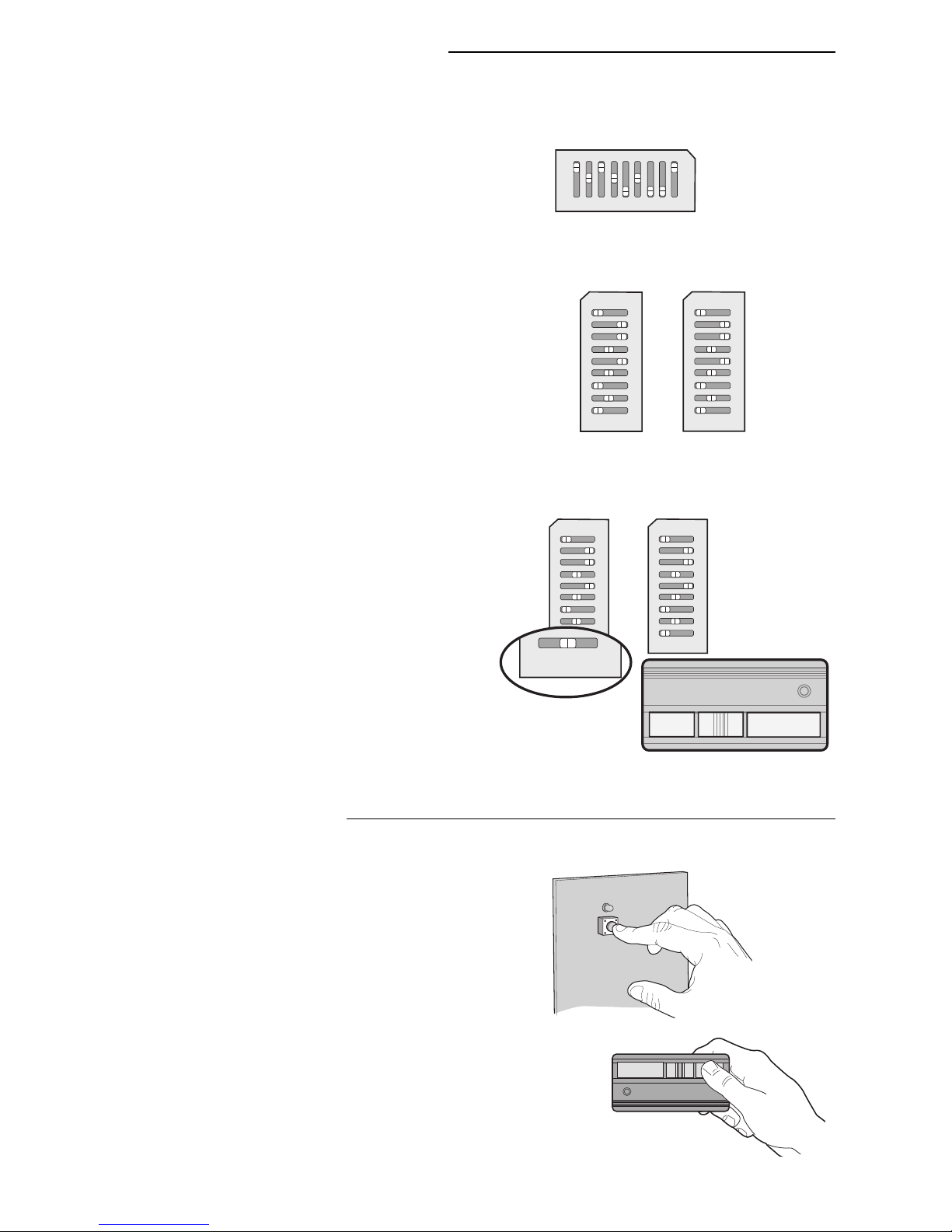

Programming the remote control to

an existing remote control

Locate the dip switches in the new and old

remote controls. Place remote controls side by

side and set the dip switches in the remote

controls to matching positions (+,0,-).

Programming a 3-button remote

control

When programming a single or 2-button

remote control to a 3-button remote control it

is very important to set dip switch #1 to the

correct position. The dip switch in the single or

2-button remote control MUST correspond to

the buttons on the 3-button remote control as

shown.

Example: If you are programming a

single-button remote control to the middle

button on the 3-button remote control, dip

switch #1 in the single-button remote control

MUST be set to “0” in order for both buttons to

work.

PROGRAMMING

Programming the remote control

without an existing remote control

Set the dip switches in the remote controls to

any position you want (+,0,-).

–

123 456 789

–

123 456 789

–

123 456 789

–

123 456 789

–

123 456 789

–

New Remote Control

3-Button

Remote Control

Single or 2-Button

Remote Control

Dip switch #1 must

correspond to the

3-button remote

control buttons

Existing Remote Control

Use a pen or screwdriver to slide the dip switches.

Smart/Learn Button

PROGRAMMING MODEL 333LM ONLY

Install the control station and receiver where the door is visible, but away from the door and its

hardware. When a receiver is used to activate a commercial door opener, a reversing edge MUST

be installed on the bottom of the door. Failure to install a reversing edge under these

circumstances may result in SERIOUS INJURY or DEATH to persons trapped beneath the door.

Model 333LM 3-button remote controls can also be used with a 323LM 3-channel receiver and a

3-button door control to activate a commercial door operator in OPEN, CLOSE, and STOP mode.

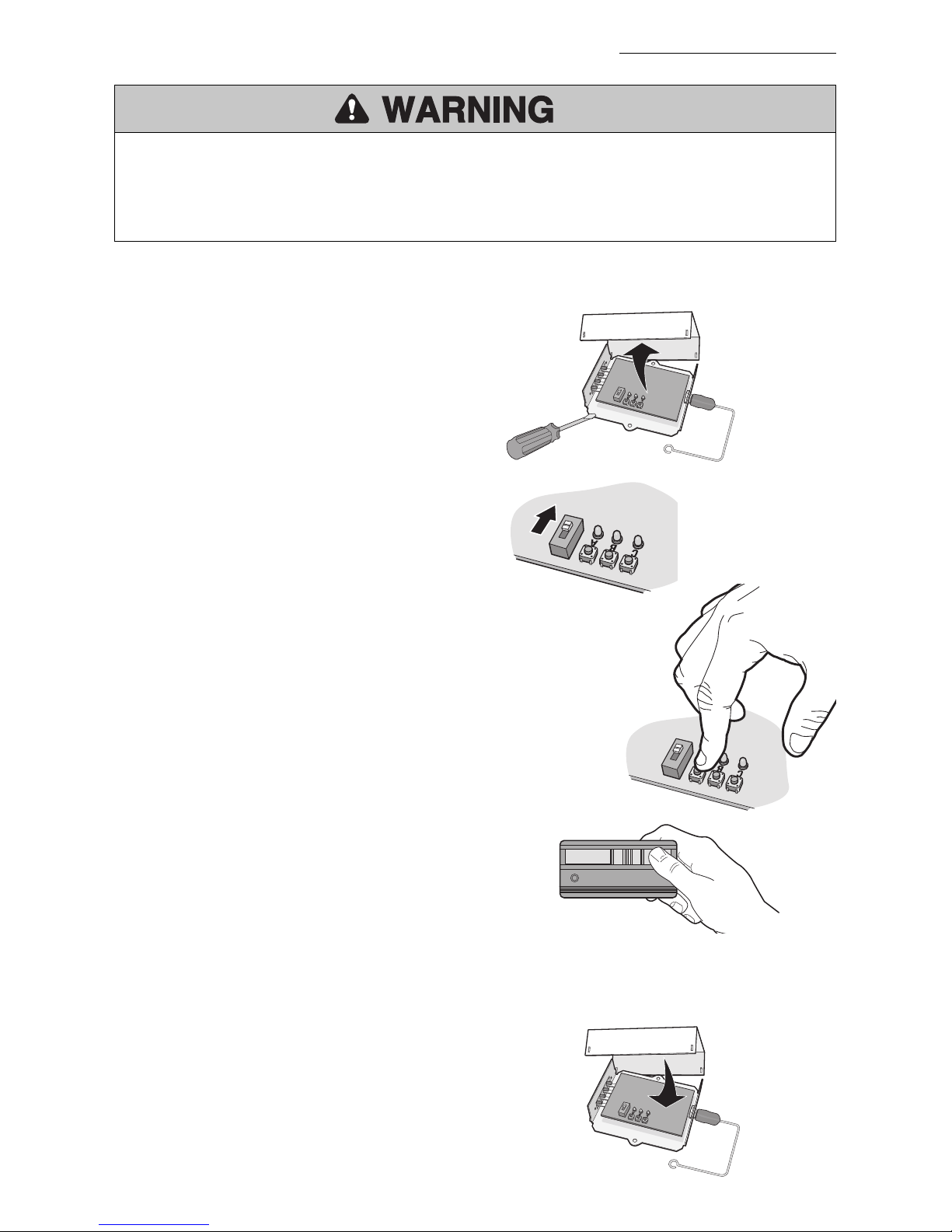

1Use a screwdriver to pry open the receiver

cover.

2Verify that the slide switch on receiver is

set to the N.C. position (otherwise the

commercial door operator will not

operate).

4Within 30 seconds press and release the

red button on the remote control. The red

button is now programmed for CLOSE

mode.

NOTE: If the remote control button is not

pressed within 30 seconds, the LED next

to the selected Smart/Learn button will

turn OFF. In that case, press the

Smart/Learn button again to repeat

programming.

3Press and release the Smart/Learn button

labeled “A” on the receiver. The adjacent

LED will flash.

Repeat the steps 3-4 above with the yellow button on the remote control and the receiver

Smart/Learn button “B” to program the CLOSE mode; and again with the green button on the remote

control and the receiver Smart/Learn button “C” to program the OPEN mode.

Replace the receiver cover.

“A” Smart/Learn Button

2N.C.

Slide

Switch

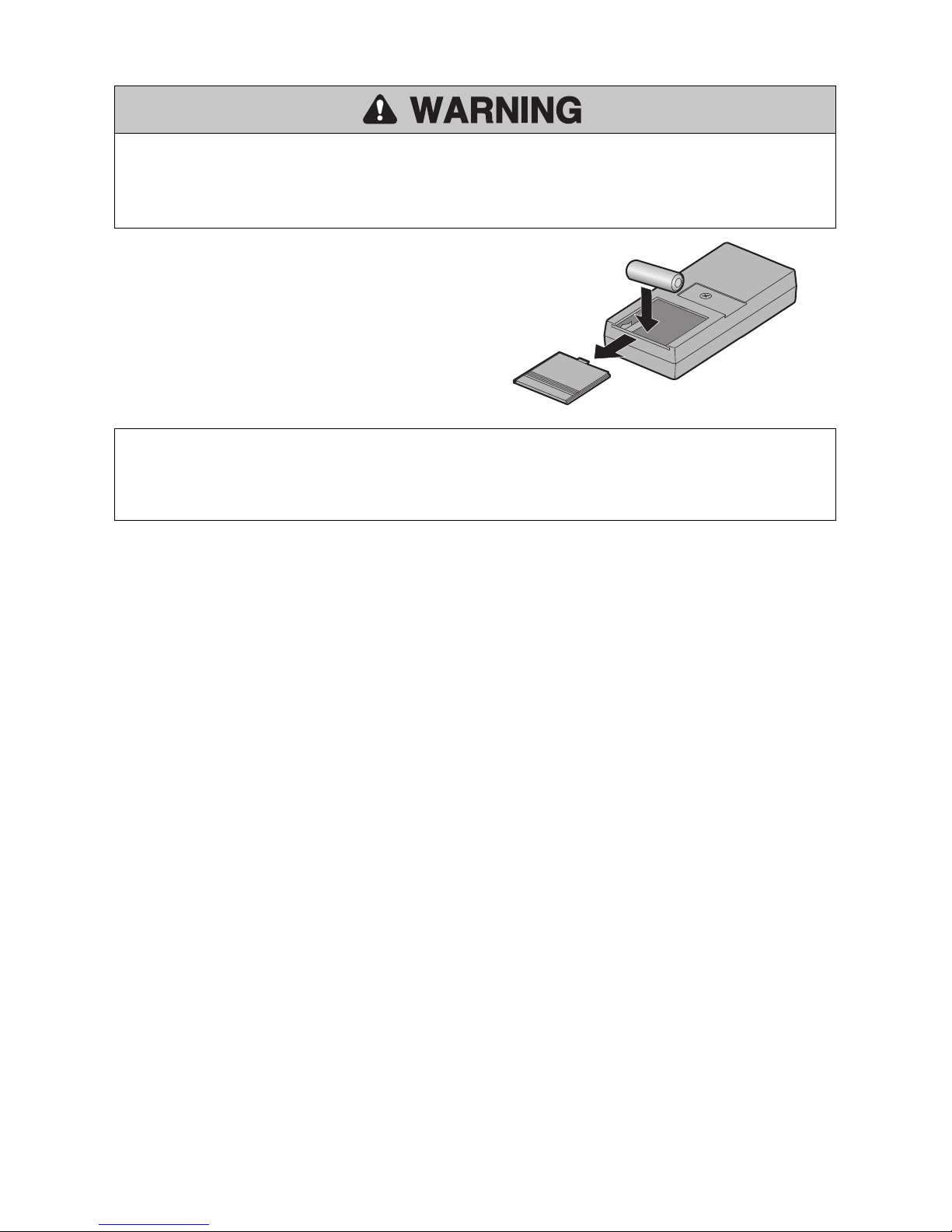

THE REMOTE CONTROL BATTERY

To prevent possible SERIOUS INJURY or DEATH:

• NEVER allow small children near batteries.

• If battery is swallowed, immediately notify doctor.

NOTICE: To comply with FCC and or Industry Canada rules (IC), adjustment or modifications of this receiver and/or remote control are

prohibited, except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.

Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the following two conditions: (1) this device

may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause

undesired operation.

REPLACEMENT PARTS

Visor clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29C128

12V battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10A14

The 12 volt battery should produce power for

1 year.

Dispose of old batteries properly.
