Chamberlain Clicker KLIK2U Manuel utilisateur

Universal Wireless Keypad

MODELS KLIK2U, KLIK2U-P2, KLIK2C AND KLIK2C-P2

Introduction . . . . . . . . . . . . . 2

Programming . . . . . . . . . . . 3-7

Installation. . . . . . . . . . . . . . 8

Changing your 4-digit PIN . . . 8

Battery. . . . . . . . . . . . . . . . . 8

FAQs . . . . . . . . . . . . . . . . . . 9

Introduction

Thank you for your purchase of the Universal Wireless Keypad.

PLEASE DO NOT RETURN TO THE RETAIL STORE. If for any reason you have

questions or need help with troubleshooting please call: 1-800-442-1255.

Read instructions thoroughly BEFORE beginning. If using this product

with residential door openers, this product must be used only with

door openers manufactured after 1993 that utilize photoelectric

sensors. The photoelectric sensors are always located on or near the

bottom of the door track.

WARNING: This product can expose you to chemicals including

lead, which are known to the State of California to cause cancer or

birth defects or other reproductive harm. For more information go to

www.P65Warnings.ca.gov

STOP

To prevent possible SERIOUS INJURY or DEATH from a moving gate or

garage door:

• Install keypad within sight of garage door, out of reach of small children at

a minimum height of 5 feet (1.5 m) above floors, landings, steps or any

other adjacent walking surface, and away from ALL moving parts of door.

• ALWAYS keep remote controls out of reach of children. NEVER permit

children to operate, or play with remote controls.

• Activate gate or door ONLY when it can be seen clearly, is properly

adjusted, and there are no obstructions to door travel.

• ALWAYS keep gate or garage door in sight until completely closed. NEVER

permit anyone to cross path of moving gate or door.

DETERMINE GARAGE DOOR OPENER TYPES:

Proceed with instructions according to your garage door opener type. NOTE: Your motor unit and/or remote control may look different.

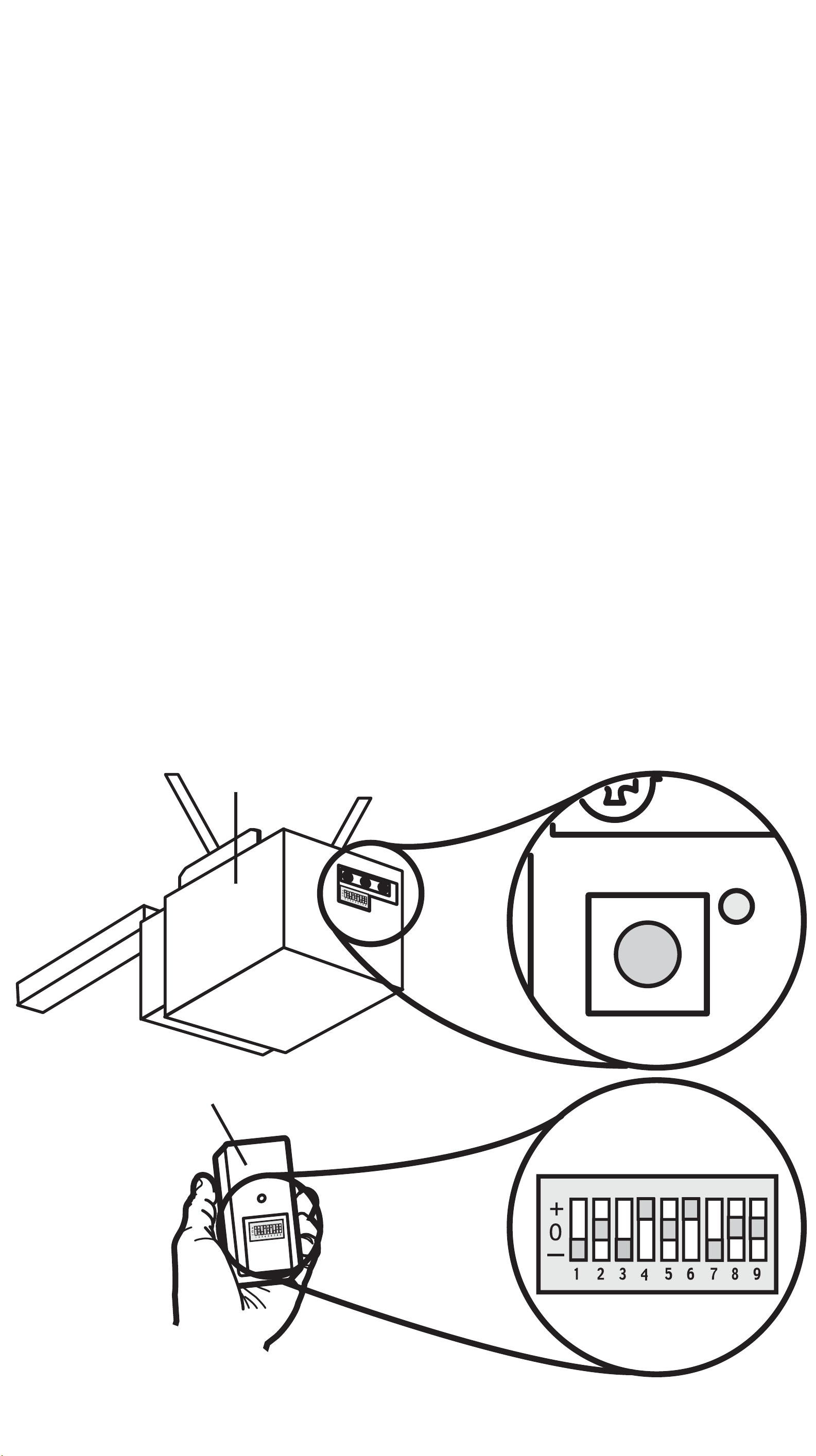

TYPE 1

Chamberlain, Sears

Craftsman, LiftMaster,

Master Mechanic and Do It

garage door openers or

receivers with: 3 position

DIP switches.

Opener

Remote Control

TYPE 2

Genie, Linear and Moore-O-

Matic garage door openers or

receivers with: 2 position DIP

switches.

Opener

Remote Control

TYPE 3

Chamberlain, Sears

Craftsman, LiftMaster, Master

Mechanic and Do It garage

door openers or receivers

with: Yellow, white or grey

Smart/Learn buttons.

Opener

Remote Control

TYPE 4

Chamberlain, Sears

Craftsman, LiftMaster, Master

Mechanic, Do It, Genie

Intellicode, Overhead Door,

Stanley, Wayne Dalton or

Linear garage door openers

with: Smart/Learn button.

Opener

TYPE 5

Genie Intellicode 2 garage

door openers with: Program/

Set button.

BEFORE STARTING:

You MUST have a Genie

IntelliCode 2 remote control

with at least one button

already programmed to the

opener.

Opener

TYPE 1

Chamberlain, Sears Craftsman, LiftMaster,

Master Mechanic and Do It garage door

openers or receivers with: 3 position

DIP switches.

Select and write a 4-digit PIN:

__ __ __ __

Determine your opener ID using the list below.

The first DIP switch must be set to the “-” position on your remote and

opener. Record your DIP switch sequence for remaining DIP switches. If

the DIP switch is in the “+” position place a 1, “0” position place a 2, “-”

position place a 3 in the corresponding box in the chart below:

NOTE: Leave any unused switch locations blank.

Programming

DIP Switch

Sequence 123 4567 8 9

-3

Opener

Remote Control

ID DIP Switch Type

11 9 DIP switch garage door openers (U.S.)

12 9 DIP switch garage door openers (Canada)

15 8 DIP switch garage door openers

19 7 DIP switch garage door openers

If opener does not function, repeat programming.

Enter PIN from step 1, press #.

Enter ID from step 2, press #.

Enter DIP switch sequence from step

3 and press #key.

To test and use, wait until

lights turn off, enter your PIN

and press the 0key.

Press and hold the *and #buttons until keypad

stops flashing.

TYPE 2

Genie, Linear and Moore-O-Matic garage

door openers or receivers with: 2 position

DIP switches.

Select and write a 4-digit PIN:

__ __ __ __

Determine your opener ID using the list below.

Record your DIP switch sequence. If DIP switch is in the “on” or “up”

position place a 1, “off” or “down” position place a 2 in the corresponding

box in the chart below: NOTE: Leave any unused switch locations blank.

Programming

Opener

Remote Control

ID DIP Switch Type

13 12 DIP switch Genie garage door openers

14 10 DIP switch Linear garage door openers

16 10 DIP switch Stanley garage door openers

17 9 DIP switch Genie garage door openers

18 8 DIP switch Linear, Moore-O-Matic garage door

openers

DIP Switch

Sequence 123456789101112

OFF
