Chamberlain Elite EL25N Manuel utilisateur

Telephone entry/access control system

™

Installation Manual for

EL MODELS

For more information visit www.devancocanada.com

Table of Contents

Page 1

Mounting the Unit Page

Dimensions 2

EL25 Installation 3

Rotating the Keypad for Vertical Mounting 3

Unlocking/Locking EL2000 4

EL2000 Installation 5

Wire Type

Wire Connections to Unit (Factory Settings for Relays) 6

Wire Specs and Run Distances 7

Power Wire Specs and Run Distances 7

Grounding the Unit

Grounding the Unit 8

Phone Lines

Wiring 1 Unit to Telco Line 9

Wiring Multiple Units to Telco Line 10

Wiring with No Telco Line 11

Wiring to Dedicated Telco Line 12

Wiring to an Internal Phone System 13

Connection to an NPBI System 14

External Devices

Wiring a Door Strike Lock 15

Wiring a Maglock 15

Wiring a Gate Operator 16

Wiring a Key Switch/PIR/REX 16

Wiring a Door Sensing Device 17

Wiring the AutoCall Feature 17

Wiring a Radio Frequency Module 18

Wiegand Card Reader / Keypad 18

Wiring a Postal Lock Switch 19

Wiring an Internal Camera (CCTV) 19

Power

Wiring Power to the Unit 20

Powering up and Checking the LEDs 20-21

Troubleshooting 22

Repair Parts

Repair Parts 23-24

“Your” Set-Up

“Your” System Diagram and Wiring Configuration 25-26

Accessories 27

FCC and DOC

FCC and DOC Requirements 28

Page 2

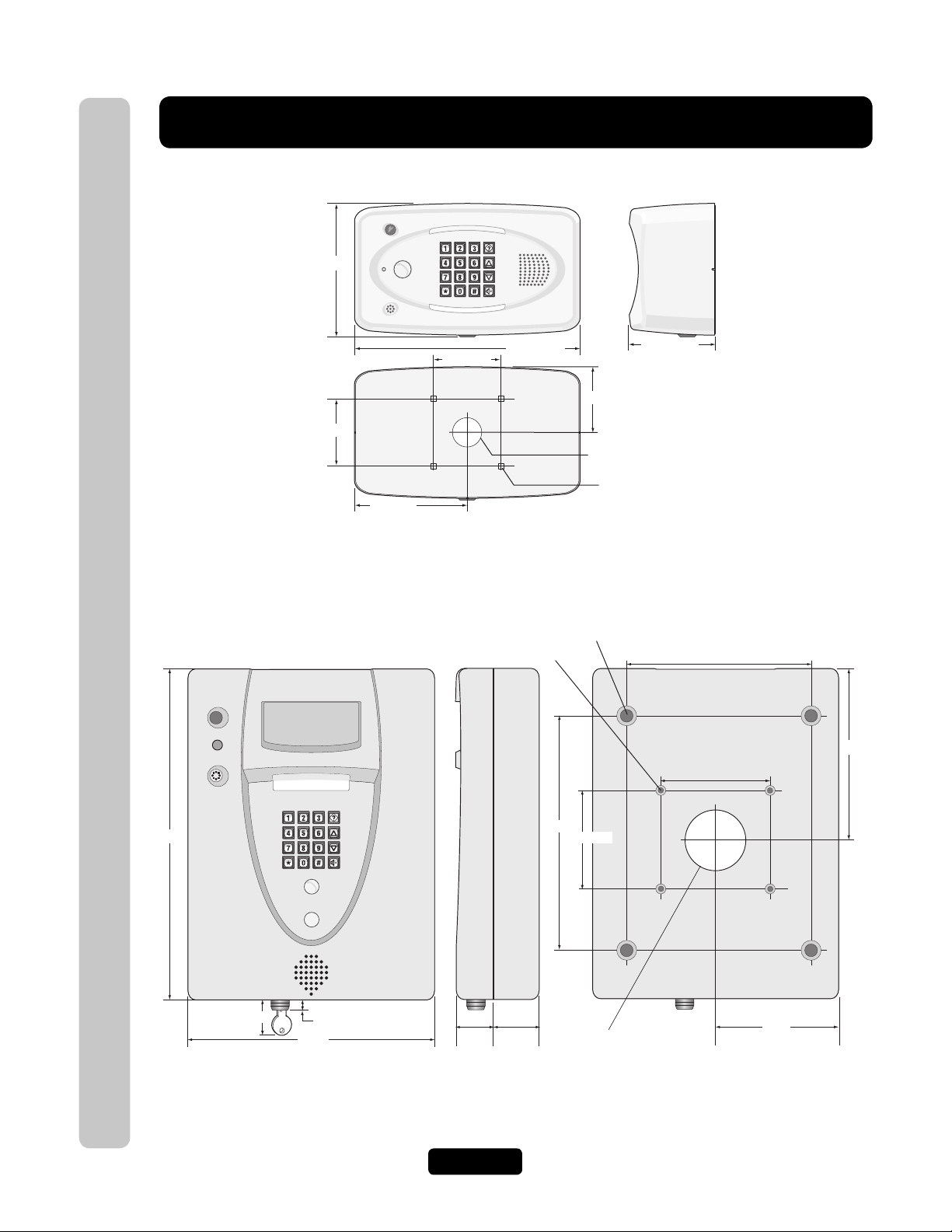

Dimensions

Caution! A Static Discharge can Damage Circuit Boards

6 in.

3-15/16 in.

Mounting Holes (4)

for 5/16 in.

3/4 in. Conduit Hole

1-1/4 in. Conduit Hole

Knockouts for 5/16 in.

Knockouts for 3/8 in.

15 in.

AUG 10, 2005

WELCOME

3-1/16 in.

9 in.

1-5/8 in. 2 in.

12 in.

7 in.

9-1/2 in.

6 in.

3-1/16 in.

1-1/2 in. 1/2 in.

EL2000 Units

EL25 Units

Page 3

EL25 Installation

DO NOT overload the removable

terminal block connectors.

One wire per hole.

DO NOT pinch wires when

closing and locking the unit.

Rotating the Keypad for Vertical Mounting

Screw

Notch

Bracket

Keypad

Main Circuit

Board

Main Circuit Board Connections

J200 - Speaker

J402 - Light

J404 - Call Button Board

ONLY Vertical

Mounting Position

J401 - Keypad

J406 - Light

J201 - Microphone

NOTE: Bracket notch lines up

with ribbon cable on keypad.

Caution! A Static Discharge can

Damage Circuit Boards For EL25 ONLY

Caution! A Static Discharge can Damage Circuit Boards

1Unlock Unit 2Carefully Lift Cover Up

then Slide Out on Hinges

3Unplug the 2 Main Harnesses

4Line up Notch with

Screw and Push

Hinge Out

5Remove Back Mounting Plate from Cover

1Disconnect all Plugs from Main Circuit Board and

Remove Board. (4 Screws)

2Remove Bracket. (4 Screws)

3Rotate Keypad 90 Degrees Clockwise.

4Reverse the Sequence to Reassemble Unit.

NOTE: This unit is for surface mount applications only.

Page 4

Unlocking/Locking EL2000

Unlocking EL2000

1. Apply pressure to

the right-side of the

unit.

2. While maintaining

pressure, turn key

clockwise

3. Open cover

Locking EL2000

1. Turn key counter clockwise to lock

position

2. Close cover

3. Apply pressure to left-side until you

hear a “click” sound

4. Apply pressure to right-side of unit

until you hear a “click” sound

456

789

456

789

456

789

456

789

456

789

456

789

456

789

Page 5

456

789

456

789

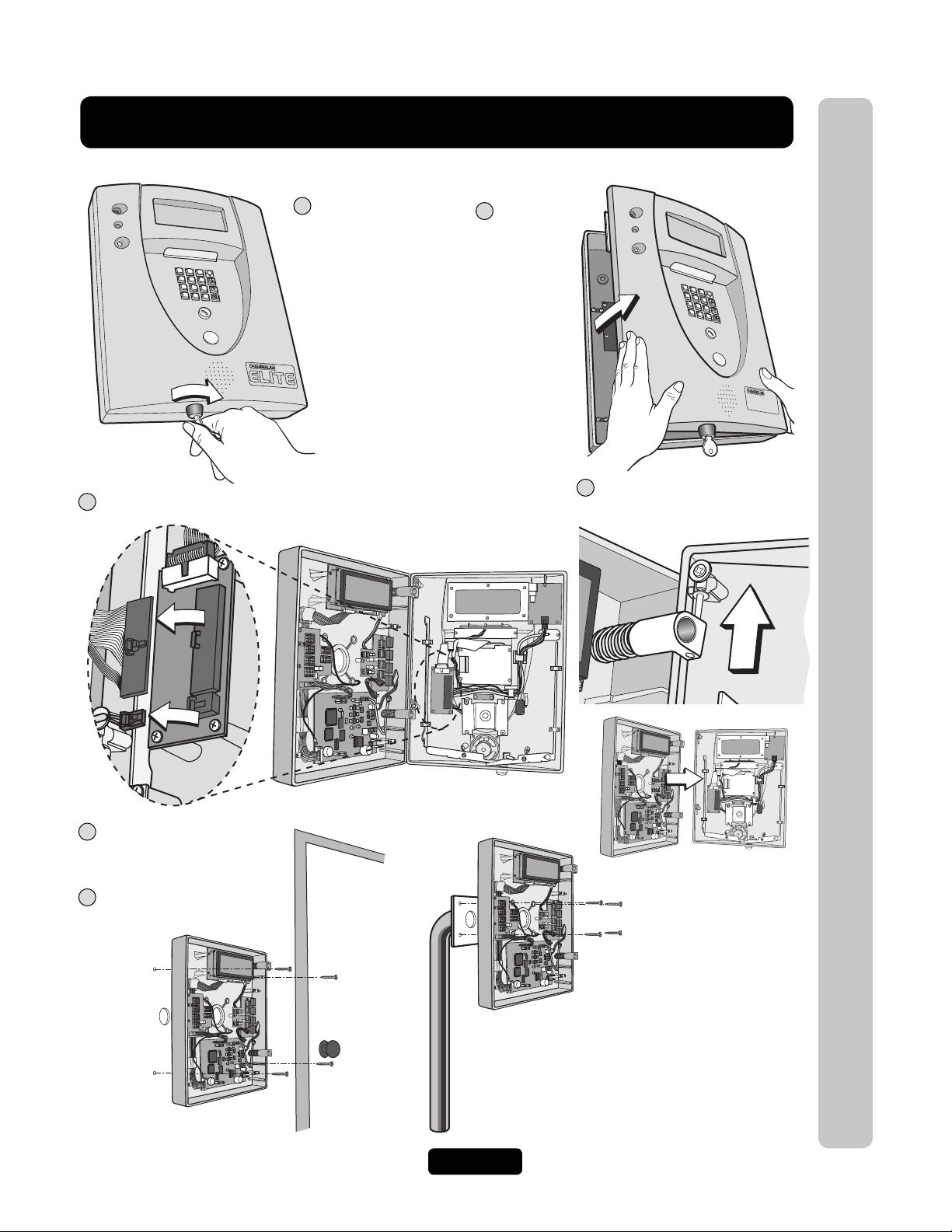

EL2000 Model Installation

EL2000 Installation

1Unlock Unit 2Open Cover

3Unplug the 2 Main Harnesses (Optional)

4Slide Front Cover Out of

Hinges (Optional)

6Mount Back Housing

to Wall or Pedestal

5Knock-out Desired

Mounting Plugs

Using Punch

NOTE: This unit is for surface and recessed mount ONLY.

Page 6

Wire Connections to the Unit

Input Board Connections

1. Door 1 Exit Request and Door Status

2. Door 2 Exit Request and Door Status

3. Door 3 Exit Request and Door Status

4. Door 4 Exit Request and Door Status

5. Postal Lock Input

6. AutoCall Input

7. Power 12 VAC Input

Output Board Connections

8. Resident Tip/Ring

9. Telco Tip/Ring

10. Relay 4, NO, NC, COM

11. Relay 3, NO, NC, COM

12. Relay 2, NO, NC, COM

13. Relay 1, NO, NC, COM

NOTE: All relays are factory set to “Strike”

and “10 sec.”

DO NOT overload the removable

terminal block connectors. One wire

per hole.

20-Pin

to Main Board 14-Pin

to Main Board

IO Output Board

IO Input Board

LED 2

LED 1

RELAY 1

RELAY 2

RELAY 3

RELAY 4

DOOR

STAT 4

EXIT

REQ 4

COM 4

DOOR

STAT 3

EXIT

REQ 3

COM

DOOR

STAT 4

EXIT

REQ 2

COM

DOOR

STAT 1

EXIT

REQ 1

COM

POSTAL

AUTO

POWER

12VAC/DC

LED 4

LED 3

RES

TELCO

Wire Connections to the Unit

Page 7

Wire Specs and Run Distances

Use this chart to pull wires in preparation of your installation:

Power Wire Specs and Run Distances

Description of Wire Run

Grounding the Chassis

Residence and Telco Phone Lines

Door Strike

Magnetic Lock

Dry Contact Closure (Most Gate Operators)

Exit Request (REX) / Auxiliary Open Devices

AutoCall

Door Status Sensor

Barium Ferrite and Wiegand Readers

Proximity Readers

Radio Frequency Module (RF)

Postal Lock

CCTV Camera (Optional)

Wire Specification

12 AWG Copper

2 Twisted Pairs

18-24 AWG Shielded

2-Conductor

18-22 AWG Shielded

2-Conductor

18-22 AWG Shielded

2-Conductor

18-24 AWG Shielded

2-Conductor

18-24 AWG Shielded

2-Conductor

18-24 AWG Shielded

2-Conductor

18-24 AWG Shielded

5-Conductor

18-24 AWG Shielded

5-Conductor

22 AWG Shielded

RG-6 Coaxial

75 ohm

2-Conductor

18-24 AWG Shielded

Single Conductor

RG-59u Coaxial

Maximum Distance

12 feet

5000 feet*

500 feet

100 feet

1000 feet

(Monitor with a .25 volt

p-p composite signal

sensitivity)

Page

9-14

NOTE: Use metal conduit - run wires in metal conduit instead of PVC pipe. Wires run in PVC conduit may

experience interference. Metal conduits also add extra protection against lightning strikes.

Never run Telco Wires and High Voltage wires in the same conduit. The high voltage may interfere with the Telco

Wires, possibly causing the system to malfunction.

* Total distance from Telco to residence regardless of number of units in chain.

Distance

Under 30 Feet

30 - 75 Feet

75 - 250 Feet

12 VAC Power (Included)

2-Conductor Shielded

14 AWG

12 VDC Power (Not Provided)

2-Conductor Shielded

14 AWG

N/A

Always provide power from a dedicated source. Plug provided transformer into an outlet wired to its own 10 AMP

minimum circuit breaker. This will prevent two problems:

• Other equipment cannot introduce spikes, noise, surges or dips into the power circuit that will affect the system.

• The system’s operation will not be affected if any other equipment develops a short circuit across the power line.

CAUTION: Not responsible for conflicts between the information listed in the above table and the requirements of

your local building codes. The information is for suggested use only. Check your local codes before installation.

Page 8

Grounding the Units

Ensure that the system is grounded properly. The units contain a number of static sensitive components that can

be damaged by static discharge.

IMPORTANT: An Earth Ground Rod is Strongly

Recommended and should be no further than 12

feet from the unit and use a minimum of 12

gauge wire in most cases. The type and length of

earth ground rods vary by region. Contact the

building inspector’s office in the municipality

where you plan to install the unit for correct

grounding materials and installation

procedures.

Other Ground Sources

within 12 ft of Unit

Green Ground

Wire

Earth Ground Rod

Ground to

Existing

Electrical

System

Electrical

Panel

Ground to

Metallic Cold

Water Pipe

12 ft Maximum

12 AGW Minimum

AUG 10, 2005

WELCOME

NOTE: Keep ground wire as

straight as possible.

Before digging, contact your local

utility companies, to avoid

damaging gas, power, or other

underground utility lines.

DO NOT ground the units to a

pedestal post (gooseneck) if

one is used.

Page 9

Wiring 1 Unit to Telco Line

The bypass board allows the unit to be disconnected without interrupting normal telephone operation.

NOTE: Installation where fiber optic phone lines are present may require additional modifications from your

telephone provider. Contact your provider for more information.

• When the unit is in use, the bypass switch must be set to the operate position.

• When the unit is disconnected, the bypass switch must be set to the bypass position.

Tip

Ring

Tip

Ring

OPERATE BYPASS

Ring

HOME

Tip Ring

TELCO

Tip

SYSTEM

Bypass Board

(Mount in the House)

(NOT Provided)

Ring

Tip Ring

Tip

Home Phone

Alarm System Position

Use 18-24 AWG

2 twisted pair

NOTE: If the unit will be used in

conjunction with an alarm system, you

MUST connect the telephone line to the

alarm system first. If the units are not

connected in this order, they will not

operate properly.

4 3 2 1

Output Board

(See page 6)

Telco Entrance Box

Demarcation Point

DO NOT overload the removable

terminal block connectors. One

wire per hole.

IMPORTANT: The Bypass

Board (located inside the

property) allows access to

the phone in case the unit

fails.

Never run Telco wires and High

Voltage wires in the same

conduit. The high voltage wires

may interfere with the Telco

wires, possibly causing the

system to malfunction.

RES

TELCO

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Chamberlain Système d'interphone

Chamberlain

Chamberlain WIRELESS PORTABLE INDOOR/OUTDOOR INTERCOM... Manuel utilisateur

Chamberlain

Chamberlain myQ Business CAPXM Manuel utilisateur

Chamberlain

Chamberlain Icon26 series Manuel utilisateur

Chamberlain

Chamberlain RIFMS2 Manuel utilisateur

Chamberlain

Chamberlain LSIAC Manuel utilisateur

Chamberlain

Chamberlain LiftMaster ELITE EL25 Manuel utilisateur

Chamberlain

Chamberlain EL1SS Manuel utilisateur

Chamberlain

Chamberlain LiftMaster ELITE EL25 Manuel utilisateur

Chamberlain

Chamberlain MyQ Business CAPXL Manuel utilisateur

Chamberlain

Chamberlain RWIA Manuel utilisateur

Chamberlain

Chamberlain EL1SS Instructions de montage

Chamberlain

Chamberlain NDIS Manuel utilisateur

Chamberlain

Chamberlain APEX Access Device Manuel utilisateur

Chamberlain

Chamberlain 75EV Manuel utilisateur

Chamberlain

Chamberlain LiftMaster Professional RIFM1LM Manuel utilisateur

Chamberlain

Chamberlain WIRELESS GATE ACCESS RGAIPI Manuel utilisateur

Chamberlain

Chamberlain RFDI Manuel utilisateur

Chamberlain

Chamberlain Elite EL Series Manuel du propriétaire

Chamberlain

Chamberlain ELITE EL2000LG Manuel du propriétaire

Chamberlain

Chamberlain OPI Manuel utilisateur

Chamberlain

Chamberlain LiftMaster ELITE EL2000 Manuel utilisateur

Chamberlain

Chamberlain Smart Video Intercom M Manuel utilisateur

Chamberlain

Chamberlain MyQ Business CAPXL Manuel utilisateur

Chamberlain

Chamberlain RWIS Manuel utilisateur

Manuels Système d'interphone populaires d'autres marques

Bticino

Bticino LINEA 3000 Manuel utilisateur

MSI

MSI MSI-140 Manuel utilisateur

golmar

golmar Stadio Plus Manuel utilisateur

CyberData

CyberData 011211 series Manuel

Vidos

Vidos duo M1021 Manuel utilisateur

Vimar

Vimar ELVOX 7539/E Manuel utilisateur

SSS Siedle

SSS Siedle BTSV 850-03 Manuel utilisateur

Dahua

Dahua VTO Series Manuel utilisateur

Elvox

Elvox 5651 Manuel utilisateur

Videx

Videx VIDEOKIT Series Manuel utilisateur

Rocom

Rocom Doortello Business FW T2.05W2.04 Manuel utilisateur

Viking

Viking E-35-EWP Manuel utilisateur

Safeguard Supply

Safeguard Supply LRA-EX1000 Manuel utilisateur

SSS Siedle

SSS Siedle BFCV 850 Series Manuel utilisateur

GRD

GRD MAX V2 Manuel utilisateur

Alecto

Alecto ADI-250 Manuel utilisateur

Aiphone

Aiphone IE-8MD Manuel utilisateur

Perel

Perel EDB4 Manuel utilisateur
