Chamberlain Elite RSL12V Manuel

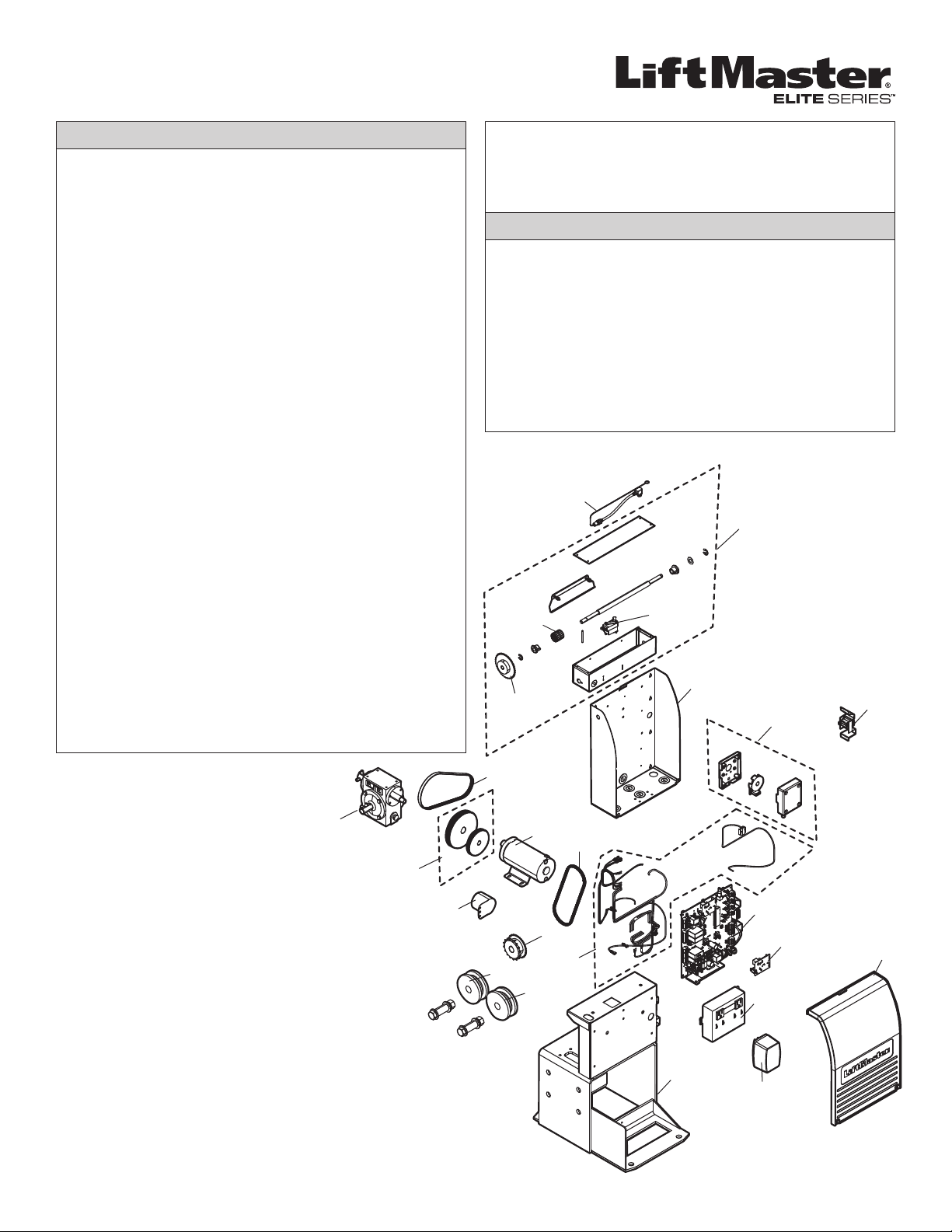

NOT SHOWN (continued)

Q084 Cam Lock with Keys

Q118 Access Door Keys

Q104 Operator Arm Assembly

Q061 Cludge Assembly

Q059 Output Arm (Solid)

K45-50676 Star Knob

Q268 Cludge Cover (Plastic)

Q062 Cludge Cover (Stainless Steel)

Q103 Uphill Arm Kit

29-NP712 7AH Battery, 12 Vdc

K94-35225 7AH Battery Harness

A12330SGLPK 33AH Battery with Harness

INDIVIDUAL PARTS

ITEM PART NUMBER DESCRIPTION

1 K1A6426-2 Control Board

2 K1C3196-7 Antenna

3 K13-34729 Dust Guard

4 K204B195-1 Transformer, 14.5 Vac, 30 VA

5 K20-9012B-1 Motor, 12 Vdc

6 K32-34656-1 Gear Reducer Top, 30:1

7 K32-35618 Gear Reducer Bottom, 30:1

8 K73-34637 Chassis

9 K75-34709-1 Control Enclosure with Mounting Hardware

10 K76-34743 Access Panel, 120 Vac with Receptacles

11 K76-35228-1 Reset Switch

12 K94-35225 Battery Harness Assembly

13 K29-50279-1 Alarm

14 Q029 Learn Limit Switch

15 K1A6636 Receiver Module 315 MHz

16 Q181 Coupling 2-1/2"

17 K1A6407-1 RPM Sensor

NOT SHOWN

K1A6636-1 Receiver Module 390 MHz (optional)

K75-35343-1 Access Door with Lock and Key

K75-35400-1 Operator Cover Assembly with Access Door

KITS

ITEM PART NUMBER DESCRIPTION

K1 K70-35677 Limit Shaft Kit

Complete with: Limit Shaft, Sprocket,

Chain, Cam

K2 K70-35678-1 Sprocket Kit

Complete with: Chain, Sprockets

K3 K76-35321 Learn Limit Assembly Kit

Complete with: Learn Limit Switch, Learn

Limit Nut, Limit Shaft Assembly, Sprockets,

RPM Sensor, Set Screw, Wire Harness

K4 K94-35658 Wiring Harness Kit

Complete with: Wiring, Limit/Battery/RPM

REPLACEMENT PARTS

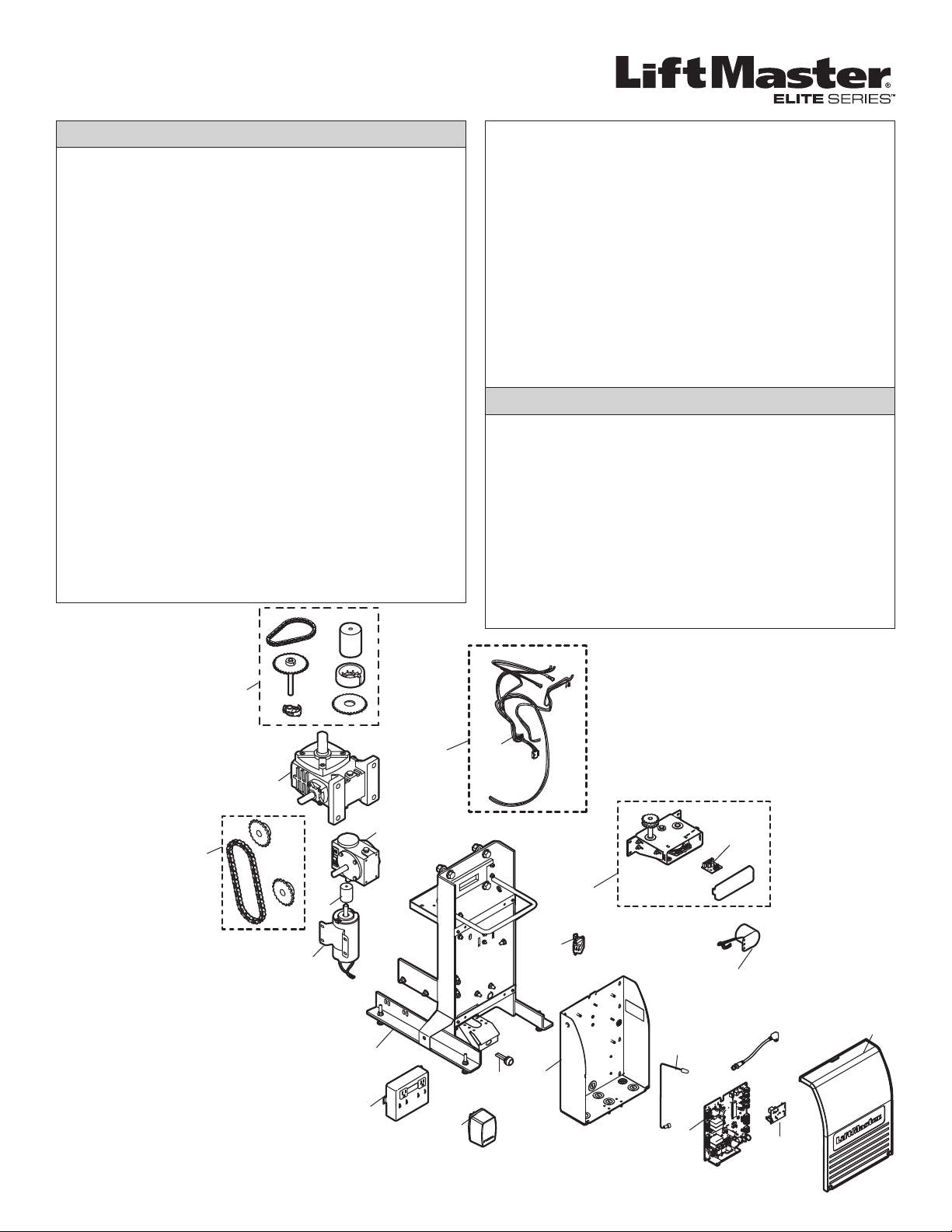

MODEL RSW12V™& RSW12VH™

NOT SHOWN (continued)

29-NP712 7AH Battery, 12 Vdc

K94-35225 7AH Battery Harness

A12330SGLPK 33AH Battery with Harness

ITEM PART NUMBER DESCRIPTION

1 K1A6426-2 Control Board

2 K1C3196-5 Antenna

3 K13-34729 Dust Guard

4 K13-34745 Learn Limit Nut

5 K15-36001 Output Sprocket

6 K16-GT2-4 Drive Belt

7 K19-25087M #25 Chain with Master Link

8 K204B195-1 Transformer, 14.5 Vac, 30 VA

9 K20-9012B-1 Motor, 12 Vdc

10 K32-34701-2 Gear Reducer

11 K73-34718-1 Chassis

12 K75-34709-1 Control Enclosure with Mounting Hardware

13 K75-35662 Limit Chain and Sprocket

14 K76-34743 Access Panel, 120 Vac with Receptacles

15 K76-35664 RPM Module

16 K94-35225 Battery Harness Assembly

17 K94-35659 Reset Switch and Harness

18 K29-50279-1 Alarm

19 Q029 Learn Limit Switch

20 K1A6636 Receiver Module 315 MHz

21 Q013 Idler Pulley (1) with Mounting Hardware

NOT SHOWN

K1A6636-1 Receiver Module 390 MHz (optional)

K13-34720 Operator Cover

1941240 Gate Chain #41 (10 ft)

1950307 Master Link #41

Q003 Chain Bolt

Q004 Chain Bracket

REPLACEMENT PARTS

MODEL RSL12V™& RSL12VH™

INDIVIDUAL PARTS

ITEM PART NUMBER DESCRIPTION

K1 K17-35661 Pulley Kit

Complete with: Gear Reducer Pulley,

Motor Pulley

K2 K76-34740 Learn Limit Assembly Kit

Complete with: Learn Limit Switch, Learn

Limit Nut, Limit Shaft Assembly, Sprocket,

Wire Harness

K3 K94-35658 Wiring Harness Kit

Complete with: Wiring, Limit/Battery/RPM

KITS

21 K3

20 3
