PMC-350-C Quick Start Guide

Version 1.0

Package Contents

a. PMC-350-C Meter with all plug-in connectors installed

b. Factory Test Report

c. CD with PMC-350-C User Manual

d. Quick Start Guide (this document)

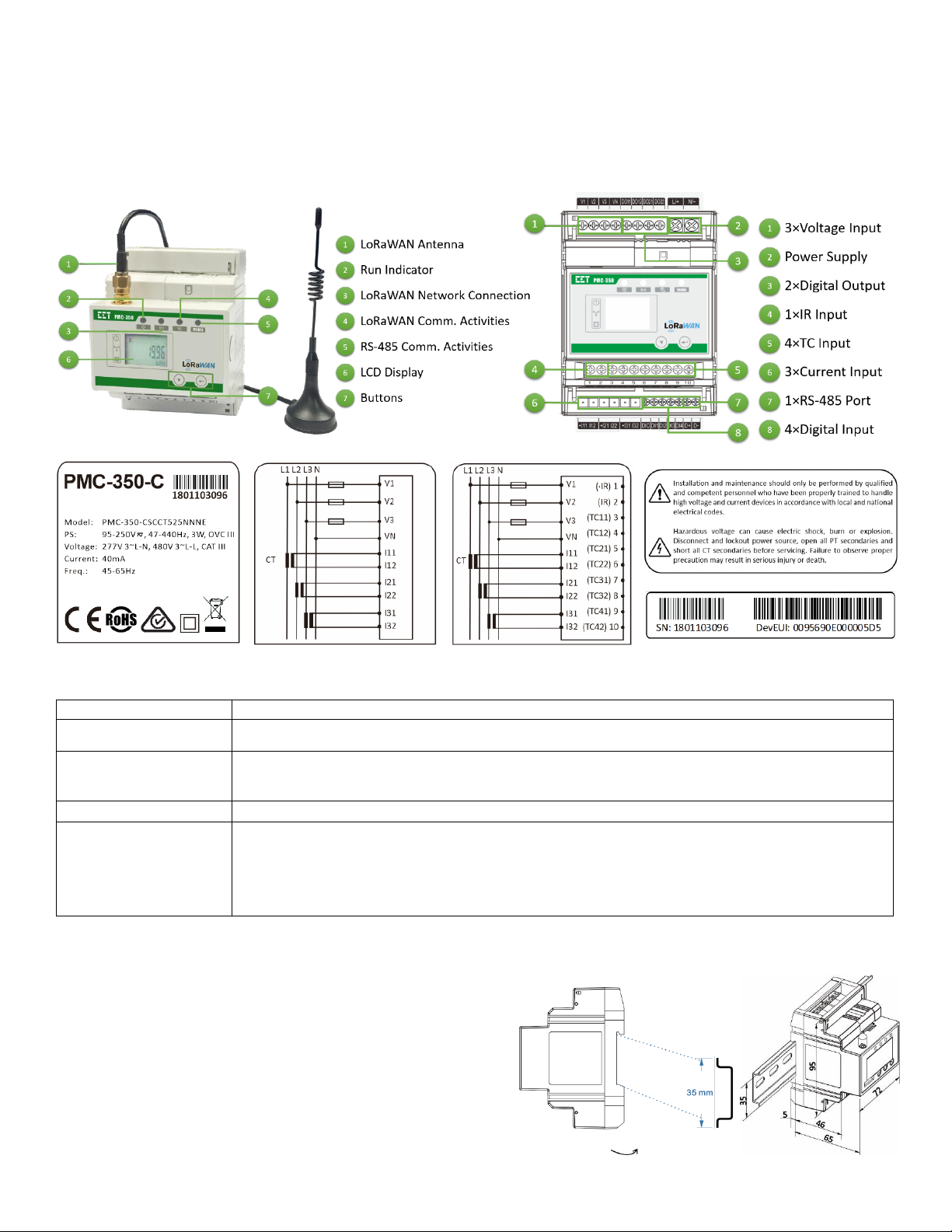

Meter Overview

Serial Number Label Wiring Label Wiring Label (1xIR+4xTC) Warning Label and SN & DevEUI Label

Using the Front Panel Buttons

<▼>

Data Display Mode

The Default Display shows the kWh Import measurement under the Energy menu. Pressing this button scrolls

through the available measurements in this menu.

Setup Configuration Mode

Before an item is selected, pressing this button scrolls to the next setup parameter. If the selected parameter is a

numeric value, pressing this button increments the selected digit. If the selected parameter is an enumerated

value, pressing this button scrolls through the selection list.

<↩>

Setup Configuration Mode

Pressing this button for two seconds toggles between Data Display mode and Setup Configuration mode. Once

inside the Setup Configuration mode, pressing this button selects a parameter for modification. Once selected, the

parameter value blinks while it’s being changed.

If the selected parameter is a numeric value, the cursor is at the right most digit by default. Pressing this button

moves the cursor one position to the left. If the cursor has reached the left most digit, pressing this button again

will save the current numeric value into memory.

Mounting the Meter

The PMC-350-C should be installed in a dry environment with no dust and

kept away from heat, radiation and electrical noise source.

Before installation, make sure that the DIN Rail is already in place

Move the DIN Rail locking clip at the back of the PMC-350-C

downward to the “unlock” position

Align the top of the mounting channel at the back of the PMC-350-C

at an angle against the top of the DIN rail as shown in figure right

Rotate the bottom of the PMC-350-C towards the back while

applying a slight pressure to make sure that the device is completely

and securely fixed on to the DIN Rail

Push the DIN Rail locking clip upward to the “lock” position to secure

the PMC-350-C on to the DIN Rail

Revision Date: April 18, 2019

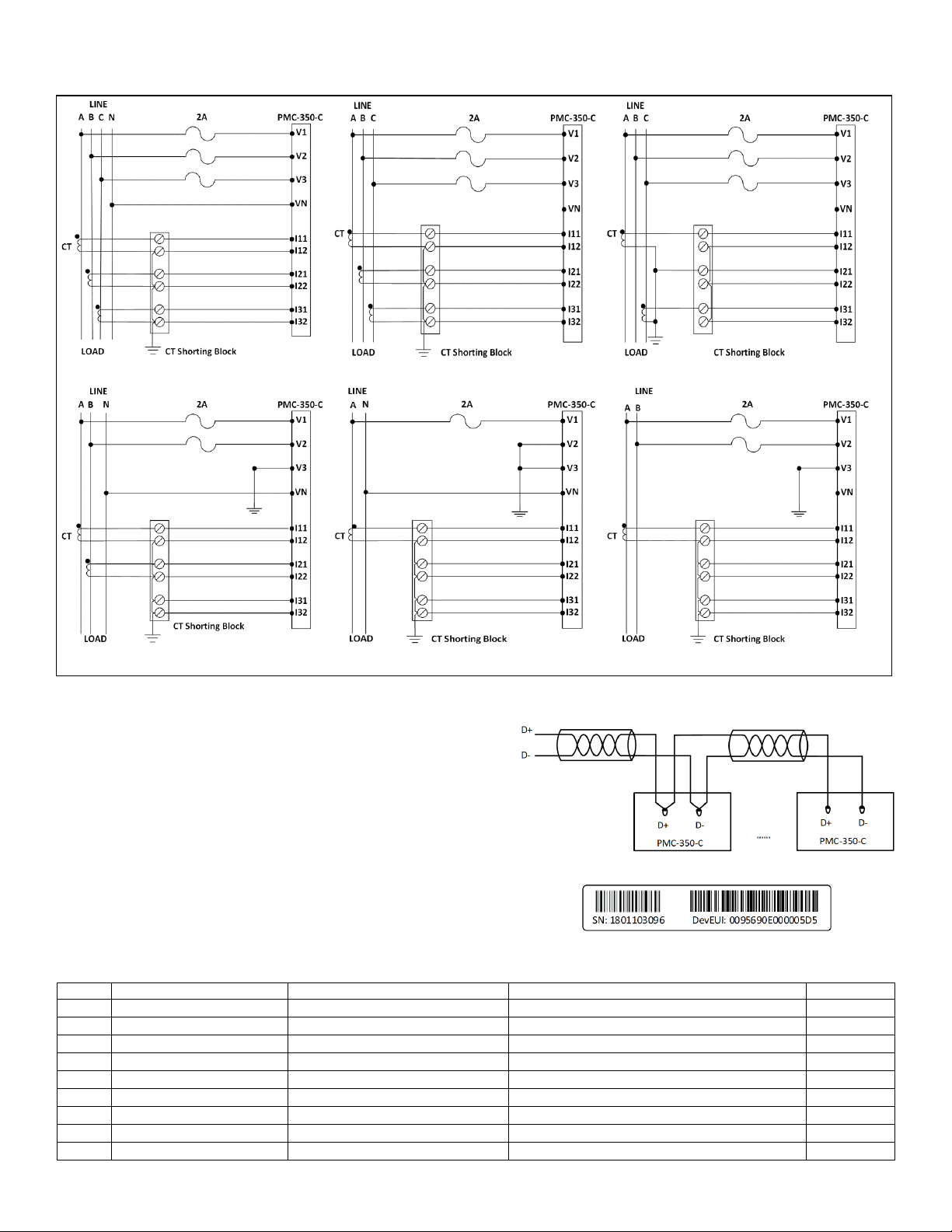

Wiring Diagrams

3P4W with 3CTs 3P3W with 3CTs 3P3W with 2CTs

1P3W with 2CTs 1P2W L-N with 1CT 1P2W L-L with 1CT

RS-485 Wiring

The PMC-350-C provides one standard RS-485 port that supports

the Modbus RTU protocol. Up to 32 devices can be connected on

a RS-485 bus. The overall length of the RS-485 cable connecting

all devices should not exceed 1200m.

If the master station does not have a RS-485 communications

port, a RS-232/RS-485 or USB/RS-485 converter with optically

isolated outputs and surge protection should be used.

LoRaWAN Connection

The DevEUI information can be found on a label underneath the

Front Panel. The AppEUI and AppKey should be pre-configured at

the factory according to the customer’s specification.

Basic Setup Parameters

Parameters

Description

Range/Options

Default

Password

Enter Password

0 to 9999

“0”

TYPE

Wiring Mode

The wiring connection of the meter

DEMO/1P3W/3P3W/3P4W/1P2W L-N/1P2W L-L

3P4W

PT1

PT Primary

1 to 1,000,000 V

380 V

PT2

PT Secondary

1 to 690V

380 V

CT1

CT Primary

1 to 30,000A

5 A

CT2

CT Secondary

1 to 5A

5 A

Meter Address

1-247

100

Baud rate

Data rate in bits per second

1200-38400 bps

9600

CFG

Comm. Port Configuration

Data Format

8N2/8O1/8E1/8N1/8O2/8E2

8E1
