Cerwin-Vega VR10 Manuel utilisateur
10” POWERED SUBWOOFER
WITH PASSIVE RADIATOR
Specifications
Power
THD
Signal-to-noise ratio
Frequency response
Input sensitivity, high level
Input sensitivity, low level
Low Pass Filter
Bass Boost
Subsonic Filter
Subwoofer 10 inch , 4 ohm
Fuse rating
Dimensions(L x W x H) inches/mm
MODEL:
120 WRMS/300 WMAX
<0.5%
>90dB
20Hz - 180Hz
1.0V
0.3V
50Hz - 180Hz
0 to + 12dB
20Hz
20A
12.2”(310) x 9”(230)x 3”(78)
VR10
Cerwin Vega Mobile Amplified Subwoofer
Thank you for purchasing a Cerwin Vega Mobile Amplified Subwoofer for your
car audio system. You have chosen Cerwin Vega Mobile because you deserve the
best!
Cerwin Vega Mobile products are designed and engineered to the highest quality
standards in the industry to create the ultimate listening experience in your vehicle.
For optimal performance of this product, it is highly recommended that you have
your new amplified subwoofer installed by an authorized Cerwin Vega Mobile dealer.
Our authorized dealers have the necessary experience and installation equipment
to ensure that your amplifier will deliver maximum performance and explain all the
details pertaining to your warranty coverage as well.
If you decide to install the product by yourself, please thoroughly read through this
manual before getting started. This manual will help you familiarize yourself with
this product and guide you through the installation process and procedures.
Please contact your local authorized Cerwin Vega Mobile dealer if you have any
questions regarding the instructions in this manual or the productʼs capabilities.
If you require additional assistance, please contact the Cerwin Vega Mobile Technical
Support Department during business hours at 213-261-4161.

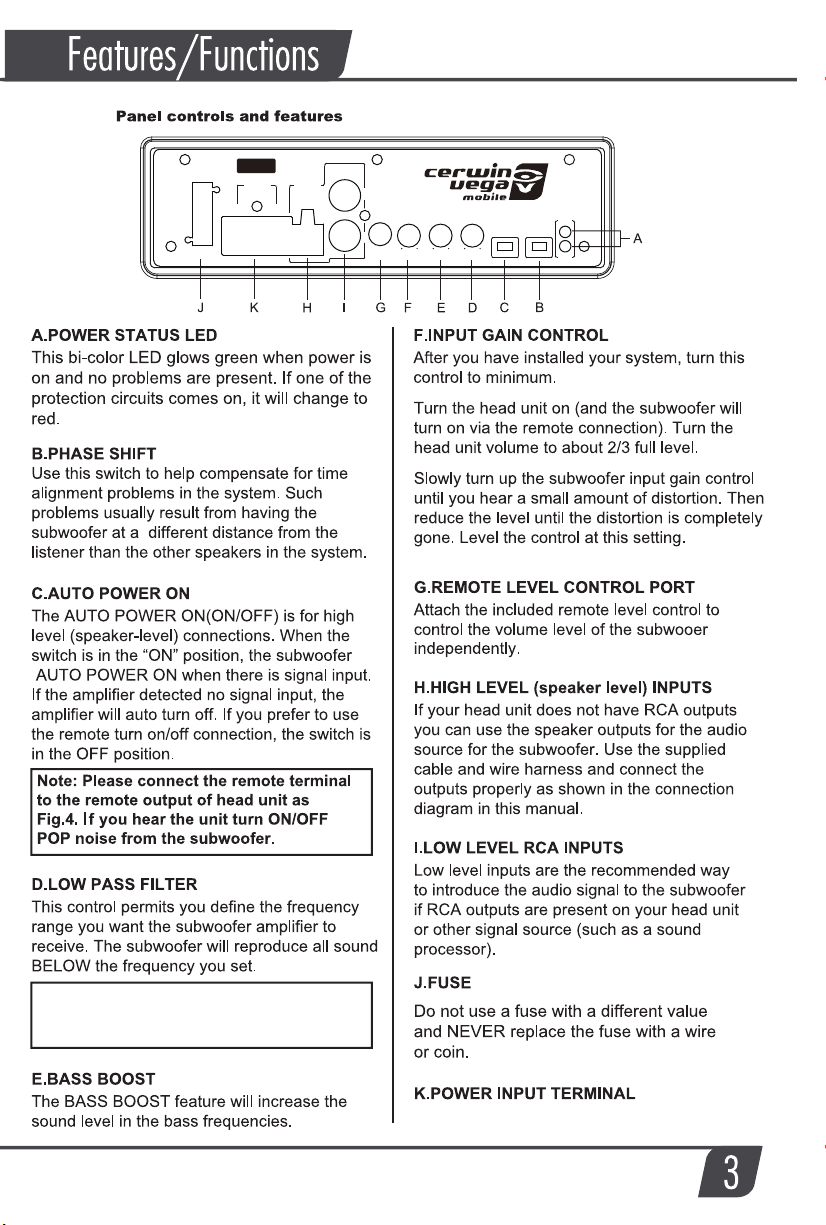

PHASE
0° 180°
OFF ON
AUTO
TURN ON
PRO
PWR
MIN 0dB 50Hz
MAX +12dB 180Hz
FUSE
LOW
LEVEL
HIGH
LEVEL
R- R+
L- L+
POWER
GND+12V
REM
L
R
REMOTE
GAIN
BASS
PASSBOOST
INPUT LOW
INPUTS
VR10
Note: The Low Pass filter frequency may
be off some as there is a 20% tolerance in
the filters.

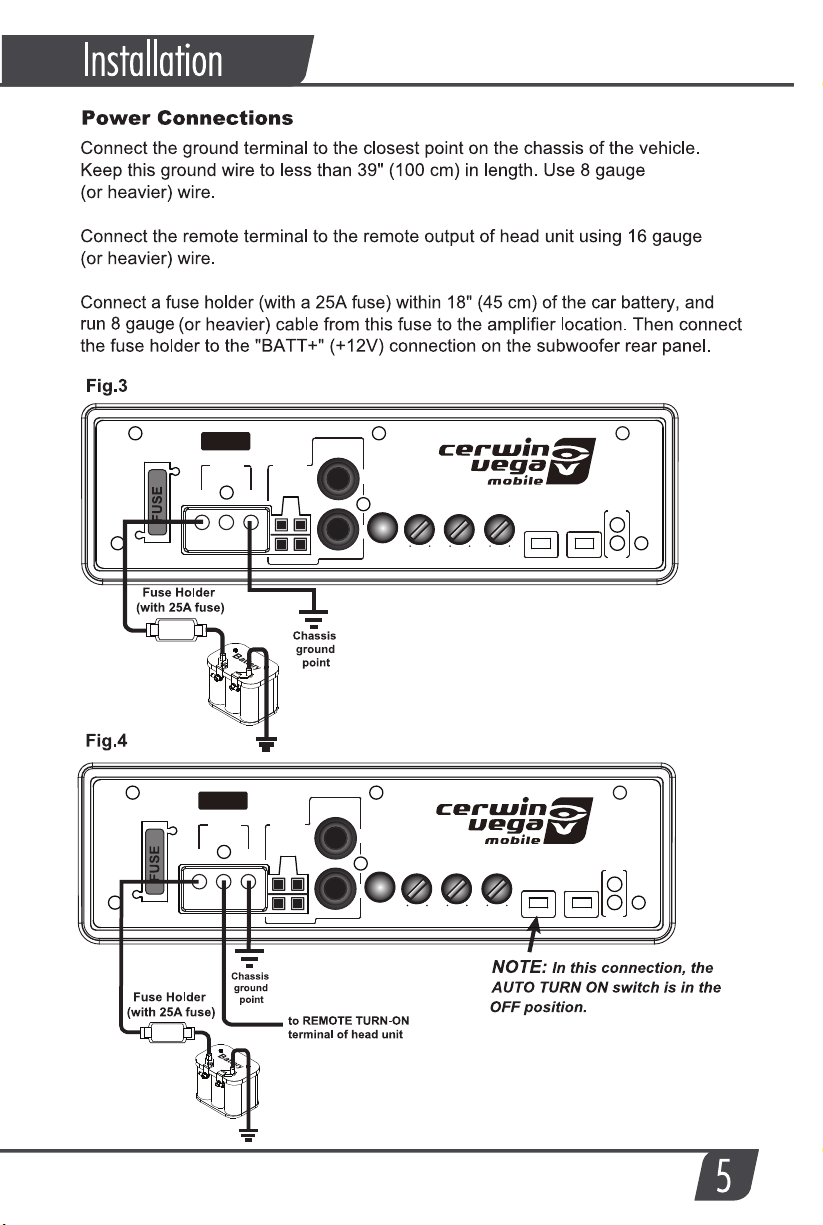

Power, Ground, and Remote Turn on Connection
PHASE
0° 180°
OFF ON
AUTO
TURN ON
PRO
PWR
MIN 0dB 50Hz
MAX +12dB 180Hz
FUSE
LOW
LEVEL
HIGH
LEVEL
R- R+
L- L+
POWER
GND+12V
REM
L
R
REMOTE
GAIN
BASS
PASSBOOST
INPUT LOW
INPUTS
VR10
PHASE
0° 180°
OFF ON
AUTO
TURN ON
PRO
PWR
MIN 0dB 50Hz
MAX +12dB 180Hz
FUSE
LOW
LEVEL
HIGH
LEVEL
R- R+
L- L+
POWER
GND+12V
REM
L
R
REMOTE
GAIN
BASS
PASSBOOST
INPUT LOW
INPUTS
VR10
PHASE
0° 180°
OFF ON
AUTO
TURN ON
PRO
PWR
MIN 0dB 50Hz
MAX +12dB 180Hz
FUSE
LOW
LEVEL
HIGH
LEVEL
R- R+
L- L+
POWER
GND+12V
REM
L
R
REMOTE
GAIN
BASS
PASSBOOST
INPUT LOW
INPUTS
VR10
PHASE
0° 180°
OFF ON
AUTO
TURN ON
PRO
PWR
MIN 0dB 50Hz
MAX +12dB 180Hz
FUSE
LOW
LEVEL
HIGH
LEVEL
R- R+
L- L+
POWER
GND+12V
REM
L
R
REMOTE
GAIN
BASS
PASSBOOST
INPUT LOW
INPUTS
VR10
We include installation brackets to ensure the subwoofer remains securely
mounted. Two types of installation are possible.
1 - Rear seats must be positioned in their normal fixed position.
2 - Decide the best location possible that suits your automobile and space available.
The best and most secure location for optimum sound quality is behind the rear
seats, in the trunk floor (see Figure 1).
3 - Ensure the area for subwoofer location is clean and tidy. Any loose objects must
be removed, as they could knock and damage the subwoofer.
4 - Once the location has been decided, Mark the screw hole positions for the
mounting brackets
5 - Drill holes for the mounting brackets.

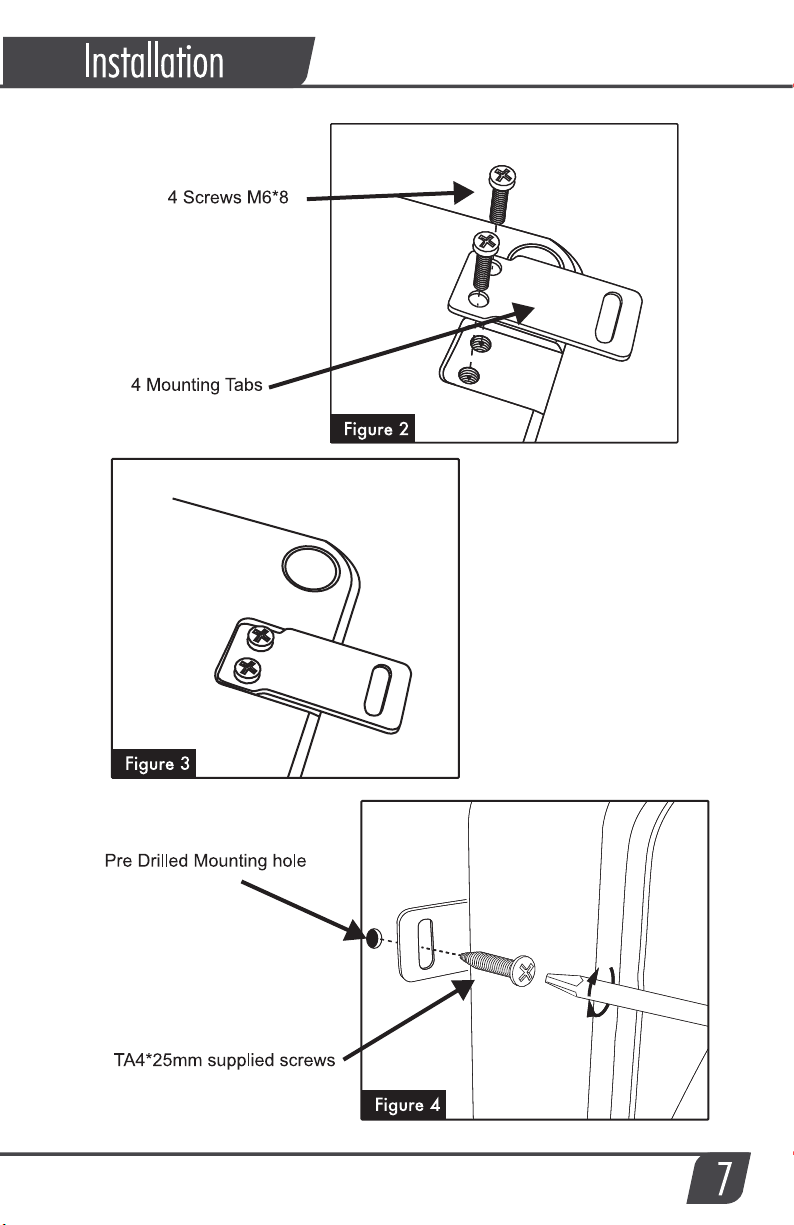

6 - Secure the brackets to the enclosure using the M6x8mm screws (Figures 2 & 3)
7 - Position the enclosure so that the brackets align with your pre-drilled holes and
secure with the M4x25mm screws. (Figure 4)
8 - Make sure the enclosure is tightly secured to the vehicle.

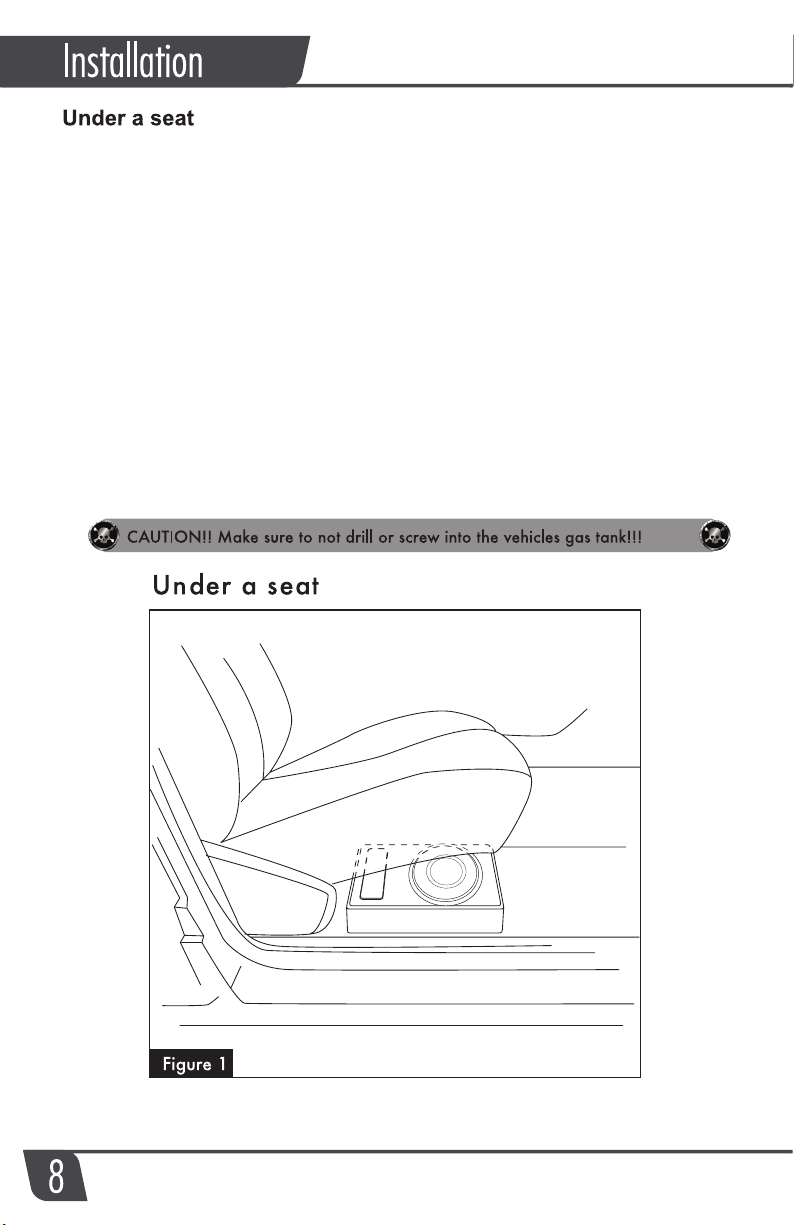

1 - The seat must be positioned in its normal fixed position.
2 - Decide the best location possible that suits your automobile and space available.
The best and most secure location for optimum sound quality is behind the rear
seats, in the trunk floor (see Figure 1).
3 - Ensure the area for subwoofer location is clean and tidy. Any loose objects must
be removed.
4 - Once the location has been decided, Mark the screw hole positions for the
mounting brackets
5 - Drill holes for the mounting brackets.

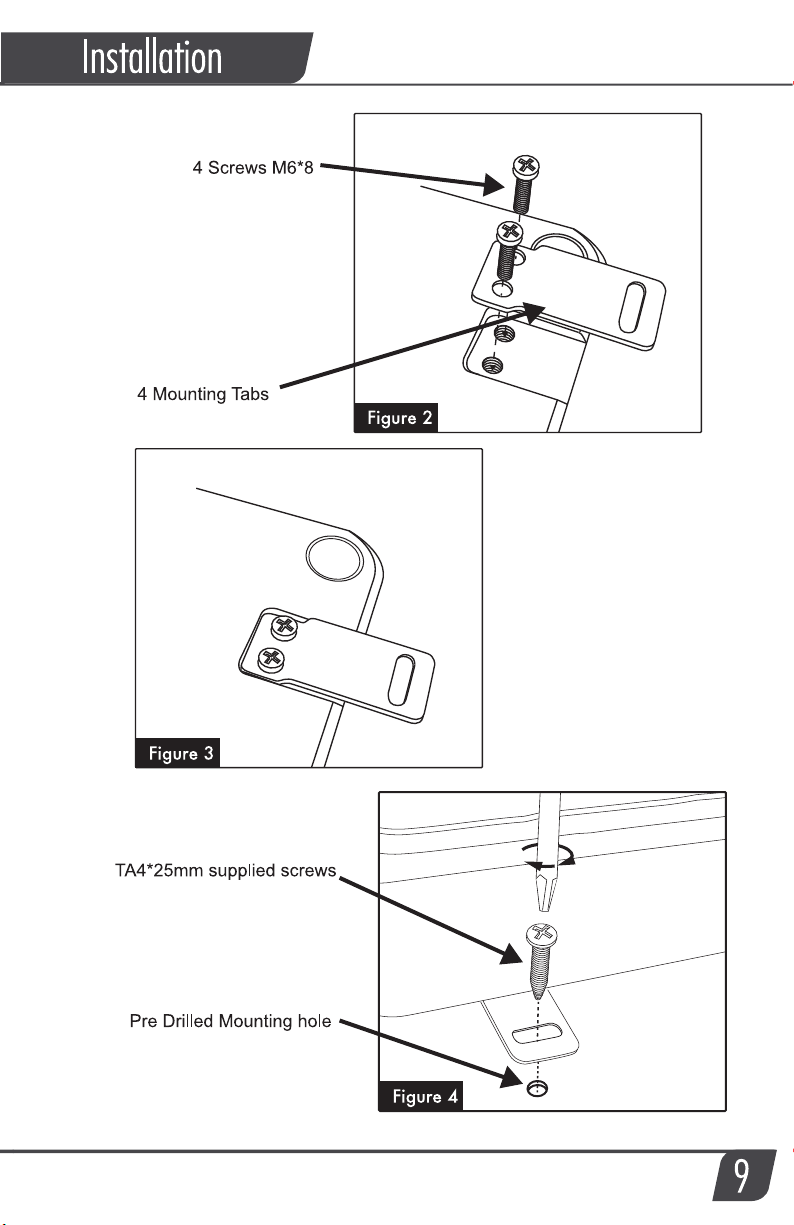

6 - Secure the brackets to the enclosure using the M6x8mm screws (Figures 2 & 3)
7 - Position the enclosure so that the brackets align with your pre-drilled holes and
secure with the M4x25mm screws. (Figure 4)
8 - Make sure the enclosure is tightly secured to the vehicle.
