SUBWOOFER OWNERS MANUAL

Dear Cerwin-Vega Mobile Customer,

Thank you for making Cerwin-Vega Mobile your choice for high

performance car audio products. At Cerwin-Vega Mobile our goal is to

produce products of unsurpassed quality. We believe you will not nd a

better value anywhere in the mobile audio environment.

To ensure that your new Cerwin-Vega Mobile speakers provide

years of enjoyment you should consider having them installed by

a professionally trained technician. They have the knowledge to

make your new speakers perform their very best.

Prolonged exposure to sound pressure levels in excess of 100dB

can cause permanent hearing loss. Cerwin-Vega Mobile speakers

can exceed that level, so please exercise restraint when listening

and enjoy your new speakers for years to come.

Mica Reinforced Polypropylene Skeleton Cone

Field Serviceable Cone Assembly

Heavy Gauge Diecast Aluminum Frame

U-Term Speaker Terminal

Dual 3” voice coils

Available in 2 ohm or 4 ohm

1200 Watts RMS Power handling

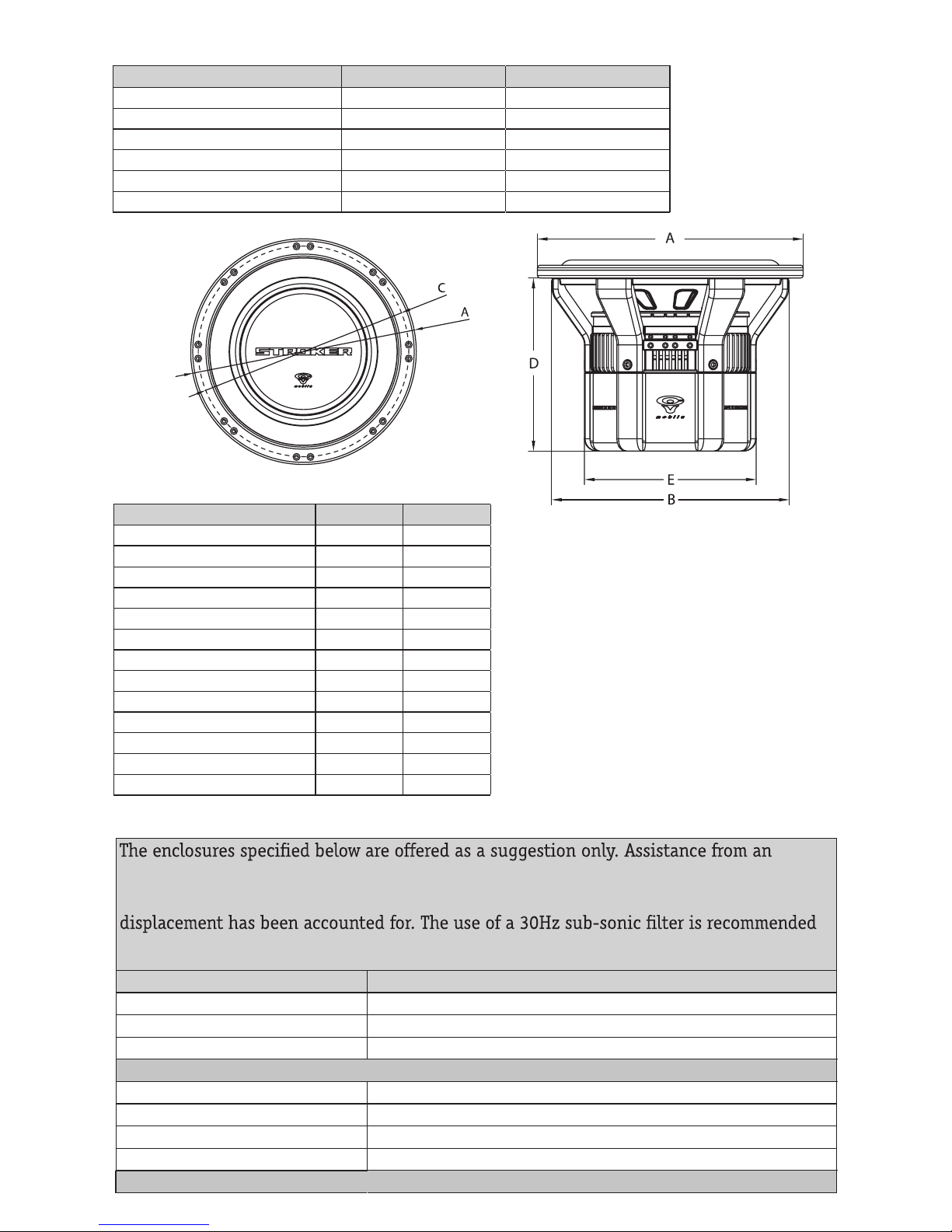

SERIES WOOFER FEATURES authorized Cerwin-Vega Mobile retailer is recommended for designing the correct system

for your vehicle. All volumes below are shown as gross internal volumes, driver and vent

on most vented enclosures.

Sealed STKR122/STKR124

Vb (ft3) 1.5

F3 (Hz)/QTC 38/0.51

Power Handling (Watts RMS) 1200

Vb (ft3) 2.8

Fb/F3 (Hz) 35/27

Port (in.) [Dia. x length](2) 4” x 18”

Power Handling (Watts RMS) 1200

Dimension (in./mm) STKR122

Total Diameter (A) 12.875 in. (325 mm)

Mounting Diameter (B) 11.5 in. (292 mm)

Screw Hole Diameter (C) 12.0 in. (305mm)

Mounting Depth (D) 8.5 in. (215mm)

Magnet Diameter (E) 8.25 in. (210 mm)

Displacement 0.26 ft3 (7.31liter)

THIELE/SMALL PARAMETERS

PHYSICAL DIMENSIONS

ENCLOSURE

Parameter (unit) STKR122

SPL (dB) 88.5

Re () [Series] 1.9 [3.8]

Qms 5.647

Qes 0.592

Qts 0.536

Fs (Hz) 38.07

Vas (L) 21.08

Cms (mm/N) 0.0668

Mms (g) 261.63

Sd (m2) 0.047

BL (T*M) 20.05

Xmax (mm) one way 20

Pwr (W) NOM/MAX 1200/2400

Vented (High Output)

STKR124

12.875 in. (325 mm)

11.5 in. (292 mm)

12.0 in. (305mm)

8.5 in. (215mm)

8.25 in. (210 mm)

0.26 ft

STKR124

88.5

3.2 [6.4]

5.355

0.702

0.621

39.55

19.53

0.0619

261.63

0.047

24.34

1200/2400

3(7.31liter)

authorized Cerwin-Vega Mobile retailer is recommended for designing the correct system

for your vehicle. All volumes below are shown as gross internal volumes, driver and vent

on most vented enclosures.

Sealed STKR122/STKR124

Vb (ft3) 1.5

F3 (Hz)/QTC 38/0.51

Power Handling (Watts RMS) 1200

Vb (ft3) 2.8

Fb/F3 (Hz) 35/27

Port (in.) [Dia. x length](2) 4” x 18”

Power Handling (Watts RMS) 1200

Dimension (in./mm) STKR122

Total Diameter (A) 12.875 in. (325 mm)

Mounting Diameter (B) 11.5 in. (292 mm)

Screw Hole Diameter (C) 12.0 in. (305mm)

Mounting Depth (D) 8.5 in. (215mm)

Magnet Diameter (E) 8.25 in. (210 mm)

Displacement 0.26 ft3 (7.31liter)

THIELE/SMALL PARAMETERS

PHYSICAL DIMENSIONS

ENCLOSURE

Parameter (unit) STKR122

SPL (dB) 88.5

Re () [Series] 1.9 [3.8]

Qms 5.647

Qes 0.592

Qts 0.536

Fs (Hz) 38.07

Vas (L) 21.08

Cms (mm/N) 0.0668

Mms (g) 261.63

Sd (m2) 0.047

BL (T*M) 20.05

Xmax (mm) one way 20

Pwr (W) NOM/MAX 1200/2400

Vented (High Output)

STKR124

12.875 in. (325 mm)

11.5 in. (292 mm)

12.0 in. (305mm)

8.5 in. (215mm)

8.25 in. (210 mm)

0.26 ft

STKR124

88.5

3.2 [6.4]

5.355

0.702

0.621

39.55

19.53

0.0619

261.63

0.047

24.34

1200/2400

3(7.31liter)

RECONE INSTRUCTIONS

All Cerwin-Vega Mobile Stroker series woofers have been designed to be eld

serviceable. This new design provides a fast and simple way to rebuild woofers

in the eld using only the provided allen tool.

BEFORE YOU START

Make sure your work area is clean and free from any dirt or metal particles.

Stroker woofers can attract metal particles from a few feet away. Metal par-

ticles in the voice coil gap permanently damage the speaker and will void

any warranty. If the woofer is going to be left disassembled for any length of

time we recommend covering the voice coil gap with plastic wrap until it is

time to rebuild the woofer

We recommend that you use BLUE Loctite thread lock 242 on all Stroker

hardware.

RECONE STEPS

Using the provided allen tool, remove the six allen bolts attaching the cone

assembly to the magnet. Please see illustration below.

Carefully lift the cone assembly off of the magnet. Please see illlustration

below.

Make sure that the voice coil gap is clean. If the prior voice coil was melted

or damaged any remaining material must be removed prior to installing the

new cone assembly.

Align the cone assembly terminals with the Cerwin-Vega Mobile logo on the

magnet boot and very carefully lower the cone assembly down into the voice

coil gap of the magnet. Special care must be taken not to scratch or damage

the voice coil. The assembly should slide into place with no friction between

the cone assembly and the magnet.

Align the screw holes in the cone assembly with the screw holes in the mag-

net and gently hand tighten all six allen screws. Please see illustration be-

low

6. Using the provided allen tool, tighten the six allen bolts attaching the cone

assembly to the magnet in the order shown below. Do not over tighten.

7. Carefully move the woofer cone in and out, checking for any obvious rubs.

Be careful to apply even pressure. It is easy to apply to much pressure on one

side of the cone and cause a rub. If there is an obvious rub go back to the

beginning and start again.

CUT LIST

A: Top/Bottom --> (2) 23.5” X 17.5”

B: Side L --> 16.75” X 12.5”

C: Front --> 20.75” X 12.5”

D: Back --> 23.5” X 12.5”

E: Side R --> 16” X 12.5”

F: Vent Part--> 8.25“ X 12.5”

G: Vent Part--> 14” X 12.5”

H: Front Support--> 19.25“ X 12.5

Cutout Diameter--> 11.5”

VENTS

TUNNING

NOTES

2” X 12.5” X 24”

VB--> 2.0cu.ft Net

Fp -->34Hz

Fb--> 38Hz

F3--> 26Hz

-- All measurments are in inches

-- Use 3/4” MDF for Construction

-- CVM recommends rounding vent

corners to help eliminate any port

noise.

-- Use wood glue on all seams.

-- Cut all like measurments at one time eg) Cut all 12.5” pieces at one time

(do not move saw fence).

14”

23.5”

17.5”

SQL ENCLOSURE GUIDE

Warranty

Cerwin-Vega Mobile warrants all speakers to be free of defects in material or workmanship

for a period of 1 year.

Warranty Procedure:

Cerwin-Vega Mobile strongly suggests all warranty claims should be handled through

an authorized dealer. Because of the technical nature of our products, performance

problems can often be the result of improper usage or installation. An authorized

retailer can help determine if this is the case and will save you the time of returning

an item that is not actually defective.

For all STROKER subwoofer models the cone is to be removed from the magnet.

All returns must have the serial number taped to the cone. The serial number can be found

on the basket and underneath the spider attached to the top of the magnet plate.

Please remove the sticker and tape it to the cone. This process will save everyone on

shipping costs and allow us to check and replace speakers much faster.

Shipping:

Once you have your RA number, ship your return to:

Cerwin-Vega Mobile

ATTN: Customer Service Dept.

6915 W. Frye Road

Chandler, AZ 85226

When we receive your return, we will process your order. Please make sure that you clearly

mark the RA number on the outside of the box and on the shipping label.

If the RA number is not on the outside of box/label, it will be returned to sender!

110607

6915 W. Frye Road

Chandler, AZ 85226

480 838 9422 • 480 491 1201 [fax]

www.cerwinvegamobile.com

Specications subject to change without notice.
