3/8” AIR RATCHET
WRENCH
ASSEMBLY and OPERATING
INSTRUCTIONS
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at http://www.harborfreight.com
For technical questions and replacement parts, please call 1-800-444-3353
Model 47706
®
Copyright c 2002 by Harbor Freight Tools®. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
®
Page 2
SKU 47706
Specifications
Save This Manual
You will need the manual for the safety warnings and precautions, assembly instructions,
operating and maintenance procedures, parts list and diagram. Keep your invoice with this
manual. Write the invoice number on the inside of the front cover. Keep the manual and
invoice in a safe and dry place for future reference.
Safety Warnings and Precautions
WARNING: When using tool, basic safety precautions should always be followed to
reduce the risk of personal injury and damage to equipment.
Read all instructions before using this tool!
1. Keep work area clean. Cluttered areas invite injuries.
2. Observe work area conditions. Do not use machines or power tools in damp or wet
locations. Don’t expose to rain. Keep work area well lighted. Do not use electrically
powered tools in the presence of flammable gases or liquids.
3. Keep children away. Children must never be allowed in the work area. Do not let
them handle machines, tools, extension cords, or air hoses.
4. Store idle equipment. When not in use, tools must be stored in a dry location to
inhibit rust. Always lock up tools and keep out of reach of children.
5. Use the right tool for the job. Do not attempt to force a small tool or attachment to
do the work of a larger industrial tool. There are certain applications for which this
tool was designed. It will do the job better and more safely at the rate for which it was
intended. Do not modify this tool and do not use this tool for a purpose for which it
was not intended .
6. Dress properly. Do not wear loose clothing or jewelry as they can be caught in
moving parts. Protective, electrically non-conductive clothes and non-skid footwear
are recommended when working. Wear restrictive hair covering to contain long hair.
7. Use eye and ear protection. Always wear ANSI approved impact safety goggles and
ear protection. Wear a full face shield if you are producing metal filings or wood chips.
Wear an ANSI approved dust mask or respirator when working around metal, wood,
and chemical dusts and mists.
Drive Size 3/8”
Maximum RPM’s 110 RPM’s @90 PSI
Torque Clockwise 48 Foot Pounds
Torque Counterclockwise 50 Foot Pounds
Air Inlet 1/4” - 18 NPT Female
Recommended Air Pressure 90 PSI
Page 3
SKU 47706
8. Do not overreach. Keep proper footing and balance at all times. Do not reach over
or across running machines or air hoses.
9. Maintain tools with care. Keep tools clean for better and safer performance. Follow
instructions for lubricating and changing accessories. Inspect tool cords and air hoses
periodically and, if damaged, have them repaired by an authorized technician. The
handles must be kept clean, dry, and free from oil and grease at all times.
10. Disconnect air supply. Disconnect air hose when not in use.
11. Remove adjusting keys and wrenches. Check that keys and adjusting wrenches
are removed from the tool or machine work surface before plugging it in.
12. Avoid unintentional starting. Be sure the Throttle Lever (#4) is not depressed
when not in use and before attaching to the air hose. Do not carry the Rachet Wrench
with the Throttle Lever (#4) depressed.
13. Stay alert. Watch what you are doing, use common sense. Do not operate any tool
when you are tired.
14. Check for damaged parts. Before using any tool, any part that appears damaged
should be carefully checked to determine that it will operate properly and perform its
intended function. Check for alignment and binding of moving parts; any broken parts
or mounting fixtures; and any other condition that may affect proper operation. Any
part that is damaged should be properly repaired or replaced by a qualified
technician. Do not use the tool if Throttle Lever (#4) does not engage and disengage
properly.
15. Guard against electric shock. Prevent body contact with grounded surfaces such as
pipes, radiators, ranges, and refrigerator enclosures.
16. Replacement parts and accessories. When servicing, use only identical
replacement parts. Use of any other parts will void the warranty. Only use accessories
intended for use with this tool. Approved accessories are available from Harbor
Freight Tools.
17. Do not operate tool if under the influence of alcohol or drugs. Read warning
labels on prescriptions to determine if your judgment or reflexes are impaired while
taking drugs. If there is any doubt, do not operate the tool.
18. Use proper size and type extension cord. If an extension cord is required for the air
compressor, it must be of the proper size and type to supply the correct current to the
tool without heating up. Otherwise, the extension cord could melt and catch fire, or
cause electrical damage to the tool. Check your compressor’s manual for the
appropriate size cord.
19. Maintenance. For your safety, maintenance should be performed regularly by a
qualified technician.
20. Compressed air only. Never use combustible gases as a power source.
Note: Performance of the compressor (if powered by line voltage) may vary depending on
variations in local line voltage. Extension cord usage may also affect tool
performance.
Page 4
SKU 47706
Operation

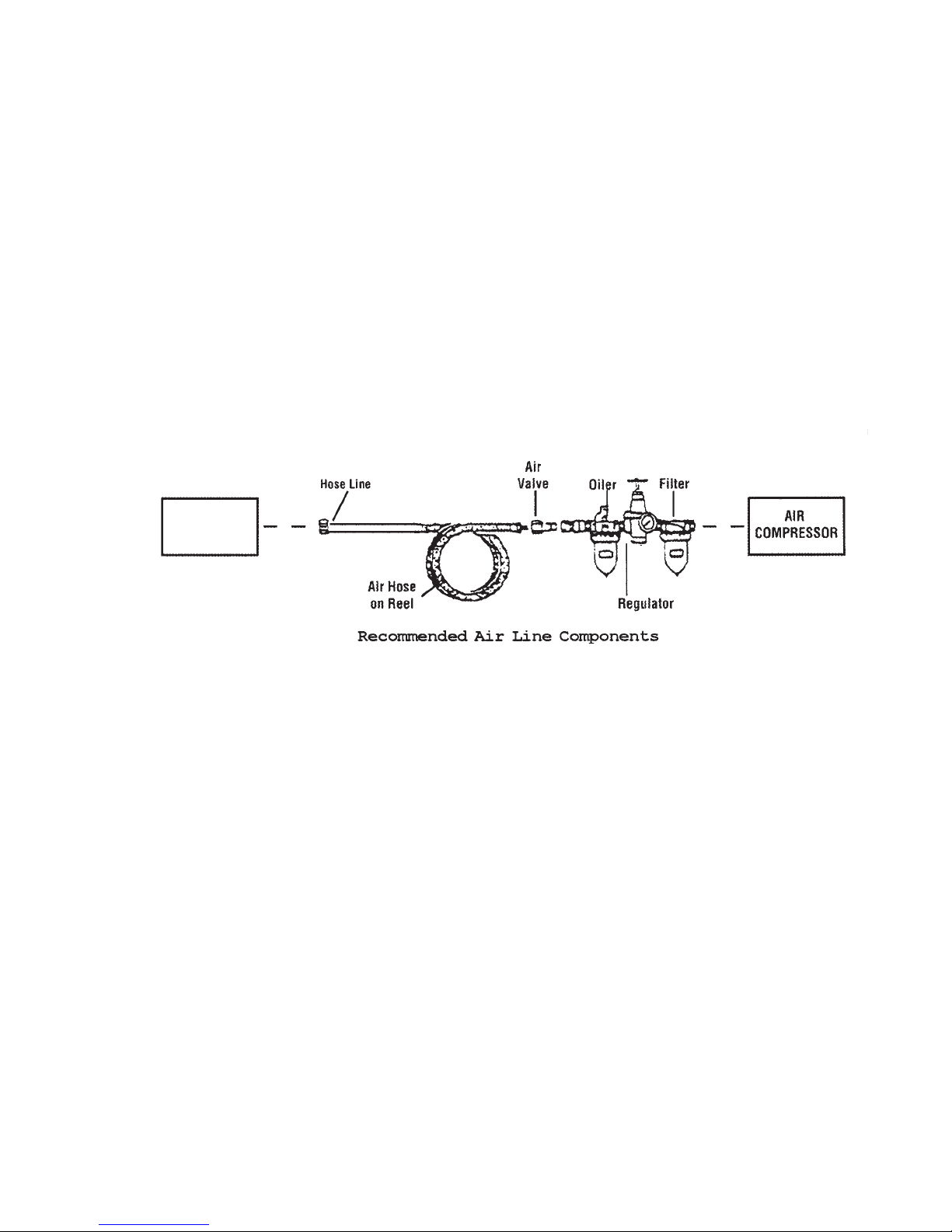

For best service you should incorporate an oiler, regulator, and inline filter, as shown in the
diagram above. Hoses, couplers, oilers, regulators, and filters are all available at Harbor
Freight Tools.
1. You will need to prepare the included 1/4” air connector to connect to the Air
Inlet (#2). First, wrap the 1/4” air connector with pipe thread seal tape before connecting to a
Air Source Hose (not included).
2. Attach air hose to the Air Inlet (#2) on the Rachet Wrench.
Note: If you are not using an automatic oiler system, before operation, add a few drops of
Pneumatic Tool Oil to the airline connection. Add a few drops more after each hour of
continual use.
3. Set the air pressure on your compressor to 90 PSI. Do not exceed the recommended air
pressure of 90 PSI.
4. Check the air connection for leaks.
Rachet
Wrench
1/4” - 18 NPT
Unpacking
When unpacking, check to make sure the parts listed on page 6 are included. If any parts
are missing or broken, please call Harbor Freight Tools at the number on the cover of this
manual as soon as possible.
Warning:The warnings, cautions,and instructions discussed in this instruction manual
cannot cover all possible conditions and situations that may occur. It must be under-
stood by the operator that common sense and caution are factors which cannot be
built into this product, but must be supplied by the operator.
REV 06/06
Page 5
SKU 47706
Operation (continued)
Note: Turn off your air compressor and disconnect the air hose when you are changing
sockets. After you attach the socket, attach the air hose and turn the air compressor on.
5. Select the appropriate size 3/8” socket for your needs.
6. Attach the socket (not included) to the Anvil (#18).
7. Moving the Forward/Reverse Button (#38) in a counterclockwise direction toward the “F”
will tighten, and moving the Forward/Reverse Button (#38) clockwise toward the “R” will
loosen.
Tightening
Note: Forward/Reverse Button (#38) set toward the “F”.
8. Tighten the nut as tight as you can by hand.
9. Place the socket (not included) over the nut you wish to tighten.
10. Grip the Rachet Wrench firmly and gently squeeze the Throttle Lever (#4).
Note: If the Rachet Wrench cannot tighten it to your satisfaction, do not raise the air pressure
on the compressor over 90 PSI. Pressures above 90 PSI will strip the workpiece and damage
the tool. Use appropriate methods and tools to tighten the nut.
11. When the nut is tightened, release the Throttle Lever (#4). Turn off the air compressor
and disconnect the hose.
12. If available, check the recommended torque specification for the nut. Use a torque
wrench to tighten the nut to the proper setting after using the Rachet Wrench.
Loosening
Note: Forward/Reverse Button (#38) set toward the “R”.
13. Place the socket (not included) over the nut you wish to loosen.
14. Grip the Rachet Wrench firmly and gently squeeze the Throttle Lever (#4).
Note: If the Rachet Wrench cannot loosen the nut, do not raise the air pressure on the
compressor over 90 PSI. Do not attempt to loosen the nut with the Rachet Wrench. Use
appropriate methods and tools to loosen the nut.
15. When the nut is loosened, release the Throttle Lever (#4). Turn off the air compressor
and disconnect the hose.
16. If needed, remove the nut from the socket.
Maintenance
1. Make sure your Rachet Wrench is disconnected from the air hose before attempting any
maintenance.
2. If you are not using an automatic oiler system, put a few drops of pneumatic tool oil through
the air line before and after each use. During use, add a few drops every hour.
3. Apply a few drops of oil to the Throttle Lever (#4), Pin (#5), and the Actuation Pin (See
Assembly Drawing on page 7) before each use.
4. Wipe the Rachet Wrench down with a lint free cloth after each use.
5. Make sure the Anvil (#18) is clear of dirt or debris. If possible, spray it with compressed air
before each use.
Page 6
SKU 47706
NOTE: Some parts are listed and shown for illustration purposes only and are not available
individually as replacement parts.
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN THIS
MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBU-
TOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TOTHE BUYERTHAT HE
OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER
AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS
SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS AND NOT BY THE
BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER
REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING
OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Parts List
Part No. Description Qty. Part No. Description Qty.
1 Housing 1 22 Drive Bushing 1
2 Air Inlet 1 23 Rachet Yoke 1
4 Throttle Lever 1 24 Cylinder 1
5 Pin 1 25 Rotor 1
6 Valve Stem 1 26 Rotor Blade 4
7 0-ring 1 27 Front Plate 1
8 Spring 1 28 Bearing 1
9 Valve Plug 1 29 End Plate 1
10 Washer 1 30 Bearing 1
11 0-ring 1 31 Pin 1
12 Thread Ring Gear 1 32 Washer 1
13 Cap 1 34 Spring 1
14 Gear 3 35 Lock Pin 1
15 Pin 3 36 Rachet Pawl 1
16 Gear Plate 1 37 Pin 1
17 Crankshaft 1 38 Forward/Reverse Button 1
18 Anvil 1 39 Retainer Ring 1
19 Rachet Housing 1 40 Spring 2
20 Bushing 1 41 Steel Ball 2
21 Needle Bearing 1 42 Washer 1
1 43 1/4” Coupler 1
REV 06/06
Page 7
SKU 47706

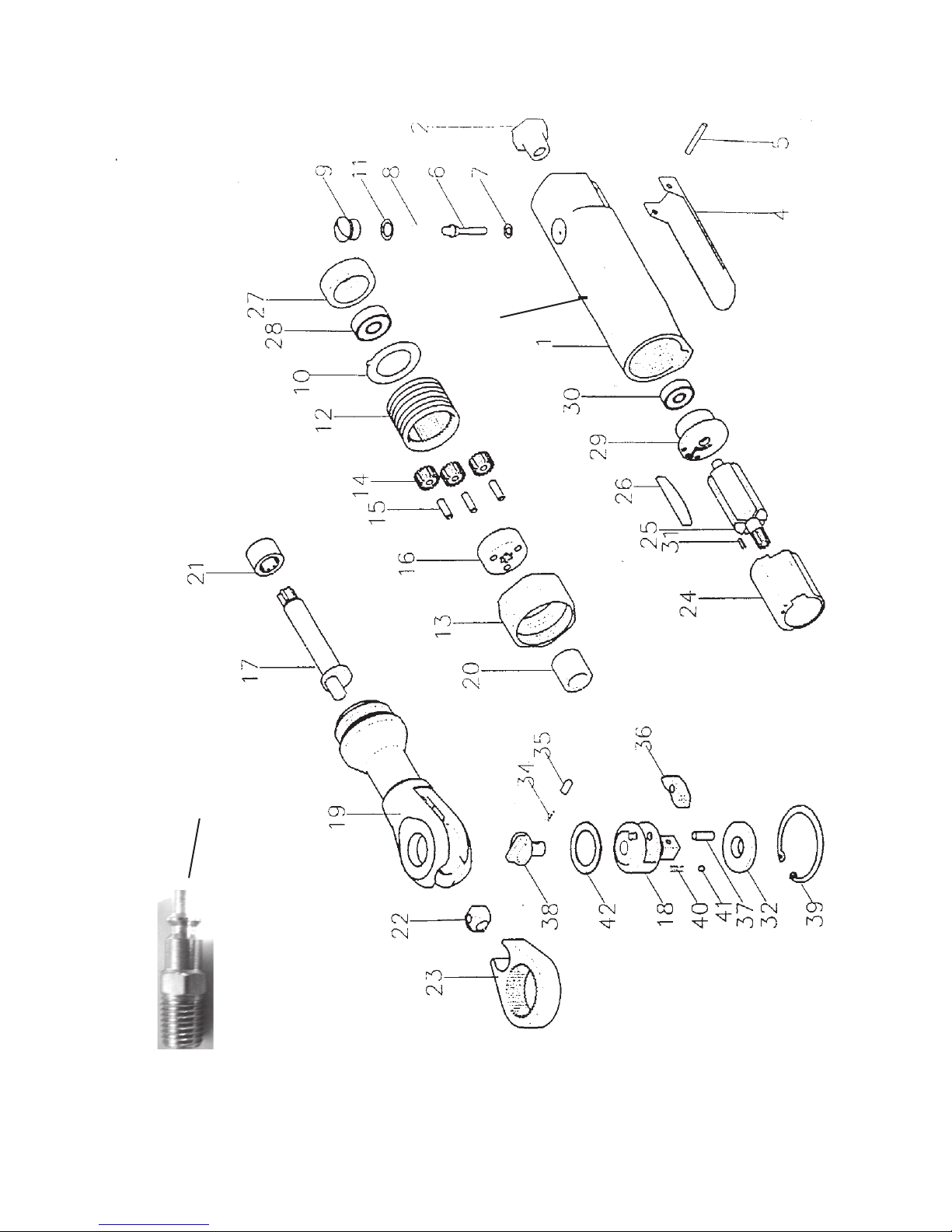

Assembly Drawing
Actuation Pin
43
REV 06/06
Table des matières
Autres manuels Central Pneumatic Outils électriques
Central Pneumatic
Central Pneumatic 98898 Manuel d'installation
Central Pneumatic
Central Pneumatic Contractor 93197 Manuel utilisateur
Central Pneumatic
Central Pneumatic 93048 Manuel utilisateur
Central Pneumatic
Central Pneumatic 95119 Manuel d'installation
Central Pneumatic
Central Pneumatic 66886 Manuel d'installation
Central Pneumatic
Central Pneumatic 67996 Manuel utilisateur
Central Pneumatic
Central Pneumatic 99792 Manuel d'installation
Central Pneumatic
Central Pneumatic 96661 Instructions de montage
Central Pneumatic
Central Pneumatic 66874 Manuel d'installation
Central Pneumatic
Central Pneumatic 46446 Manuel utilisateur
Central Pneumatic
Central Pneumatic 68423 Manuel utilisateur
Central Pneumatic
Central Pneumatic 36567 Manuel utilisateur
Central Pneumatic
Central Pneumatic CENTRAL PNEUMATIC 68128 Manuel d'installation
Central Pneumatic
Central Pneumatic Contractor 90399 Manuel utilisateur
Central Pneumatic
Central Pneumatic 65902 Manuel d'installation
Central Pneumatic
Central Pneumatic CENTRALPNEUMATIC 98580 Instructions de montage
Central Pneumatic
Central Pneumatic 47214 Manuel d'instructions d'origine
Central Pneumatic
Central Pneumatic 167 Manuel utilisateur
Central Pneumatic
Central Pneumatic Earthquake 65159 Manuel d'installation
Central Pneumatic
Central Pneumatic 68426 Manuel utilisateur
