QUICK CHANGE AIR BRUSH KIT

Model 93506

ASSEMBLY and OPERATING INSTRUCTIONS

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our Web site at http://www.harborfreight.com

For technical questions and replacement parts, please call 1-800-444-3353

®

manual or any artwork contained herein may be reproduced in any shape or form

without the express written consent of Harbor Freight Tools.

TO PREVENT SERIOUS INJURY,

READ AND UNDERSTAND ALL WARNINGS

AND INSTRUCTIONS BEFORE USE.

Due to continuing improvements, actual product may differ slightly from the product described herein.

Page 2SKU 93506 For technical questions, please call 1-800-444-3353

Speciﬁcations

Save This Manual

You will need the manual for the safety warnings and precautions, assembly instruc-

tions, operating and maintenance procedures, parts list and diagram. Keep your in-

voice with this manual. Write the invoice number on the inside of the front cover. Keep

the manual and invoice in a safe and dry place for future reference.

Safety Warnings and Precautions

WARNING: When using tool, basic safety precautions should always be followed to

reduce the risk of personal injury and damage to equipment.

Read all instructions before using this tool!

1. Keep work area clean. Cluttered areas invite injuries.

2. Observe work area conditions. Don’t expose to rain. Keep work area well lit. Do

not use a propellant can in the presence of ﬂammable gases or liquids. Always

spray in a well ventilated area.

3. Keep children and bystanders away. Children must never be allowed in the work

area. Do not let them handle machines, tools, extension cords, or air hoses.

4. Store idle equipment. When not in use, tools must be stored in a dry location to

inhibit rust. Always lock up tools and keep out of reach of children.

5. Use the right tool for the job. Do not attempt to force a small tool or attachment

to do the work of a larger industrial tool. There are certain applications for which

this tool was designed. It will do the job better and more safely at the rate for

which it was intended. Do not modify this tool and do not use this tool for a

purpose for which it was not intended.

6. Use eye and nose protection. Wear, and ensure all people in the work area

wear, ANSI approved impact safety goggles and an ANSI approved dust mask or

respirator.

7. Maintain tools with care. Keep Air Brush clean for better and safer performance.

Follow instructions for changing accessories.

8. Do not overreach. Keep proper footing and balance at all times.

Fluid Capacity 3/4 oz.

Air Inlet 1/4” NPT

Working Pressure 15 to 50 PSI

Fluid Jar Size (Qty. 5) 1-3/8” Dia. x 2” H

Air Brush Dimensions 5-1/2” x 1-3/8” x 3-3/4”

Note: This Air Brush works with a regulated small air compressor with an air regulator (none

included). The air pressure must not exceed 50 PSI.

Page 3SKU 93506 For technical questions, please call 1-800-444-3353

9. Stay alert. Watch what you are doing, use common sense. Do not operate any

tool when you are tired.

10. Check for damaged parts. Before using any tool, any part that appears damaged

should be carefully checked to determine that it will operate properly and perform

its intended function. Check for alignment and binding of moving parts; any

broken parts or mounting ﬁxtures; and any other condition that may affect proper

operation. Any part that is damaged should be properly repaired or replaced by a

qualiﬁed technician.

11. Replacement parts and accessories. When servicing, use only identical

replacement parts. Use of any other parts will void the warranty. Only use

accessories intended for use with this tool. Approved accessories are available

from Harbor Freight Tools.

12. Do not operate tool if under the inﬂuence of alcohol or drugs. Read warning

labels if taking prescription medicine to determine if your judgement or reﬂexes

are impaired while taking drugs. If there is any doubt, do not operate the Air

Brush.

13. Maintenance. For your safety, maintenance should be performed regularly by a

qualiﬁed technician.

14. Use compressed air from a small, regulated air compressor. Use clean, dry

regulated air at 15 to 50 PSI. Never use oxygen, carbon dioxide, combustible

gases, or any other bottled gas as a power source for this tool.

Warning: The warnings, cautions, and instructions discussed in this instruction manual

cannot cover all possible conditions and situations that may occur. It must be under-

stood by the operator that common sense and caution are factors which cannot be

built into this product, but must be supplied by the operator.

Unpacking

When unpacking, check to make sure the parts listed on page 6 are included. If any

parts are missing or broken, please call Harbor Freight Tools at the number on the

cover of this manual as soon as possible.

WARNING: The brass components of this product contain lead, a chemical known

to the State of California to cause birth defects (or other reproductive harm).

(California Health & Safety code 25249.5, et seq.)

Page 4SKU 93506 For technical questions, please call 1-800-444-3353

Operation

FIGURE 1

Air Tip (7)

Fluid Cap (1)

Jar (6)

Jar Adapter (3)

Lever (9)

Air Hose (16)

Air Valve Connector (15)

Mixing and Thinning Paints

Before attempting to spray any paints through the Spray Gun, dilute them accord-

ing to the manufacturer’s directions, for use with Spray Guns.

General Rules:

1. If mixing colors, only mix together the same types of paints (i.e. lacquer with lacquer

or acrylic with acrylic).

2. Thin paint according to paint manufacturer’s directions. Typically, enamel and lac-

quer paints are diluted with one part thinner to one part paint.

3. Before spraying make sure the diluted paint is thoroughly mixed.

4. Mix the paint in a clean jar. We recommend straining the paint before ﬁlling the Jar

(6).

Attaching the Air Hose (16) and the Jar (6) to the air supply

1. Fill the Jar (6) with strained paint. Do not ﬁll over 2/3 full.

2. Carefully thread on the Jar Lid (3).

3. Attach one end of the Air Hose (16) to the Air Inlet (15) on the Air Brush. Attach the

other end of the Air Hose (16) to the regulator (not included) which then attaches to

the air supply using the 1/4” NPT Adapter (17). The air source must be adjustable

between 15 and 50 PSI. Thoroughly read the instructions and safety warnings

provided with the air compressor and air regulator before using.

Page 5SKU 93506 For technical questions, please call 1-800-444-3353

Adjusting Paint Flow and Air Flow

1. Use the air regulator (not included) to regulate air ﬂow. You must purchase a regu-

lator that can be adjusted to between 15 and 50 PSI. Since there is no pressure

gauge you will have to test the Air Brush on a piece of scrap material to determine

the desired setting.

2. On the Air Brush, turn the Fluid Cap (1) to adjust paint ﬂow. For maximum ﬂow,

turn the cap counterclockwise. For minimum ﬂow, turn the cap clockwise. See

FIGURE 1 on page 4 and the assembly drawing on page 6.

Spray Painting

1. In a well ventilated area, press the Lever (9) to test the spray on test material. Hold

the Air Brush six inches from the material and make the necessary adjustments.

2. Practice spraying even strokes to avoid drips.

Note: Since enamels and lacquer paints dry quickly, do not leave the Air Brush for more

than a few seconds or the paint may dry and clog the Air Brush.

3. Have a spare Jar (6) ﬁlled with thinner or water, depending on the type of paint be-

ing sprayed.

4. When ﬁnished spraying, release pressure on the Lever (9). Immediately remove

the paint jar from the Air Brush and attach the spare Jar (6). Continuously spray

on scrap white paper until the paint residue in the Air Brush is sprayed out.

Cleaning

1. Remove excess paint from the Jar (6) and clean thoroughly.

2. Spray thinner or water (depending on the paint used) through the Air Brush until it

is entirely clean. Plug up the Fluid Cap (1) with a soft cloth and force air and solu-

tion through the cap and tip.

Troubleshooting

If the Air Brush becomes clogged, disconnect from the air source and clean as

stated above. Next, gently un-thread (counterclockwise) the Fluid Cap (1) and Air

Tip (7). Clean the parts in thinner and replace.

Page 6SKU 93506 For technical questions, please call 1-800-444-3353

NOTE: Some parts are listed and shown for illustration purposes only and are not available

individually as replacement parts.

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN THIS

MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBU-

TOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT

HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE

IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER

AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS

SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS AND NOT BY THE

BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER

REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING

OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

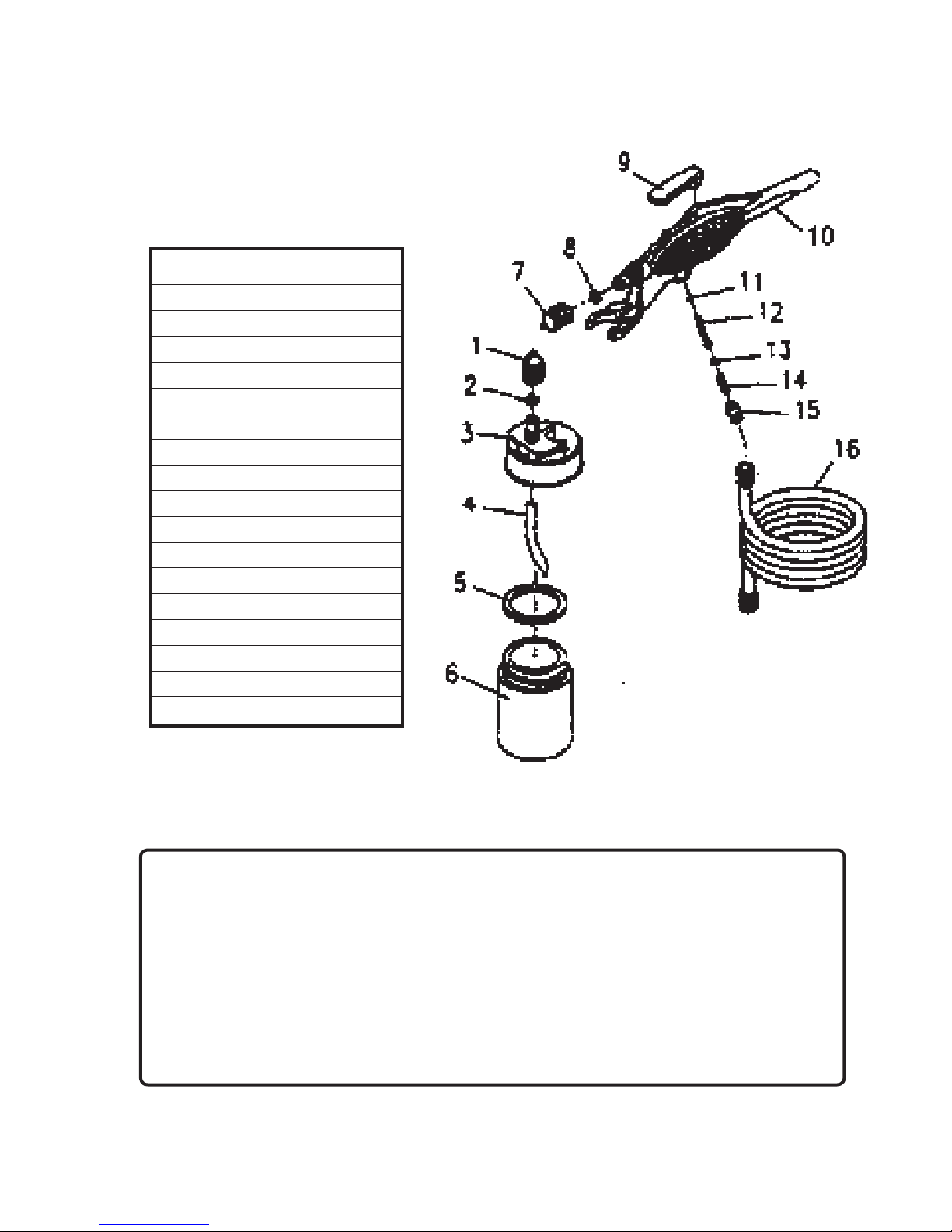

Parts List and Assembly Drawing

Note: #17 1/4” NPT Adapter (not shown)

Part Description

1 Fluid Cap

2 O-ring

3 Jar Lid

4 Tube

5 Cover Gasket

6 Jar (3/4 oz.) Qty. 5

7 Air Tip

8 O-ring

9 Lever

10 Body

11 O-ring

12 Air Valve Pin

13 O-ring

14 Air Valve Spring

15 Air Inlet

16 Air Hose

17 1/4” NPT Adapter
