Central Pneumatic 93257 Manuel utilisateur

MAGNESIUM COIL SIDING NAILER

Model

93257

ASSEMBLY AND OPERATING INSTRUCTIONS

Visit our website at: http://www.harborfreight.com

Read this material before using this product.

Failure to do so can result in serious injury.

SAVE THIS MANUAL.

contained herein may be reproduced in any shape or form without the express written consent of Harbor

Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improve-

ments, actual product may differ slightly from the product described herein. Tools required for assembly

and service may not be included.

For technical questions or replacement parts, please call 1-800-444-3353.

Revised Manual 10g

PRODUCT SPECIFICATIONS

SAVE THIS MANUAL

You will need this manual for the safety warnings and precautions, assembly, operating,

inspection, maintenance and cleaning procedures, parts list and assembly diagram. Keep

your invoice with this manual. Write the invoice number on the inside of the front cover.

Keep this manual and invoice in a safe and dry place for future reference.

SAFETY WARNINGS AND PRECAUTIONS

WARNING: When using tool, basic safety precautions should always be fol-

lowed to reduce the risk of personal injury and damage to equipment. Read all

instructions before using this tool!

1. Keep work area clean. Cluttered areas invite injuries.

2. Observe work area conditions. Do not use machines or power tools in damp or

wet locations. Do not expose to rain. Keep work area well lit. Do not use electri-

cally powered tools in the presence of ammable gases or liquids.

3. Keep children away. Children must never be allowed in the work area. Do not let

them handle machines, tools, extension cords, or air hoses.

4. Store idle equipment. When not in use, tools must be stored in a dry location to

inhibit rust. Always lock up tools and keep out of reach of children.

5. Use the right tool for the job. Do not attempt to force a small tool or attachment

to do the work of a larger industrial tool. There are certain applications for which

this tool was designed. It will do the job better and more safely at the rate for

which it was intended. Do not modify this tool, and do not use this tool for a

purpose for which it was not intended.

SKU 93257 For technical questions, please call 1-800-444-3353 PAGE 2

Operating Air Pressure 70~125 PSI *

Average Air Consumption 4 CFM @ 90 PSI

Actuation System Full Sequential Safety Trip Mechanism

Magazine Type Barrel Type, Nail Coil Canister w/Adjustable Nail Height

Magazine Capacity 250–400 Nails

Nail Type 0.082”–0.099” Shaft (12–14 Gauge), Wire-Collated Only

Nail Length Capacity 11/4”–21/8” Long

Air Inlet Size 1/4”-18 NPT

Overall Dimensions 111/4” L x 5” W x 111/4” H

Unit Weight 5.7 Pounds

Accessories Tool Oil, Hex Wrench**

**Refer to Inspection, Maintenance, and Cleaning, page 11, for proper usage.

REV 05j REV 06k

* The air pressure setting must not exceed job site regulations/restrictions. The air pressure set-

ting must not exceed 90 PSI when being used with work pieces that have a thickness of less than

1-3/4”.

6. Dress properly. Do not wear loose clothing or jewelry as they can be caught in

moving parts. Protective, electrically nonconductive clothes and nonskid

footwear are recommended when working. Wear restrictive hair covering to

contain long hair.

7. Do not overreach. Keep proper footing and balance at all times. Do not reach

over or across running machines or air hoses.

8. Use eye and ear protection. Always wear ANSI-approved impact safety

goggles and appropriate hearing protection. Wear a full face shield if you

are producing metal lings or wood chips. Wear a NIOSH-approved dust

mask or respirator when working around metal, wood, and chemical dusts

and mists. Other people in the work area must also wear ANSI-approved

impact safety goggles.

9. Maintain tools with care. Keep tools clean for better and safer performance.

Follow instructions for lubricating and changing accessories. Inspect tool cords

and air hoses periodically and, if damaged, have them repaired by an authorized

technician. The handle must be kept clean, dry, and free from oil and grease at

all times. Do not operate a tool if any portion of the tool’s operating controls are

inoperable, disconnected, altered, or not working properly.

10. Disconnect air hose and release any built-up air pressure. Never service the

Nailer, clear jams, or disassemble with the air hose attached. Always release

any built-up air even after disconnecting hose. Disconnect the Nailer when not

in use.

11. Remove adjusting wrenches. Check that adjusting wrenches are removed

from the tool or machine work surface before attaching to an air source.

12. Avoid unintentional starting. Be sure the trigger is in the OFF position when not

in use and before plugging in. Do not carry any tool with your nger on the

trigger, whether it is attached to an air source or not. Do not point the tool

towards yourself or anyone whether it contains nails or not.

13. Stay alert. Watch what you are doing. Use common sense. Do not operate any

tool when you are tired.

14. Check for damaged parts. Before using any tool, any part that appears

damaged should be carefully checked to determine that it will operate properly

and perform its intended function. Check for alignment and binding of moving

parts, any broken parts or mounting xtures, and any other condition that may

affect proper operation. Any part that is damaged should be properly repaired or

replaced by a qualied technician. Do not use the tool if the trigger does not

operate properly.

SKU 93257 For technical questions, please call 1-800-444-3353 PAGE 3

SKU 93257 For technical questions, please call 1-800-444-3353 PAGE 4

15. Guard against electric shock. Prevent body contact with grounded surfaces

such as pipes, radiators, ranges, and refrigerator enclosures.

16. Replacement parts and accessories. This product is to be repaired and

serviced only by a qualied technician. When this product is serviced, only

identical replacement parts should be used. Use of any other parts will void the

warranty. Only use accessories intended for use with this tool. Approved

accessories are available from Harbor Freight Tools.

17. Do not operate tool if under the inuence of alcohol or drugs. Read warning

labels if taking prescription medicine to determine if your judgement or reexes

are impaired while taking drugs. If there is any doubt, do not operate the tool.

18. Use proper size and type extension cord. If an extension cord is required, it must

be of the proper size and type to supply the correct current to the compressor

without heating up. Otherwise, the extension cord could melt and catch re, or

cause electrical damage to the tool. Check your air compressor’s manual for the

appropriate size cord. It is also possible that the use of an extension cord may

cause your circuit breaker to trip or your panel fuse to break. If this happens, ei-

ther use a longer air hose, use the compressor without an extension cord, or nd

a larger amperage circuit to use.

19. Maintenance. The maintenance outlined in the “Maintenance” section should be

performed regularly. For your safety, this product should be serviced or repaired

regularly only by a qualied technician.

20. Compressed air only. Never use combustible gas as a power source.

21. Do not load nails with the trigger or safety depressed. Unintentional ring

may occur. Do not load nails when the air hose is connected to the tool.

Always assume the tool contains nails.

22. Disconnect air supply before loading the Nailer. Before reloading (or making

any adjustments to) the Nailer, make sure the compressed air is disconnected.

23. Fire nails into an appropriate work surface only. Do not attempt to re nails

into surfaces too hard to penetrate. Do not drive nails on top of other nails, or at

too steep an angle. Nails can ricochet, causing personal injury. Never re the

Nailer into the air, or point it toward yourself or another person. Always wear

ANSI-approved impact safety goggles during use, maintenance, and reloading.

24. Do not re nails too close to the edge of a workpiece. They may split the

workpiece and y free, causing personal injury.

25. Take caution, as some woods contain preservatives such as copper

chromium arsenate (CCA) which can be toxic. When nailing these materials

extra care should be taken to avoid inhalation and minimize skin contact.

WARNING: Some dust created by power sanding, sawing, grinding, drilling,

and other construction activities contain chemicals known (to the State of

California) to cause cancer, birth defects, or other reproductive harm.

Some examples of these chemicals are:

* Lead from lead-based paints,

* Crystalline silica from bricks, cement, and other masonry products,

* Arsenic and chromium from chemically treated lumber.

(California Health & Safety Code 25249.5, et seq.)

26. Stay within air pressure capacity. Never operate the Nailer above 125 PSI.

27. Hold tool away from head and body. During operation the Nailer may kick

back, causing injury.

28. Transport Nailer safely. Always disconnect air supply when moving the tool in

the workplace. Carry the tool by the handle to avoid contact with the trigger.

29. Avoid working alone. If an accident happens, an assistant can bring help.

30. Note: Performance of the compressor (if powered by line voltage) may vary

depending on variations in local line voltage. Extension cord usage may also

affect the tool performance.

31. WARNING: The warnings, cautions, and instructions discussed in this

instruction manual cannot cover all possible conditions and situations that may

occur. It must be understood by the operator that common sense and caution

are factors which cannot be built into this product, but must be supplied by the

operator.

UNPACKING

When unpacking, check to make sure that all accessories listed on page 13 are

included, and the product is intact and undamaged. If any parts are missing or broken,

please call Harbor Freight Tools at the number shown on the cover of this manual as

soon as possible.

SKU 93257 For technical questions, please call 1-800-444-3353 PAGE 5

Rev 06k

NAILER

QUICK

CONNECTOR

QUICK

COUPLER

AIR

HOSE

QUICK

COUPLER

QUICK

CONNECTOR

OILER

REGULATOR

FILTER

AIR

COMPRESSOR

CONNECTION TO AIR SUPPLY

TESTING THE FULL SEQUENTIAL SAFETY TRIP MECHANISM

WARNING: Even though the Nailer should be empty during this procedure,

ALWAYS point the Nailer at a piece of scrap wood when testing.

1. Make sure the tool is disconnected from its air supply.

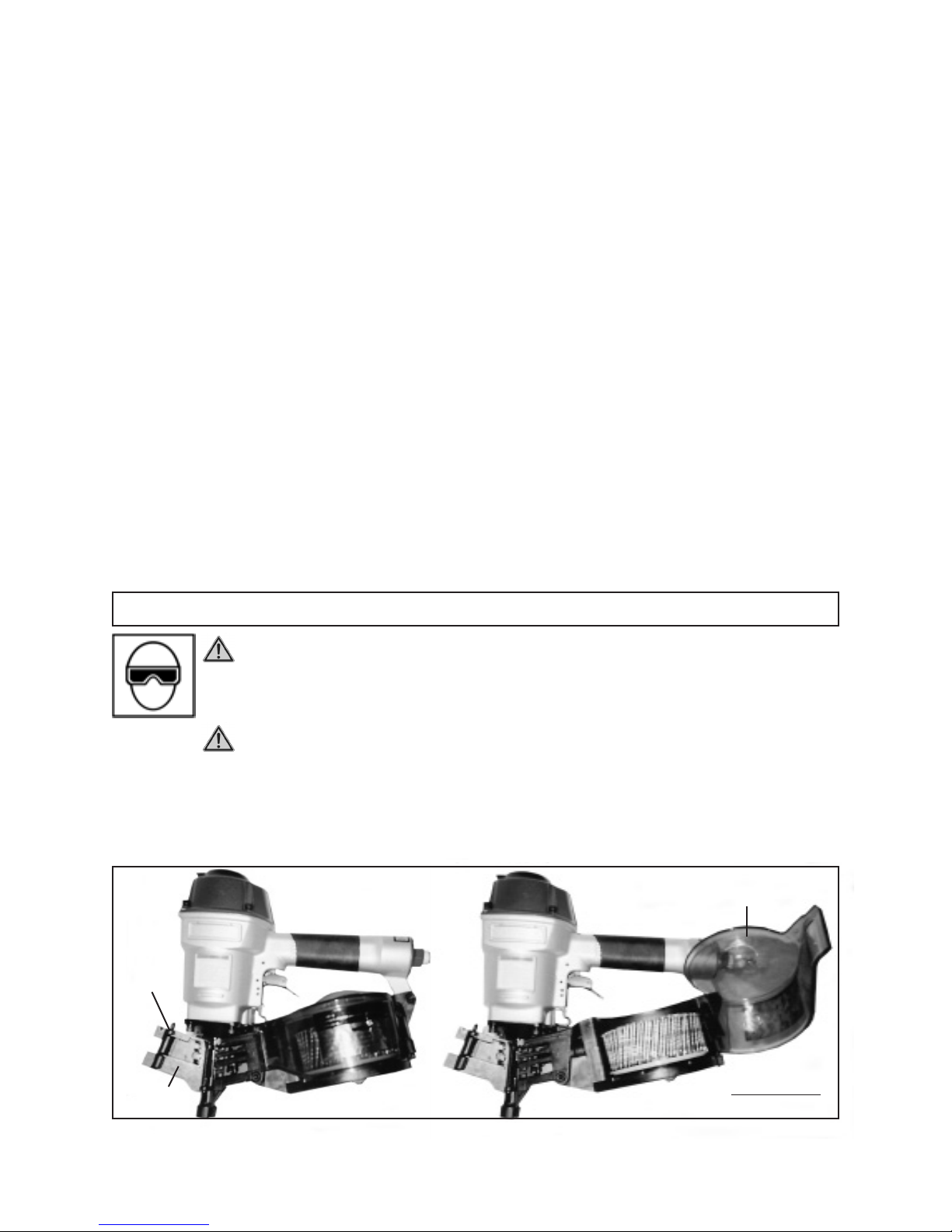

2. Completely empty the Magazine (85) of Nails. Then, close the Magazine.

(See Figure B.)

SKU 93257 For technical questions, please call 1-800-444-3353 PAGE 6

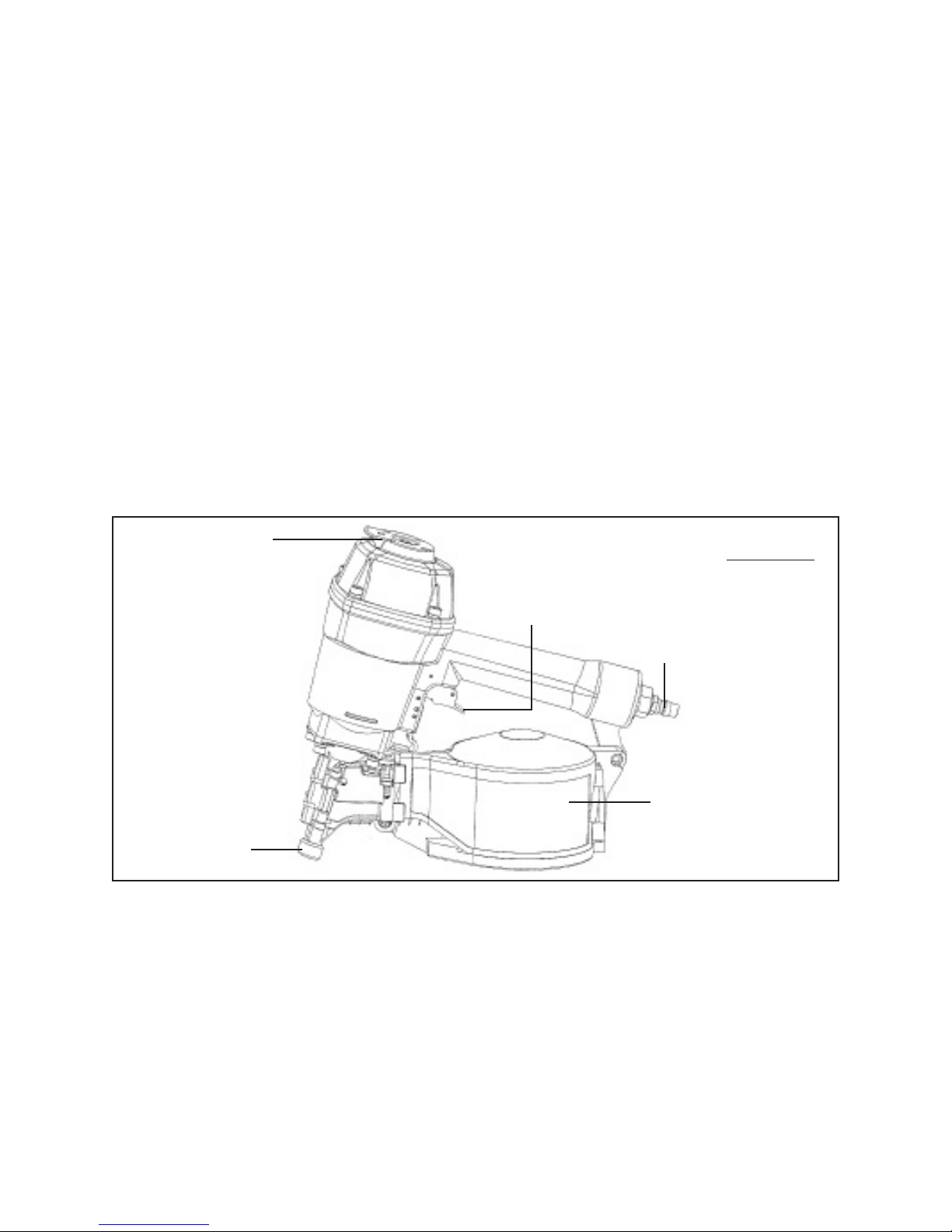

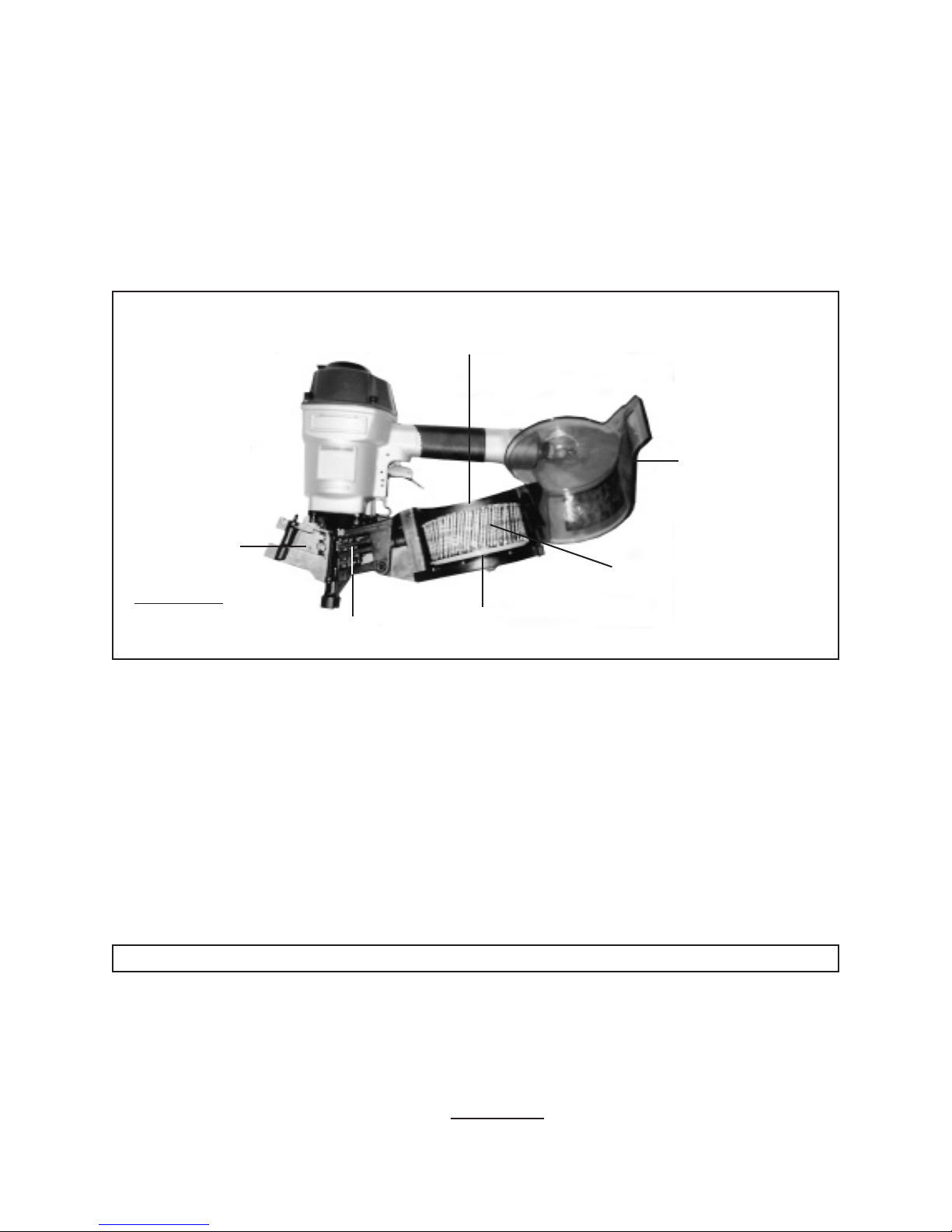

TRIGGER

(60)

MAGAZINE

(85)

SAFETY

(38)

FIGURE A

FIGURE B

AIR PLUG

(82-not included)

OPERATION

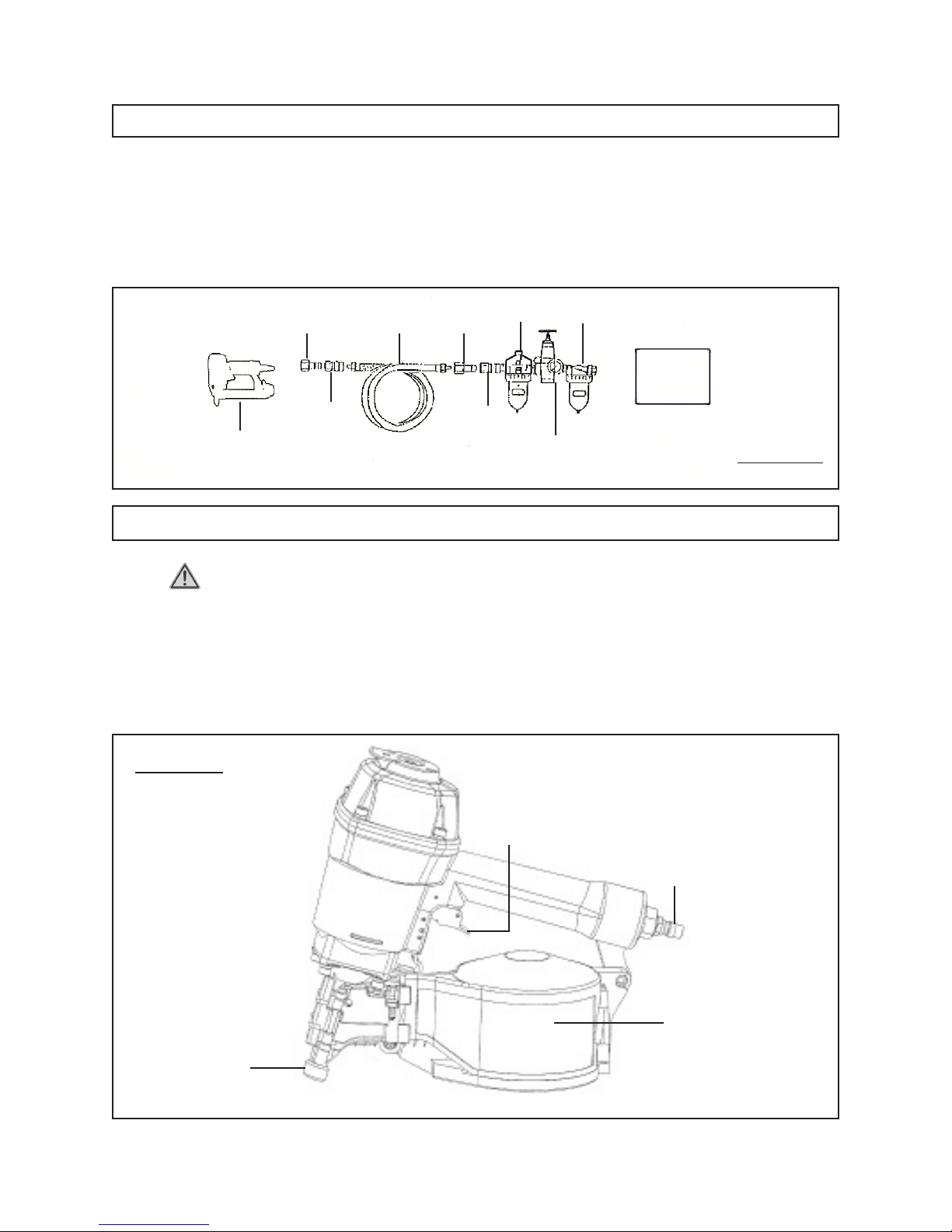

For best service, you should incorporate an oiler, regulator, and inline lter, as

shown in the diagram below. Hoses, couplers, oilers, regulators, and lters are

all available at Harbor Freight Tools. NOTE: If an automatic oiler is not used,

for smoother operation and to extend the life-span of the tool, put 3-5 drops of

pneumatic Tool Oil (93) in the attached Air Plug (82-not included) before each

use.

REV 06l

3. Connect the air supply to the tool at the Air Plug (82-not included). Set the regu-

lator at the recommended 70 to 125 operating PSI. Do not exceed the maximum

125 PSI.

4. Test the tool by depressing the Safety (38) against a piece of scrap wood without

pulling the Trigger (60). The tool must not cycle (re). If it cycles (res), stop im-

mediately and have it repaired by a qualied service technician.

(See Figure B.)

5. Hold the tool away or off the workpiece. The Safety (38) of the tool should return

to its original position. Squeeze the Trigger (60). The tool should not cycle (re).

If the tool cycles (res), stop immediately and have it repaired by a qualied ser-

vice technician. (See Figure B.)

6. Depress the Safety (38) against the workpiece and squeeze the Trigger (60). The

tool must cycle (re) only once. Release the Trigger and squeeze it again. The

tool must not cycle (re). With the Trigger held, carefully lift the Nailer and press it

against the scrap wood again. The tool must not cycle (re). If it fails to perform

in the manner explained in bold, have it repaired by a qualied service technician.

(See Figure B.)

SKU 93257 For technical questions, please call 1-800-444-3353 PAGE 7

LATCH

(57)

DOOR

(32)

MAGAZINE COVER

(91)

FIGURE C

LOADING COIL NAILS

WARNING: Always wear ANSI approved impact safety goggles when re-

loading or performing any other maintenance on this tool. Other people in the

work area must also wear ANSI approved impact safety goggles.

WARNING! Make sure the Nailer is not attached to the air hose when

loading the tool.

1. To open the Magazine Cover (91), press down on the Latch (57) and swing the

Door (32) open. Then, swing the Magazine Cover open. (See Figure C.)

Rev 06k; REV 06l

SKU 93257 For technical questions, please call 1-800-444-3353 PAGE 8

2. Check the Nail Support (88) inside the Magazine (85). The Nail Support can be

adjusted up and down to use various lengths of nails from 1-1/4” to 2-1/8”:

(See Figure D.)

A. 1-1/4” Long Nails (Turn Magazine Post (87) to top setting).

B. Between 1-1/4” and 2-1/8” Long Nails (Use middle setting).

C. 2-1/8” Long Nails (Use bottom setting).

FIGURE D

NAIL SUPPORT

(88)

NAILS

(NOT INCLUDED)

MAGAZINE POST

(87)

(TURN TO ADJUST HEIGHT)

3. Place a coil of Nails (not included) around the Nail Support (88) in the

Magazine (85). (See Figure D.)

4. Uncoil enough Nails to reach the Feed Pawl (42). Place the second Nail on the

coil between the teeth of the Feed Pawl, making sure the Nail head ts in the slot

in the upper portion of the Feed Pawl. (See Figure D.)

5. Swing the Magazine Cover (91) closed. Then, close the Door (32). Make sure

the Door closes securely. If it does not engage, the Nail head is not in the slot in

the upper portion of the Feed Pawl (42). (See Figure D.)

FEED PAWL

(42)

MAGAZINE COVER

(91)

DOOR

(32)

OPERATING THE NAILER

1. Attach the Nailer to the air supply at the Air Plug (82-not included). Start your

compressor and check the pressure, making sure it is set at the recommended

70 to 125 PSI. Do not exceed the maximum 125 PSI.

2. Rotate the Exhaust Cover (2) so that the exhaust air blast will be directed away

from the operator. (See Figure E, next page.) Rev 06k; REV 06l

SKU 93257 For technical questions, please call 1-800-444-3353 PAGE 9

3. To re, place the Safety (38) of the Nailer on the workpiece. The Nailer should

not re if the Safety is not depressed. Once depressed, gently and briey

squeeze the Trigger (60) once. Do not re repeatedly. Nails could bounce off

of one another, damaging the workpiece or causing personal injury.

(See Figure E.)

4. Do not press the Safety (38) against the workpiece with extra force. Allow the

tool to do the work. Always allow the tool to recoil off the work surface.

(See Figure E.)

5. When nished using the Nailer, always disconnect the tool from its air supply.

Empty the Magazine (85) completely of nails. Attempt to re the Nailer into a

piece of scrap wood to ensure it is disconnected and is incapable of ring any

nails. (See Figure E.)

6. Make sure to store the Nailer in a clean, dry, safe location out of reach of

children.

MAGAZINE

(85)

SAFETY

(38)

TRIGGER

(60)

AIR PLUG

(82-not included)

FIGURE E

EXHAUST COVER

(2)

REV 06l

SKU 93257 For technical questions, please call 1-800-444-3353 PAGE 10

CLEARING JAMS

1. Occasionally, a Nail may become jammed in the ring mechanism of the Nailer,

making the tool inoperable.

2. To remove a jammed Nail, disconnect the Nailer from its air supply. Empty the

Magazine (85) completely of Nails. Attempt to re the Nailer into a piece of scrap

wood to ensure it is disconnected and is incapable of ring any Nails.

3. Use a pair of needle nose pliers to remove the jammed Nail (usually in the Feed

Pawl (42) area.

4. Replace the coil of nails into the Nailer. Close the Magazine Cover (91) and Door

(32) securely. Then, reconnect the air supply hose to the Nailer.

5. Press the Safety (38) against a piece of scrap wood, and test re the Nailer

several times while checking for proper operation. If the Nailer is properly ring,

you may continue using the tool. If the tool fails to perform properly, immediately

discontinue use and have the tool repaired by a qualied service technician.

6. When nished working, disconnect the air supply. Remove the nails. Then, store

the Nailer in a clean, dry, safe location out of reach of children.

Anytime any maintenance or repairs are done (including clearing jams), FIRST:

1. Disconnect the Nailer from its air supply.

2. Empty the Magazine (85) completely.

3. Attempt to re the Nailer into a piece of scrap wood to ensure that it is disconnected

and is incapable of ring any Nails.

Table des matières

Autres manuels Central Pneumatic Cloueuse

Central Pneumatic

Central Pneumatic Contractor 98464 Manuel d'installation

Central Pneumatic

Central Pneumatic 42528 Manuel de la liste des pièces

Central Pneumatic

Central Pneumatic 67450 Manuel d'instructions d'origine

Central Pneumatic

Central Pneumatic 39092 Manuel utilisateur

Central Pneumatic

Central Pneumatic 67100 Manuel d'installation

Central Pneumatic

Central Pneumatic Contractor 97526 Manuel utilisateur

Central Pneumatic

Central Pneumatic 91044 Manuel utilisateur

Central Pneumatic

Central Pneumatic Central Pneumatic Air Nailer/Stapler 2-in-1 Kit... Manuel utilisateur

Central Pneumatic

Central Pneumatic 99640 Manuel d'installation

Central Pneumatic

Central Pneumatic 95218 Manuel de la liste des pièces

Central Pneumatic

Central Pneumatic 90193 Manuel utilisateur

Central Pneumatic

Central Pneumatic 98751 Manuel d'installation

Central Pneumatic

Central Pneumatic Contractor 97524 Manuel utilisateur

Central Pneumatic

Central Pneumatic 92917 Manuel utilisateur

Central Pneumatic

Central Pneumatic 93496 Manuel utilisateur

Central Pneumatic

Central Pneumatic 92359 Manuel d'installation

Central Pneumatic

Central Pneumatic 98751 Guide de l'utilisateur

Central Pneumatic

Central Pneumatic 40115 Manuel utilisateur

Central Pneumatic

Central Pneumatic Contractor 97526 Manuel de la liste des pièces

Central Pneumatic

Central Pneumatic 44923 Manuel de la liste des pièces

Central Pneumatic

Central Pneumatic 68057 Manuel utilisateur

Central Pneumatic

Central Pneumatic 93909 Manuel d'installation

Central Pneumatic

Central Pneumatic 47612 Contractor Series Manuel d'installation

Central Pneumatic

Central Pneumatic 68023 Manuel d'installation

Manuels Cloueuse populaires d'autres marques

Performance Tool

Performance Tool M643 Manuel utilisateur

Hitachi

Hitachi VH650 - Fencing Nailer, Full Head Manuel utilisateur

Parkside

Parkside PET 25 B1 Manuel utilisateur

Senco

Senco Fusion Technology F-35XP Manuel utilisateur

Grizzly

Grizzly G1847 Manuel utilisateur

Ryobi

Ryobi R18N18G Manuel utilisateur

Black & Decker

Black & Decker 492848-00 Manuel utilisateur

HOLZMANN MASCHINEN

HOLZMANN MASCHINEN TN90 Manuel utilisateur

Metabo HPT

Metabo HPT NR 3690DC Mode d’emploi

Surtek

Surtek CN650 Dimensions et guide d'installation

Makita

Makita GF600 Manuel utilisateur

Parkside

Parkside PET 25 B1 Manuel utilisateur

Senco

Senco AirFree 25 Manuel utilisateur

Freeman

Freeman P50LSLW Manuel utilisateur

Aicon PRO

Aicon PRO DAC4507 Manuel utilisateur

DAJ

DAJ XR150A Manuel utilisateur

Makita

Makita AN923 Manuel utilisateur

Grizzly

Grizzly T20644 Manuel utilisateur
