Central Pneumatic 92359 Manuel utilisateur

COIL ROOFING NAILER

11 GAUGE

Model 92359

ASSEMBLY AND OPERATING INSTRUCTIONS

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit ourWeb site at: http://www.harborfreight.com

TO PREVENT SERIOUS INJURY,

READ AND UNDERSTAND ALL WARNINGS

AND INSTRUCTIONS BEFORE USE.

manual or any artwork contained herein may be reproduced in any shape or form

without the express written consent of Harbor Freight Tools.

For technical questions or replacement parts, please call 1-800-444-3353.

SKU 92359 For technical questions, please call 1-800-444-3353. PAGE2

Specifications

SaveThis Manual

You will need this manual for the safety warnings and precautions, assembly, operating,

inspection, maintenance and cleaning procedures, parts list and assembly diagram.

Keep your invoice with this manual. Write the invoice number on the inside of the front

cover. Keep this manual and invoice in a safe and dry place for future reference.

Safety Warnings and Precautions

WARNING:When using tool, basic safety precautions should always be

followed to reduce the risk of personal injury and damage to equipment.

Read all instructions before using this tool!

1. Keep work area clean. Cluttered areas invite injuries.

2. Observe work area conditions. Do not use machines or power tools in damp or

wet locations. Do not expose to rain. Keep work area well lit. Do not use electri-

cally powered tools in the presence of flammable gases or liquids.

3. Keep children away. Children must never be allowed in the work area. Do not

let them handle machines, tools, extension cords, or air hoses.

4. Store idle equipment. When not in use, tools must be stored in a dry location to

inhibit rust. Always lock up tools and keep out of reach of children.

5. Use the right tool for the job. Do not attempt to force a small tool or attachment

metInoitpircseD

yticapaChtgneLrenetsaF

-1oT"

gnoL"

eguaGrenetsaFsknahSretemaiD"21.0

yticapaCenizagaMdaoLreP051-021

ISPgnitarepOISP021-56

deriuqeRMFCSISP09@MFCS7

epyTreggirTpirTytefaSlaitneuqeSlluF

seirosseccA /liOlooTriA/)mm5&,mm4,mm3(sehcnerWxeH/esaCgniyrraC )sliaN"8/7(lioCliaN/selggoGeyEtcapmIytefaSdevorppAISNA

thgieWteNsdnuoP2.11

REV 01/05, REV 04/05

SKU 92359 For technical questions, please call 1-800-444-3353. PAGE3

to do the work of a larger industrial tool. There are certain applications for which

this tool was designed. It will do the job better and more safely at the rate for

which it was intended. Do not modify this tool and do not use this tool for a pur-

pose for which it was not intended.

6. Dress properly. Do not wear loose clothing or jewelry as they can be caught in

moving parts. Protective, electrically nonconductive clothes and nonskid foot

wear are recommended when working. Wear restrictive hair covering to contain

long hair.

7. Do not overreach. Keep proper footing and balance at all times. Do not reach

over or across running machines or air hoses.

8. Use eye and ear protection. Always wear ANSI approved impact safety

goggles and appropriate hearing protection. Wear a full face shield if you

are producing metal filings or wood chips. Wear an ANSI approved dust

mask or respirator when working around metal, wood, and chemical dusts

and mists. Other people in the work area must also wear ANSI approved

impact safety goggles.

9. Maintain tools with care. Keep tools clean for better and safer performance.

Follow instructions for lubricating and changing accessories. Inspect tool cords

and air hoses periodically and, if damaged, have them repaired by an authorized

technician. The handle must be kept clean, dry, and free from oil and grease at

all times. Do not operate a tool if any portion of the tool’s operating controls are

inoperable, disconnected, altered or not working properly.

10. Disconnect Air Hose and release any built-up air pressure. Never service

the Nailer, clear jams, or disassemble with the air hose attached. Always release

any built-up air even after disconnecting hose. Disconnect the Nailer when not in

use.

11. Remove adjusting keys and wrenches. Check that keys and adjusting

wrenches are removed from the tool or machine work surface before attaching to

an air source.

12. Avoid unintentional starting. Be sure the trigger is in the Off position when not

in use and before plugging in. Do not carry any tool with your finger on the trig-

ger, whether it is attached to an air source or not. Do not point the tool towards

yourself or anyone whether it contains fasteners or not.

13. Stay alert. Watch what you are doing, use common sense. Do not operate any

tool when you are tired.

14. Check for damaged parts. Before using any tool, any part that appears dam-

SKU 92359 For technical questions, please call 1-800-444-3353. PAGE4

aged should be carefully checked to determine that it will operate properly and

perform its intended function. Check for alignment and binding of moving parts;

any broken parts or mounting fixtures; and any other condition that may affect

proper operation. Any part that is damaged should be properly repaired or re-

placed by a qualified technician. Do not use the tool if the trigger does not oper-

ate properly.

15. Guard against electric shock. Prevent body contact with grounded surfaces

such as pipes, radiators, ranges, and refrigerator enclosures.

16. Replacement parts and accessories. This product is to be repaired and ser-

viced only by a qualified technician. When this product is serviced, only identical

replacement parts should be used. Use of any other parts will void the warranty.

Only use accessories intended for use with this tool. Approved accessories are

available from Harbor Freight Tools.

17. Do not operate tool if under the influence of alcohol or drugs. Read warning

labels if taking prescription medicine to determine if your judgement or reflexes

are impaired while taking drugs. If there is any doubt, do not operate the tool.

18. Use proper size and type extension cord. If an extension cord is required, it

must be of the proper size and type to supply the correct current to the compres-

sor without heating up. Otherwise, the extension cord could melt and catch fire,

or cause electrical damage to the tool. Check your air compressor’s manual for

the appropriate size cord. It is also possible that the use of an extension cord

may cause your circuit breaker to trip or your panel fuse to open. If this hap-

pens, either use the compressor without an extension cord or find a larger am-

perage circuit to use.

19. Maintenance. The maintenance outlined in the maintenance section should be

performed regularly. For your safety, this product should be serviced or repaired

regularly only by a qualified technician.

20. Compressed air only. Never use combustible gas as a power source.

21. Do not load nails with the trigger or safety depressed. Unintentional

firing may occur. Do not load nails when the air hose is connected to the

tool. Always assume the tool contains fasteners.

22. Disconnect air supply before loading the Nailer. Before reloading (or making

any adjustments to) the Nailer, make sure the compressed air is disconnected

and tested to verify that there is no residual pressure.

23. Fire fasteners into an appropriate work surface only. Do not attempt to fire

fasteners into surfaces too hard to penetrate. Do not drive fasteners on top of

SKU 92359 For technical questions, please call 1-800-444-3353. PAGE5

other fasteners, or at too steep an angle. Fasteners can ricochet, causing per-

sonal injury. Never fire the Nailer into the air, or point it toward yourself or another

person. Always wear ANSI approved safety goggles during use, maintenance,

and reloading.

24. Do not fire fasteners too close to the edge of a workpiece. They may split the

workpiece and fly free, causing personal injury.

25. Take caution, as some woods contain preservatives such as copper chro-

mium arsenate (CCA) which can be toxic. When stapling or nailing these

materials extra care should be taken to avoid inhalation and minimize skin con-

tact.

WARNING: Some dust created by power sanding, sawing, grinding, drilling, and

other construction activities contain chemicals known (to the State of Cali-

fornia) to cause cancer, birth defects, or other reproductive harm.

Some examples of these chemicals are:

* Lead from lead-based paints

* Crystalline silica from bricks and cement and other masonry products

* Arsenic and chromium from chemically treated lumber.

(California Health & Safety Code § 25249.5, et seq.)

26. Stay within air pressure capacity. Never operate the Nailer above 120 PSI.

27. Hold tool away from head and body. During operation the Nailer may kick back

causing injury.

28. Transport Nailer safely. Always disconnect air supply when moving the tool in

the workplace. Carry the tool by the handle to avoid contact with the trigger.

29. Avoid working alone. If an accident happens, an assistant can bring help.

Note: Performance of the compressor (if powered by line voltage) may vary depending

on variations in local line voltage. Extension cord usage may also affect the tool

performance.

Warning:The warnings, cautions, and instructions discussed in this instruction

manual cannot cover all possible conditions and situations that may occur. It

must be understood by the operator that common sense and caution are factors

which cannot be built into this product, but must be supplied by the operator.

SKU 92359 For technical questions, please call 1-800-444-3353. PAGE6

Note: To connect this tool, we recommend you use the included quick connector. If an

oiler is not used, for smoother operation and to extend the life-span of the tool,

put 3-5 drops of pneumatic tool oil in the attached quick connector (1) before

each use.

Unpacking

When unpacking, check to make sure all parts shown in the Parts List on page 13

are included. If any parts are missing or broken, please call Harbor Freight Tools at the

number on the cover of this manual as soon as possible.

Operation

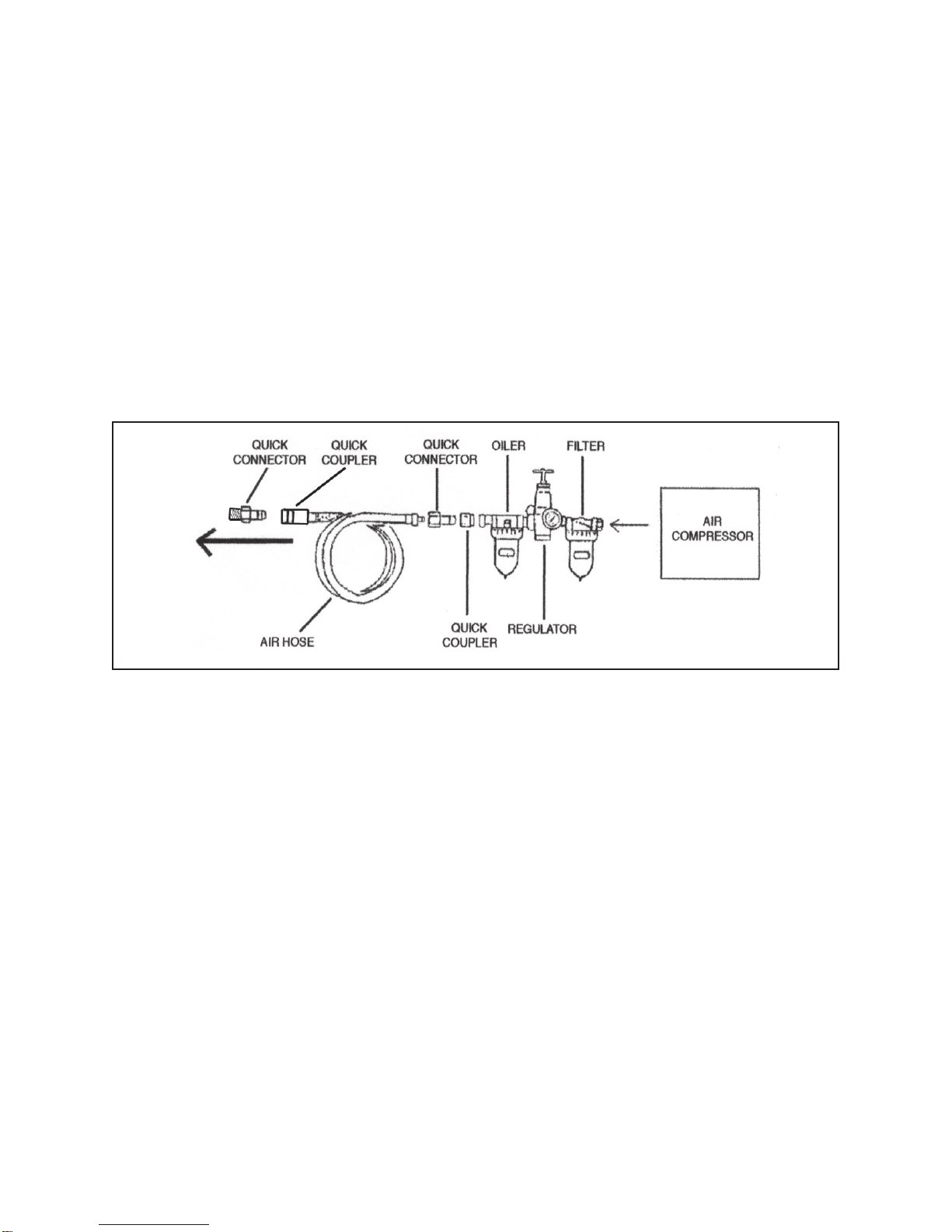

For best service, you should incorporate an oiler, regulator, and inline filter, as

shown in the diagram below. Hoses, couplers, oilers, regulators, and filters are all avail-

able at Harbor Freight Tools.

ROOFING

NAILER

Testing the Full Sequential SafetyTrip Mechanism

Warning: Even though the nailer should be empty during this procedure,

ALWAYS point the nailer at a piece of scrap wood when testing.

1. Make sure the tool is disconnected from the air supply.

2. Completely empty the Nail Cannister (82) of nails.

3. The Nailer should not fire if the nose is not depressed against the workpiece.

4. Make sure theTrigger (47) and nose move freely, without sticking - see the illus-

tration on the following page.

SKU 92359 For technical questions, please call 1-800-444-3353. PAGE7

Loading Coil Nails

ALWAYS WEAR ANSI APPROVED IMPACT SAFETY GOGGLES WHEN

RELOADING OR DOING ANY OTHER MAINTENANCE ONTHISTOOL.

Other people in the work area must also wear ANSI approved impact safety

goggles.

Warning! Make sure the Nailer is not attached to the air hose whenever loading

the tool.

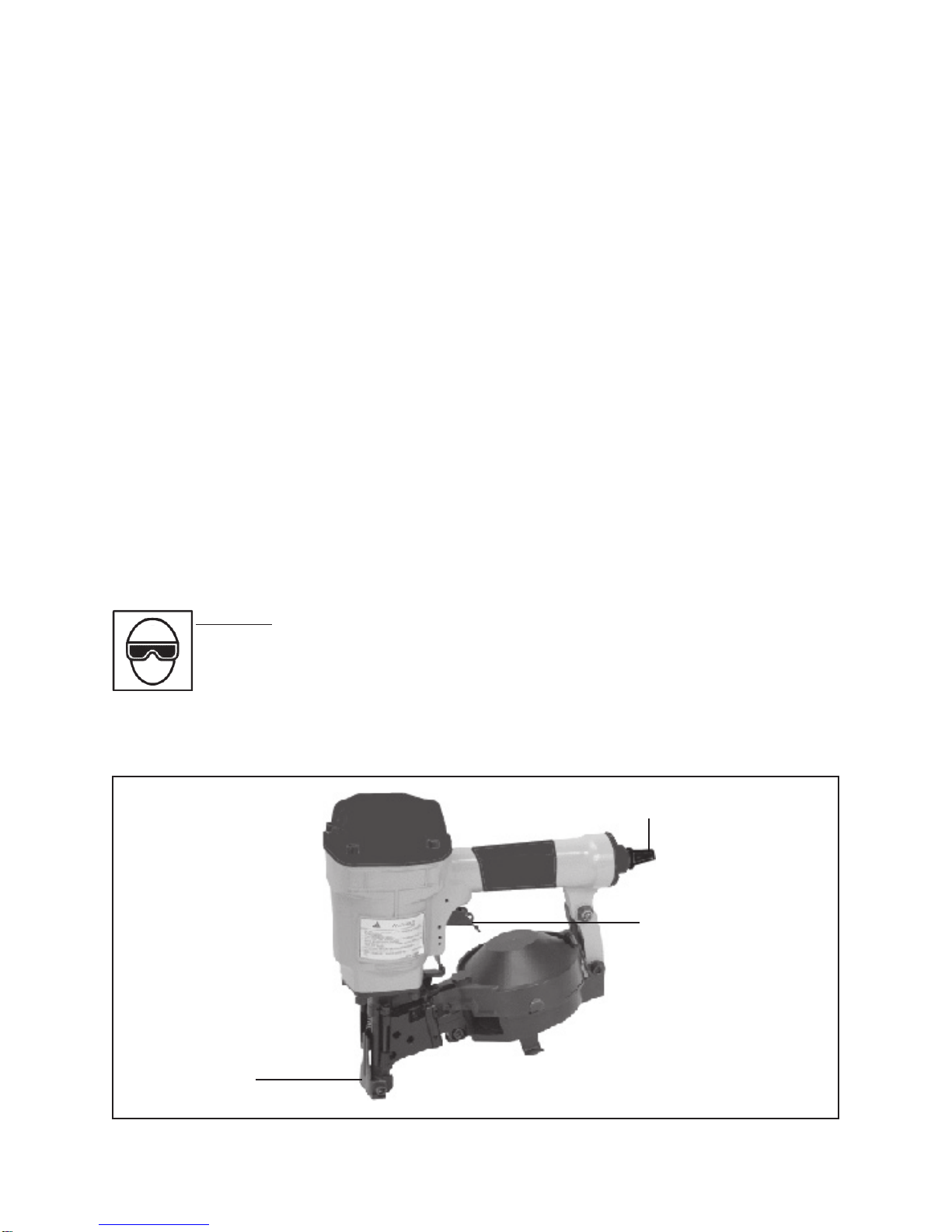

NOSE

TRIGGER (47)

AIR INLET (93)

5. Connect the air supply to the tool at the Air Inlet (93). Set the regulator at the

recommended 65 PSI to 120 PSI, and set not to go over the maximum 120 PSI.

6. Test the tool by depressing the nose against the workpiece without pulling the

Trigger (47). TheTool must not cycle (fire). If it cycles (fires), stop immediately

and have it repaired by a qualified service technician.

7. Hold the tool away or off of the workpiece. The nose of the tool should return to

its original position. Squeeze theTrigger (47). The tool should not cycle (fire).

If the tool fires, stop immediately and have it repaired by a qualified service tech-

nician.

8. Depress the nose against the workpiece and squeeze the Trigger (47). The tool

must cycle (fire) only once. Release the Trigger and squeeze it again. The

tool must not cycle (fire). With the Trigger held, carefully lift the nailer and

press it against the workpiece again. The tool must not cycle (fire). If it fails to

perform in the manner explained in bold, have it repaired by a qualified service

technician.

SKU 92359 For technical questions, please call 1-800-444-3353. PAGE8

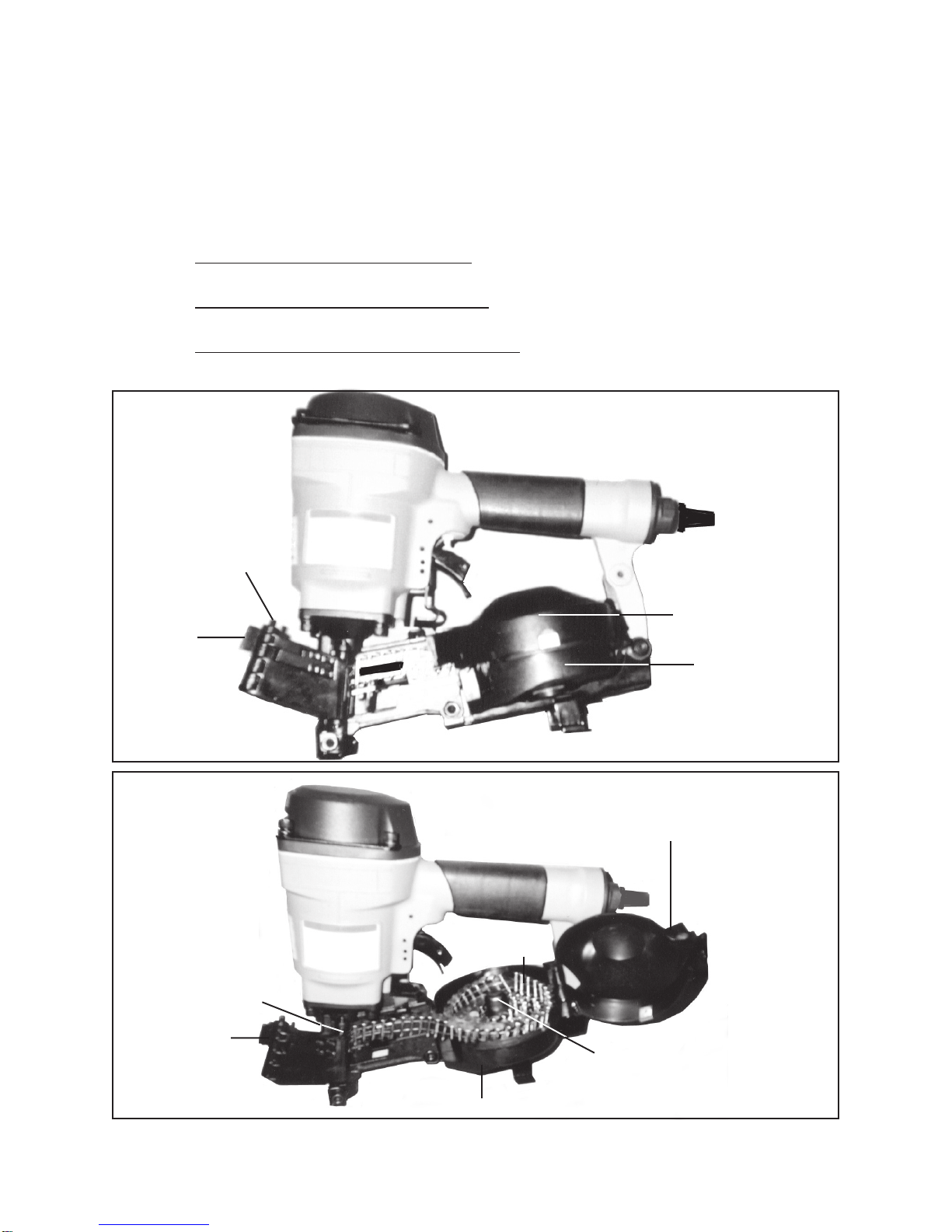

1. To open the Cannister (82), press down on the Shaft (68) and swing the Latch

(64) and Cannister Cover (89) open.

2. Check the Adjuster Plate (86) inside the Cannister (82). The Platform can be

adjusted up and down to use various lengths of nails from 3/4” to 1-3/4”:

A. Between 3/4” and 1” Long Nails

(Use top setting).

B. Between 1” and 1-1/4” Long Nails

(Use middle setting).

C. Between 1-1/4” and 1-3/4” Long Nails

(Use bottom setting).

CANNISTER COVER

(89)

CANNISTER COVER (89)

(TURNTO ADJUST)

CANNISTER (82)

NAILS

ADJUSTER PLATE (86)

LATCH

(64)

LATCH

(64)

SHAFT(68)

FEED HOOK (50)

REV 01/05

SKU 92359 For technical questions, please call 1-800-444-3353. PAGE9

BOTTOM

VIEW

SCREW

(80)

BRACKET

(79)

SHINGLESPACING

Operating the Nailer

1. Attach the Nailer to the air supply at the Air Inlet (93). Start your compressor and

check the pressure making sure it is set at the recommended 65-120 PSI and not

to go over the maximum 120 PSI.

2. To fire, place the nose of the Nailer on the workpiece. The Nailer should not fire if

the nose is not depressed. Once depressed, gently and briefly squeeze the

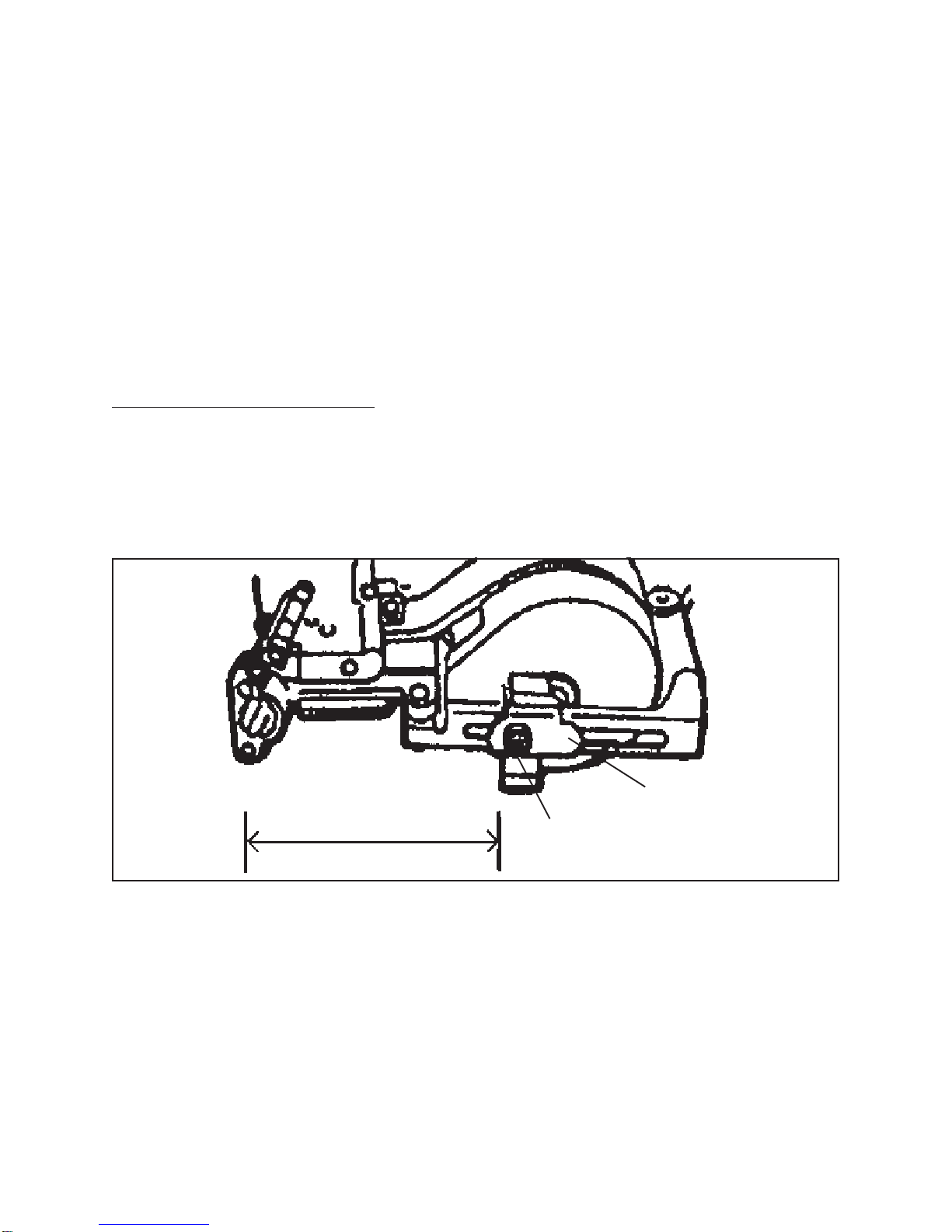

To AdjustThe Shingle Gauge:

The Bracket (79) controls roof shingle spacing. To adjust the Bracket to work with

a particular width of shingles, use the accessory HexWrench to loosen the Screw

(80) on the Bracket. Slide the Bracket forward or backward to the desired spac-

ing. Then, retighten the Screw.

3. Place a coil of Nails (not included) around the Adjuster Plate (86) in the Nail

Cannister (82).

4. Uncoil enough nails to reach the Feed Hook (50). Place the

second

nail on the

coil between the teeth of the Feed Pawl, making sure the nail head fits in the slot

in the upper portion of the Feed Pawl.

5. Swing the Cannister Cover (89) closed. Then, close the Latch (64). Make sure

the Latch closes securely. If it does not engage, the nail head is not in the slot in

the upper portion of the Feed Hook (50).

SKU 92359 For technical questions, please call 1-800-444-3353. PAGE10

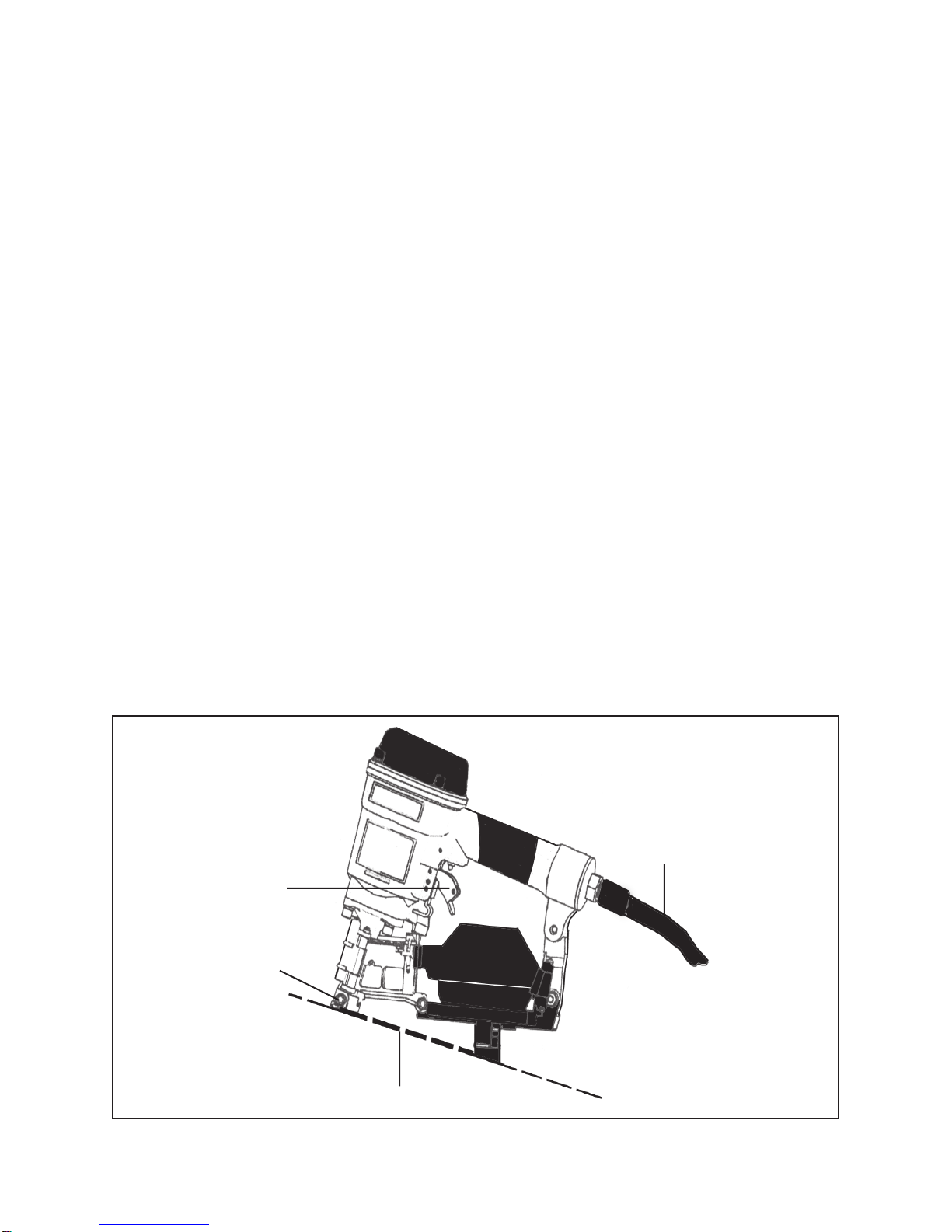

ROOFING SHINGLE

NOSE

TRIGGER (47)

AIR SUPPLY HOSE

(NOT INCLUDED)

Trigger (47) once and one nail will fire. To fire another nail, pull the nose of the

nailer up off the workpiece, place the nose back down onto the next position on

the workpiece and briefly squeeze the trigger. Repeat this procedure to continue

firing nails. Do not fire nails on top of one another or into any foreign object.

Nails could bounce off, damaging the workpiece or causing PERSONAL INJURY.

3. Do not press the Nose of the Roofing Nailer against the work surface with excess

force. Allow the tool to do the work. Always allow the tool to recoil off the work-

piece.

4. Caution: While working on roofs, tar and dirt may build up on the Nose of the

Roofing Nailer. This can prevent normal operation. Remove buildup with a non-

flammable solvent. NEVER use gasoline or other flammable solvents. Do not

immerse the Roofing Nailer in an approved solvent beyond the height of the nail

heads, to avoid getting the solvent into the drive cylinder of the tool. Make sure to

dry off the Roofing Nailer before use. Any oil film left after cleanup will accelerate

tar buildup.

5. When finished using the Roofing Nailer, always disconnect the tool from its com-

pressed air supply. Attempt to fire the Roofing Nailer into a piece of scrap wood

to ensure it is disconnected and is incapable of firing any nails. Empty the Nail

Cannister (82) completely of nails.

6. Make sure to store the Roofing Nailer in its accessory Carrying Case and in a

clean, dry, safe location out of reach of children.

Autres manuels pour 92359

Table des matières

Autres manuels Central Pneumatic Cloueuse

Central Pneumatic

Central Pneumatic 92917 Manuel d'installation

Central Pneumatic

Central Pneumatic 97586 Manuel utilisateur

Central Pneumatic

Central Pneumatic 66902 Manuel d'installation

Central Pneumatic

Central Pneumatic 68068 Instructions de montage

Central Pneumatic

Central Pneumatic 68021 Manuel d'installation

Central Pneumatic

Central Pneumatic 92917 Manuel utilisateur

Central Pneumatic

Central Pneumatic 92359 Manuel d'installation

Central Pneumatic

Central Pneumatic Contractor 97524 Manuel utilisateur

Central Pneumatic

Central Pneumatic Contractor 97526 Manuel de la liste des pièces

Central Pneumatic

Central Pneumatic 42528 Manuel de la liste des pièces

Central Pneumatic

Central Pneumatic 98751 Guide de l'utilisateur

Central Pneumatic

Central Pneumatic 67450 Manuel d'instructions d'origine

Central Pneumatic

Central Pneumatic 96364 Manuel de la liste des pièces

Central Pneumatic

Central Pneumatic 93496 Manuel utilisateur

Central Pneumatic

Central Pneumatic 66872 Manuel utilisateur

Central Pneumatic

Central Pneumatic 93257 Manuel utilisateur

Central Pneumatic

Central Pneumatic 68027 Manuel utilisateur

Central Pneumatic

Central Pneumatic 68247 Instructions de montage

Central Pneumatic

Central Pneumatic 98751 Manuel d'installation

Central Pneumatic

Central Pneumatic 93496 Manuel utilisateur

Central Pneumatic

Central Pneumatic 98917 Manuel d'installation

Central Pneumatic

Central Pneumatic Professional 97512 Manuel utilisateur

Central Pneumatic

Central Pneumatic 4041 Manuel utilisateur

Central Pneumatic

Central Pneumatic 95218 Manuel de la liste des pièces

Manuels Cloueuse populaires d'autres marques

Performance Tool

Performance Tool M643 Manuel utilisateur

Hitachi

Hitachi VH650 - Fencing Nailer, Full Head Manuel utilisateur

Parkside

Parkside PET 25 B1 Manuel utilisateur

Senco

Senco Fusion Technology F-35XP Manuel utilisateur

Grizzly

Grizzly G1847 Manuel utilisateur

Ryobi

Ryobi R18N18G Manuel utilisateur

Black & Decker

Black & Decker 492848-00 Manuel utilisateur

HOLZMANN MASCHINEN

HOLZMANN MASCHINEN TN90 Manuel utilisateur

Metabo HPT

Metabo HPT NR 3690DC Mode d’emploi

Surtek

Surtek CN650 Dimensions et guide d'installation

Makita

Makita GF600 Manuel utilisateur

Parkside

Parkside PET 25 B1 Manuel utilisateur

Senco

Senco AirFree 25 Manuel utilisateur

Freeman

Freeman P50LSLW Manuel utilisateur

Aicon PRO

Aicon PRO DAC4507 Manuel utilisateur

DAJ

DAJ XR150A Manuel utilisateur

Makita

Makita AN923 Manuel utilisateur

Grizzly

Grizzly T20644 Manuel utilisateur
