Central Pneumatic 41209 Manuel utilisateur

COIL ROOFING NAILER

7/8” TO 1-3/4” FASTENER LENGTH CAPACITY

Model 41209

ASSEMBLY AND OPERATING INSTRUCTIONS

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our Web site at: http://www.harborfreight.com

TO PREVENT SERIOUS INJURY,

READ AND UNDERSTAND ALL WARNINGS

AND INSTRUCTIONS BEFORE USE.

manual or any artwork contained herein may be reproduced in any shape or form

without the express written consent of Harbor Freight Tools.

For technical questions or replacement parts, please call 1-800-444-3353.

REV 05/05

Page 2SKU 41209 For technical questions, please call 1-800-444-3353.

Specifications

Save This Manual

You will need this manual for the safety warnings and precautions, assembly, operating,

inspection, maintenance and cleaning procedures, parts list and assembly diagram.

Keep your invoice with this manual. Write the invoice number on the inside of the front

cover. Keep this manual and invoice in a safe and dry place for future reference.

Safety Warnings and Precautions

WARNING: When using tool, basic safety precautions should always be

followed to reduce the risk of personal injury and damage to equipment.

Read all instructions before using this tool!

1. Keep work area clean. Cluttered areas invite injuries.

2. Observe work area conditions. Do not use machines or power tools in damp

or wet locations. Do not expose to rain. Keep work area well lit. Do not use

electrically powered tools in the presence of flammable gases or liquids.

3. Keep children away. Children must never be allowed in the work area. Do not

let them handle machines, tools, extension cords, or air hoses.

4. Store idle equipment. When not in use, tools must be stored in a dry location to

inhibit rust. Always lock up tools and keep out of reach of children.

5. Use the right tool for the job. Do not attempt to force a small tool or attach-

Item Description

Operating Air Pressure 65-100 PSI

Air Consumption 11 CFM (Non-continuous)

Magazine Capacity 120 Fasteners

Fastener Lengths / Gauge Size 7/8”, 1”, 1-1/4”, 1-1/2”, 1-3/4” – 11 Gauge

Air Inlet 1/4”-18 NPT

Trigger Mechanism Type Contact Safety Trip Mechanism

Sound Level 95dB

Tool Length 10-1/4”

Tool Width 4-3/4”

Tool Height 10-1/8”

Tool Weight 5.5 Pounds

Page 3SKU 41209 For technical questions, please call 1-800-444-3353.

ment to do the work of a larger industrial tool. There are certain applications for

which this tool was designed. It will do the job better and more safely at the rate

for which it was intended. Do not modify this tool and do not use this tool for a

purpose for which it was not intended.

6. Dress properly. Do not wear loose clothing or jewelry as they can be caught in

moving parts. Protective, electrically non-conductive clothes and non-skid foot

wear are recommended when working. Wear restrictive hair covering to contain

long hair.

7. Do not overreach. Keep proper footing and balance at all times. Do not reach

over or across running machines or air hoses.

8. Use eye and ear protection. Always wear ANSI approved impact safety

goggles and appropriate hearing protection. Wear a full face shield if you

are producing metal filings or wood chips. Wear an ANSI approved dust

mask or respirator when working around metal, wood, and chemical dusts

and mists. Other people in the work area must also wear ANSI approved

impact safety goggles.

9. Maintain tools with care. Keep tools clean for better and safer performance.

Follow instructions for lubricating and changing accessories. Inspect tool cords

and air hoses periodically and, if damaged, have them repaired by an authorized

technician. The handle must be kept clean, dry, and free from oil and grease at

all times. Do not operate a tool if any portion of the tool’s operating controls are

inoperable, disconnected, altered or not working properly.

10. Disconnect Air Hose and release any built-up air pressure. Never perform

service on the Nailer, clear jams, or disassemble with the air hose attached.

Always release any built-up air even after disconnecting hose. Disconnect the

Nailer when not in use.

11. Remove adjusting keys and wrenches. Check that keys and adjusting

wrenches are removed from the tool or machine work surface before attaching to

an air source.

12. Avoid unintentional starting. Be sure the trigger is in the Off position when not

in use and before plugging in. Do not carry any tool with your finger on the

trigger, whether it is attached to an air source or not. Do not point the tool to-

wards yourself or anyone whether it contains fasteners or not.

13. Stay alert. Watch what you are doing, use common sense. Do not operate any

tool when you are tired.

14. Check for damaged parts. Before using any tool, any part that appears

Page 4SKU 41209 For technical questions, please call 1-800-444-3353.

damaged should be carefully checked to determine that it will operate properly

and perform its intended function. Check for alignment and binding of moving

parts; any broken parts or mounting fixtures; and any other condition that may

affect proper operation. Any part that is damaged should be properly repaired or

replaced by a qualified technician. Do not use the tool if the trigger does not

operate properly.

15. Guard against electric shock. Prevent body contact with grounded surfaces

such as pipes, radiators, ranges, and refrigerator enclosures.

16. Replacement parts and accessories. This product is to be repaired and ser-

viced only by a qualified technician. When this product is serviced, only identical

replacement parts should be used. Use of any other parts will void the warranty.

Only use accessories intended for use with this tool. Approved accessories are

available from Harbor Freight Tools.

17. Do not operate tool if under the influence of alcohol or drugs. Read warning

labels if taking prescription medicine to determine if your judgement or reflexes

are impaired while taking drugs. If there is any doubt, do not operate the tool.

18. Use proper size and type extension cord. If an extension cord is required, it

must be of the proper size and type to supply the correct current to the compres-

sor without heating up. Otherwise, the extension cord could melt and catch fire,

or cause electrical damage to the tool. Check your air compressor’s manual for

the appropriate size cord. It is also possible that the use of an extension cord

may cause your circuit breaker to trip or your panel fuse to break. If this hap-

pens, either use the compressor without an extension cord or find a larger am-

perage circuit to use.

19. Maintenance. The maintenance outlined in the maintenance section should be

performed regularly. For your safety, this product should be serviced or repaired

regularly only by a qualified technician.

20. Compressed air only. Never use combustible gas as a power source.

21. Do not load nails with the trigger or safety depressed. Uninten-

tional firing may occur. Do not load nails when the air hose is connected

to the tool. Always assume the tool contains fasteners.

22. Disconnect air supply before loading the Nailer. Before reloading (or making

any adjustments to) the Nailer, make sure the compressed air is disconnected.

23. Fire fasteners into an appropriate work surface only. Do not attempt to fire

fasteners into surfaces too hard to penetrate. Do not drive fasteners on top of

other fasteners, or at too steep an angle. Fasteners can ricochet causing per-

Page 5SKU 41209 For technical questions, please call 1-800-444-3353.

26. Stay within air pressure capacity. Never operate the Nailer above 100 PSI.

27. Hold tool away from head and body. During operation the Nailer may kick

back causing injury.

28. Transport Nailer safely. Always disconnect air supply when moving the tool in

the workplace. Carry the tool by the handle to avoid contact with the trigger.

29. Avoid working alone. If an accident happens, an assistant can bring help.

Note: Performance of the compressor (if powered by line voltage) may vary depending

on variations in local line voltage. Extension cord usage may also affect the tool

performance.

sonal injury. Never fire the Nailer into the air, or point it toward yourself or an-

other person. Always wear ANSI approved safety goggles during use, mainte-

nance, and reloading.

24. Do not fire fasteners too close to the edge of a workpiece. They may split

the workpiece and fly free, causing personal injury.

25. Take caution, as some woods contain preservatives such as copper chro-

mium arsenate (CCA) which can be toxic. When stapling or nailing these

materials extra care should be taken to avoid inhalation and minimize skin con-

tact.

WARNING: Some dust created by power sanding, sawing, grinding, drilling, and

other construction activities contain chemicals known (to the State of Cali-

fornia) to cause cancer, birth defects, or other reproductive harm.

Some examples of these chemicals are:

* Lead from lead-based paints

* Crystalline silica from bricks and cement and other masonry products

* Arsenic and chromium from chemically treated lumber.

(California Health & Safety Code 25249.5, et seq.)

Warning: The warnings, cautions, and instructions discussed in this instruction

manual cannot cover all possible conditions and situations that may occur. It

must be understood by the operator that common sense and caution are factors

which cannot be built into this product, but must be supplied by the operator.

Page 6SKU 41209 For technical questions, please call 1-800-444-3353.

Note: To connect this tool, we recommend you use the included quick connector.

For smoother operation and to extend the life-span of the tool, put 3-5 drops of

pneumatic tool oil in the attached Air Plug (17) before each use.

Unpacking

When unpacking, check to make sure all parts shown in the Parts List on page

13 are included. If any parts are missing or broken, please call Harbor Freight Tools at

the number on the cover of this manual as soon as possible.

Operation

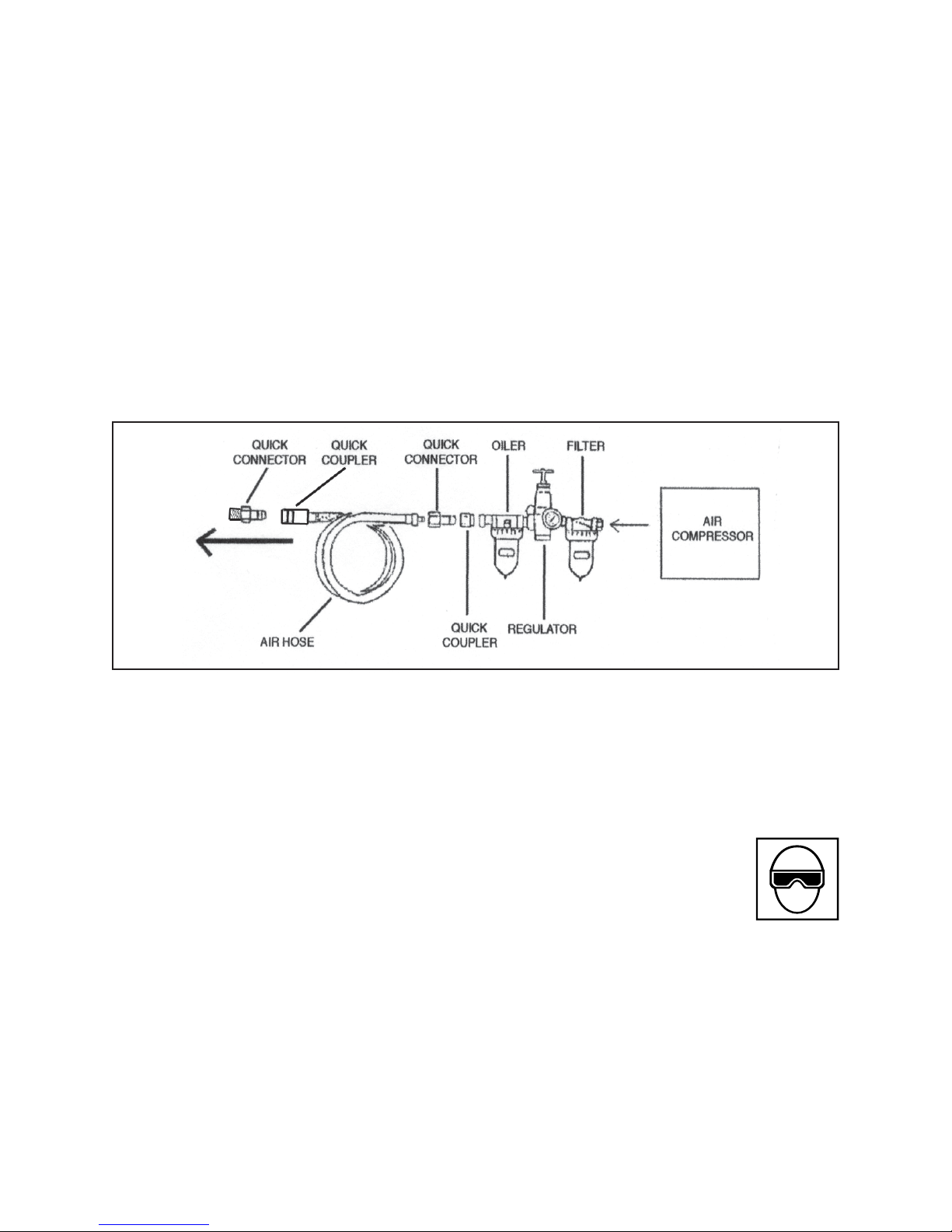

For best service, you should incorporate an oiler, regulator, and inline filter, as

shown in the diagram below. Hoses, couplers, oilers, regulators, and filters are all

available at Harbor Freight Tools.

ROOFING

NAILER

Testing the Contact Safety Trip Mechanism

Warning: Even though the nailer should be empty during this procedure,

ALWAYS point the Nailer at a piece of scrap wood and wear ANSI

approved safety goggles when testing.

1. Make sure the tool is disconnected from the air supply.

2. Completely empty the Magazine (92) of brads.

3. The Nailer should not fire if the Nose (72) is not depressed against the workpiece.

4. Make sure the Trigger (42) and Nose (72) move freely, without sticking - see the

illustration on the following page.

Page 7SKU 41209 For technical questions, please call 1-800-444-3353.

5. Connect the air supply to the tool at the Air Plug (17). Set the regulator at the

recommended 65 PSI to 100 PSI. Do not to go over the maximum 100 PSI.

6. Test the tool by depressing the nose against the workpiece without pulling the

Trigger (42). The Tool must not cycle (fire). If it cycles (fires), stop immedi-

ately and have it repaired by a qualified service technician.

7. Hold the tool away or off of the workpiece. The Nose (72) of the tool should

return to its original position. Squeeze the Trigger (42). The tool should not

cycle (fire). If the tool fires, stop immediately and have it repaired by a qualified

service technician.

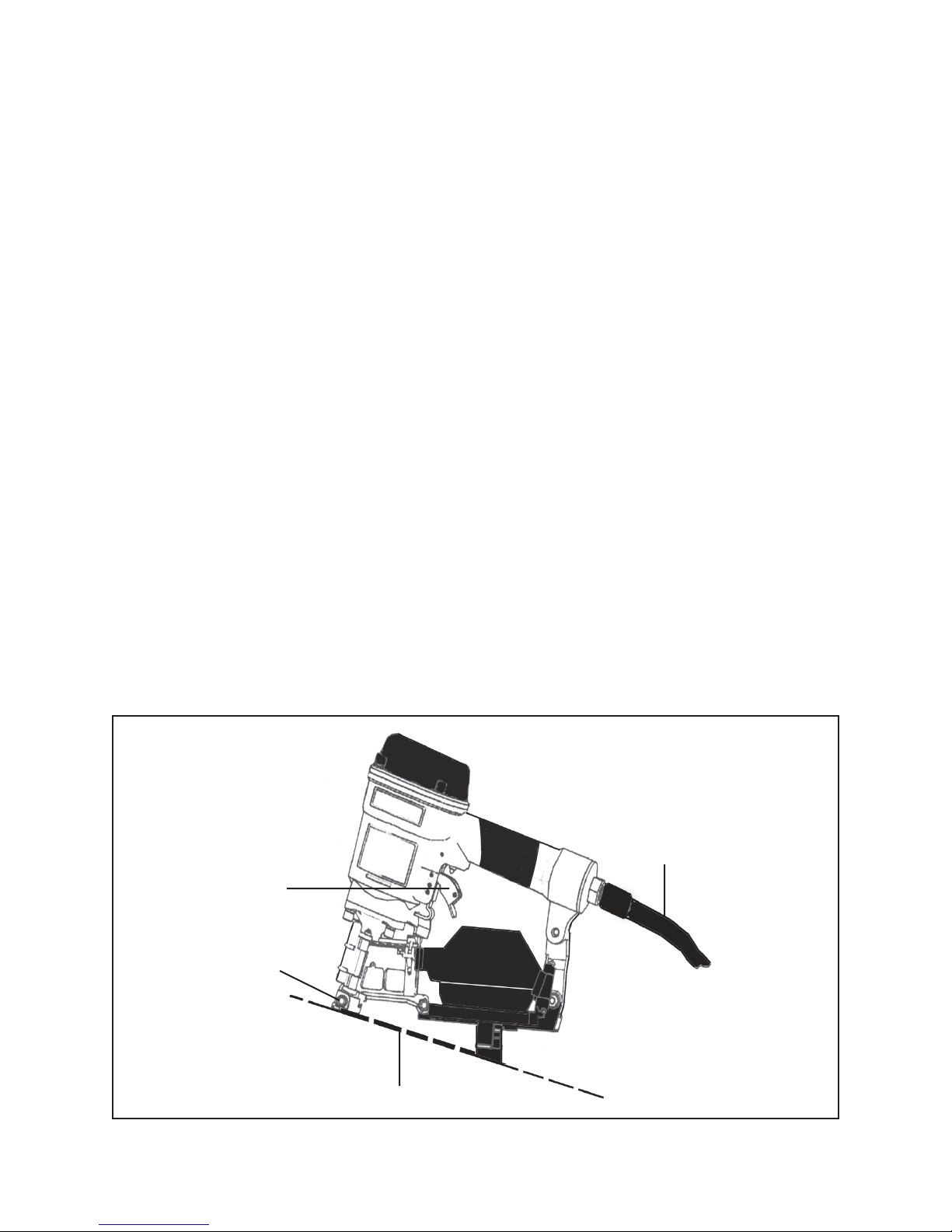

8. Depress the Nose (72) against the workpiece and squeeze the Trigger (42). The

tool must cycle (fire). Release the Trigger and squeeze it again. The tool must

cycle (fire). With the Trigger held, carefully lift the Nailer and press it against the

workpiece again. The tool must cycle (fire). If it fails to perform in the manner

explained in bold, have it repaired by a qualified service technician.

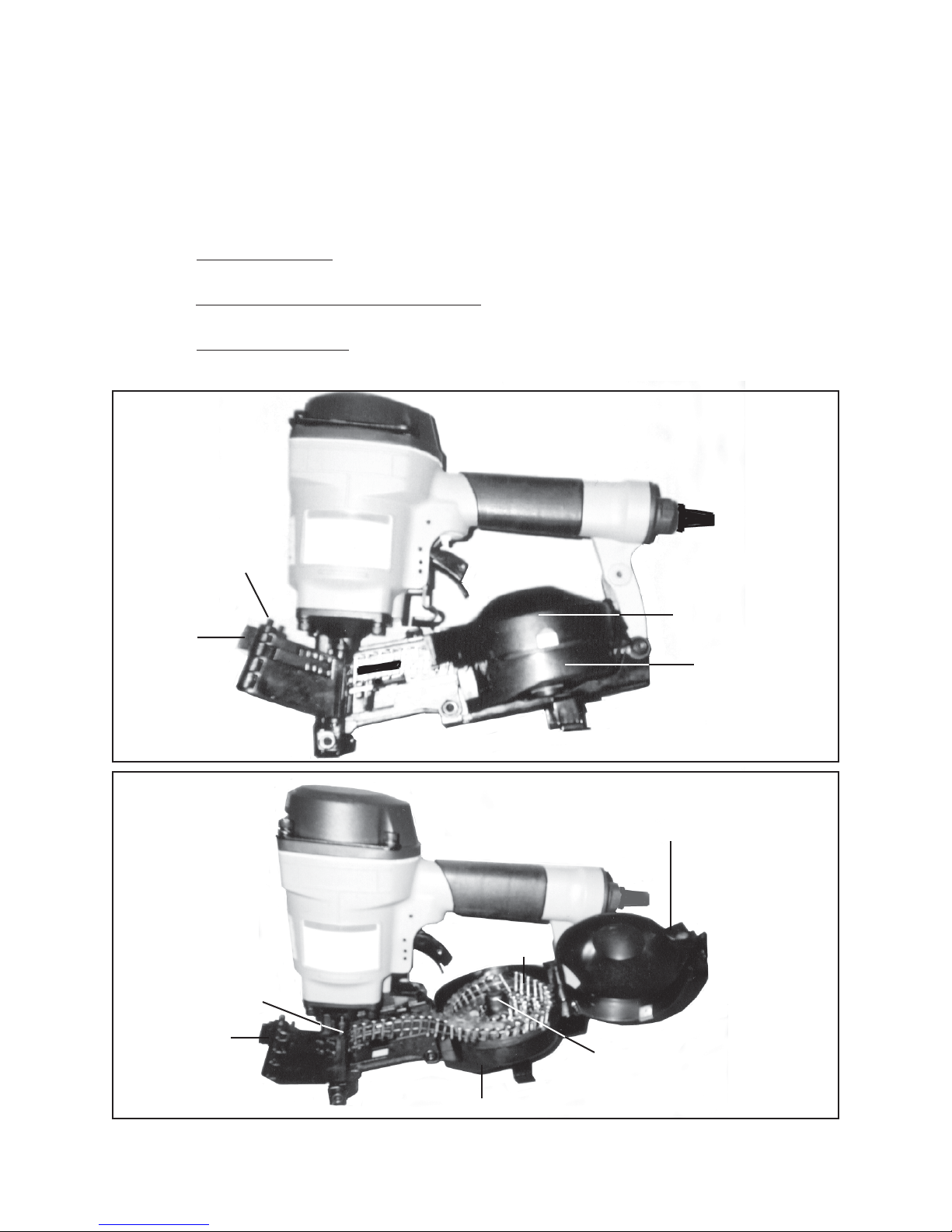

Loading Coil Nails

ALWAYS WEAR ANSI APPROVED IMPACT SAFETY GOGGLES WHEN

RELOADING OR DOING ANY OTHER MAINTENANCE ON THIS TOOL.

Other people in the work area must also wear ANSI approved impact safety

goggles.

Warning! Make sure the Nailer is not attached to the air hose whenever loading

the tool.

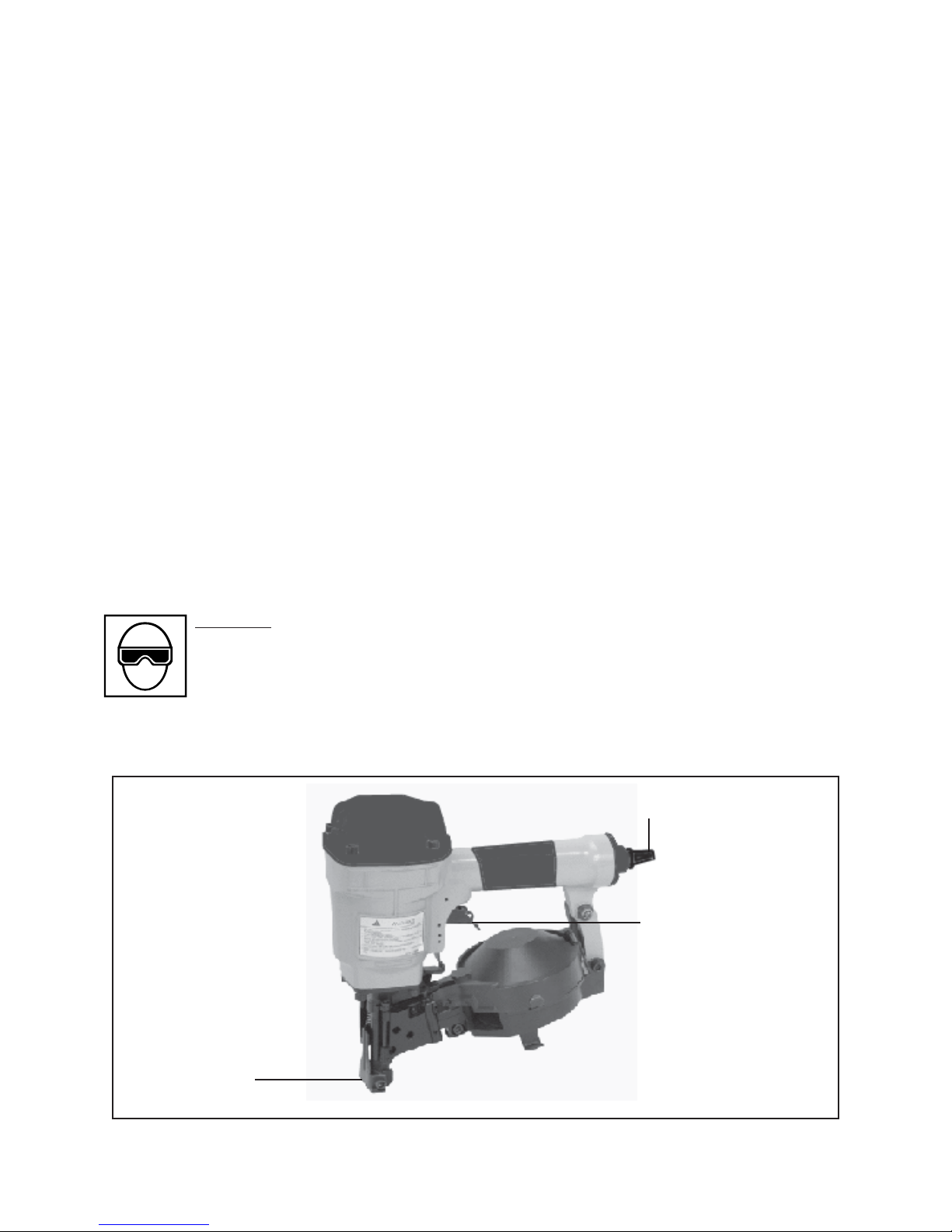

NOSE (72)

TRIGGER (42)

AIR PLUG (17)

Page 8SKU 41209 For technical questions, please call 1-800-444-3353.

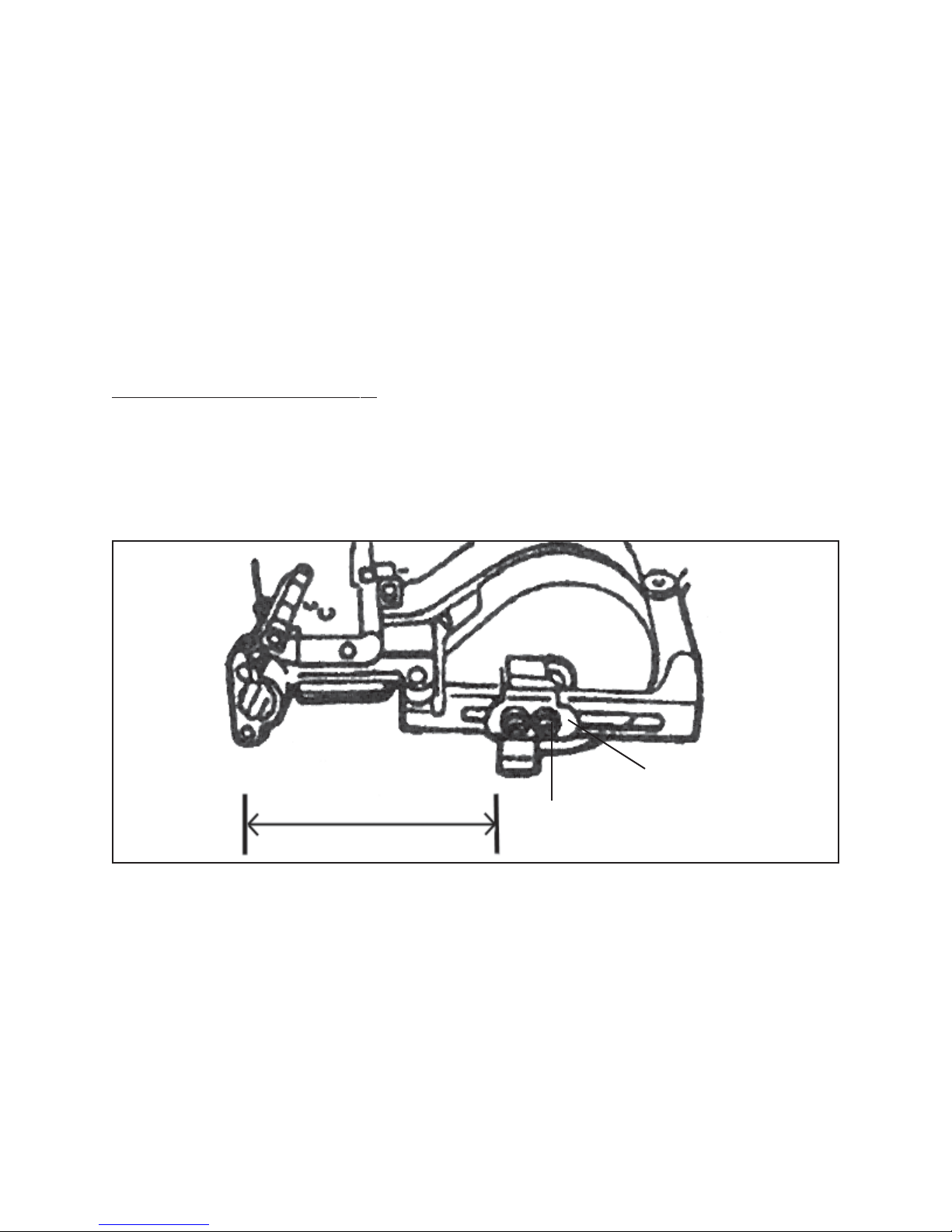

2. Check the Magazine Post (95) inside the Magazine (92). The Magazine Post can

be adjusted up and down to use various lengths of nails from 7/8” to 1-3/4”:

A. 7/8” Long Nails

(Use top setting).

B. 1”, 1-1/4”, and 1-1/2” Long Nails

(Use middle setting).

C. 1-3/4” Long Nails

(Use bottom setting).

MAGAZINE COVER

(101)

MAGAZINE COVER (101)

(TURN TO ADJUST)

MAGAZINE (92)

NAILS

1. To open the Magazine (92), press down on the Cover Hinge Pin (99) and swing

the Door (80) open to open the Magazine Cover (101).

MAGAZINE POST (95)

DOOR

(80)

DOOR

(80)

DOOR HINGE PIN (74)

FEED PAWL (61)

Page 9SKU 41209 For technical questions, please call 1-800-444-3353.

3. Place a coil of nails (not included) around the Magazine Post (95) in the

Magazine (92).

4. Uncoil enough nails to reach the Feed Pawl (61). Place the

second

nail on the

coil between the teeth of the Feed Pawl, making sure the nail head fits in the slot

in the upper portion of the Feed Pawl.

5. Swing the Magazine Cover (101) closed. Then, close the Door (80). Make sure

the Door closes securely. If it does not engage, the nail head is not in the slot in

the upper portion of the Feed Pawl (61).

To Adjust The Shingle Gauge:

1. The Gauge (87) controls roof shingle spacing. To adjust the Gauge to work with

a particular width of shingles, use the accessory Hex Wrench (103) to loosen the

Screw (84) on the Gauge. Slide the Gauge forward or backward to the desired

spacing. Then, retighten the Screw.

BOTTOM

VIEW

SCREW

(84)

GAUGE

(87)

SHINGLE SPACING

Operating the Nailer

1. Attach the Nailer to the air supply at the Air Plug (17). Start your compressor and

check the pressure making sure it is set at the recommended 65-100 PSI and not

to go over the maximum 100 PSI.

2. To fire, place the nose of the Nailer on the workpiece. The Nailer should not fire if

the nose is not depressed. Once depressed, gently and briefly squeeze the

Trigger (42) once. WARNING: Do not fire repeatedly. Nails could bounce off of

one another, damaging the workpiece or causing PERSONAL INJURY.

Page 10SKU 41209 For technical questions, please call 1-800-444-3353.

3. WARNING: When the Trigger (42) is depressed, the Roofing Nailer will fire if the

Nose of the tool comes in contact with anything.

4. Do not press the Nose (72) of the Roofing Nailer against the work surface with

extra force. Allow the tool to do the work. Always allow the tool to recoil off the

workpiece.

5. Caution: While working on roofs, tar and dirt may build up on the Nose of

the Roofing Nailer. This can prevent normal operation. Remove buildup with a

non-flammable solvent. NEVER use gasoline or other flammable solvents. Do

not immerse the Roofing Nailer in an approved solvent beyond the height of the

nail heads, to avoid getting the solvent into the drive cylinder of the tool. Make

sure to dry off the Roofing Nailer before use. Any oil film left after cleanup will

accelerate tar buildup.

6. When finished using the Roofing Nailer, always disconnect the tool from its

compressed air supply. Empty the Magazine (92) completely of nails. Attempt to

fire the Roofing Nailer into a piece of scrap wood to ensure it is disconnected and

is incapable of firing any nails.

7. Make sure to store the Roofing Nailer in a clean, dry, safe location out of reach of

children.

ROOFING SHINGLE

NOSE (72)

TRIGGER (42)

AIR SUPPLY HOSE

(NOT INCLUDED)

Table des matières

Autres manuels Central Pneumatic Cloueuse

Central Pneumatic

Central Pneumatic 68021 Manuel d'installation

Central Pneumatic

Central Pneumatic 95218 Manuel de la liste des pièces

Central Pneumatic

Central Pneumatic Central Pneumatic Air Nailer/Stapler 2-in-1 Kit... Manuel utilisateur

Central Pneumatic

Central Pneumatic 68068 Instructions de montage

Central Pneumatic

Central Pneumatic 97586 Manuel utilisateur

Central Pneumatic

Central Pneumatic 68019 Manuel d'installation

Central Pneumatic

Central Pneumatic 93496 Manuel utilisateur

Central Pneumatic

Central Pneumatic 92917 Manuel utilisateur

Central Pneumatic

Central Pneumatic 67450 Manuel d'instructions d'origine

Central Pneumatic

Central Pneumatic 67100 Manuel d'installation

Central Pneumatic

Central Pneumatic 93257 Manuel utilisateur

Central Pneumatic

Central Pneumatic 93760 Manuel utilisateur

Central Pneumatic

Central Pneumatic 93496 Manuel utilisateur

Central Pneumatic

Central Pneumatic 99640 Manuel d'installation

Central Pneumatic

Central Pneumatic 96364 Manuel de la liste des pièces

Central Pneumatic

Central Pneumatic Contractor 97520 Manuel utilisateur

Central Pneumatic

Central Pneumatic 92917 Manuel d'installation

Central Pneumatic

Central Pneumatic 68027 Manuel utilisateur

Central Pneumatic

Central Pneumatic 68024 Manuel d'installation

Central Pneumatic

Central Pneumatic 40115 Manuel utilisateur

Central Pneumatic

Central Pneumatic 47612 Contractor Series Manuel d'installation

Central Pneumatic

Central Pneumatic Contractor 97526 Manuel de la liste des pièces

Central Pneumatic

Central Pneumatic 93656 Manuel utilisateur

Central Pneumatic

Central Pneumatic 97525 Manuel utilisateur

Manuels Cloueuse populaires d'autres marques

Performance Tool

Performance Tool M643 Manuel utilisateur

Hitachi

Hitachi VH650 - Fencing Nailer, Full Head Manuel utilisateur

Parkside

Parkside PET 25 B1 Manuel utilisateur

Senco

Senco Fusion Technology F-35XP Manuel utilisateur

Grizzly

Grizzly G1847 Manuel utilisateur

Ryobi

Ryobi R18N18G Manuel utilisateur

Black & Decker

Black & Decker 492848-00 Manuel utilisateur

HOLZMANN MASCHINEN

HOLZMANN MASCHINEN TN90 Manuel utilisateur

Metabo HPT

Metabo HPT NR 3690DC Mode d’emploi

Surtek

Surtek CN650 Dimensions et guide d'installation

Makita

Makita GF600 Manuel utilisateur

Parkside

Parkside PET 25 B1 Manuel utilisateur

Senco

Senco AirFree 25 Manuel utilisateur

Freeman

Freeman P50LSLW Manuel utilisateur

Aicon PRO

Aicon PRO DAC4507 Manuel utilisateur

DAJ

DAJ XR150A Manuel utilisateur

Makita

Makita AN923 Manuel utilisateur

Grizzly

Grizzly T20644 Manuel utilisateur
