AIR COMPRESSOR

Model 95386

OPERATING INSTRUCTIONS

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our Web site at: http://www.harborfreight.com

manual or any artwork contained herein may be reproduced in any shape or form

without the express written consent of Harbor Freight Tools.

For technical questions, please call 1-800-444-3353.

Due to continuing improvements, actual product may differ slightly from the product described herein.

SKU 95386 For technical questions, please call 1-800-444-3353. Page 2

PRODUCT SPECIFICATIONS

SAVE THIS MANUAL

You will need this manual for the safety warnings and precautions, assembly, operating,

inspection, maintenance and cleaning procedures, parts list and assembly diagram.

Keep your invoice with this manual. Write the invoice number on the inside of the

front cover. Keep this manual and invoice in a safe and dry place for future reference.

GENERAL SAFETY RULES

WARNING!

READ AND UNDERSTAND ALL INSTRUCTIONS

Failure to follow all instructions listed below may result in

electric shock, fire, and/or serious injury.

SAVE THESE INSTRUCTIONS

WORK AREA

1. Keep your work area clean and well lit. Cluttered benches and dark areas

invite accidents.

metInoitpircseD

stnemeriuqeRlacirtcelE

MPR0633/zH06/V021,rotoMPH2

gninnurspmA4.7,putratsspmA5.51

C3XGWA41-

droCrewoPgnol"2/1-4-'5

ISPgnikroWmumixaMISP511

elytSpmuPpmuPrednilyCelgniS

yrevileDriA MFC2.4,ISP09@MFC0.5,

ISP04@MFC0.6

ISP511@

yticapaCknaTriAsnollaG8

slortnoCerusserPcitamotuA ISP511@ffO-tuhScitamotuA

ISP08@trats

eRcitamotuA

eziSteltuOriAsdaerhTelameFTPN81-"4/1

thgieWteNsdnuoP55

CUS

SKU 95386 For technical questions, please call 1-800-444-3353. Page 3

3. Keep bystanders, children, and visitors away while operating a power tool.

Distractions can cause you to lose control. Protect others in the work area from

debris such as chips and sparks. Provide barriers or shields as needed. Never

allow children in the work area.

ELECTRICAL SAFETY

4. Grounded tools must be plugged into an outlet properly installed and

grounded in accordance with all codes and ordinances. Never remove the

grounding prong or modify the plug in any way. Do not use any adapter

plugs. Check with a qualified electrician if you are in doubt as to whether

the outlet is properly grounded. If the tools should electrically malfunction or

break down, grounding provides a low resistance path to carry electricity away

from the user.

5. Double insulated tools are equipped with a polarized plug (one blade is

wider than the other). This plug will fit in a polarized outlet only one way. If

the plug does not fit fully in the outlet, reverse the plug. If it still does not

fit, contact a qualified electrician to install a polarized outlet. Do not

change the plug in any way. Double insulation eliminates the need for the

three wire grounded power cord and grounded power supply system.

6. Avoid body contact with grounded surfaces such as pipes, radiators,

ranges, and refrigerators. There is an increased risk of electric shock if your

body is grounded.

7. Do not expose power tools to rain or wet conditions. Water entering a power

tool will increase the risk of electric shock.

8. Do not abuse the Power Cord. Never use the Power Cord to carry the tools

or pull the Plug from an outlet. Keep the Power Cord away from heat, oil,

sharp edges, or moving parts. Replace damaged Power Cords immediately.

Damaged Power Cords increase the risk of electric shock.

PERSONAL SAFETY

9. Stay alert. Watch what you are doing, and use common sense when

operating a power tool. Do not use a power tool while tired or under the

influence of drugs, alcohol, or medication. A moment of inattention while

operating power tools may result in serious personal injury.

2. Do not operate power tools in explosive atmospheres, such as in the

presence of flammable liquids, gases, or dust. Power tools create sparks

which may ignite the dust or fumes.

SKU 95386 For technical questions, please call 1-800-444-3353. Page 4

10. Dress properly. Do not wear loose clothing or jewelry. Contain long hair.

Keep your hair, clothing, and gloves away from moving parts. Loose

clothes, jewelry, or long hair can be caught in moving parts.

11. Avoid accidental starting. Be sure the Power Switch is off before plugging

in. Carrying power tools with your finger on the Power Switch, or plugging in

power tools with the Power Switch on, invites accidents.

12. Remove adjusting keys or wrenches before turning the power tool on. A

wrench or a key that is left attached to a rotating part of the power tool may result

in personal injury.

13. Do not overreach. Keep proper footing and balance at all times. Proper

footing and balance enables better control of the power tool in unexpected

situations.

14. Use safety equipment. Always wear ANSI-approved eye and ear protection.

Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used

for appropriate conditions.

TOOL USE AND CARE

15. Do not force the tool. Use the correct tool for your application. The correct

tool will do the job better and safer at the rate for which it is designed.

16. Do not use the power tool if the Power Switch does not turn it on or off.

Any tool that cannot be controlled with the Power Switch is dangerous and must

be replaced.

17. Disconnect the Power Cord Plug from the power source before making any

adjustments, changing accessories, or storing the tool. Such preventive

safety measures reduce the risk of starting the tool accidentally.

18. Store idle tools out of reach of children and other untrained persons. Tools

are dangerous in the hands of untrained users.

19. Maintain tools with care. Keep cutting tools sharp and clean. Properly

maintained tools with a sharp cutting edge are less likely to bind and are easier

to control. Do not use a damaged tool. Tag damaged tools “Do not use” until

repaired.

SKU 95386 For technical questions, please call 1-800-444-3353. Page 5

20. Check for misalignment or binding of moving parts, breakage of parts, and

any other condition that may affect the tool’s operation. If damaged, have

the tool serviced before using. Many accidents are caused by poorly

maintained tools.

21. Use only accessories that are recommended by the manufacturer for your

model. Accessories that may be suitable for one tool may become hazardous

when used on another tool.

SERVICE

22. Tool service must be performed only by qualified repair personnel. Service

or maintenance performed by unqualified personnel could result in a risk of injury.

23. When servicing a tool, use only identical replacement parts. Follow

instructions in the

“Inspection, Maintenance, And Cleaning”

section of this

manual. Use of unauthorized parts or failure to follow maintenance instructions

may create a risk of electric shock or injury.

GROUNDING

WARNING!

Improperly connecting the grounding wire can result in the risk of electric

shock. Check with a qualified electrician if you are in doubt as to whether the

outlet is properly grounded. Do not modify the power cord plug provided with

the tool. Never remove the grounding prong from the plug. Do not use the

tool if the power cord or plug is damaged. If damaged, have it repaired by a

service facility before use. If the plug will not fit the outlet, have a proper outlet

installed by a qualified electrician.

GROUNDED TOOLS: TOOLS WITH THREE PRONG PLUGS

1. Tools marked with “Grounding Required” have a three wire cord and three prong

grounding plug. The plug must be connected to a properly grounded outlet. If the

tool should electrically malfunction or break down, grounding provides a low

resistance path to carry electricity away from the user, reducing the risk of electric

shock. (See Figure A.)

2. The grounding prong in the plug is connected through the green wire inside the

cord to the grounding system in the tool. The green wire in the cord must be the only

wire connected to the tool’s grounding system and must never be attached to an

electrically “live” terminal. (See Figure A.)

SKU 95386 For technical questions, please call 1-800-444-3353. Page 6

3. Your tool must be plugged into an appropriate outlet, properly installed and grounded

in accordance with all codes and ordinances. The plug and outlet should look like

those in the following illustration. (See Figure A.)

FIGURE A

DOUBLE INSULATED TOOLS: TOOLS WITH TWO PRONG PLUGS

4. Tools marked “Double Insulated” do not require grounding. They have a special

double insulation system which satisfies OSHA requirements and complies with

the applicable standards of Underwriters Laboratories, Inc., the Canadian Standard

Association, and the National Electrical Code. (See Figure B.)

5. Double insulated tools may be used in either of the 120 volt outlets shown in the

following illustration. (See Figure B.)

FIGURE B

NOTE: This product has a 3-prong, grounded electrical plug

SKU 95386 For technical questions, please call 1-800-444-3353. Page 7

Grounded

tools require a three wire extension cord.

Double Insulated

tools can

use either a two or three wire extension cord.

2. As the distance from the supply outlet increases, you must use a heavier gauge

extension cord. Using extension cords with inadequately sized wire causes a serious

drop in voltage, resulting in loss of power and possible tool damage.

(See Figure C, next page.)

3. The smaller the gauge number of the wire, the greater the capacity of the cord. For

example, a 14 gauge cord can carry a higher current than a 16 gauge cord.

(See Figure C.)

4. When using more than one extension cord to make up the total length, make sure

each cord contains at least the minimum wire size required. (See Figure C.)

5. If you are using one extension cord for more than one tool, add the nameplate

amperes and use the sum to determine the required minimum cord size.

(See Figure C.)

6. If you are using an extension cord outdoors, make sure it is marked with the suffix

“W-A” (“W” in Canada) to indicate it is acceptable for outdoor use.

7. Make sure your extension cord is properly wired and in good electrical condition.

Always replace a damaged extension cord or have it repaired by a qualified

electrician before using it.

8. Protect your extension cords from sharp objects, excessive heat, and damp or wet

areas.

*SDROCNOISNETXEROFEGUAGERIWMUMINIMDEDNEMMOCER

ETALPEMAN

SEREPMA

)daoLlluFtA(

HTGNELDROCNOISNETXE

teeF52teeF

05teeF57teeF001teeF051

0.2-08181818161

4.3-1.28181816141

0.5-5.38181614121

0.7-1.58161412121

0.21-1.781412101-

0.61-1.21412101--

0.02-1.612101 ---

CERUGIF

evifotpordegatlovenilehtgnitimilnodesaB*

.serepmadetarehtfo%051tastlov

EXTENSION CORDS

SKU 95386 For technical questions, please call 1-800-444-3353. Page 8

SPECIFIC SAFETY RULES

1. Maintain a safe working environment. Keep the work area well lit. Make sure

there is adequate surrounding workspace. Always keep the work area free of

obstructions, grease, oil, trash, and other debris. Do not use this product in areas

near flammable chemicals, gasoline, dusts and vapors.

2. Maintain labels and nameplates on the Air Compressor. These carry

important information. If unreadable or missing, contact Harbor Freight Tools for a

replacement.

3. Use eye and hearing protection. Always wear ANSI-approved safety impact

eye goggles and hearing protectors when using this product.

4. Do not allow children to use or play with this product.

5. Store idle equipment. When not in use, tools and equipment should be stored in

a dry location to inhibit rust. Always lock up tools and equipment, and keep out of

reach of children.

6. Do not use this product if under the influence of alcohol or drugs. Read

warning labels on prescriptions to determine if your judgement or reflexes are

impaired while taking drugs. If there is any doubt, do not attempt to use this

product.

7. Make sure to fill the Air Compressor with a premium quality, 30-weight,

non-detergent, compressor oil before each use. Running the Air Compressor

with no oil or low oil will cause damage to the equipment and void the warranty.

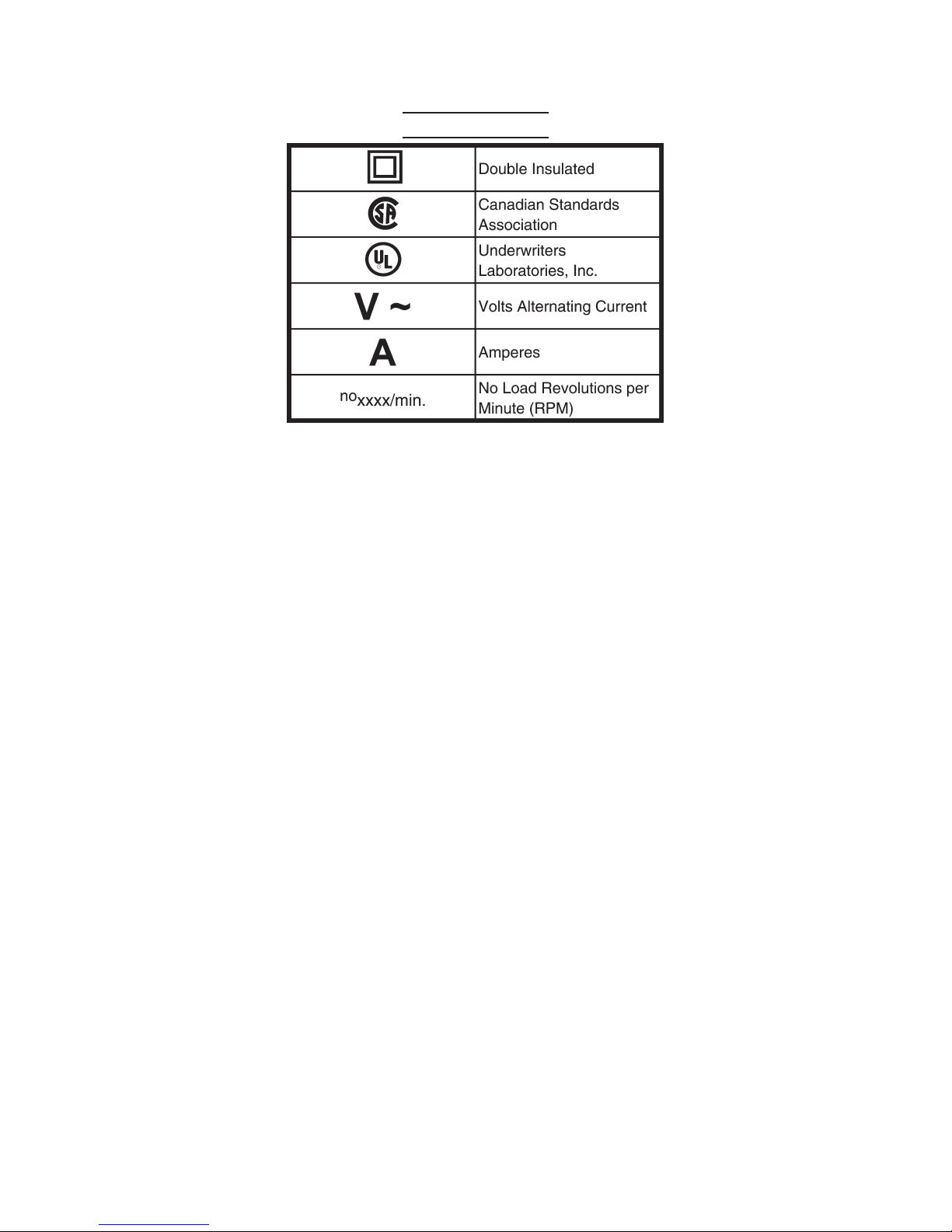

SYMBOLOGY

SKU 95386 For technical questions, please call 1-800-444-3353. Page 9

8. When filling the Air Compressor with oil, make sure to unscrew (do not pull)

the Oil Plug (31) out.

9. Do not allow moisture to build up inside the Air Tank (1). Drain water from the

tank daily. Do not open the Drain Valve (65) so that more than four threads are

showing.

10. Avoid injury. Never direct the pressurized air stream at people or animals.

11. Do not alter or remove the factory sealed Safety Valve (56).

12. Dress properly. Do not wear loose clothing or jewelry as they can be caught in

moving parts. Wear restrictive hair covering to contain long hair.

13. Do not overreach. Keep proper footing and balance at all times. Do not reach

over or across running machines.

14. Industrial applications must follow OSHA requirements.

15. Maintain this product with care. Keep this product clean for better and safer

performance.

16. Maintenance: For your safety, service and maintenance should be performed

regularly by a qualified technician.

17. Check for damaged parts. Before using this product, carefully check that it will

operate properly and perform its intended function. Check for damaged parts and

any other conditions that may affect the operation of this product. Replace or

repair damaged or worn parts immediately.

18. Replacement parts and accessories: When servicing, use only identical

replacement parts. Only use accessories intended for use with this product.

19. Use the right tool or attachment for the job. Do not attempt to force a small tool

or attachment to do the work of a larger industrial tool or attachment. There are

certain applications for which this product was designed. It will do the job better

and more safely at the rate for which it was intended. Do not modify this product,

and do not use this product for a purpose for which it was not intended.

20. To extend the life of your air tools and equipment: It is recommended to install

a water filter and oiler (available from Harbor Freight Tools) in series with the Air

Outlet Valve (63) of the Air Compressor. (See Figure C, next page.)

21. WARNING! People with pacemakers should consult their physician(s) before

using this product. Operation of electrical equipment in close proximity to a heart

pacemaker could cause interference or failure of the pacemaker.

22. Do not leave the Air Compressor running while it is unattended.

SKU 95386 For technical questions, please call 1-800-444-3353. Page 10

OPERATING INSTRUCTIONS

NOTE: For additional information regarding the parts mentioned in the following pages,

refer to the Assembly Diagrams on page 16.

1. IMPORTANT! Always fill the Air Compressor with a premium quality,

30-weight, non-detergent, compressor oil before each use. Running the Air

Compressor with no oil or low oil will cause damage to the equipment and

void the warranty. To check the level of oil, make sure the Air Compressor is

OFF. Then, observe the Oil Sight Gauge (33). The level of oil should be within

the red circle on the Oil Sight Gauge (33). (See Figure D, next page) If the level of

oil is below the red circle, carefully unscrew and remove the Oil Plug (31) and

UNPACKING

When unpacking, check to make sure all the parts shown on the Parts Lists on page 15

are included. If any parts are missing or broken, please call Harbor Freight Tools at the

number shown on the cover of this manual as soon as possible.

23. WARNING! The warnings, precautions, and instructions discussed in this

manual cannot cover all possible conditions and situations that may occur. The

operator must understand that common sense and caution are factors which

cannot be built into this product, but must be supplied by the operator.

24. WARNING! The brass components of this product contain lead, a chemical

known to the State of California to cause birth defects (or other reproductive

harm). (California Health & Safety code § 25249.5,

et seq.

)

FIGURE C

WATER

OILER

AIRTOOL

TO:

AIR OUTLET

VALVE (63)

Autres manuels pour 95386

Table des matières

Autres manuels Central Pneumatic Compresseur d'air

Central Pneumatic

Central Pneumatic 60567 Manuel d'instructions d'origine

Central Pneumatic

Central Pneumatic CentralPneumatic 17 GAL Instructions de montage

Central Pneumatic

Central Pneumatic 93785 Manuel utilisateur

Central Pneumatic

Central Pneumatic 60637 Instructions de montage

Central Pneumatic

Central Pneumatic Central Pneumatic 30 Gallon, 180 PSI Gas Powered Two-Stage Air... Manuel utilisateur

Central Pneumatic

Central Pneumatic 65903 Manuel d'installation

Central Pneumatic

Central Pneumatic 90385 Manuel utilisateur

Central Pneumatic

Central Pneumatic 96469 Manuel d'installation

Central Pneumatic

Central Pneumatic 68067 Instructions de montage

Central Pneumatic

Central Pneumatic 60754 Manuel utilisateur

Central Pneumatic

Central Pneumatic 67696 Manuel d'installation

Central Pneumatic

Central Pneumatic 62779 Manuel utilisateur

Central Pneumatic

Central Pneumatic CentralPneumatic 68064 Manuel d'installation

Central Pneumatic

Central Pneumatic 68149 Manuel d'installation

Central Pneumatic

Central Pneumatic 90749 Manuel utilisateur

Central Pneumatic

Central Pneumatic 98635 Manuel d'installation

Central Pneumatic

Central Pneumatic 04169 Manuel utilisateur

Central Pneumatic

Central Pneumatic 95275 Manuel d'installation

Central Pneumatic

Central Pneumatic 61615 Instructions de montage

Central Pneumatic

Central Pneumatic 93271 Manuel d'installation

Central Pneumatic

Central Pneumatic 68140 Manuel d'installation

Central Pneumatic

Central Pneumatic 56101 Instructions de montage

Central Pneumatic

Central Pneumatic 61489 Manuel utilisateur

Central Pneumatic

Central Pneumatic 62913 Instructions de montage

Manuels Compresseur d'air populaires d'autres marques

Sparmax

Sparmax DC-25XR Manuel utilisateur

KAESER

KAESER M122 Manuel utilisateur

GMC

GMC GAC1500 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton Air Compressor Manuel utilisateur

Fini

Fini F3GST2TK Manuel utilisateur

Industrial Air

Industrial Air CP1580325 Manuel de programmation

Campbell Hausfeld

Campbell Hausfeld RP3300 Guide de démarrage rapide

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manuel utilisateur

Hitachi

Hitachi EC99S Manuel de l'opérateur

Parkside

Parkside PKO 270 A1 Manuel utilisateur

Sullair

Sullair 185 Manuel utilisateur

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manuel utilisateur

Ferm

Ferm CRM1046 Manuel utilisateur

BE AC153 Manuel utilisateur

RIDGID

RIDGID OF25150A Manuel utilisateur

Johnson Controls

Johnson Controls QUANTUM LX Manuel

Sears

Sears Craftsman 919.167463 Manuel utilisateur

Ring Automotive

Ring Automotive RAC700 Manuel utilisateur
