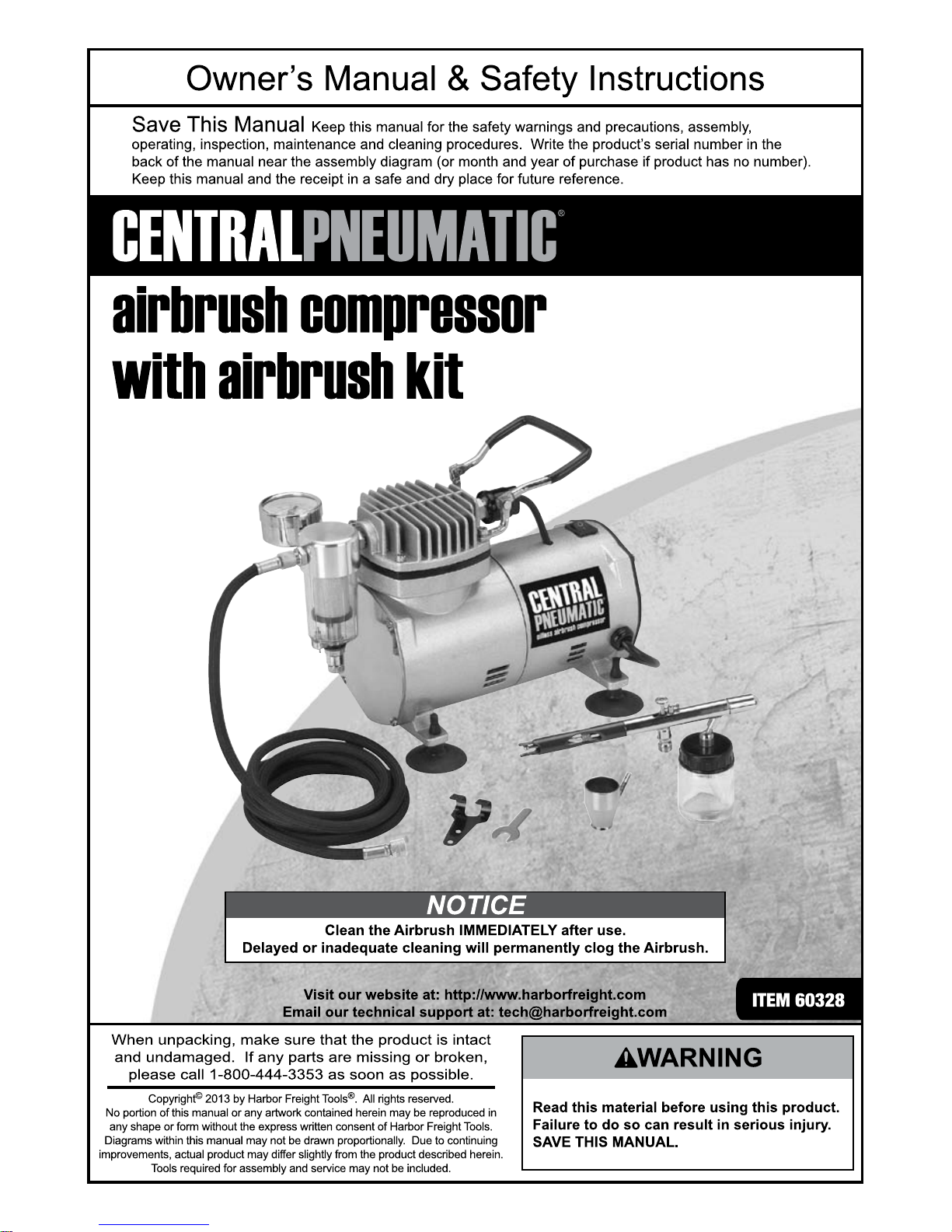

Central Pneumatic 60328 Manuel d'instructions d'origine

Page 2 For technical questions, please call 1-800-444-3353. Item 60328

NOTICE

Clean the Airbrush IMMEDIATELY after use.

Delayed or inadequate cleaning will permanently clog the Airbrush.

SAFETY OPERATION MAINTENANCESETUP

Table of Contents

Safety .................................................2

Specifications .....................................8

Setup ..................................................9

Operation...........................................11

Maintenance......................................13

Parts List and Diagram......................18

Warranty ............................................20

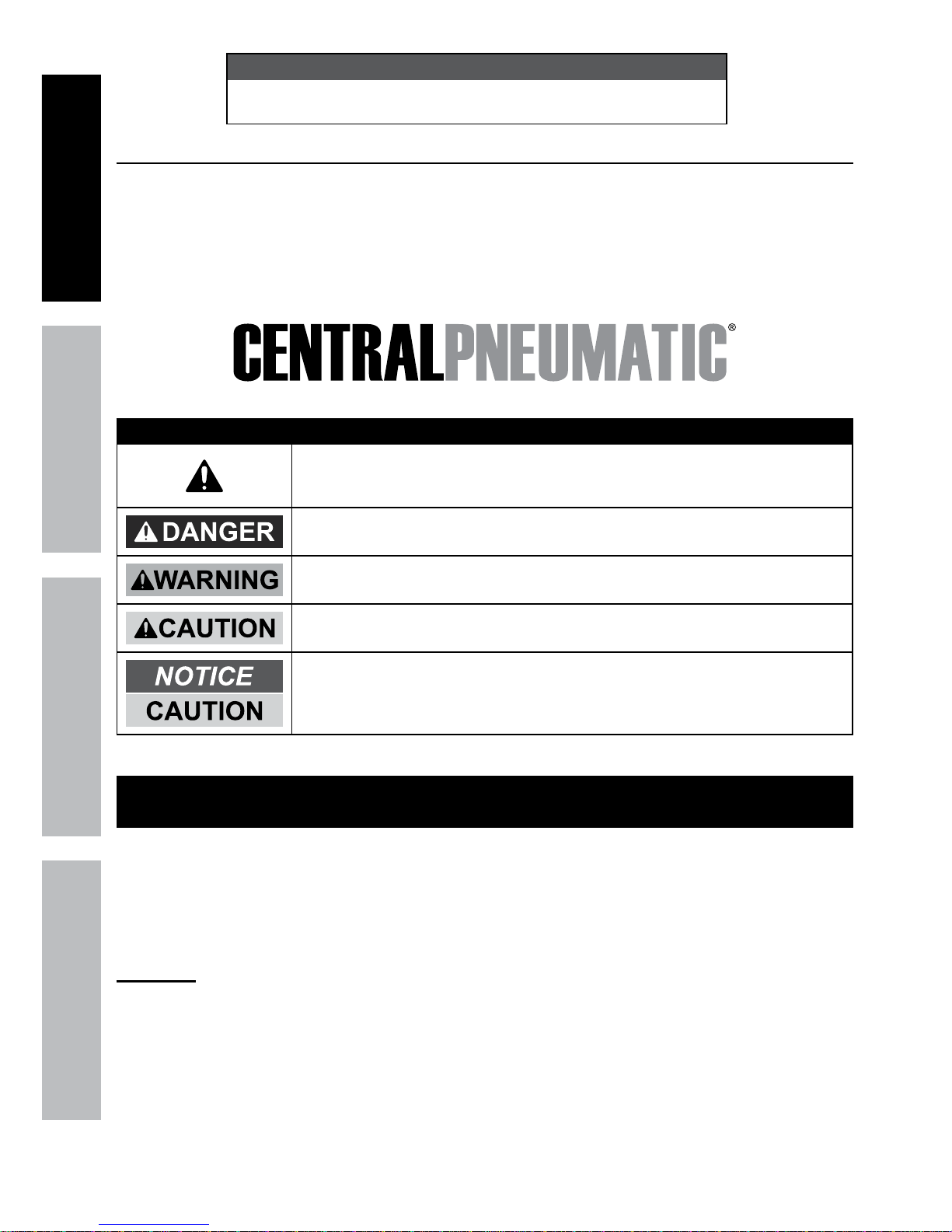

WARNING SYMBOLS AND DEFINITIONS

This is the safety alert symbol. It is used to alert you to

potential personal injury hazards. Obey all safety messages

that follow this symbol to avoid possible injury or death.

Indicates a hazardous situation which, if not avoided,

will result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in minor or moderate injury.

Addresses practices not related to personal injury.

IMPORTANT SAFETY INSTRUCTIONS

INSTRUCTIONS PERTAINING TO A RISK OF FIRE,

ELECTRIC SHOCK, OR INJURY TO PERSONS

The warnings and precautions discussed in this manual cannot cover all possible conditions

and situations that may occur. It must be understood by the operator that common sense and

caution are factors which cannot be built into this product, but must be supplied by the operator.

WARNING – When using tools, basic precautions should always be followed, including the following:

Page 3For technical questions, please call 1-800-444-3353.Item 60328

NOTICE

Clean the Airbrush IMMEDIATELY after use.

Delayed or inadequate cleaning will permanently clog the Airbrush.

SAFETYOPERATIONMAINTENANCE SETUP

Work Area

a. Keep the work area clean and well lighted.

Cluttered benches and dark areas

increase the risks of electric shock,

fire, and injury to persons.

b. Do not operate the Compressor in

explosive atmospheres, such as in the

presence of flammable liquids, gases or

dust. Compressor motors produce sparks

which may ignite the dust or fumes.

c. Keep bystanders, children, and

visitors away while operating the tool.

Distractions are able to result in

the loss of control of the tool.

Electrical Safety

a. Compressor plugs must match

the outlet. Never modify the plug

in any way. Do not use any adapter

plugs with grounded Compressors.

Standard plugs and matching outlets

will reduce risk of electric shock.

b. Do not expose Compressor to rain or wet

conditions. Water entering a Compressor

will increase the risk of electric shock.

c. Do not abuse the cord. Never

use the cord for unplugging the

Compressor. Keep cord away from

heat, oil, sharp edges or moving

parts. Damaged or entangled cords

increase the risk of electric shock.

Personal Safety

a. Stay alert. Watch what you are

doing and use common sense when

operating the tool. Do not use the

tool while tired or under the influence

of drugs, alcohol, or medication.

A moment of inattention while operating the

tool increases the risk of injury to persons.

b. Do not overreach. Keep proper

footing and balance at all times.

Proper footing and balance enables better

control of the tool in unexpected situations.

c. Prevent unintentional starting.

Ensure the switch is in the off-position

before connecting to power source

or moving the Compressor.

d. Use safety equipment. Wear a

NIOSH-approved respirator

during use.

Always wear eye protection.

Wear ANSI-approved

safety goggles.

Compressor Use and Care

a. Do not use the Compressor if the

switch does not turn it on and

off. Any Compressor that cannot

be controlled with the switch is

dangerous and must be repaired.

b. Disconnect the Compressor from

the power source before making any

adjustments, changing accessories,

or storing. Such preventive safety

measures reduce the risk of starting

the Compressor accidentally.

Page 4 For technical questions, please call 1-800-444-3353. Item 60328

NOTICE

Clean the Airbrush IMMEDIATELY after use.

Delayed or inadequate cleaning will permanently clog the Airbrush.

SAFETY OPERATION MAINTENANCESETUP

c. Store an idle Compressor out of the reach

of children and do not allow persons

unfamiliar with the Compressor or these

instructions to operate it. A Compressor is

dangerous in the hands of untrained users.

d. Maintain the Compressor. Keep the

Compressor clean for better and safer

performance. Follow instructions for

lubricating. Keep dry, clean and free

from oil and grease. Many accidents are

caused by a poorly maintained Compressor.

e. Check for misalignment or binding of

moving parts, breakage of parts and

any other condition that may affect the

Compressor’s operation. If damaged,

have the Compressor repaired before

use. If damaged, have the tool serviced

before using. Many accidents are caused

by poorly maintained tools. There is a risk

of bursting if the tool is damaged.

f. Use the Compressor in accordance with

these instructions, taking into account

the working conditions and the work to

be performed. Use of the Compressor for

operations different from those intended

could result in a hazardous situation.

Service

Have your tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the tools are maintained.

Specific Safety Instructions

Air Compressor

1. Risk of injury - do not direct air

stream at people or animals.

2. Do not use to supply breathing air.

3. Keep Compressor well-ventilated.

Do not cover Compressor during use.

4. Do not leave Compressor unattended

for an extended period while plugged in.

Unplug Compressor after working.

5. Compressor head gets hot during operation.

Do not touch it or allow children nearby

during or immediately following operation.

6. Do not use the air hose to

move the Compressor.

7. The use of accessories or attachments

not recommended by the manufacturer

may result in a risk of injury to persons.

8. All air line components, including hoses,

pipe, connectors, filters, etc., must be

rated for a minimum working pressure

of 150 PSI, or 150% of the maximum

system pressure, whichever is greater.

9. Air hose fittings may get hot during use.

Allow fittings to cool before disconnecting.

10. Industrial applications must

follow OSHA guidelines.

11. This product is not a toy.

Keep it out of reach of children.

12. Operate unit on level surface.

Airbrush

1. Do not direct spray at people or animals.

2. Do not spray near open flames, pilot lights,

stoves, heaters, the air Compressor, or

any other heat source. Most solvents

and coatings are highly flammable,

particularly when sprayed. Maintain

a distance of at least 25 feet from the

air Compressor. If possible, locate the

air Compressor in a separate room.

Page 5For technical questions, please call 1-800-444-3353.Item 60328

NOTICE

Clean the Airbrush IMMEDIATELY after use.

Delayed or inadequate cleaning will permanently clog the Airbrush.

SAFETYOPERATIONMAINTENANCE SETUP

3. Read all of the information concerning

coating products and cleaning solvents.

Do not use chlorinated solvents

(e.g. 1-1-1 trichloroethylene and

dichloromethane, also known as

methylene chloride) to clean Airbrushes.

Many Airbrushes contain aluminum,

which reacts strongly to chlorinated

solvents. Contact the solvent or coating

manufacturer as needed regarding

potential chemical reactions.

4. Industrial applications must

follow OSHA requirements

5. Spraying hazardous materials may

result in serious injury or death.

Do not spray pesticide, acid, corrosive

material, fertilizer, or toxic chemicals.

6. Paints and solvents may be harmful or fatal if

swallowed or inhaled. Avoid prolonged skin

contact with solvents or paints as they will

irritate skin. After any contact, immediately

wash off exposed area with hot, soapy water.

7. Attach all accessories properly to the

tool before connecting the air supply.

A loose accessory may detach

or break during operation.

8. Install an in-line shutoff valve

to allow immediate control over

the air supply in an emergency,

even if a hose is ruptured.

9. Maintain labels and nameplates on the tool.

These carry important safety information.

If unreadable or missing, contact

Harbor Freight Tools for a replacement.

10. People with pacemakers should

consult their physician(s) before use.

Electromagnetic fields in close proximity to

heart pacemaker could cause pacemaker

interference or pacemaker failure.

11. WARNING: The brass components of

this product contain lead, a chemical

known to the State of California to cause

birth defects (or other reproductive harm).

(California Health & Safety Code

§ 25249.5, et seq.)

12. WARNING: Handling the cord on this product

will expose you to lead, a chemical known

to the State of California to cause cancer,

and birth defects or other reproductive harm.

Wash hands after handling. (California

Health & Safety Code § 25249.5, et seq.)

SAVE THESE INSTRUCTIONS.

Page 6 For technical questions, please call 1-800-444-3353. Item 60328

NOTICE

Clean the Airbrush IMMEDIATELY after use.

Delayed or inadequate cleaning will permanently clog the Airbrush.

SAFETY OPERATION MAINTENANCESETUP

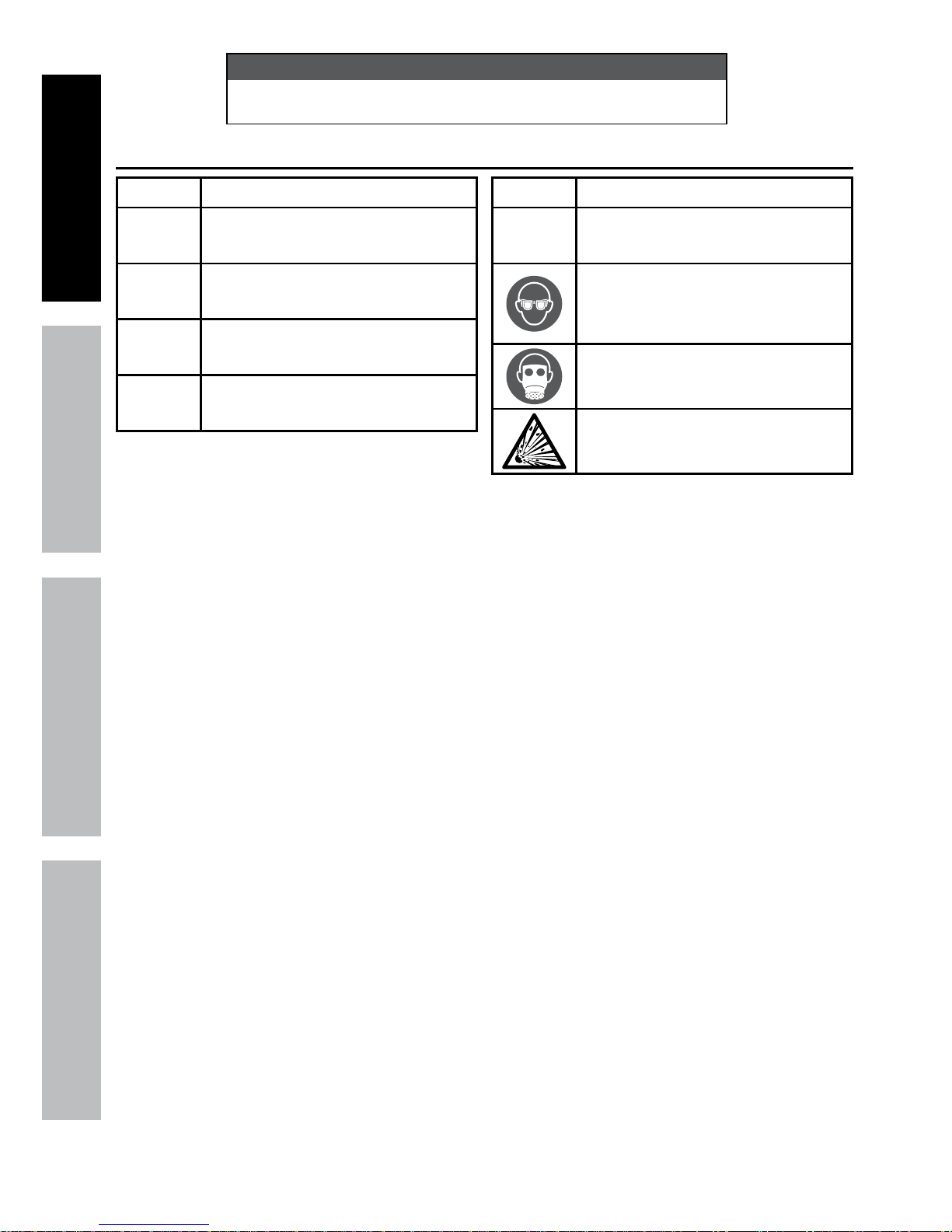

Symbol Definitions

Symbol Property or Statement

PSI Pounds per square

inch of pressure

CFM Cubic Feet per Minute flow

SCFM Cubic Feet per Minute flow

at standard conditions

NPT National pipe thread, tapered

Symbol Property or Statement

NPS National pipe thread, straight

WARNING marking concerning

Risk of Eye Injury.

Wear ANSI-approved

eye protection.

WARNING marking concerning

Risk of Respiratory Injury.

Wear NIOSH-approved respirator.

WARNING marking concerning

Risk of Explosion.

Page 7For technical questions, please call 1-800-444-3353.Item 60328

NOTICE

Clean the Airbrush IMMEDIATELY after use.

Delayed or inadequate cleaning will permanently clog the Airbrush.

SAFETYOPERATIONMAINTENANCE SETUP

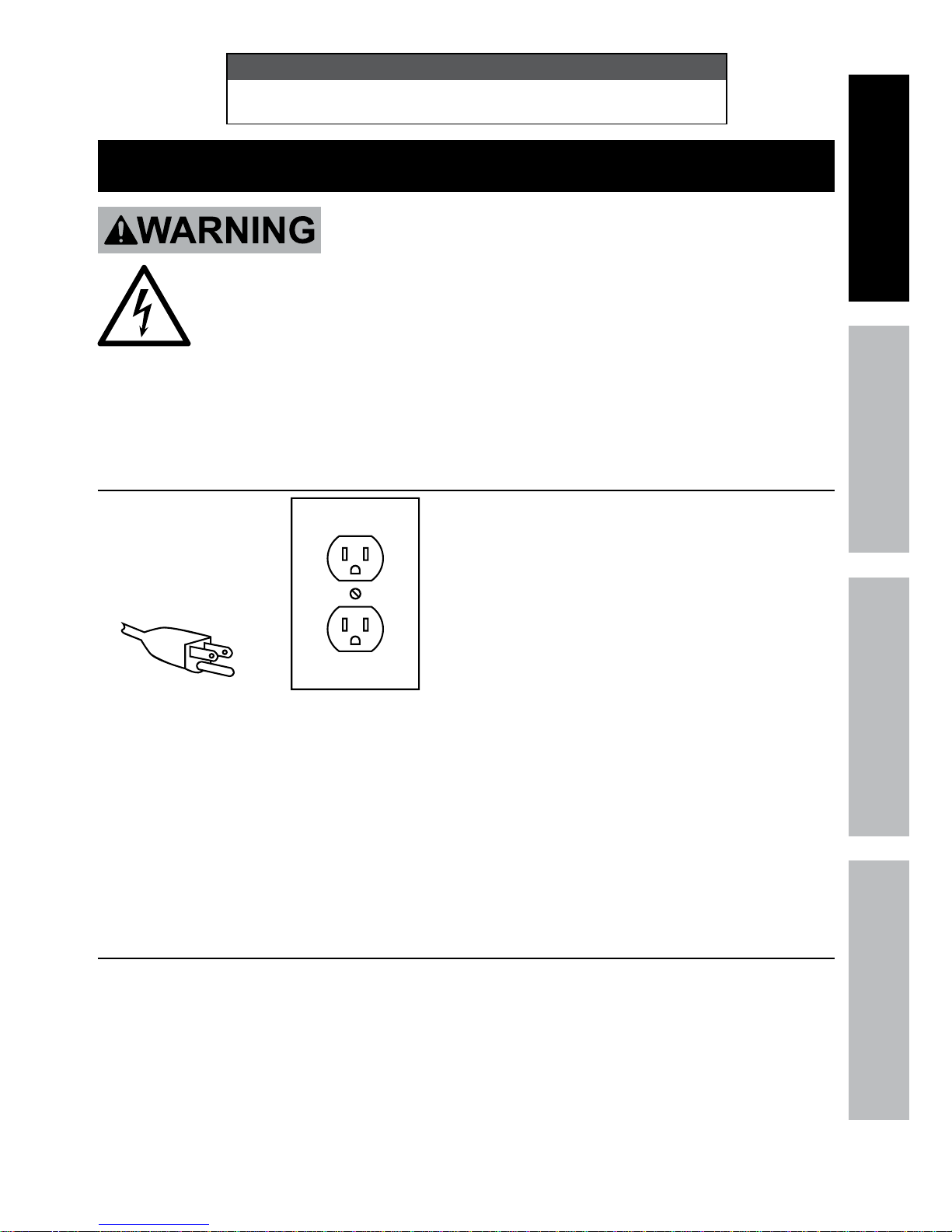

Grounding

TO PREVENT ELECTRIC SHOCK AND DEATH

FROM INCORRECT GROUNDING WIRE CONNECTION:

Check with a qualified electrician if you are in doubt as to whether the outlet is

properly grounded. Do not modify the power cord plug provided with the

Compressor. Never remove the grounding prong from the plug. Do not use the

Compressor if the power cord or plug is damaged. If damaged, have it repaired by a service

facility before use. If the plug will not fit the outlet, have a proper outlet installed by a

qualified electrician.

Grounded Compressors: Compressors

with Three Prong Plugs

3-Prong Plug and Outlet

1. Tools marked with “Grounding Required”

have a three wire cord and three prong

grounding plug. The plug must be

connected to a properly grounded outlet.

If the tool should electrically malfunction

or break down, grounding provides a low

resistance path to carry electricity away

from the user, reducing the risk of electric

shock. (See 3-Prong Plug and Outlet.)

2. The grounding prong in the plug is connected

through the green wire inside the cord to the

grounding system in the tool. The green wire

in the cord must be the only wire connected

to the tool’s grounding system and must

never be attached to an electrically “live”

terminal. (See 3-Prong Plug and Outlet.)

3. The tool must be plugged into an appropriate

outlet, properly installed and grounded in

accordance with all codes and ordinances.

The plug and outlet should look like those in

the preceding illustration.

(See 3-Prong Plug and Outlet.)

Extension Cords

1. Grounded tools require a three

wire extension cord.

2. As the distance from the supply outlet

increases, you must use a heavier gauge

extension cord. Using extension cords with

inadequately sized wire causes a serious

drop in voltage, resulting in loss of power

and possible tool damage. (See Table A.)

3. The smaller the gauge number of the wire,

the greater the capacity of the cord. For

example, a 14 gauge cord can carry a higher

current than a 16 gauge cord. (See Table A.)

4. When using more than one extension cord

to make up the total length, make sure

each cord contains at least the minimum

wire size required. (See Table A.)

Page 8 For technical questions, please call 1-800-444-3353. Item 60328

NOTICE

Clean the Airbrush IMMEDIATELY after use.

Delayed or inadequate cleaning will permanently clog the Airbrush.

SAFETY OPERATION MAINTENANCESETUP

5. If you are using one extension cord for more

than one tool, add the nameplate amperes

and use the sum to determine the required

minimum cord size. (See Table A.)

6. If you are using an extension cord

outdoors, make sure it is marked with the

suffix “W-A” (“W” in Canada) to indicate

it is acceptable for outdoor use.

7. Make sure the extension cord is

properly wired and in good electrical

condition. Always replace a damaged

extension cord or have it repaired by a

qualified electrician before using it.

8. Protect the extension cords from sharp

objects, excessive heat, and damp or wet

areas.

TABLE A: RECOMMENDED MINIMUM WIRE GAUGE

FOR EXTENSION CORDS* (120/240 VOLT)

NAMEPLATE AMPERES

(at full load)

EXTENSION CORD LENGTH

25´ 50´ 75´ 100´ 150´

0 – 2.0 18 18 18 18 16

2.1 – 3.4 18 18 18 16 14

3.5 – 5.0 18 18 16 14 12

5.1 – 7.0 18 16 14 12 12

7.1 – 12.0 18 14 12 10 -

12.1 – 16.0 14 12 10 - -

16.1 – 20.0 12 10 - - -

* Based on limiting the line voltage drop to five volts at 150% of the

rated amperes.

Specifications

Compressor

Electrical Rating 120V~ / 1.1A

Motor Speed 1,750 RPM

Power Cord 6'

Maximum Air Pressure 58 PSI

Air Outlet 1/8" - 27 NPT

Air Output 0.7 CFM @ 40 PSI

Airbrush

Working Air Pressure 25 - 60 PSI

Air Inlet 1/8" - 27 NPS

Nozzle Size .35mm

Spray Pattern Hairline to 1-1/2" Wide

Glass Jar Capacity 3/4 oz. (22cc)

Air Consumption 0.7 CFM @ 40 PSI

Page 9For technical questions, please call 1-800-444-3353.Item 60328

NOTICE

Clean the Airbrush IMMEDIATELY after use.

Delayed or inadequate cleaning will permanently clog the Airbrush.

SAFETYOPERATIONMAINTENANCE SETUP

Setup: Before Use

Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of

this manual including all text under subheadings therein before set up or use of

this product.

Note: For additional information regarding the parts listed in the following

pages, refer to the Assembly Diagram near the end of this manual.

Functions

Power

Switch

Drain

Valve

Handle

Pressure

Gauge

Air

Outlet

Air

Hose

Water

Trap

Needle

Chucking

Nut

Air

Inlet

Lid

Fitting

Color

Stem

Lid

Adjustment

Screw

Trigger

Air Cap

& Nozzle

(Under

Protective

Cap)

Glass

Jar

Figure A

Page 10 For technical questions, please call 1-800-444-3353. Item 60328

NOTICE

Clean the Airbrush IMMEDIATELY after use.

Delayed or inadequate cleaning will permanently clog the Airbrush.

SAFETY OPERATION MAINTENANCESETUP

TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:

Turn the Power Switch “OFF” and unplug the Compressor from its electrical

outlet before assembling or making any adjustments to the Compressor.

Initial Airbrush Setup

1. The Airbrush may be shipped with a

protective plug covering the Air Inlet.

Remove this plug before set up.

2. Thread Lid onto empty Glass Jar. Gently

push Lid Fitting into Color Stem on Airbrush.

3. Metal Cup (28) may be used for excess

correctly thinned paint, and also for

solvent for cleaning Airbrush.

4. Metal Hanger (30) can be attached to a

secure surface and used to hang Airbrush

for drying, or when it is not being used.

Initial Compressor Setup

1. Designate an area that is clean and

well-lit. The work area must not

allow access by children or pets to

prevent distraction and injury.

2. Before operating, make sure Compressor

is set up in a well-ventilated area, on a

flat, level, solid surface well away from

any flammable objects, such as drapes.

3. Keep at least 12″ of space around

Compressor to allow for air circulation.

4. Route Power Cord from Compressor to

grounded wall outlet, along a safe path,

without creating a tripping hazard or exposing

the power cord to possible damage.

5. Insert power cord into grounded outlet.

6. Connect one end of Air Hose to

Air Outlet of Compressor.

7. Connect other end of Air Hose

to Air Inlet of Airbrush.

8. Turn on Power Switch and inspect

air connections for leaks.

9. Turn off and unplug Compressor,

then repair any leaks found.
