Celexon Professional Plus Manuel utilisateur

celexon.

User manual

celexon screen Electric

Professional Plus baery

Thank you for choosing a quality product from celexon.

Please read the instrucons carefully before using the screen

and keep them for future reference!

• Before mounting, please read the user manual and further safety and

usage instructions.

• Do not start installation before reading and understanding the operating

instructions.

• This product should only be installed by qualiﬁed personnel with mechanical

and electrical knowledge.

• Perform the installation with another person to ensure safe installation

• Tighten the screws, but do not overtighten them. Over tightening (for ex-

ample by using a cordless screwdriver) can cause damage and interfere with

the screen‘s secure hold.

• This product is intended for indoor use. Outdoor use may cause damage to

the product.

• Hanging points must be checked for strength and carrying capacity at least

twice a year.

• Use the product only in its intended manner. Any other use may cause dama-

ge to the product or its surroundings.

• If you notice any external damage to the device or unexpected or unusual

functions, the product may not be used further. In these cases, switch oﬀ the

product immediately and remove it from the mains. Immediately contact

the dealer from whom you purchased the product or celexon directly (WEB:

www.celexon.co.uk, MAIL: info@celexon.co.uk) for more information.

• Failure to follow the instructions above may result in personal injury or dama-

ge to the product or equipment connected to it. In case of incorrect installati-

on or use, the warranty may also be void.

• If you are unsure when using the product, contact a specialist, your dealer or

celexon directly (WEB: www.celexon.co.uk, MAIL: info@celexon.co.uk). Sub-

ject to technical changes and errors..

• Children should not use the screen unattended or play underneath.

Safety instructions

This manual is intended to familiarize you with the operation of this product.

Keep this manual in a safe place so that you can access it at any time.

Safety instructions

Care Instructions

Please read the following instructions carefully and keep them for later use. The

manufacturer assumes no responsibility for damage to property or personal

injury when the screen is used outside the recommended speciﬁcations, or in case

of improper installation.

Do not use this screen near heaters or air conditioners. Also, do not mount the

product in direct sunlight or in front of a window. Due to the temperature-sensi-

tive PVC surface, it can lead to lasting damage to the projection screen. We recom-

mend that you wait approx. 2 hours after delivery for the installation to allow the

fabric to acclimatize; especially when the screen is brought from cold to warm sur-

roundings. Please avoid any stains on the cloth surface as these could possibly not

be removed. The positions of the endpoints are already set optimally at the fac-

tory and should not be changed. Especially with motor screens, the entire length

of the fabric should always be used to ensure the best ﬂatness. An adjustment of

a few cm of the end stop points should only be made by persons with specialist

knowledge and in consultation with the manufacturer. An incorrect setting may

damage the screen.

NEVER clean the screen with alcohol or other detergents that contain solvents. Use

only a soft and clean cloth with a mild soapy water, if necessary. Be sure to avoid

contact with sharp objects as these could permanently damage the projection

screen fabric. Further information can be found in the enclosed screen information.

Voltage: 100V~120V, 60Hz or

220V~240V, 50Hz

Consumption: 30W (MAX)

Integrated Battery: DC 10.8V, 2600mAh

Power Supply: DC 12,6V, 1A

Electric Speciﬁcation

In the box

Installing the Screen

a) 1 x Screen with integrated

mounting points

b) 1 x Radio

remote control

f) 2 x Plate

Required (Not included):

Battery button cell CR2450 for remote control

g) 2 x Hanging loops h) 4 x Lock nut i) 1 x 12.6V 1A USB

power adapter

c) 1 x User Manual

d) 4 x Plastic Rawl plug e) 4 x Screws for wall and ceiling

mounting Ø4x50mm

Install the screen at a location visible to all viewers; ideally, the screen should be

mounted in the center and in sight of the spectators. The lower third of the screen

should be approximately at eye level of the viewer. Install the screen straight and

level otherwise there is a risk that the screen cloth is skewed when unwound. With

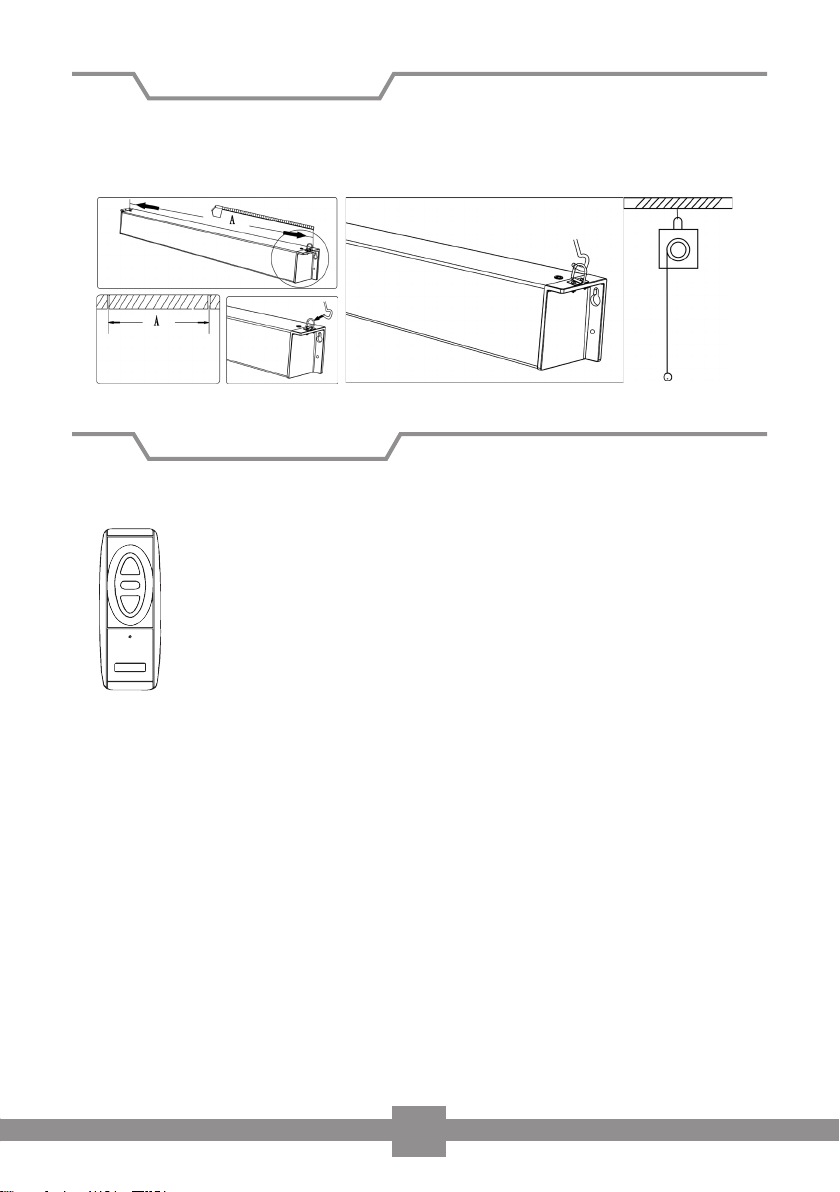

this screen you have the possibility to choose between three mounting options:

Option 1: Ceiling Mount

Option 2: Wall Mount

Option 3: Floating Ceiling Mounted via Hanging Loops

(on ceiling hooks - not included)

Installing the Screen

Option 1: Ceiling mounting (screwed)

ATTENTION! Make sure that you are using stable ground.

Measure the distance (A) of the holes in the endcaps (two holes per side) and

transfer the distance to the ceiling. Make sure that the holes are straight and level

(parallel to the wall).

ATTENTION only on stone surfaces: Pre-drill the holes and insert the plugs (d).

Use appropriate plugs and screws for the mounting surface (if necessary, suitable

materials must be purchased separately). Then place the plate (f) (one plate per

side cap) on the holes in the end cap. Use the screws (e) to mount the screen to

the ceiling.

CAUTION: Tighten the screws, but do not over tighten them. Over tightening

(for example by using a cordless screwdriver) can cause damage and interfere

with the screen‘s secure hold. If you notice cracks in the side cap, they need

to be replaced. The screen must not be used with defective caps. Please

contact celexon directly for replacement caps (WEB: www.celexon.co.uk,

MAIL: info@celexon.co.uk).

Option 2: Wall mounting (screwed)

ATTENTION! Make sure you are using stable ground.

Measure the distance (A) of the holes in the endcaps (two holes per side) and

transfer the distance to the wall. Make sure that the holes are straight and in scale.

ATTENTION only on stone surfaces: Pre-drill the holes and insert the plugs (d).

Use appropriate plugs and screws for the mounting surface (if necessary, suitable

Option 3: Suspended ceiling mounting via suspension eyelets (on ceiling

hooks - not included)

ATTENTION! Make sure that you use a stable surface.

Place the plate (f) (one plate per side cap) underneath the holes of the end cap

and guide the hanging loop (g) through the side cap and plate from above. Then

tighten the loop with the lock nut (h) from below. Measure the distance (A) of

the loops and transfer the distance to the ceiling. Make sure that the loops are in

alignment with each other and that the marking is parallel to the wall.

ATTENTION: Mounting material such as ceiling hooks are not included in this

installation option and must be purchased separately.

materials must be purchased separately). Use the screws (e) and screw into the

top hole, leaving a gap of 1cm. Hang the screen to the wall via the top mounting

hole and check again that the screen is level.You can then tighten this screw.

CAUTION: Tighten the screws, but do not over tighten them. Over tightening

(for example by using a cordless screwdriver) can cause damage and interfere

with the screen‘s secure hold. If you notice cracks in the side cap, they need

to be replaced. The screen must not be used with defective caps. Please

contact celexon directly for replacement caps (WEB: www.celexon.co.uk,

MAIL: info@celexon.co.uk).

Then screw through the lower screw hole and make sure that the screws are not

tightened too tight.

Installing the Screen

Once the ceiling hooks are mounted, the screen can be hung on the loops.

Operating the screen

Operation of the radio remote control

Pairing the radio remote

1) Press the„Up“ button on the remote control. The screen will

automatically drive to the upper end position and automatically

stop.

2) Press the„Stop“ button on the remote control. The movement

of the screen stops immediately.

3) Press the„Down“ button on the remote control. The screen will

automatically drive to the lower end position and automatically

stop.

The radio remote control is already factory-paired with the integrated receiver.

If the pairing is canceled, please proceed as follows:

1) Press the„Up“ button for 3 seconds until the remote control LED lights, and

connect the power cord to the screen. A beep conﬁrms the pairing mode

started.

2) Release the„Up“ button when you hear the beep.

3) Brieﬂy press and release the„Up“ button. When the beep sounds 3 times

quickly, the remote control pairing is complete.

Installing the Screen

EU / EC Declaration of Conformity

Manufacturer: celexon Europe GmbH

Adresse: Gutenbergstraße 2, 48282 Emsdetten, DE

hereby declares that the following celexon branded product

Product name: celexon screen Electric Professional Plus Battery

complies with the essential requirements of the EU Directives listed below - in accordance

with the instructions given by the manufacturer, corresponds to:

Christoph Hertz

Managing Director

Emsdetten, 27.06.19

The symbol indicates the

separate withdrawal of electrical

and electronic equipment in EU

countries. Please do not throw

the appliance in the household

waste. Find out about the

return system that is valid in

your country and, if you have

questions about the disposal

process, contact your local

authority or your local collection

point.

Electromagnetic compatibility (2014/30 / EU)

-ETSI EN 301 489-1 V2.2.0 (2017-03)

-ETSI EN 301 489-3 V2.1.1 (2017-03)

Radio Equipment Directive (2014/53 / EU)

Article 3.1

a) Health

- EN 62479:2010

a) Safety

- EN 60950-1: 2006+A11: 2009+A1:

2010+A12: 2011+A2: 2013

Article 3.1

b) Electromagnetic compatibility

ETSI EN301 489-1 V2.2.0 (2017-03)

ETSI EN301 489-3 V2.1.1 (2017-03)

Article 3.2

Radio frequency

ETSI EN300 220-2 V3.1.1 (2017-02)

ETSI EN300 220-1 V3.1.1 (2017-02)

Restriction of Hazardous Substances (RoHS)

2011/65 / EU

celexon.

Christoph Hertz

Managing Director

Emsdetten, 27.06.19
