Celestron PowerSeeker 60AZ Manuel utilisateur

Use the three tightening screws located at the

bottom of each leg to secure the extended legs

in place.

To set up the tripod, spread the legs outward

until they are fully extended and push down

center locking brace. Extend the center portion

of each of the three tripod legs down 6-8".

Item #31132

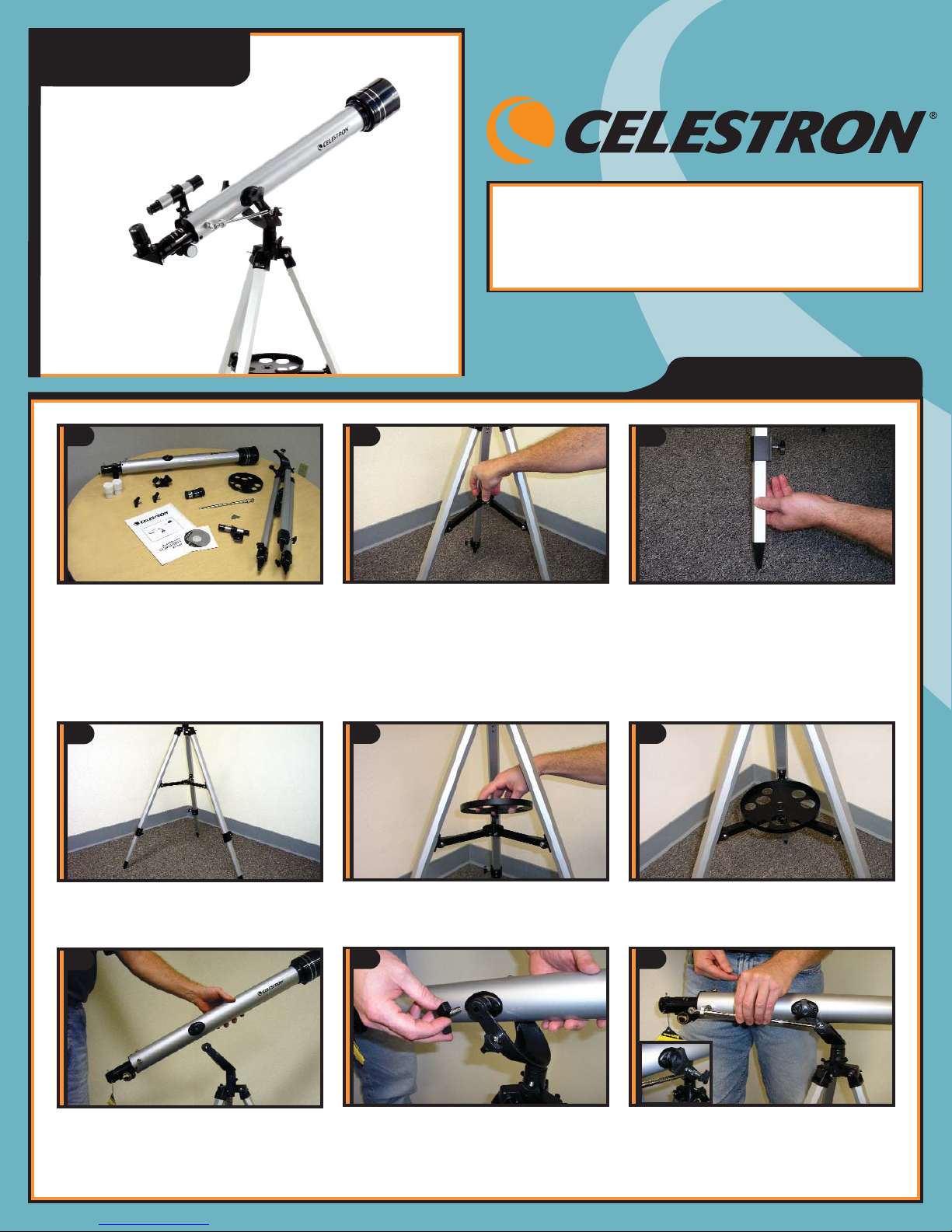

Quick Set-up Guide

123

All three legs should be the same length to

provide a level platform for the telescope.

Locate the optical tube and line up the tube

with the holes on the mount.

Properly assembled, the accessory tray should

appear as pictured above.

Secure the tube to the mount using the two

threaded mounting bolts. Tighten to secure in

place.

Insert the slow motion control rod into the hole

on the mount.

PowerSeeker 60AZ

Your PowerSeeker 60AZ includes: optical tube with

two threaded mounting bolts; tripod with center

support bracket & yolk mount attached; two

eyepieces; a 3x barlow lens, finderscope; star

diagonal; slow motion control rod; eyepiece

accessory tray; The Sky™ CD software; owner’s

manual.

Item# 21041

Place the accessory tray on top of tripod's

center leg brace. Thread the tray into the

threaded hole in the center of the leg brace.

Questions or Problems with Set-up?

CONTACT:

Celestron Technical Support: 310.803.5955

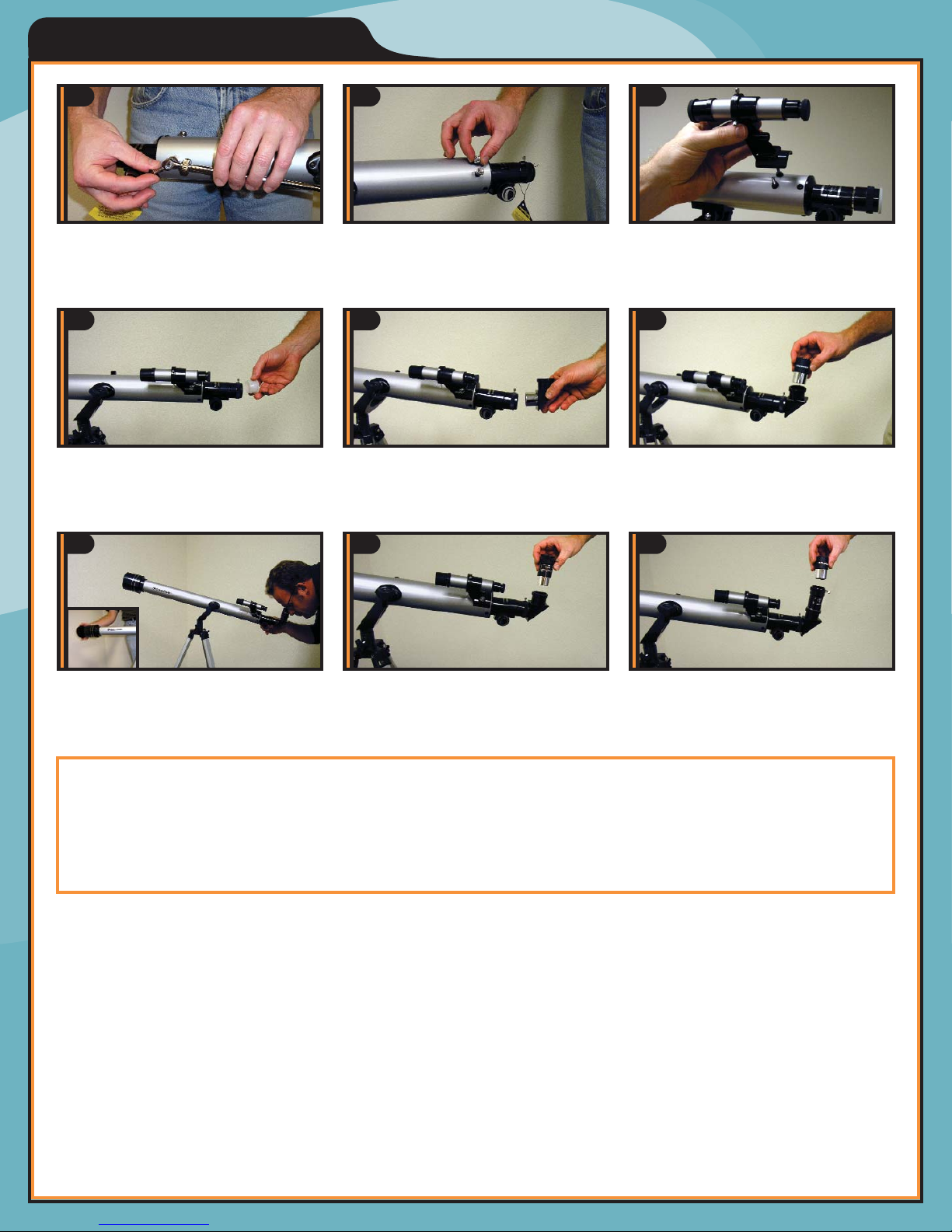

Quick Set-up Guide [cont]

Secure slow motion control rod to telescope

tube by attaching the included bolt and

tightening.

Locate the finderscope. Remove the knurled

nuts on the threaded posts at the focuser end

of the telescope tube.

Loosen the set screw on the focuser so that it

does not obstruct the inner diameter of the

focuser. Remove the plastic cap covering the

end of the focuser.

Locate the diagonal and remove the plastic

covers. Insert the chrome barrel of the

diagonal into the focuser and secure in place

by tightening the set screw.

Insert the chrome barrel of the 20mm eyepiece

into the diagonal and tighten the set screw.

Remove the lens cap from the front of the

telescope. To observe, look through the

eyepiece as shown above.

17 18

Insert the chrome barrel of the 20mm eyepiece

into the barlow and tighten the set screw to

secure in place.

For additional magnification, you can use the

included 3x barlow. Place the barlow in the

diagonal in place of the eyepiece and tighten

set screw -- remove the cap from the barlow.

Orient the finderscope so that the lens window

is facing towards the front of the tube. Place

finderscope over the posts on the tube and

replace knurled nuts.

For detailed usage information please consult your

owner’s manual.
