Celestron COMETRON 114AZ Manuel utilisateur

1. Your Cometron 114AZ includes an optical

tube, tripod with altazimuth mount, acces-

sory tray, red-dot ﬁnderscope, and BONUS

astronomy software download.

2. To setup tripod spread the legs outward

until they are fully extended. Loosen the

knobs at the end of the legs to extend the

tripod to the desired height. Tighten the

knobs to lock the legs.

3. To attach the accessory tray, line up the

notches and turn the tray clockwise until

the tray tabs lock in place with the tripod

brackets.

4. Now slide the dovetail bar on the bottom of

the optical tube into the clamp assembly on

the top of the mount. Be sure to back out the

fastening screw to allow enough clearance

for the dovetail bar.

5. Center the dovetail in the mount and tighten

the fastening screw.

6. To install ﬁnderscope, remove nuts on side

of tube, place bracket over threaded posts

and replace the nuts.

7. Loosen the thumbscrews on the focuser

and remove focuser cap.

8. Insert the chrome barrel of the eyepiece into

the focuser and secure with set screws.

9. Remove main telescope lens cap.

INSTRUCTION SHEET

Dovetail

Mount

Fastening

screws

English

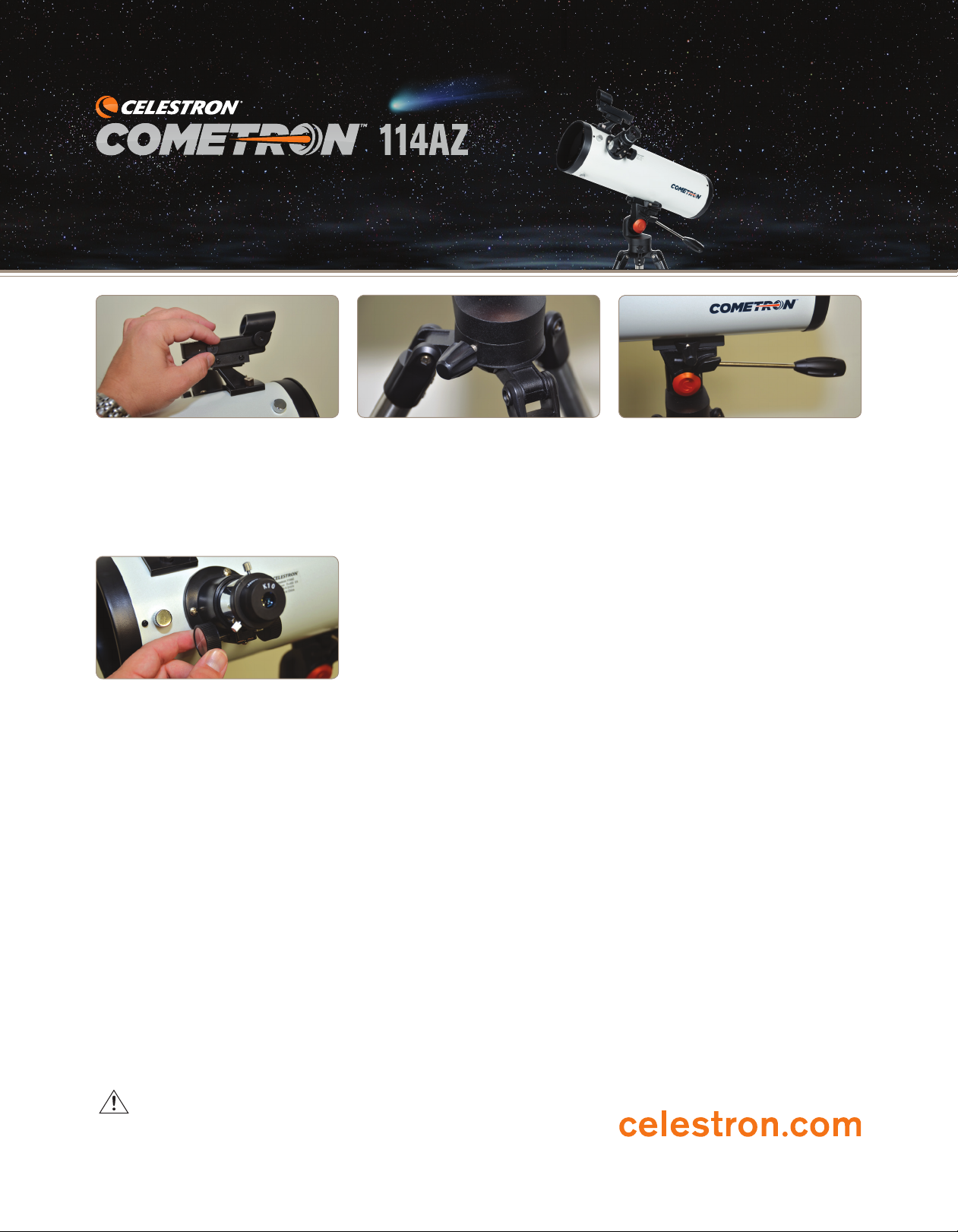

10. Turn on the red-dot ﬁnderscope. To

conserve battery life, be sure to turn it

off when not in use.

11. Loosen the clutch knob to free up the

azimuth (left & right) axis.

12. Turn the panning handle of the mount

counterclockwise to loosen the altitude

(up & down) clutch. Use the pan handle

to move the telescope until your target

appears in the ﬁnderscope. When you

have your target in the ﬁeld of view of the

telescope eyepiece, tighten the altitude

lock nut.

13. Focus your telescope by turning the two

knobs under the eyepiece until you have

a sharp image.

INSTRUCTION SHEET CONT...

For general usage information, please visit www.celestron.com.

If you have questions or problems with setup, please contact

Celestron Technical Support: 310.803.5955

This product is designed and intended for use by those 14 years of age and older.

Product design and speciﬁcations are subject to change without prior notiﬁcation.

2835 Columbia Street • Torrance, CA 90503 U.S.A

SOLAR WARNING: Never attempt to view the sun through

any telescope without a proper solar ﬁlter.
