Celestron 44423 Instructions de montage

D I G I TAL

MICROSCOPE IMAGER

SOFTWARE MANUAL

MODEL #44423

2 | ENGLISH

A. SOFTWARE PRE-SETS

1. When running the S-Viewer software for the ﬁrst time, taking the time to make a few pre-set choices will make future use

easier and more effective.

2. When more than one video device is available on the computer, the software allows you to select the target video device you

wish to use.

3. Select Video Capture Device from the Option tab in the main toolbar.

1. OPERATING INSTRUCTIONS

Note: The contents of this manual and updates are subject to change without notice.

4. When the dialog box Select Device appears, you can select the target video device in the list of devices.

5. Next, set the video resolution. To begin, select Option—>Video Resolution.

ENGLISH | 3

6. When the dialog box Properties appears, you can change the video resolution by choosing from the list of options.

7. Next, set the desired video attributes.

8. Select Option—>Video Properties to adjust the basic video capture properties.

4 | ENGLISH

9. The Cap Properties window will appear.

10. The Video Proc Amp tab allows you to adjust the video Brightness, Contrast, Hue, and other attributes.

11. The Camera Control tab allows you to pre-set the Aperture (Iris) of the camera.

ENGLISH | 5

12. Finally, select how you would like to save your recordings.

13. Select Option—>Save Option, and the Save Option dialog box will pop up.

14. From the Save Option window, you can set where and how you would like the recordings to be saved to your computer.

6 | ENGLISH

15. Shortcut: Clicking on the vertical rectangle next to the Folder address bar will bring up the Browse for Folder window.

16. Once you have made your selections here, your recordings will always be saved accordingly when you select File—>Save.

17. Helpful Tip:If you ever would like to save a recording to a different location, simply select File—>Save As and the

Save As window will appear to enable you to save the ﬁle somewhere else on your computer.

ENGLISH | 7

B. OPERATION- MENU CONTROLS

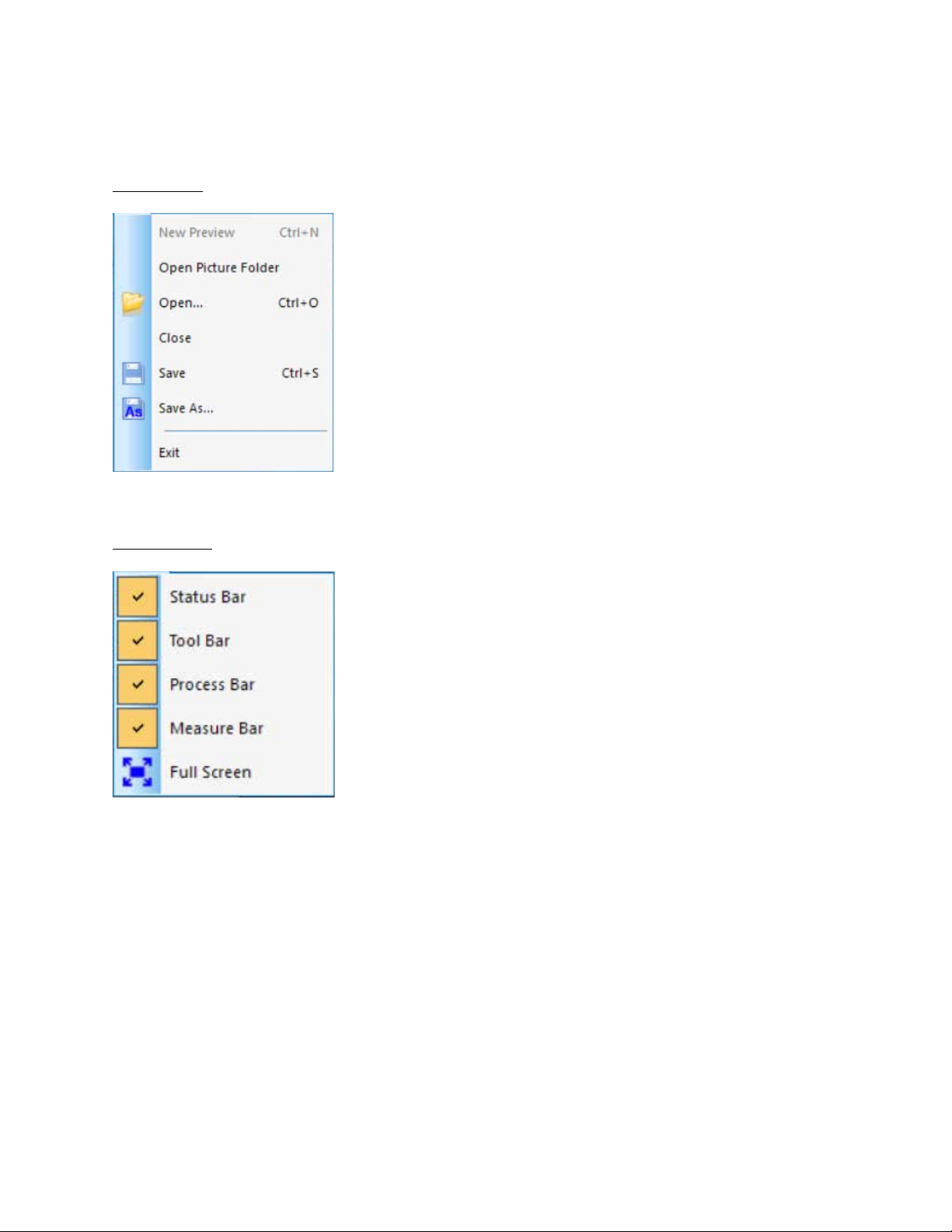

FILE MENU

1. Open Picture Folder: Opens the folder set as the default location for saving

recordings made with the software.

2. Open: Allows you to open ﬁles from their saved locations.

3. Close: Closes the opened videos or images.

4. Save: Saves the current video or still image to the default ﬁle location.

For more information on deﬁning the ﬁle location, see Option—>Save Option.

5. Save As: Opens the Save As window to enable you to save a recording to a

location other than that speciﬁed as the default location.

6. Exit: Exits the application.

VIEW MENU

1. Status Bar: Displays or conceals the status bar.

2. Tool Bar: Displays or conceals the consequently-used tool bar.

3. Process Bar: Displays or conceals the process bar.

4. Measure Bar: Displays or conceals the measuring tool bar.

5. Full Screen: Displays the video in full screen. (Use the Esc key to return to

normal view.)

8 | ENGLISH

VIDEO MENU

1. Adjust: Opens the Cap Properties window to allow adjustment of video

parameters (Color, Exposure, WB, Frame Rate, Power Frequency, etc.).

2. Enable: Activates or deactivates the real-time processing effects

(described below) and/or real-time measurement.

3. The rest of the commands in the Video menu are also accessible via

the toolbar.

The effects of these commands are as follows:

Original Image A. Flip Horizontal

B. Flip Vertical C. Gray

ENGLISH | 9

A note on Binary Video:You can adjust the threshold

value of binary (1 to 255) to display dynamically; simply

check the Enable box in the Binary window to use or

deactivate the binary real-time processing effect.

4. RGB: Opens and closes the RGB real-time video

control window.

A. To use these RGB controls, simply check the Enable

box in the RGB Adjusting window.

B. A control window for advanced RGB adjustments

can be accessed through the Advanced button.

D. Negative

F. Sharpen

E. Emboss

G. Binary

10 | ENGLISH

MEASURE MENU

1. The commands in the Measure menu can also be accessed in the toolbar under Measure.

A. This toolbar is initially positioned vertically and to the right of the image area in the software,

but it can be dragged to a horizontal position along the top if desired.

C. Simply check the Enable box in this window to

activate these controls.

D. Adjust the red-green-blue slide bars for video

tri-color matching.

E. Apply:Selects options from list box and then

applies them to the current video.

F. Add: Adds the adjusted red-green-blue value to

the database and displays this formula in the list.

G. Delete: Deletes options from the list or database.
