CDVI CDV-4791S-DXB Manuel utilisateur

2EASY 2-wire, 1-way Kit Manual, Black or

White Monitor

CDV-4791S-DXB,

CDV-4791S-DXW

WARRANTY

YEAR

EN EN

CDV-4791S-DXB, CDV-4791S-DXW

2EASY 2-wire, 1-way Kit Manual, Black or White Monitor

1] CONTENTS

2] PACKAGE CONTENTS 3

3] CDV-91S DOOR STATION - PARTS AND FUNCTIONS 3

Terminal Description 3

Installation 4

4] CDV-PC7 POWER COMBINER - PARTS AND FUNCTIONS 4

5] CDV-47DX MONITOR - PARTS AND FUNCTIONS 5

Terminal Description 5

Installation 6

Installer Settings 6-8

6] SYSTEM WIRING AND CONNECTIONS 9

Single Door Station System Wiring 9

Multi Door Stations System Wiring 9

Multi Monitors System Wiring 10-11

Electric Lock Connections 12

Cable Requirements 13-14

7] PRODUCT SPECIFICATIONS 15

CDV-91S Door Station 15

CDV-47DX Monitor 15

CDV-PC7 Power, Bus Combiner 15

Title Page

IMPORTANT

• This manual is limited in information. This manual gives basic installation requirements

of the CDV-4791S-DS kit. For advanced features, see the device’s full manuals on

the CDVI UK website: www.cdvi.co.uk

• For WiFi setup of the kit, see the CDV-47DX manual.

EN EN

CDV-4791S-DXB, CDV-4791S-DXW

2EASY 2-wire, 1-way Kit Manual, Black or White Monitor

2] PACKAGE CONTENTS

3] CDV-91S DOOR STATION - PARTS AND FUNCTIONS

Door

Station Internal

Monitor Power/ Bus

Combiner 145mm DIN

Rail Kit Manual

11111

Terminal Description

DIP:

• Bit 1&2: sets the door station address, a

total of 4 door stations can be supported.

Please refer to door station address

setting.

• Bit 3&4: sets the unlock time for door

station. Please refer to unlock time setting.

• Bit 5: sets the unlock mode for door

station (0(OFF):open/1(ON):closed).

• Bit 6: 0(OFF) --> 1(ON), to enter the

setting mode.

SD card

123 4 5 6

ON DIP

EN EN

CDV-4791S-DXB, CDV-4791S-DXW

2EASY 2-wire, 1-way Kit Manual, Black or White Monitor

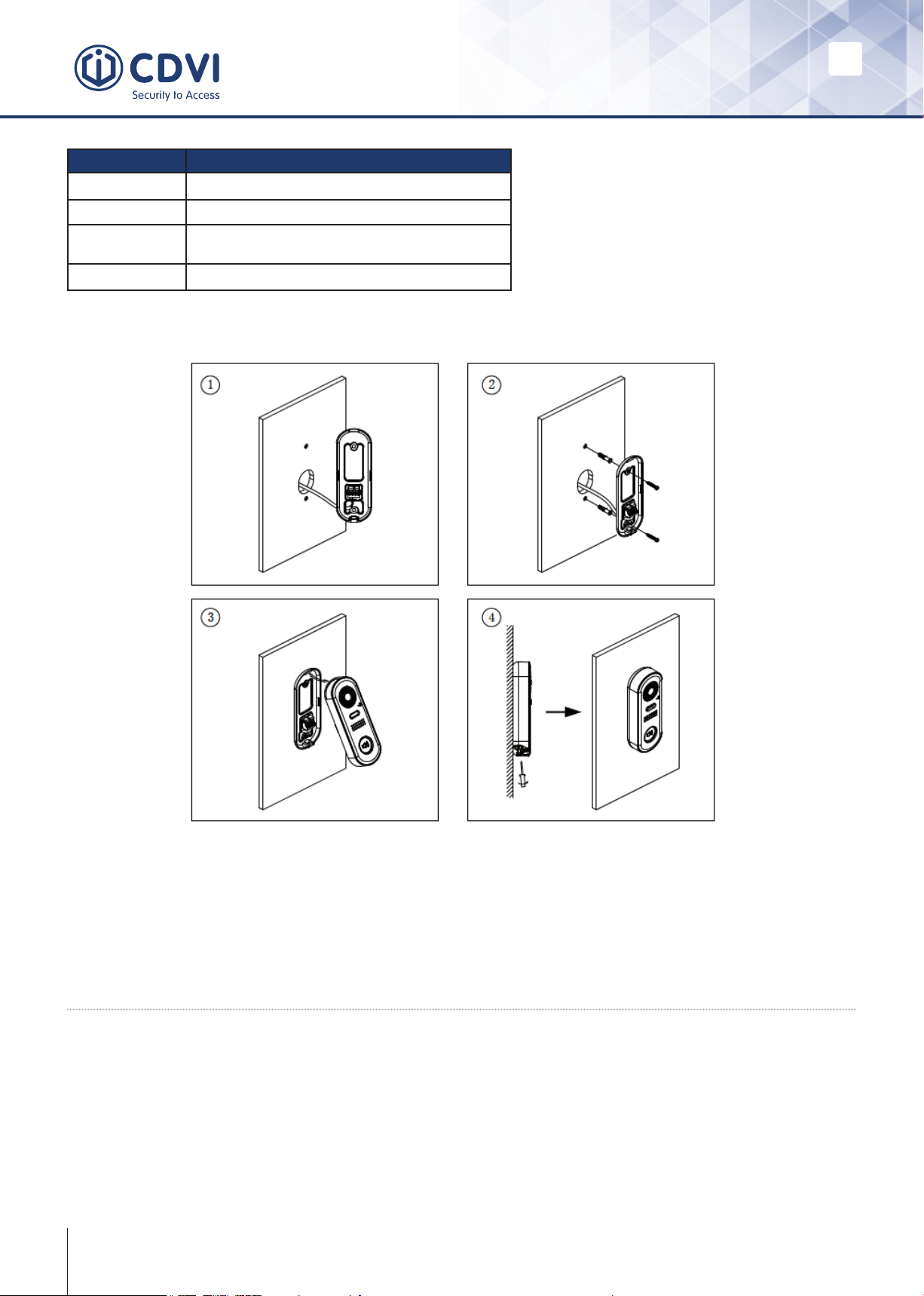

Installation

1. The recommended installation height for the door station is 145-160cm.

2. Use screws to x the back panel to the wall and connect the cables correctly.

3. Attach the front panel to the back panel, then use the screw to secure the panel.

4] CDV-PC7 POWER COMBINER - PARTS AND FUNCTIONS

The CDV-PC7 is a power/bus combiner unit, which is designed for the CDV 2EASY 2-wire

system to supply power for the external station, internal monitor and other accessories

on the bus. It can operate as a normal power/bus combiner or auxiliary PSU.

Note: See next page for details of connection as an end-of-line PSU.

Terminal Description

L1, L2 Connect to the Bus line, no polarity

LK+ Lock power (+) output

LK- Lock power (-) ouput, connect to the power

(-) inputs of the lock

JP Lock Control Jumper

EN EN

CDV-4791S-DXB, CDV-4791S-DXW

2EASY 2-wire, 1-way Kit Manual, Black or White Monitor

The features are as follows:

• Universal AC input/full range

• Multi protection: short circuit, overload, over voltage

• Integrated with DPS (power separator)

• Support up to 4 to 8 monitors (dependent on models)

• DIN Rail Mounting

5] CDV-47DX MONITOR - PARTS AND FUNCTIONS

Terminal Description

USB-Wi-Fi adaptor

1 2 3 4 5 6

ON DIP

DIP Switches

SW+

SW-

RING

GND

1 2 3 4 5 6

ON DIP

Terminal Description

L1, L2 Bus Line Terminal

SW+, SW- Doorbell input connection port

Ring, GND Extension buzzer input connection port

NC Reserved

DIP Switched

Bit1-Bit5

Bit6

Reserved

Video impedance matching switch

Set to ON if the monitor is at the end of

the line or operates with CDV-DBC4A1,

otherwise set to off

WARNING: TURN OFF THE MAINS INPUT BEFORE CONTINUING

1. Remove the

CDV-PC7 from the

DIN rail.

2. Unclick the base

of the DPS side.

3. Remove the base. 4. Lift off the top

and cut both ends of

the resistor shown,

remove the resistor.

5. Replace the top

and base in reverse.

NOTE: If the CDV-PC7 is used as an end-of-line PSU, follow the steps below.

HDR-60-24DPS(V2)HDR-30-24 DPS(V2)

PC7 PC7H

EN EN

CDV-4791S-DXB, CDV-4791S-DXW

2EASY 2-wire, 1-way Kit Manual, Black or White Monitor

Installation

145~160 cm

Mounting screw

x 2(included)

The unit

Mounting box

(size:86x86mm)

Mounting bracket

2 wire cable

The installation height is suggested as 145~160cm.

1. Use screws to fasten the mounting bracket to the wall with standard single gang

ush lightswitch box.

2. Connect the two wire cables to the unit.

3. Mount the unit to the mounting bracket, making sure the unit is securely attached

to the mounting bracket.

Main Menu

The Main Menu is your starting point for using all the applications on your monitor.

Touch the Unlock button, or touch anywhere on the screen when in standby mode - the

Main Menu will appear as follows:

Light

Touch to trigger an

optional RLC unit

to operate the light

function.

Wi-Fi status

Touch to enter

Wireless setting

options.

SIP cong

Touch to enter SIP

cong interface.

Intercom

Touch to enter intercom

selections.

Monitor

Touch to view outdoor scene.

Call Record

Touch to see calling in/

calling out records or

missed calls.

Settings

Press to enter setup interface.

Touch to turn off the screen

and put the monitor in

standby mode.

Call Scene

Touch to activate the Do

Not Disturb and Divert

Call functions.

Touch this icon to

immediately enable the

indicated function.

Current date and

time. Touch to

enter the date

time set interface.

Status bar

EN EN

CDV-4791S-DXB, CDV-4791S-DXW

2EASY 2-wire, 1-way Kit Manual, Black or White Monitor

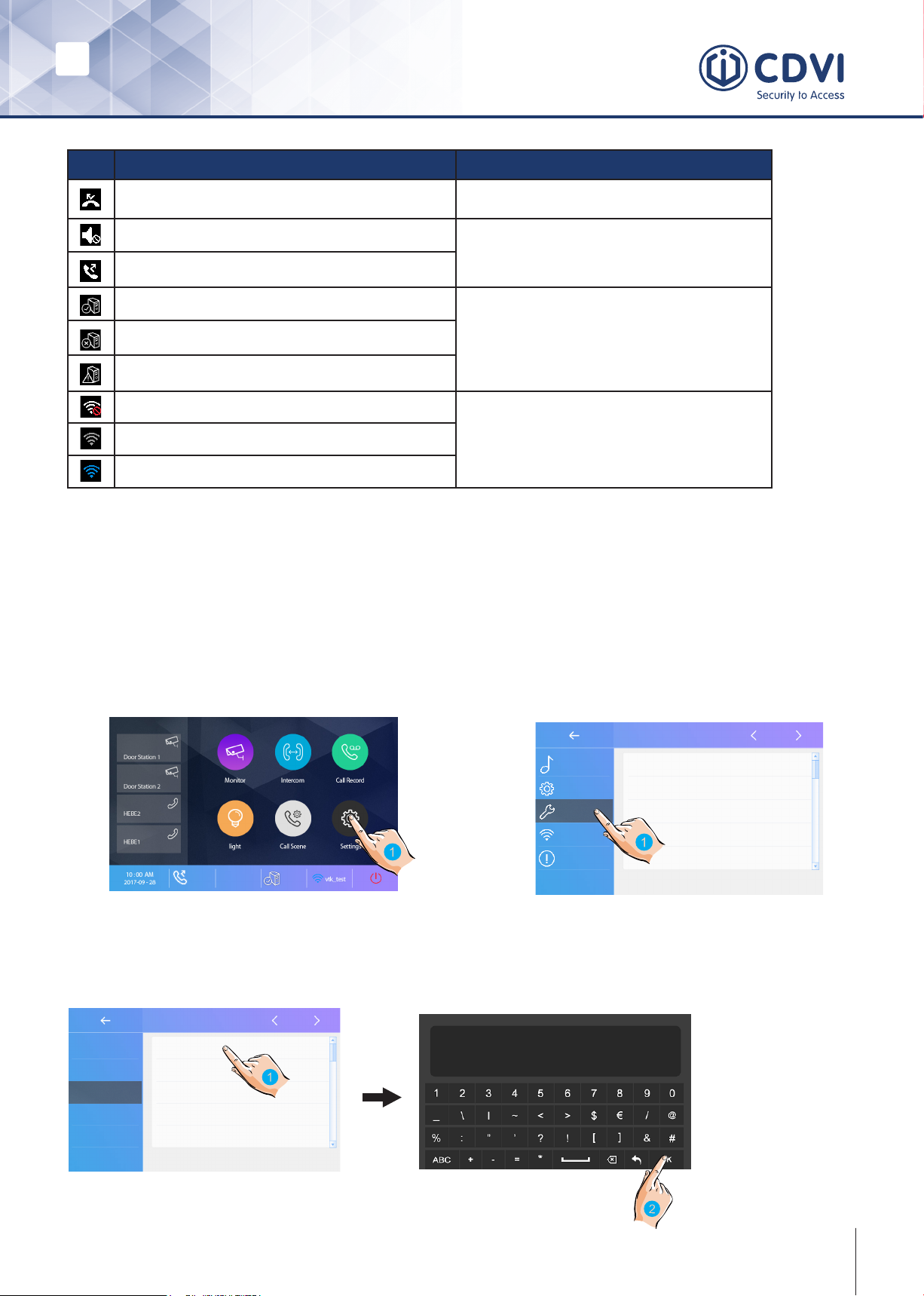

NB Item Description

Missed call

Displays when there is a missed call.

Touch to review the missed call in shortcut.

Do not disturb

Displays when the function is activated.

Touch to enter Call Scene interface in

shortcut.

Call transfer

SIP server connection active and congured

Touch to enter SIP server information

interface in shortcut.

SIP server connection disabled

SIP server connection active and not connected

WiFi connection active and not connected

Touch to enter the Wi-Fi settings interface

in shortcut.

WiFi connection disabled

WiFi connection active and congured

Installer Settings

Entering the Interface

The Installer Settings page contain the device address setting and system settings.

1. Touch to enter the Settings interface.

Current addtess [01]

Intercom enable Enable

IPC Setting

Monitor list manage

System settings

Installer

Call Tune

General

Installer

Wireless

About

2. Touch to enter the installer settings

interface.

User Code Settings

Touch to set the user code for each monitor.

1. Enter the code by typing in the number.

Current addtess [01]

Intercom enable Enable

IPC Setting

Monitor list manage

System settings

Installer

Call Tune

General

Installer

Wireless

About

Current Address

EN EN

CDV-4791S-DXB, CDV-4791S-DXW

2EASY 2-wire, 1-way Kit Manual, Black or White Monitor

2. Touch "OK" to save the code setting, complete and exit.

Note:

If dip switches 1-5 are set the monitor will show the "Dip switch setting" page.

A total of 32 numbers can be set, from 0-31.

Unlock Time Setting

Setting the unlock time.

You can change the unlock

time at any time. It can be set

from 1 to 99 seconds.

Current addtess [01]

Intercom enable Enable

IPC Setting

Monitor list manage

System settings

FW upgrade

Unlock time [03]

Unlock mode [Open]

Auto reboot [Enable]

Reboot

Installer Installer

Call Tune

General

Installer

Wireless

About

Call Tune

General

Installer

Wireless

About

Unlock time

Unlock Mode Setting

Setting the unlock mode.

There are two unlock modes:

1. Power-on-to-unlock type = Open

2. Power-off-to-unlock type = Close

Open

Installer

Unlock mode

Current addtess [01]

Intercom enable Enable

IPC Setting

Monitor list manage

System settings

FW upgrade

Unlock time [03]

Unlock mode [Open]

Auto reboot [Enable]

Reboot

Installer Installer

Call Tune

General

Installer

Wireless

About

Call Tune

General

Installer

Wireless

About

EN EN

CDV-4791S-DXB, CDV-4791S-DXW

2EASY 2-wire, 1-way Kit Manual, Black or White Monitor

6] SYSTEM WIRING AND CONNECTIONS

Single Door Station System Wiring

100-240VAC

PC7

Multi Door Stations System Wiring (4 max*)

100-240VAC

PC7

EN EN

CDV-4791S-DXB, CDV-4791S-DXW

2EASY 2-wire, 1-way Kit Manual, Black or White Monitor

Multi Monitors System Wiring (4 max*)

Standard IN-OUT wiring

• The door station is compatible

with the 2EASY CDV-47 & CDV-

47DX monitors from CDVI.

• For the last monitor connected

to the system, DIP6 should be

set to ON.

100-240VAC

PC7

*IMPORTANT: Subject to cable type. Please see cable distance chart on pages

10-11. For further help, call CDVI Technical Support on +44 (0) 1628 531300 or visit

the CDVI Support Centre.
