3. Verify the circuit breaker is OPEN according to manufacturer specifications and
company safety policies.
4. Exit the arc flash boundary with the pendant station.
DANGER!
*Exiting the arc flash boundary may prevent the operator from observing the circuit
breaker during repositioning, if this situation occurs we recommend acquiring the CBS
ArcSafe® camera system in order to remotely view the repositioning.
*Although the pendant station allows the operator to be away from the immediate arc
flash boundary, personal protective equipment requirements must still be met at all
times.
5. To install the breaker use the INSTALL control, REMOVAL for removal, ensuring the
current control module is properly setup and operating in automatic mode if
possible.
6. Detach and uninstall the RRS-1 unit from the circuit breaker cubicle as follows:
a. Depress the emergency stop button, rewind the pendant station cord and return
the remote to the storage hooks provided.
b. Disengage the foot brakes (optional).
c. Remove the circuit breaker racking tooling from the breaker and RRS-1.
d. Turn the motor brake control switch to the OFF position.

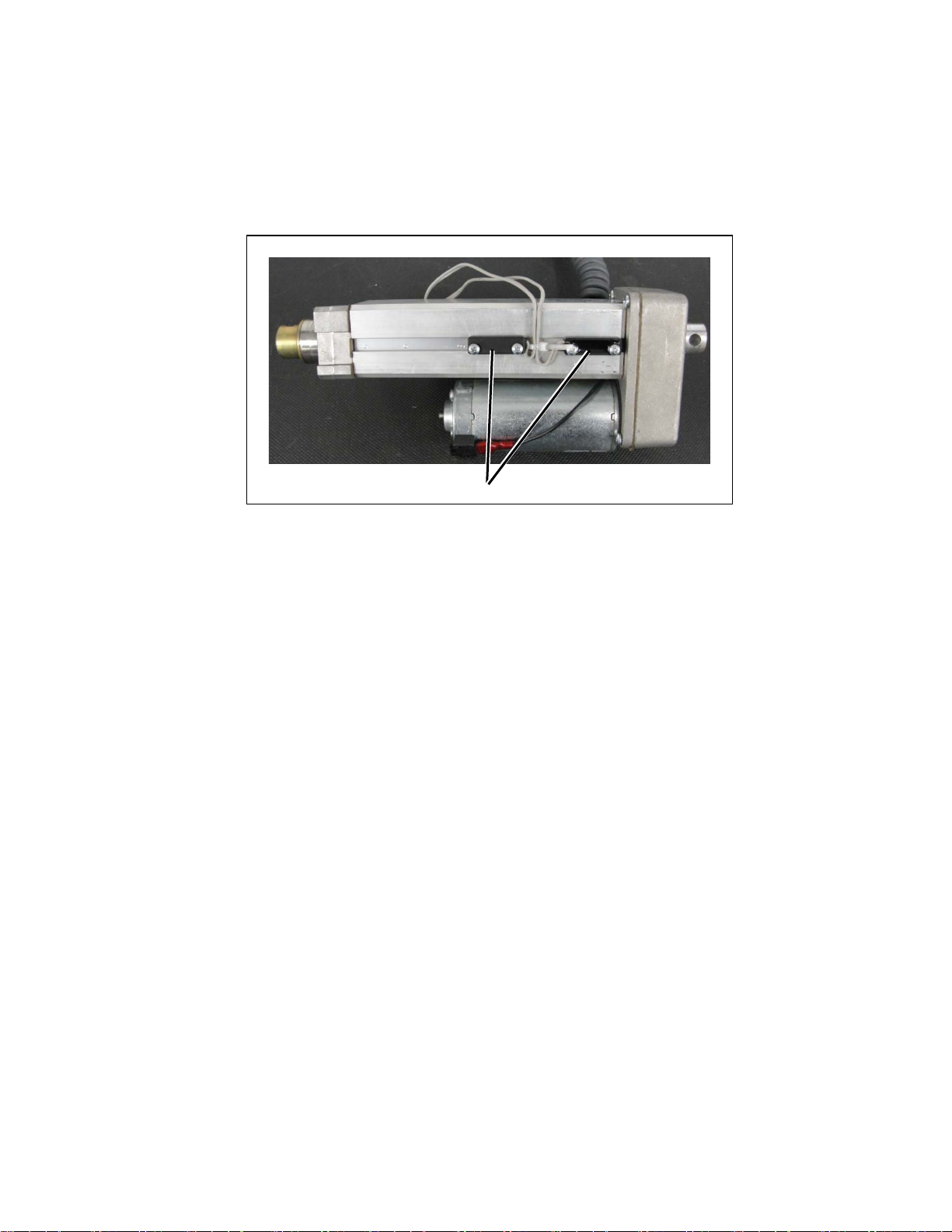

ATTENTION
The RRS-1 motor brake will maintain pressure on the circuit breaker racking device after
the racking operation is complete. Switching the motor brake to OFF will relax the
system and allow the RRS to be removed from the breaker easily.
e. If applicable, lower the motor assembly, to a suitable position for storage
with the vertical adjustment handle or power slide (optional).
f. Turn the power switch off.
7. Plug in and cover the RRS-1 with the dust cover or the waterproof cover (optional) and store
the unit in a clean, dry location.
