CASTLE 1700 iD Alarm Manuel utilisateur

1700 ALARM

CONTROL SYSTEM

SYSTEMS FITTED ENGLISH TEXT

(LIQUID CRYSTAL) DISPLAYS

OPERATING

INSTRUCTIONS

This information is relevant to systems fitted

with Issue 2.6 (or later) System Software

Castle Care-Tech Ltd.

Section Page

1. Introduction .................................................... 2

1.1. Using the System - Summary .................................. 3

1.2. Terms Used ................................................... 4

1.3. The Display ................................................... 5

1.4. The Keypad ................................................... 6

1.5. Operating Codes .............................................. 6

1.6. The Keyswitch ................................................ 6

1.7. Levels of setting .............................................. 6

2. Using the System ............................................... 7

2.1. Setting the System ............................................ 7

2.1.1. Setting the System with the Keypad ..................... 7

2.1.2. Setting the System using the Keyswitch (if fitted) ........ 8

2.1.3. Setting the System to 'Part Set C' (if programmed) ....... 8

2.2. Omitting Individual Zones ..................................... 8

2.3. Unsetting the System .......................................... 9

2.3.1. Unsetting the system with the Keypad ................... 9

2.3.2. Unsetting the system with the Keyswitch (if fitted) ....... 9

2.4. Action Following an Alarm .................................... 9

2.4.1. Cancelling a daytime alarm ............................. 9

2.4.2. Unsetting following an Alarm .......................... 10

2.4.3. Engineer Reset ........................................ 10

3. Additional Keypad Facilities ................................... 12

3.1. Keypad Personal Attack Alarm ................................. 12

3.2. Keypad Alerts (if programmed) ................................. 12

3.2.1 Just in Case Timer ..................................... 12

3.2.2. Fire Alarm ............................................ 12

4. Reviewing Time and Date setting .............................. 12

5. System Faults .................................................. 13

5.1. System Tamper Fault (F-1) .................................... 13

5.2. Mains Failure (F-2) ........................................... 13

5.3. System Voltage Fault (F-3) .................................... 13

5.4. Battery Fault (F-4) ............................................ 13

5.5. Telecom Line Fault (F-5) ...................................... 13

6. Manager Functions ............................................. 14

6.1. Accessing Manager Functions .................................. 14

6.2. Setting User Codes ............................................ 14

6.3. Setting the Manager Code ...................................... 14

6.4. Zone Selection ............................................... 14

6.4.1 Chime ................................................ 15

6.4.2 Part Set 'C' ............................................ 15

6.5. Setting Time and Date ........................................ 15

6.6. Testing the System: ........................................... 16

6.6.1. Walk Test ........................................... 16

6.6.2. Bell Test ............................................. 16

6.7. Displaying System Logs ....................................... 17

6.7.1. Activation Records .................................... 17

6.7.2. An Alarm or Trouble record ........................... 18

6.7.3 Display Time and Date for log events ................... 18

6.7.4. Printing the logs ....................................... 18

1700 Alarm System (LCD) Operating Instructions

January 2000 Page 1

1Introduction

The Care-Tech 1700 control unit has been designed and manufactured in England to

provide the facilities necessary to form the heart of a sophisticated alarm system for the

protection of persons and property. Many of the facilities are programmed by the

installing company, who will be able to advise you on the availability of certain of the

features referred to in this manual.

The 1700 system consists of a central unit with up to three remote keypads to provide

the control facility.

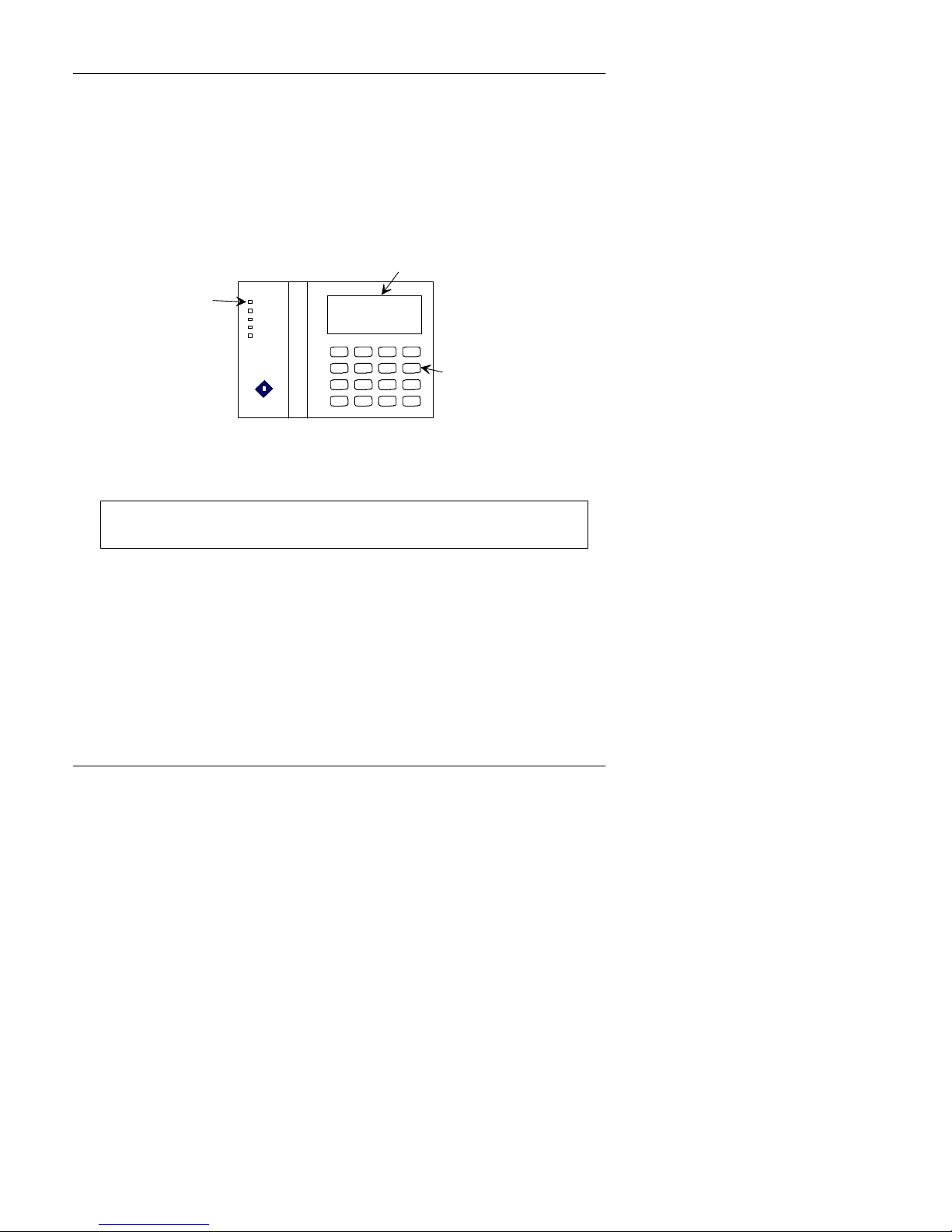

The Keypad:

The system is powered from the mains supply, and is fitted with a rechargeable battery to

ensure that the system continues to function normally, for a minimum of eight hours,

during a mains power failure.

1 2 3 A

4 5 6 B

7 8 9 C

0 # D

POWER

Display

Back-lit

keys

Power

Indicator System Ready

(* / #)

Before attempting to use the alarm system, please read and

thoroughly familiarise yourself with these instructions.

Castle Care-Tech Ltd.

Page 2 Issue 3a

1.1USING THE SYSTEM - SUMMARY

For full details, refer to Section 2.

SETTING THE SYSTEM

SIMPLE SETTING THE SYSTEM (if enabled in programming)

UNSETTING THE SYSTEM

SILENCING AN ALARM

USING THE 'CHIME' FACILITY

Enter your four digit code (eg 1234) and * to set the system to 'PART' set 'B'

Enter your four digit code (eg 1234) and # to set the system to 'FULL' on

OR use the keyswitch (if fitted) to select 'FULL' or 'PART B' on.

Enter B and # to set the system to 'PART' set 'B'

Enter C and # to set the system to 'PART' set 'C'

Enter D and # to set the system to 'FULL' on.

Enter your four digit code (eg 1234) followed by #

OR Switch key to 'OFF'

Enter your four digit code (eg 1234) followed by #

OR switch key to 'OFF'

Display will indicate cause of alarm

Note and investigate this cause, calling your alarm company if appropriate.

Press # (or turn key to 'FULL' and back to 'OFF' ) to return the system to

normal 'day' mode

Switch the 'Chime' on or off by pressing A and #

1700 Alarm System (LCD) Operating Instructions

January 2000 Page 3

1.2Terms Used

Certain terms used to describe features and operation of the system may be unfamiliar,

the principal ones are as follows:

DAY MODE The 'normal' state of the alarm system whilst the premises are

occupied, and the alarm switched 'OFF.' 'Personal Attack' facilities

remain functional, and the system will continue to monitor itself for

evidence of tampering. Also known as 'UNSET' or 'OPEN'

SWITCH ON The action of activating, or 'SETTING' the alarm system, whether

by use of the keypad or keyswitch.

SET The condition of the alarm system when armed, after the switching

on process has been completed - ie after the completion of the exit

time. Also known as 'CLOSED.'

FULL SET The condition of the alarm when the entire system is set

PART SET The condition of the alarm system when a pre-programmed portion

of the system is not armed - for example when setting the system at

night whilst still in the premises.

Two separate Part Setting areas are available.

EXIT TIME The time delay permitted after switching the system on and before

it becomes armed - during which you must leave the premises, and

close the final exit door.

ENTRY TIME The time delay permitted by the system after entering by the

authorised route, and during which the system must be switched

off, or an alarm will sound.

ENTRY-EXIT

ROUTE The portion of the alarm system linked to the Exit and Entry timers,

through which exit and entry must be made.

ZONE or

CIRCUIT A division of the system which is separately identified in the

indications at the control.

ZONE or

CIRCUIT

FAULT

Condition of one of the zones when one (or more) detectors are not

clear, thus preventing the system from being 'set' - eg a door left

open.

ZONE

OMISSION The facility to disable an individual zone (or zones) whilst setting

the system

SYSTEM

FAULT An incorrect electrical condition which may impair the correct

operation of the system - refer to these instructions for action

required.

Castle Care-Tech Ltd.

Page 4 Issue 3a

TAMPER A fault existing in the wiring, or securing of the housing of part of

the system, preventing normal operation.

PERSONAL

ATTACK (PA) An alarm generated deliberately, to summon assistance if being

attacked, operative whether system is switched on or not. If remote

signalling is fitted, the PA alarm may be silent.

REMOTE

SIGNALLING The facility (if fitted) for the system to automatically communicate

by telephone line with a remote Central Monitoring Station to

initiate a call to the police.

1.3The Display

The Liquid Crystal display indicates the condition of your alarm system. This will clearly

show any information requiring your attention, as indicated in these instructions. The

most important indications are as follows:

'Normal' Indications 'Fault' Indications

System Ready

(* / #) System in 'day' mode Eng reset

(* / #) System is awaiting

reset by engineer (see

2.4.3)

System Ready

(* / #)

(Backlight off)

System is 'set' First to Alarm

Zone xx A fault or alarm has

originated on the

zone numbered.

Musical note

on display 'Chime' is enabled First to Alarm

Sys tamper System tamper fault

(see 5.1)

System Ready Code accepted, whilst

FULL setting the system Mains fail

(* / #) Mains Failure (See

5.2)

Low volts

(* / #) System voltage fault

(See 5.3)

Green LED

(on keypad[s]) Mains supply healthy Batt fault

(* / #) Battery fault (See

5.4)

Line fault

(* / #) Telecom Line Fault

(See 5.5)

You will observe other indications whilst using the Manager Functions of the system, as

itemised in Section 6 of this manual.

The backlight on the display (and on the operating keys) will switch off whilst the

system is set, and during a mains failure.

1700 Alarm System (LCD) Operating Instructions

January 2000 Page 5

1.4The Keypad

The 10 numeric keys are for entering your code for setting and unsetting the system, or

entering other information when required. Four lettered keys (A,B,C,D) are provided to

access additional functions. The # (YES) and * (NO) keys allow confirmation or

cancelling of codes entered, also the choice of 'Full' or 'Part' setting the system. Always

enter your code carefully and deliberately, never leaving more than 3 seconds between

consecutive presses, or the system will reset itself. If the system does not immediately

respond to your command, wait 3-4 seconds before trying again.

1.5Operating Codes

There are three levels of access to the system as follows:

Code Details of use Factory pre-set To change

USER 4 different codes may be programmed

These enable the system to be set and unset. 1234 See 6.2

MANAGER A single code must be programmed, to

provide access to the 'Manager' menu only, so

that additional functions may be used.

2222 See 6.3

ENGINEER A single code is available to the installing company engineer to access the

programming facilities of the system

1.6The Keyswitch

The keyswitch, if fitted, provides an alternative to the keypad for setting, unsetting or

resetting the system. The keypad(s) and keyswitch may be used interchangeably.

1.7Levels of setting

The system may be used in a variety of ways to maximise your security. These are:

FULL SET The entire system is armed, and in the event of an intrusion, an alarm

will be sounded, and (if fitted) a police call initiated.

PART

SET A pre-programmed portion of the system only is set. The system may

provide a reduced level of warning outputs in this mode - eg no police

call.

Two different 'Part' settings are provided (designated 'B' and 'C') to

permit, for example, one setting to be used to set the downstairs at night,

and the other to set upstairs and the garage during the day.

Part Set 'C' is available ONLY if programmed by the installing engineer.

CHIME Provides a simple 'Chime' warning if a programmed zone is triggered

whilst the premises are occupied.

Note that the areas pre-programmed for PART 'B', PART 'C' and CHIME may all be

different, or overlap.

Castle Care-Tech Ltd.

Page 6 Issue 3a

2Using the System

2.1Setting the System

2.1.1Setting the System with the Keypad

Step Action Response Display

aVerify that all doors, etc. are closed,

and that 'd' is displayed System

Ready

(* / #)

bEnter your 4-digit code, followed by # if

the system is to be FULL set, or * if to

be PART ('B') set.

Acceptance of code will be

confirmed by second line of

display blanking. After a few

seconds, a steady tone will

commence.

Leave by Exit

Route [015]

cLeave the building by the specified

route.

To set the system silently (eg at night if

part of the family is asleep): press *

within 2 seconds of completing step b.

Continuous tone sounds.

Tone will be aborted.

dIf a detector is in fault condition, eg a

door is opened

If this detector is part of the exit route,

you may continue, ensuring that all

doors are closed behind you; otherwise

correct the fault before attempting to

leave the building

The tone will become

intermittent

When closed, the tone will

become steady once more.

Exit Fault

Zone x

eClose the Final exit door Tone will cease when timer

expires System

Ready

(* / #)

(Backlight off)

fWhen door is fully secure, press 'Push to

Set' button (if fitted) Tone will cease immediately

gThe system may be programmed for the external strobe to flash briefly

to confirm that the system is set.

hIf the tone does not cease at the pre-set

time A fault exists, re-enter the

building, switch off the alarm

and correct the fault before

trying again.

1700 Alarm System (LCD) Operating Instructions

January 2000 Page 7

2.1.2Setting the System using the Keyswitch (if fitted)

Step Action Response Display

aVerify that all doors, etc. are closed, and

that 'd' prompt is displayed System Ready

(* / #)

bInsert your key and turn from the 'OFF'

position to the 'FULL' or 'PART' ('B') on

position, as required.

If the keyswitch has been left in an 'ON'

position by switching off with the

keypad, switch to 'OFF' first, then

proceed as above.

Acceptance of code

will be confirmed by

second line of display

blanking. After a few

seconds, a steady tone

will commence.

Leave by Exit

Route [015]

cRemove your key and leave the building

by the specified route.

To set the system silently (eg at night if

part of the family is asleep): press *

within 2 seconds of completing step b.

Continuous tone

sounds.

Tone will be aborted.

dThen proceed as described for using the

keypad.

2.1.3Setting the system to Part Set 'C'

This facility is available only if programmed by the installing engineer.

Step Action Response Display

aPress C, followed by # Acceptance of code will be confirmed

by second line of display blanking.

After a few seconds, a steady tone will

commence.

Leave by Exit

Route [015]

bLeave the area to be

protected by the system Wait for the tone to silence. System Ready

(* / #)

(Backlight off)

It is possible to adjust the zones on which Part Set 'C' operates, as described at 6.4

2.2Omitting Individual Zones

This facility is available only if programmed by the installing engineer.

Whilst the continuous exit tone is sounding, press the number of the zone you wish to

omit, followed by '#' - repeating for additional zones if required (Up to 3).

Castle Care-Tech Ltd.

Page 8 Issue 3a

2.3Unsetting the System

NOTE: deviating from the prescribed ENTRY-EXIT route before switching the system

off will cause an alarm.

2.3.1Unsetting the system with the Keypad

Step Action Response Display

aEnter the building by the

prescribed route only Intermittent tone will

commence System Ready

Enter Code

bEnter your 4-digit code, followed

by # The tone will cease System Ready

(* / #)

2.3.2 Unsetting the system with the Keyswitch (if fitted)

Step Action Response Display

aEnter the building by the

prescribed route only Intermittent tone will

commence System Ready

Enter Code

bInsert your Key and turn from On

to OFF.

If the keyswitch is already in the

'OFF' position, first turn it to

'FULL' then return to 'OFF'

The tone will cease System Ready

(* / #)

2.4Action Following an Alarm

2.4.1Cancelling a daytime alarm

An alarm may occur whilst the system is 'unset' by deliberate action (ie operating a

Personal Attack switch) or by the effects of a Fire, or a wiring fault. In this event:

Step Action Response Display

aEnter your 4-digit code, followed by #

OR: Insert your Key and turn from

'OFF' to 'FULL' and back to 'OFF'

The alarm

will silence First to Alarm

Zone xx OR

indication of fault (see 1.3)

bNote the information shown on the Display, investigate the cause, and advise your

alarm company of any action required.

cReset the system by pressing the # key

(OR turn Key from 'OFF' to 'ON' and

back again.)

System Ready

(* / #)

If shows "Eng reset", reset by the alarm company is required, and the system

cannot be used until this is done. (see 2.4.3 )

NOTE: a FIRE alarm signal will pulse on and off every two seconds to distinguish it

from an intruder alarm.

1700 Alarm System (LCD) Operating Instructions

January 2000 Page 9

Autres manuels pour 1700 iD Alarm

Table des matières

Autres manuels CASTLE Système de contrôle

CASTLE

CASTLE 1700 iD Alarm Manuel utilisateur

Manuels Système de contrôle populaires d'autres marques

Pentair Pool Products

Pentair Pool Products Compool Manuel utilisateur

ComfortNET

ComfortNET CTK04 Manuel utilisateur

Fireye

Fireye InSight II 95DSS3 Manuel utilisateur

CAME

CAME G3000 Manuel utilisateur

Idemia

Idemia MorphoAccess VP MD Manuel utilisateur

Axis

Axis P1445-LE-3 Manuel utilisateur

HEIDENHAIN

HEIDENHAIN TNC 150 B Manuel utilisateur

CNC-Step

CNC-Step High-Z T-Series Manuel utilisateur

Doosan

Doosan DVF Series Manuel utilisateur

Honeywell

Honeywell KAP 140 Manuel utilisateur

Honeywell

Honeywell vk41 series Manuel utilisateur

AirBench

AirBench FPW Guide d'installation

Cypress

Cypress HHR-3160 Manuel utilisateur

CAME

CAME GLT40AOS Manuel utilisateur

Zonex

Zonex GEN II -VVT Guide de l'utilisateur

Altronics

Altronics K 9650 Manuel utilisateur

micro-trak

micro-trak RoadMaster Manuel utilisateur

micro-trak

micro-trak Calc-An-Acre II Manuel utilisateur
