Adjustment Manual

Model:

EX-ZR300 EX-ZR310

EX-ZR400 EX-ZR410

EX-ZR500 EX-ZR510

EX-ZR1000 EX-ZR1200

EX-ZR1500

– 1 –

EX-ZR300

EX-ZR300 ADJUSTMENT

 Overview

1. Adjustment Item

After the main PCB or lens unit have been replaced, perform the adjustments shown below.

Adjustment

Item

Replaced

Part

Writing The

Lens Code ZOOM

OPT CENTER/

SHADING/WB1/WB2/

ISO/SHUTTER/

CCD DEFECTS

FOCUS

Main PCB    

Lens Unit    

2. Materials Needed For Adjustment

Adjustment Material

OPT CENTER/SHADING/WB1/WB2/ISO/

SHUTTER/CCD Defects Luminance box

FOCUS INFINITY Auto collimator

MACRO New MACRO designated chart (NOTE 1)

SUPER MACRO S-MACRO designated chart (Transparent chart)

ZOOM ―

Writing The Lens Code ADJ Viewer (Version 1.10), PC, USB cable

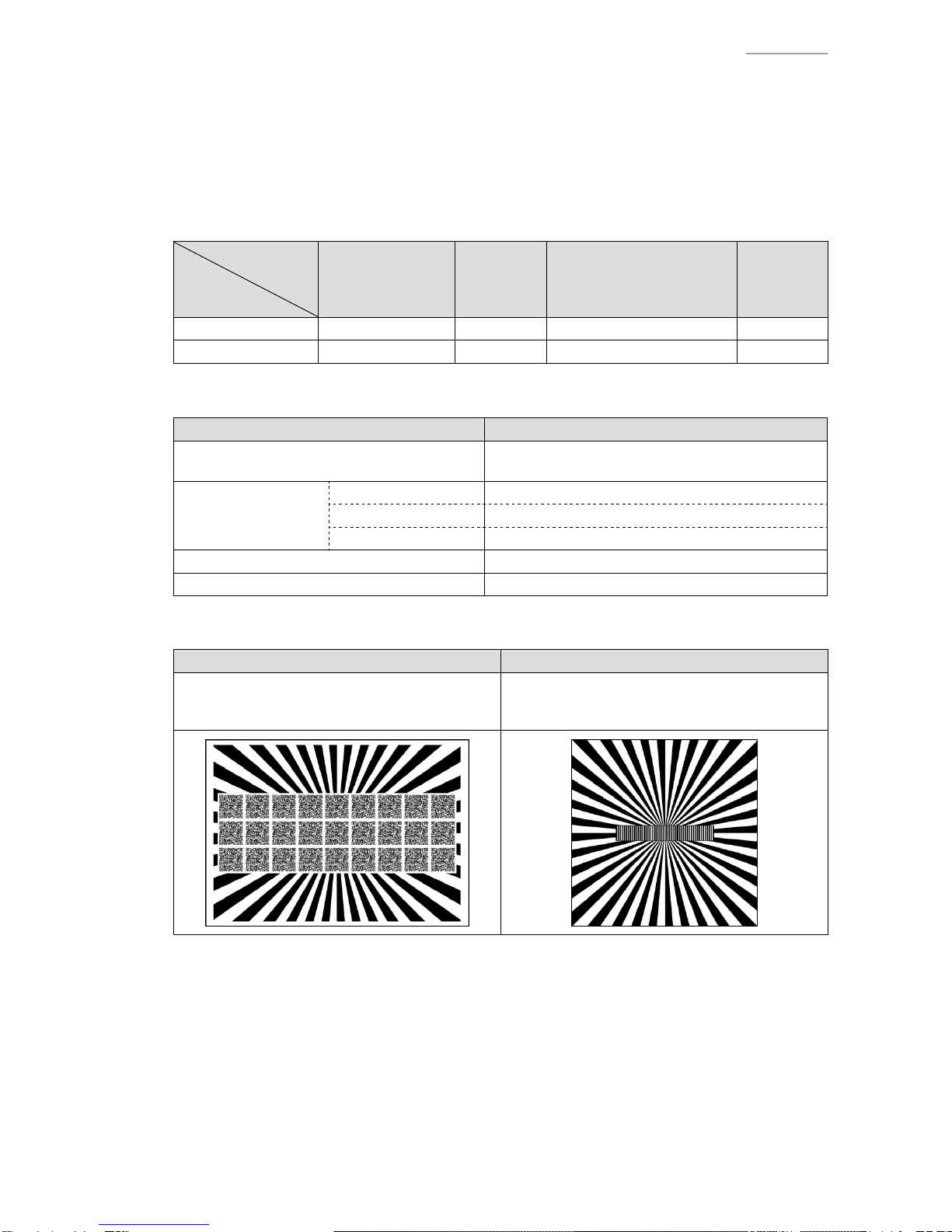

NOTE 1:

New MACRO designated chart Conventional MACRO Chart

Use the macro chart shown below for the models

released in Nov 2011 or later.

Use the conventional macro chart for the models

released in Oct 2011 or earlier.

Ver. 1 Date 3/Jul/2012

– 2 –

EX-ZR300

3. Camera Settings

Set the Sleep mode to "OFF", and then launch the TEST MODE.

(Avoid LCD being turned off during the adjustment as the result of the Sleep mode activation.)

(1) Turn the camera on while holding down the [MOVIE] and the [UP].

(2) Press the [DOWN] twice, press the [UP] and then press the [MENU].

(3) Select and run "2: USB TCC TEST".

(4) Select "1: USB TCC ON", press the [RIGHT] twice and then press the [SET].

(Ensure that the camera starts up in the TEST MODE when switched on.)

(5) Select and run "8: ADJ TEST". The display shown below appears.

(6) Select and run the desired adjustments. (See the gure below.)

1: ADJ STAT CLR

2: LCD

3: LENS

4: PICTURE

5: POWER

6: IS

WB1 adjustment

WB2 adjustment

SHUTTER adjustment

SHADING adjustment

CCD DEFECT adjustment

ISO adjustment

FOCUS adjustment

MACRO adjustment

ZOOM adjustment

OPT CENTER adjustment

(7) After adjustment ends, select and run "2: USB TCC TEST".

(8) Select and run "2: USB TCC OFF". (This clears the mode selected in step 4 above.)

(9) Select and run "4: LAST MEMORY".

(10) When "PUSH OK KEY" appears, press the [SET]. (The factory default settings are restored.)

– 3 –

EX-ZR300

 Writing The Lens Code

1. Purpose

To adjust the settings of the Image Stabilization Unit.

2. Overview

The three sets of code numbers (each three-digit number) on the lens unit are taken and written into

the ADJ area.

NOTE: Be sure to do this before going to the other adjustments.

Lens Code (Example)

X-axis adjustment value

FOCUS position

adjustment value X-axis adjustment value

3. Materials Needed For Adjustment

ADJ Viewer (Version 1.10), USB drivers, PC, USB cable

* Uninstall the previous ADJ Viewer (Version 1.00), which is not unnecessary.

* Refer to the "Save the USB drivers" on page 4. It is not unnecessary to save them when already

installed.

4. Procedure

(1) Congure so that the TEST MODE is launched on

startup, and then turn the power OFF.

(See "Camera Settings" on page 1.)

(2) Connect the camera to the computer by the USB

cable. (Turn the power ON.)

(3) Double-click the "ADJ Viewer.exe" to launch the

software.

(4) Select the model name and click "Load FW→" button.

Kx1364 EX-ZR300

(5) Click "ADJ ALL READ" button.

(6) Scroll down to the following codes and replace the

values indicated on the lens code (numbers you wrote

down before assembly);

"069", "742" and "711" in the case of the example.

No. 171 → Change the value to "069".

No. 41737 → Change the value to "742".

No. 41738 → Change the value to "711".

(7) Scroll down to the following code and replace the

value to "1".

No. 1396 → Change the value to "1".

No. 41736 → Change the value to "1".

(8) Click "ADJ ALL WRITE" button.

(9) Writing the lens code is complete.

(5)

(4)

(8)

(6)

(7)

(6), (7)

– 4 –

EX-ZR300

 Save the USB drivers

Procedure

* The procedures are described with Windows XP.

(1) Prepare the following USB drivers.

• uusbd.inf

• uusbd.sys

(2) Save [ uusbd.inf ] on the "\WINDOWS\inf".

(3) Save [ uusbd.sys ] on the "\WINDOWS\system32\drivers".

* The drivers are only available for Windows.

* The driver needs to be installed once.

– 5 –

EX-ZR300

 Zoom Adjustments

(1) Launch the TEST MODE. (See "Camera Settings" on page 1.)

(2) Select and run "3: LENS" → "7: ZOOM".

(3) When "ZOOM START?" appears, press the [SET].

(4) Press the [shutter] button. When "ADJ OK" appears, zoom adjustment is completed.

– 6 –

EX-ZR300

 OPT CENTER/SHADING/WB1/WB2/ISO/SHUTTER/CCD DEFECT Adjustments

(Adjustments for discrepancies between individual cameras)

1. Target Requirements

Light source requirements

Required

luminance

(cd/m2)

Luminance 1: 0 ± 10 cd Equivalent * The requirements to the left

are xed conditions for the

luminance box.

Luminance 2: 600 ± 60 cd Equivalent

Luminance 3: 200 ± 20 cd Equivalent

Luminance 4: 100 ± 10 cd Equivalent

Luminance 5: 1050 ± 100 cd Equivalent

Luminance 6: 400 ± 40 cd Equivalent

Luminance 7: 300 ± 30 cd Equivalent

Luminance 8: 500 ± 50 cd Equivalent

2. Adjustment Procedures

(1) Choose from the adjustments shown below.

Item Adjustment Light Source

1 OPT CENTER Luminance 2

2 SHADING Luminance 5

3 WB1 Luminance 2

4 WB2 Luminance 2

5 ISO Luminance 3

6 SHUTTER Luminance 2

7 KIZU Luminance 2

8 KIZU DARK Any

(2) Launch the TEST MODE. (See "Camera Settings" on page 1.)

(3) Select and run "6: IS" → "4: OPT CENTER".

(4) When "OPT CENTER START?" appears, press the [SET].

Set the camera to the luminance box and press the [shutter] button.

(Keep the camera still.)

(5) When "OK" appears, OPT CENTER adjustment is complete.

(6) Turn the camera off and then on again.

(7) Select and run "4: PICTURE" → "8: SHADING".

(8) When "SHADING START" appears, press the [SET].

(9) Set the camera to the luminance box and press the [shutter] button.

(10) When "ADJ OK" appears, SHADING adjustment is complete.

(11) Turn the camera off and then on again.

(12) Select and run "4: PICTURE" → "2: WB1".

(13) When "WB1 ADJ START" appears, press the [SET].

(14) Set the camera to the luminance box and press the [shutter] button.

(15) When "ADJ OK" appears, WB1 adjustment is complete.

(16) Turn the camera off and then on again.

(17) Select and run "4: PICTURE" → "9: WB2".

(18) When "WB2 ADJ START" appears, press the [SET].

(19) Set the camera to the luminance box and press the [shutter] button.

(20) When "ADJ OK" appears, WB2 adjustment is complete.

(21) Turn the camera off and then on again.

– 7 –

EX-ZR300

(22) Select and run "4: PICTURE" → "11: ISO".

(23) When "ISO ADJ START" appears, press the [SET].

(24) Set the camera to the luminance box and press the [shutter] button.

(25) When "ADJ OK" appears, ISO adjustment is complete.

(26) Turn the camera off and then on again.

(27) Select and run "4: PICTURE" → "1: SHUT".

(28) When "SHUT ADJ START" appears, press the [SET].

(29) Set the camera to the luminance box and press the [shutter] button.

(30) When "ADJ OK" appears, shutter adjustment is complete.

(31) Turn the camera off and then on again.

(32) Select and run "4: PICTURE" → "5: KIZU".

(33) When "KIZU ADJ START" appears, press the [SET].

(34) Set the camera to the luminance box and press the [shutter] button.

(35) When "ADJ OK" appears, defect adjustment is complete.

(36) Turn the camera off and then on again.

(37) Select and run "4:PICTURE" → "6: KIZU DARK".

(38) When "KIZU DARK ADJ START" appears, press the [SET].

(39) Set the camera to the luminance box and press the [shutter] button.

(40) When "ADJ OK" appears, dark defect adjustment is complete.

3. Notes And Check Values

(1) These adjustments (ADJ) must be carried out in the OPT CENTER → SHADING → WB1 →

WB2 → ISO → SHUTTER → CCD DEFECT sequence.

(2) Before beginning defect adjustment, the camera should be turned on and left powered up for at

least 30 seconds.

4. Block Diagram

Matched to the target requirements

for each adjustment

Product

Luminance box

– 8 –

EX-ZR300

 Focus Adjustment (Adjustment for discrepancies between individual cameras)

1. Adjustment And Checking Procedure

Focus adjustments

• Perform "Focus adjustment [A] – Adjustment at innity".

• Perform "Focus adjustment [B] – Adjustment at MACRO".

• Perform "Focus adjustment [C] – Adjustment at SUPER MACRO".

NOTE: Adjustments must be performed in the sequence: [A] → [B] → [C]

2. Adjustment Procedures

(1) Launch the TEST MODE. (See "Camera Settings" on page 1.)

(2) Select and run "3: LENS" → "1: FOCUS".

(3) When "FOCUS ADJ START" appears, press the [SET].

(4) Set the camera to the collimator and press the [shutter] button.

(5) When "OK" appears, focus adjustment [A] is completed.

(6) Turn the camera off and then on again.

(7) Next, select and run "2:MACRO".

(8) When "MACRO ADJ START" appears, press the [SET].

(9) Secure the camera and conrm that the special chart can be seen in the center of the focus

area. Then press the [shutter] button.

* Use the new MACRO designated chart for new models. Refer to Page 1.

(10) When "OK" appears, focus adjustment [B] is completed.

(11) Turn the camera off and then on again.

(12) Select and run "6: S_MACRO".

(13) When "S_MACRO ADJ START" appears, press the [SET].

(14) Set the camera to the the luminance box.

(15) Afx the designated (transparent-type) chart to the luminance box.

* See "5. How To Afx The Transparent Chart (Example)".

(16) Conrm that the designated (transparent-type) chart is displayed in the center of the focus area.

Then press the [shutter] button.

(17) When "OK" appears, focus adjustment [C] is completed.

3. Notes And Check Values

Item

Focus adjustment [A]

Adjustment at

innity

Focus adjustment [B]

Adjustment at

MACRO

Focus adjustment [C]

Adjustment at

SUPER MACRO

Adjustment

available Yes

Chart distance (virtual innity) 900 ± 5 mm 12 ± 2 mm

Adjustment

chart Auto collimator

MACRO

designated chart

(New chart)

S-MACRO

designated chart

(Transparent chart)

Center

illuminance/

Peripheral

environment

Light source luminance:

600 ± 50 cd/m2/

Set luminance 2

800 ± 100 lx

Light source luminance:

200 ± 20 cd/m2/

Set luminance 3

Illumination

device

Flicker-free lighting

Incandescent bulb, etc.

Not specied

No interference from ickering during adjustment

Camera

conguration Normal

Note No incident external light

– 9 –

EX-ZR300

4. Block Diagram

Focus adjustment [A] [Adjustment at infinity] Focus adjustment [B] [Adjustment at MACRO]

Distance from the front end of

the lens ring to the chart surface

900 ± 5 mm

Chart surface

Auto collimator Light source

Focus adjustment [C] [Adjustment at SUPER MACRO]

Distance from the front end of

the lens ring to the chart surface

12 ± 2 mm

Chart surface

5. How To Afx The Transparent Chart (Example)

(1) Print the chart data (PDF) onto a transparency. (Select the horizontal printing direction.)

(2) Nine charts will be printed on one sheet.

(3) Cut out each chart in a small enough size to afx on the luminance box.

(4) Creasing the chart as shown below makes the sheet easier to adhere to the diffuser panel. (See

below)

(5) Secure the chart in place with a magnet so that the chart is afxed to the diffuser panel. (See

below)

* Make sure that the chart is fully adhered on the diffuser panel.

Front view of

the chart

Side view of

the chart

Diffuser panel

12 ± 2 mm

Luminance box

Chart

Creasing

Camera

Platform

Magnet

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Casio Appareil photo numérique

Casio

Casio Exilim EX-ZR700 Manuel utilisateur

Casio

Casio EXILIM EX-TR200 Manuel utilisateur

Casio

Casio QV-4000 Guide de dépannage

Casio

Casio EX-Z4 - EXILIM Digital Camera Manuel de l'opérateur

Casio

Casio QV-R40 Guide de dépannage

Casio

Casio EX-V8 - EXILIM Hi-Zoom Digital Camera Manuel utilisateur

Casio

Casio EX-Z2000 - EXILIM Digital Camera Manuel utilisateur

Casio

Casio Exilim EX-Z600 Guide de dépannage

Casio

Casio Exilim EX-FH25 Manuel utilisateur

Casio

Casio QV-4000 Manuel utilisateur

Casio

Casio EX-M20U - 2 Manuel utilisateur

Casio

Casio E MULTI PJ CAMERA Multifunctional Camera... Manuel utilisateur

Casio

Casio EXZ85BN Manuel du propriétaire

Casio

Casio Exilim EX-S770 Manuel utilisateur

Casio

Casio EX Z77 - EXILIM ZOOM Digital Camera Manuel utilisateur

Casio

Casio QV-R40 Manuel de programmation

Casio

Casio EXILIM EX-TR150 Manuel utilisateur

Casio

Casio QV-R40 Manuel de service

Casio

Casio QV-R40 Manuel utilisateur

Casio

Casio EXILIM EX-ZS100 Manuel utilisateur

Casio

Casio EXILIM EX-Z27 Manuel utilisateur

Casio

Casio EX-Z3 - 4 Manuel d'instructions et de sécurité

Casio

Casio Exilim EX-H10 Manuel utilisateur

Casio

Casio QV-200B Guide de dépannage

Manuels Appareil photo numérique populaires d'autres marques

Mercury

Mercury 350K Manuel utilisateur

Pentax

Pentax Optio LS 465 Manuel utilisateur

Sanyo

Sanyo VPC-S1085 Manuel utilisateur

GE SMART A1255 Manuel utilisateur

Point Grey

Point Grey Gazelle Manuel utilisateur

Nikon

Nikon COOLPIX A Manuel utilisateur

Pentax

Pentax P-5 Manuel utilisateur

BlazeVideo

BlazeVideo A280 Manuel utilisateur

Sony

Sony MCA-20 Manuel utilisateur

Sony

Sony Alpha DSLR-A290 Manuel utilisateur

ATIK Cameras

ATIK Cameras One Manuel utilisateur

CohuHD Costar

CohuHD Costar 3930 Series Manuel utilisateur

Leica

Leica M10-R Manuel utilisateur

FujiFilm

FujiFilm FinePix A700 Manuel utilisateur

Lorex

Lorex LNZ81P25 Series Manuel utilisateur

GE J1470S Manuel utilisateur

Sony

Sony A6700 Guide de l'utilisateur

Canon

Canon EOS ELAN7 Manuel utilisateur
