Casio Exilim EX-Z30 Manuel utilisateur

EX-Z30/Z40

MAR. 2004

(without price)

Ver.4: Sep. 2005

CONTENTS

SPECIFICATIONS ....................................................................................................................................... 1

BLOCK DIAGRAM ...................................................................................................................................... 4

TEST MODE ................................................................................................................................................ 5

PROGRAM VERSION UPGRADING .......................................................................................................... 6

1. To update the firmware version ..................................................................................................... 7

2. How to restore the firmware........................................................................................................... 8

3. To install the firmware .................................................................................................................... 9

ADJ TOOL ................................................................................................................................................. 10

1. Preparation..................................................................................................................................... 10

2. How to use ADJ Tool when replacing Lens unit ........................................................................ 12

3. How to use ADJ Tool when replacing MAIN PCB ...................................................................... 13

VCOM DC ADJUSTMENT ........................................................................................................................ 14

CURRENT CONSUMPTION ..................................................................................................................... 17

THE COUNTERMEASURE FOR "SYSTEM ERROR" ............................................................................. 17

DISASSEMBLY ......................................................................................................................................... 18

EXPLODED VIEW ..................................................................................................................................... 25

PARTS LIST .............................................................................................................................................. 26

PRINTED CIRCUIT BOARDS ................................................................................................................... 27

SCHEMATIC DIAGRAMS ......................................................................................................................... 29

— 1 —

SPECIFICATIONS

Image Files Format Snapshots:JPEG (Exif Ver.2.2); DCF (Design rule for Camera File system) 1.0 standard; DPOF

compliant

Movies:AVI (Motion JPEG)

Audio:WAV

Recording Media 9.7MB built-in Flash memory

SD Memory Card

MultimediaCard

Image Size ■ EX-Z30 ■ EX-Z40

Snapshots: 2048x1536 pixels Snapshots: 2304 x 1728 pixels

2048 x 1360 (3:2)pixels 2304 x 1536 (3:2) pixels

1600 x 1200 pixels 1600 x 1200 pixels

1280 x 960 pixels 1280 x 960 pixels

640 x 480 pixels 640 x 480 pixels

Movies: 320 x 240 pixels 320 x 240 pixels

Approximate Memory Capacity and File sizes

• Snapshots (EX-Z30)

• Snapshots (EX-Z40)

File Size

(pixels)

2048 x 1536

2048 x 1360

(3:2)

1600 x 1200

(UXGA)

1280 x 960

(SXGA)

640 x 480

(VGA)

Quality

Fine

Normal

Economy

Fine

Normal

Economy

Fine

Normal

Economy

Fine

Normal

Economy

Fine

Normal

Economy

Approximate Image

File Size

1.6MB

1.2MB

630KB

1.5MB

1.1MB

580KB

1050KB

710KB

370KB

680KB

460KB

250KB

190KB

140KB

90KB

Built-in flash memory

9.7MB

5 shots

7 shots

14 shots

5 shots

8 shots

15 shots

8 shots

12 shots

24 shots

13 shots

20 shots

35 shots

46 shots

61 shots

98 shots

SD Memory Card*

64MB

34 shots

45 shots

88 shots

36 shots

50 shots

95 shots

53 shots

79 shots

154 shots

82 shots

126 shots

221 shots

294 shots

386 shots

618 shots

File Size

(pixels)

2304 x 1728

2304 x 1536

(3:2)

1600 x 1200

(UXGA)

1280 x 960

(SXGA)

640 x 480

(VGA)

Quality

Fine

Normal

Economy

Fine

Normal

Economy

Fine

Normal

Economy

Fine

Normal

Economy

Fine

Normal

Economy

Approximate Image

File Size

1.9MB

1.5MB

1.1MB

1.8MB

1.4MB

1.0MB

1050KB

710KB

370KB

680KB

460KB

250KB

190KB

140KB

90KB

Built-in flash memory

9.7MB

4 shots

6 shots

8 shots

5 shots

6 shots

8 shots

12 shots

24 shots

13 shots

20 shots

35 shots

46 shots

61 shots

98 shots

SD Memory Card*

64MB

30 shots

37 shots

50 shots

32 shots

40 shots

54 shots

53 shots

79 shots

154 shots

82 shots

126 shots

221 shots

294 shots

386 shots

618 shots

— 2 —

• Movies (320 x 240 pixels)

Data Size 300KB/second max.

Delete Single-file, all files (with protection)

Effective Pixels EX-Z30: 3.2 million

EX-Z40: 4.0 million

Imaging Element EX-Z30: 1/2.5-inch square pixel color CCD

(Total pixels: 3.34 million)

EX-Z40: 1/2.5-inch square pixel color CCD

(Total pixels: 4.23 million)

Lens/Focal Distance F2.6 (W) to 4.8 (T); f=5.8 (W) to 17.4mm (T) (equivalent to approximately 35 (W) to 105 (T)

for 35mm film)

Zoom 3X optical zoom; 4X digital zoom

(12X in combination with optical zoom)

Focusing Contrast-type Auto Focus (AF Mode (AF Area: Spot or Multi), Macro Mode), Pan Focus;

Infinity Mode; focus lock; manual focus

Approximate Focus Range Normal 40cm to ∞(1.3´ to ∞)

(from lens surface) Macro 6cm to 50cm (2.4˝ to 19.7˝)

In the Macro mode, the optical zoom range is 1X to 1.8X.

Exposure Control Light Metering Multi-pattern by CCD

Exposure Program AE

Exposure Compensation –2EV to +2EV (1/3EV units)

Shutter CCD electronic shutter; mechanical shutter, 1/8 to 1/2000 second

• Shutter speed is different for the following BESTSHOT scenes.

SNight Scene: 4 to 1/2000 second Fireworks: 2 seconds (fixed)

Aperture F2.6/4.3, auto switching

White Balance Automatic, fixed (5 modes), manual switching

Self-timer 10 seconds, 2 seconds, Triple Self-timer

Built-in Flash Flash Modes AUTO, ON, OFF, Red eye reduction

Flash Range Wide Angle Optical Zoom: 0.5 to 3.4 meters (1.6´ to 11.2´)

Telephoto Optical Zoom: 0.4 to 1.8 meters (1.3´ to 5.9´)

(ISO Sensitivity: “Auto”)

Recording Functions Snapshot with audio; Macro; self-timer; BESTSHOT; Movie with audio; voice recording

* Audio recording is monaural.

Audio Recording Time Audio Snapshot Approximately 30 seconds maximum per image

Voice Recording Approximately 40 minutes with built-in memory

After Recording Approximately 30 seconds maximum per image

Monitor Screen 2.0-inch TFT color LCD

84,960 pixels (354 x 240)

Viewfinder Monitor screen and optical viewfinder

Timekeeping Functions Built-in digital quartz clock

Date and Time Recorded with image data

Auto Calendar To 2049

World Time City; Date; Time; Summer time;

162 cities in 32 time zones

— 3 —

Input/Output Terminals Cradle connector

Microphone Monaural

Speaker Monaural

Power Requirements

Power Requirements Rechargeable lithium ion battery

(NP-40) x 1

Approximate Battery Life:

The values below indicate the amount of time under the conditions defined below, until power automatically turns off due to

battery failure. They do not guarantee that you will be able to achieve this level of operation. Low temperatures shorten battery

life.

Supported Battery: NP-40 (Rated Capacitance: 1230mAh)

Storage Medium: SD Memory Card

*1 Number of Shots (CIPA)

• CIPA Standard

• Temperature: 23°C (73°F)

• Monitor Screen: On

• Zoom operation between full wide to full telephoto every 30 seconds, during which two images are recorded, one image

with flash; power turned off and back on every time 10 images are recorded.

*2 Continuous Recording Conditions

• Temperature: 23°C (73°F)

• Monitor screen: On

• Flash: Off

• Image recorded every 10 seconds, alternating full wide-angle and full telephoto zoom

*3 Continuous Playback Conditions

• Temperature: 23°C (73°F)

• Scroll one image about every 10 seconds

*4 Voice recording times are based on continuous recording.

EX-Z30

Apporoximate Battery Life

360 shots

(180 minutes)

1260 shots

(210 minutes)

360 minutes

300 minutes

EX-Z40

Apporoximate Battery Life

360 shots

(180 minutes)

1140 shots

(190 minutes)

360 minutes

300 minutes

Model

Operation

Number of Shots (CIPA)*1

(Operating Time)

Number of Shots,

Continuous Recording*2

(Operating Time)

Continuous Playback*3

(Continuous Snapshot Recording)

Continuous Voice Recording*4

Power Consumption DC 3.7V Approximately 2.6W

Dimensions 87(W) x 57(H) x 23.1(D) mm

(3.4˝(W) x 2.2˝(H) x 0.91˝(D))

(excluding projections; 19.7mm (0.78˝) at thinnest part)

Weight Approximately 121 g (4.3 oz) (excluding battery and accessories)

Bundled Accessories Rechargeable lithium ion battery (NP-40); USB cradle (CA-24); Special AC adaptor; AC

power cord; USB cable; Strap; CD-ROM; Basic Reference

— 4 —

Rechargeable Lithium Ion Battery (NP-40)

Rated Voltage 3.7 V

Rated Capacitance 1230 mAh

Operating Temperature 0°C to 40°C (32°F to 104°F)

Range

Dimensions 38.5(W) x 38.0(H) x 9.3(D) mm (1.53˝(W) x 1.50˝(H) x 0.37˝(D))

Weight Approximately 34 g (1.2 oz)

Input/Output Terminals Camera connector; USB port; AC adaptor terminal (DC IN 5.3V)

Power Consumption DC 5.3V Approximately 3.2W

Dimensions 103(W) x 32(H) x 70(D) mm (4.1˝(W) x 1.3˝(H) x 2.8˝(D))

(excluding projections)

Weight Approximately 71 g (2.5 oz)

Power Supply

• Use only the special NP-40 rechargeable lithium ion battery to power this camera. Use of any other type of battery is not

supported.

• This camera does not have a separate battery for the clock. The date and time settings of the camera are cleared whenever

power is totally cut off (from both the battery and USB cradle). Be sure to reconfigure these settings after power is interrupted.

LCD Panel

• The LCD panel is a product of the latest LCD manufacturing technology that provides a pixel yield of 99.99%. This means that

less than 0.01% of the total pixels are defective (they do not turn on or always remain turned on).

Lens

• You may sometimes notice some distortion in certain types of images, such as a slight bend in lines that should be straight. This

is due to the characteristics of lens, and does not indicate malfunction of the camera.

USB Cradle (CA-24)

Special AC Adaptor (Inlet Type)

Rated Voltage 100 to 240V AC, 50/60Hz, 83 mA

Output 5.3V DC, 650 mA

Dimensions 78(W) x 20(H) x 39(D) mm (3.1˝(W) x 0.8˝(H) x 1.5˝(D))

(excluding projections and cable)

Weight Approximately 90 g (3.2 oz)

Special AC Adaptor (Plug-in Type)

Rated Voltage 100 to 240V AC, 50/60Hz, 83mA

Output 5.3V DC, 650mA

Dimensions 48(W) x 16(H) x 69(D) mm (1.9˝(W) x 0.6˝(H) x 2.7˝(D))

(excluding projections and cable)

Weight Approximately 95 g (3.6 oz)

— 5 —

BLOCK DIAGRAM

MAIN PCB

I/O PCB

KEY FPC (ALPS)

STROBO UNIT

LCD

PWB-K871-MOTOR

PCB-K871-CCD

(EX-Z30: MN39592

EX-Z40: ICX498)

MOTOR CN (24pin) MOTOR CN (24pin)

CCD CN (26pin)

LCD CN (33pin)

CCD CN (26pin)

LCD

Drive Circuit

Power Supply Circuit SW

I/O CN (20pin)

Cradle CN (16pin)

Vcc1.8

VEE7.5

PAD

Vcc15

Vcc5L

EVcc3.3 (KEY, RTC)

Vcc1.5 (LSI)

Vcc1-2

Vcc1-1

Vcc1.8 (SDRAM, Audio, BL)

Vcc3.3-1

Vcc5-2

EVcc3.3 Vcc1.8

Vcc3.3-1

POWER

R-LED

SHUTTER

SELF G-LED

MIC OUT

MIC BIAS

Vcc3.3-1

Vcc1.8

Vcc1.5 Vcc5-1

VCCD

VEE7.5

Vcc3.3-1 (CCD, Audio, LSI)

Vcc5-1

Vcc5-2 (MOTOR)

Vcc5-3 (STOROBO)

VCCD (CCD)

Vcc15 (LCD)

Vcc5L (LCD)

VEE7.5 (BL, CCD)

Wire

Lithium Ion Battery

PAD

Speaker

(MLS23)

Wire

32.768KHz

27MHz 48MHz

EVcc3.3

DGND

Back-up

PAS414HR

RTC

R2051

8bit MPU

ML610501

(64pin)

LSI

M32934-3CHIP

(401pin)

Vdr

uPD16520Bump

(43pin)

CDS

AD9949Bump

(42pin)

MOTOR Drv

LB8659

KEY BLOCK

(REC, PLAY, DISP, MENU,

LEFT, RIGHT, UP, DOWN,

OK, WIDE, TELE)

Audio IC

WM8750L

(32pin)

Audio Amp

NCP2890

(9pin)

Wire

Bat+

SP+

SP-

Bat-

KEY CN (15pin)

STROBO CN (15pin)

— 6 —

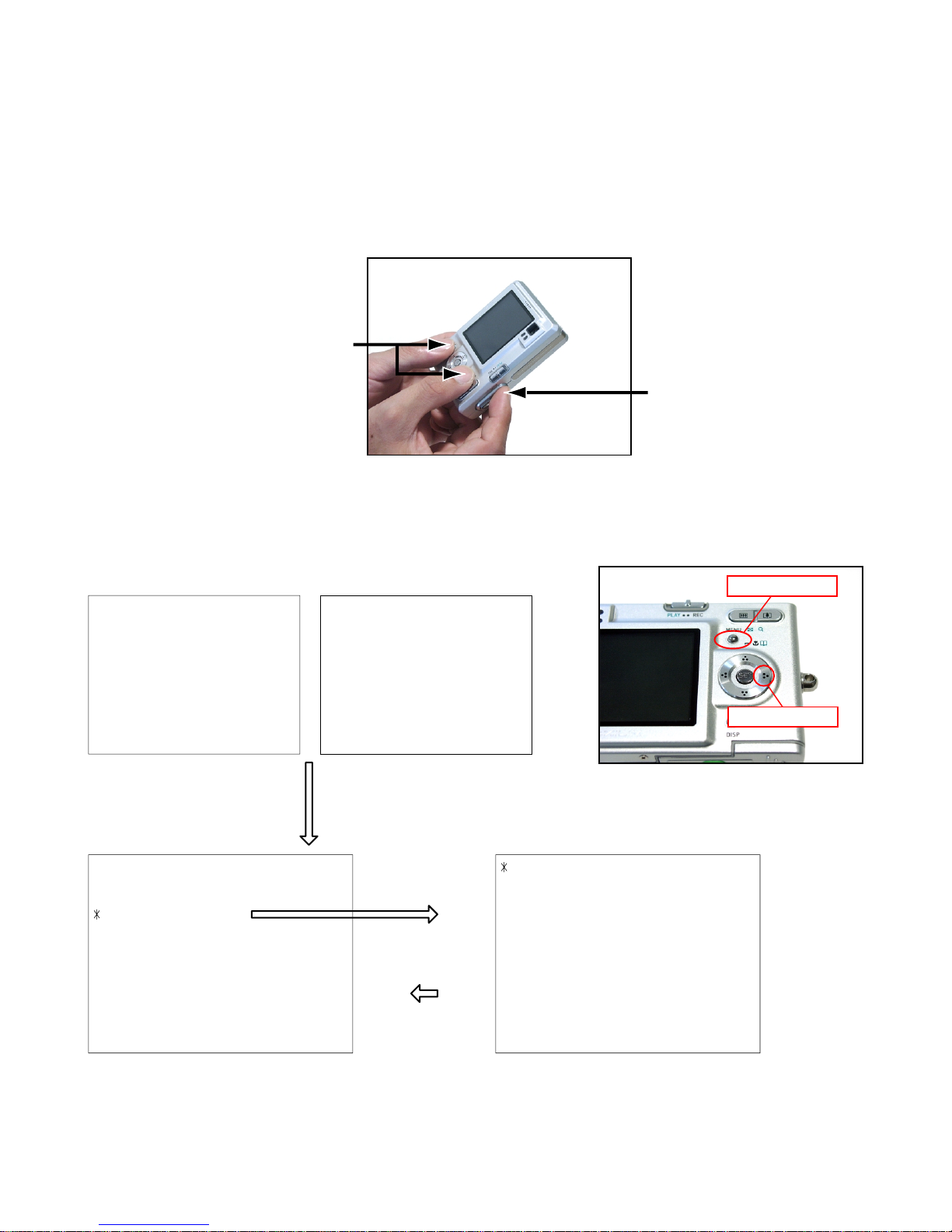

TEST MODE

Note: Never perform the menu items unless otherwise instructed. Doing so may cause destruction

of the data inside, which will make the camera unusable.

■To boot the test mode

1. While firmly pressing down both [MENU] and [DISP], turn the power on. Keep pressing both [MENU

and [DISP] until the main menu appears.

2. After the version appears, press the buttons in the order of [>], [>] and [MENU] to display the test

menu.

1"MENU" + "DISP" button

2"POWER" button

1 :VERSION INFO

2 :VIDEO OUT

3 :USB TCC TEST

4 :TEST MENU

5 :SOUND TEST

6 :IMAGE FLAG

7 :ROM UPDATE

8 :ADJ TEST

9 :REC-INFO

10 :TEST SCRIPT

11 :LAST MEMORY

12 :FORMAT

++ KX877 ++

PR :04.06.07.12.30

1 :KEY CHECK

2 :MEMORY CHECK

3 :COLOR CHECK

4 :MESSAGE CHECK

5 :LED CHECK

6 :SW&JACK CHECK

7 :MIC CHECK

8 :BENDI MASK

"SET" button

"MENU" button

">" button -> ">" button -> "MENU" button

■EX-Z30

++ KX871 ++

PR :04.06.07.12.24

■EX-Z40

[MENU] button

[>] button

—7 —

PROGRAM VERSION UPGRADING

1. To update the firmware version

1. Prepare the memory card which contains the firmware for EX-Z30 / Z40 in the root directory.

EX-Z30: EX-Z30.bin

EX-Z40: EX-Z40.bin

2. Insert the above memory card into the camera, and set a fully charged battery in the camera.

3. Press the [power button] while holding [MENU] depressed. Keep holding [MENU] depressed until

“PROGRAM UPDATE”appears in the display.

•The following appears.

•The version of the firmware in the memory card appears at the bottom of the display.

NOTE 1) When a wrong software is mistakenly used,

the message below appears. Update the

firmware again with the correct software.

PROGRAM UPDATE

YES

NEW VERSION IS

VER 1.00 FILE ERROR!

0x1002

VER 1.00

NOTE 2) When only the version appears in the display

even though you are trying to operate the

camera, charge the battery to the fullest and

try again. The level of the battery indicator

should be highest in order to update the

firmware.

4. Align the white cursor to [YES] by [쑿] and [쑼], and then press [SET].

•“NOW LOADING”appears in the display and the update starts.

5. “COMPLETE”appears after the update finishes.

6. Remove the memory card after turning the power off once. Turn the power back on again while holding

[MENU] depressed, and check the version.

•“VER.1.00”appears.

7. If the version is correct, turn the power off.

8. Finally, check the operation by recording, playing back and deleting an image.

(As of October 2004)

—8 —

2. How to restore the firmware

1. Prepare the firmware restoration program and change its name as follows;

EX-Z30: “rom877-040607.lbn”씮“jupiter.bin”

EX-Z40: “rom871-040607.lbn”씮“jupiter.bin”

NOTE: This software and procedure automatically restores the firmware even if the firmware belongs

to a wrong model code. Make sure to use the correct software for the correct model.

2. Copy the above file to the root directory in the memory card.

3. Insert the memory card into the camera.

4. Set a fully charged battery in the camera.

NOTE: This software and procedure automatically restores the firmware even if the battery capacity of

the camera is low. Make sure to use a fully charged battery to prevent the danger of power

down during firmware restoration.

5. Turn the power on while pressing the [shutter release] button.

If the power does not turn on only by pressing the power button, insert the battery while holding the

[shutter release] button depressed.

•The LED next to the optical viewfinder changes from “green/red blinking”, “green blinking”to “green steady”.

NOTE: This software and procedure automatically restores the firmware even if the firmware belongs

to a wrong model code. Make sure to use the correct software for the correct mode.

6. When the LED becomes “green steady”, the firmware restoration is finished.

Remove the battery and the memory card, and then turn the power off.

7. Turn the power on again while holding [MENU] and [DISP] depressed.

Check the model name and the program version (PR:) in the opening screen of the test menu.

EX-Z30 ….. ++KX877++

PR:04.06.07.12.30

EX-Z40 ….. ++KX871++

PR:04.06.07.12.24

8. If the model name and the program version are correct, perform SYSTEM INITIAL to initialize the

system area.

“MENU + DISP + PW ON”씮“RIGHT, RIGHT, MENU”씮“7:ROM UPDATE”씮“5:SYSTEM INITIAL”

NOTE: After SYSTEM INITIAL is performed, “SYSTEM ERROR”appears when the power is turned

on again.

9. Write the latest firmware.

After the firmware is written, check the model name and the program version (PR:) in the opening

screen of the test menu.

10. Finally, start the camera normally to check the operation by recording, playing back and deleting an

image. Check also that the colors in the images are not too bright or two dark.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Casio Appareil photo numérique

Casio

Casio EXILIM EX-ZR400 Manuel utilisateur

Casio

Casio QV-70C Guide de dépannage

Casio

Casio QV-4000 Manuel utilisateur

Casio

Casio EX-S3 - Exilim 3MP Digital Camera Manuel utilisateur

Casio

Casio EX-V8 - EXILIM Hi-Zoom Digital Camera Manuel utilisateur

Casio

Casio Exilim EX-S600 Manuel utilisateur

Casio

Casio QV-3EX Manuel utilisateur

Casio

Casio EX-Z1080 - EXILIM Digital Camera Manuel utilisateur

Casio

Casio EX-Z70 - EXILIM ZOOM Digital Camera Manuel utilisateur

Casio

Casio EXILIM EX-N1 Manuel utilisateur

Casio

Casio EXILIM EX-Z27 Manuel utilisateur

Casio

Casio QV 3000EX - Digital Camera - 3.3 Mpix Guide de dépannage

Casio

Casio QV-R62 Manuel utilisateur

Casio

Casio QV-3000EX/Ir Manuel utilisateur

Casio

Casio Exilim EX-P700 Manuel utilisateur

Casio

Casio Exilim EX-FH100 Manuel utilisateur

Casio

Casio EX-FR100CA Manuel utilisateur

Casio

Casio EX-Z550 - EXILIM Digital Camera Manuel utilisateur

Casio

Casio EX-ZR62 Manuel utilisateur

Casio

Casio QV-200B Guide de dépannage

Casio

Casio Exilim EX-S880 Manuel utilisateur

Casio

Casio K823PCM1DMX Manuel utilisateur

Casio

Casio EX-S3 - Exilim 3MP Digital Camera Manuel utilisateur

Casio

Casio EX-F1 - EXILIM Pro Digital Camera Manuel utilisateur

Manuels Appareil photo numérique populaires d'autres marques

Mercury

Mercury 350K Manuel utilisateur

Pentax

Pentax Optio LS 465 Manuel utilisateur

Sanyo

Sanyo VPC-S1085 Manuel utilisateur

GE SMART A1255 Manuel utilisateur

Point Grey

Point Grey Gazelle Manuel utilisateur

Nikon

Nikon COOLPIX A Manuel utilisateur

Pentax

Pentax P-5 Manuel utilisateur

BlazeVideo

BlazeVideo A280 Manuel utilisateur

Sony

Sony MCA-20 Manuel utilisateur

Sony

Sony Alpha DSLR-A290 Manuel utilisateur

ATIK Cameras

ATIK Cameras One Manuel utilisateur

CohuHD Costar

CohuHD Costar 3930 Series Manuel utilisateur

Leica

Leica M10-R Manuel utilisateur

FujiFilm

FujiFilm FinePix A700 Manuel utilisateur

Lorex

Lorex LNZ81P25 Series Manuel utilisateur

GE J1470S Manuel utilisateur

Sony

Sony A6700 Guide de l'utilisateur

Canon

Canon EOS ELAN7 Manuel utilisateur
