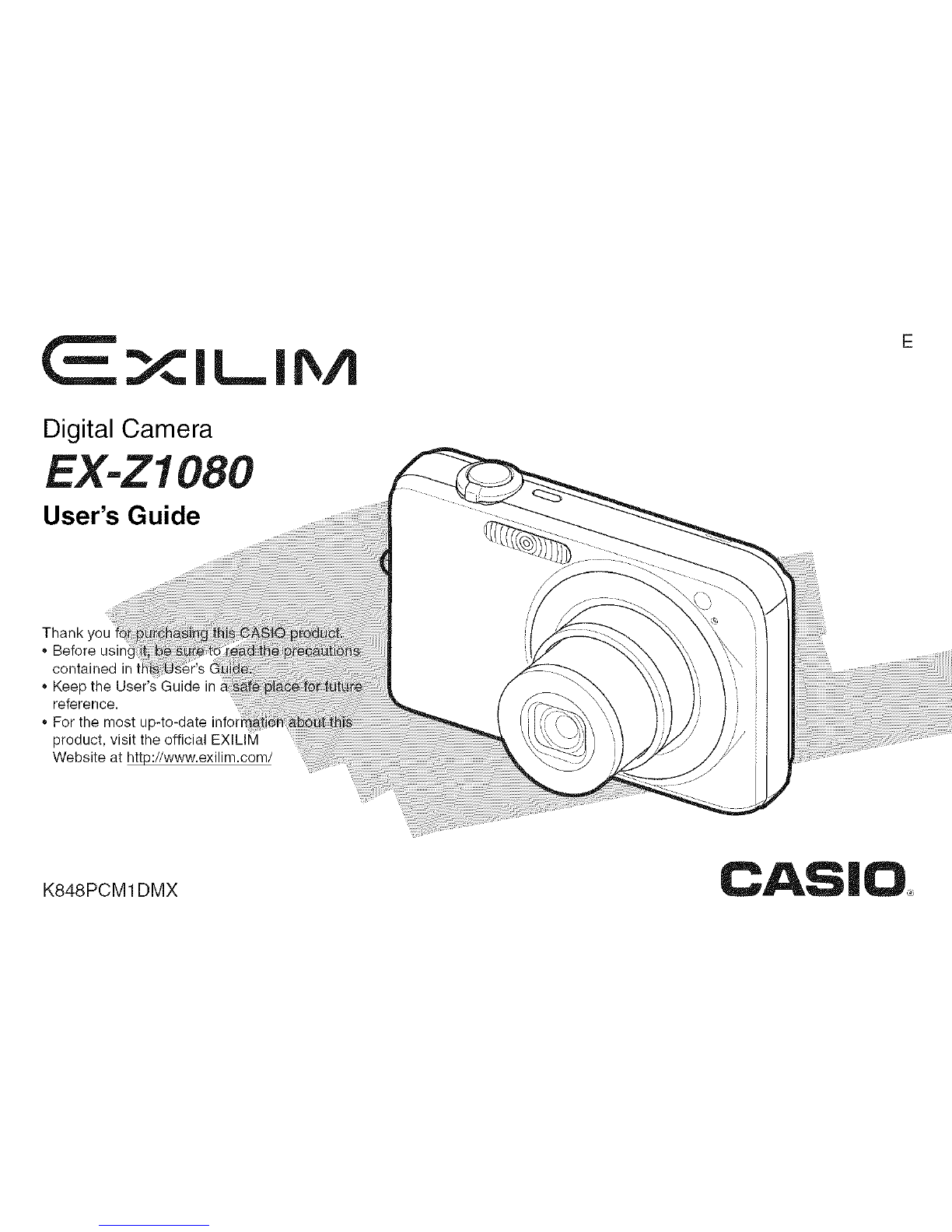

Casio EX-Z1080 - EXILIM Digital Camera Manuel utilisateur

(_ XI L_lIVl

Digital Camera

EX-Z1080

User's Guide

Thank

Before usir

contained in

• Keep the User's Guide

reference.

• For the most L

product, visit the official EXILIM

Website at http://www.exilim.com/

K848PCM1DMX

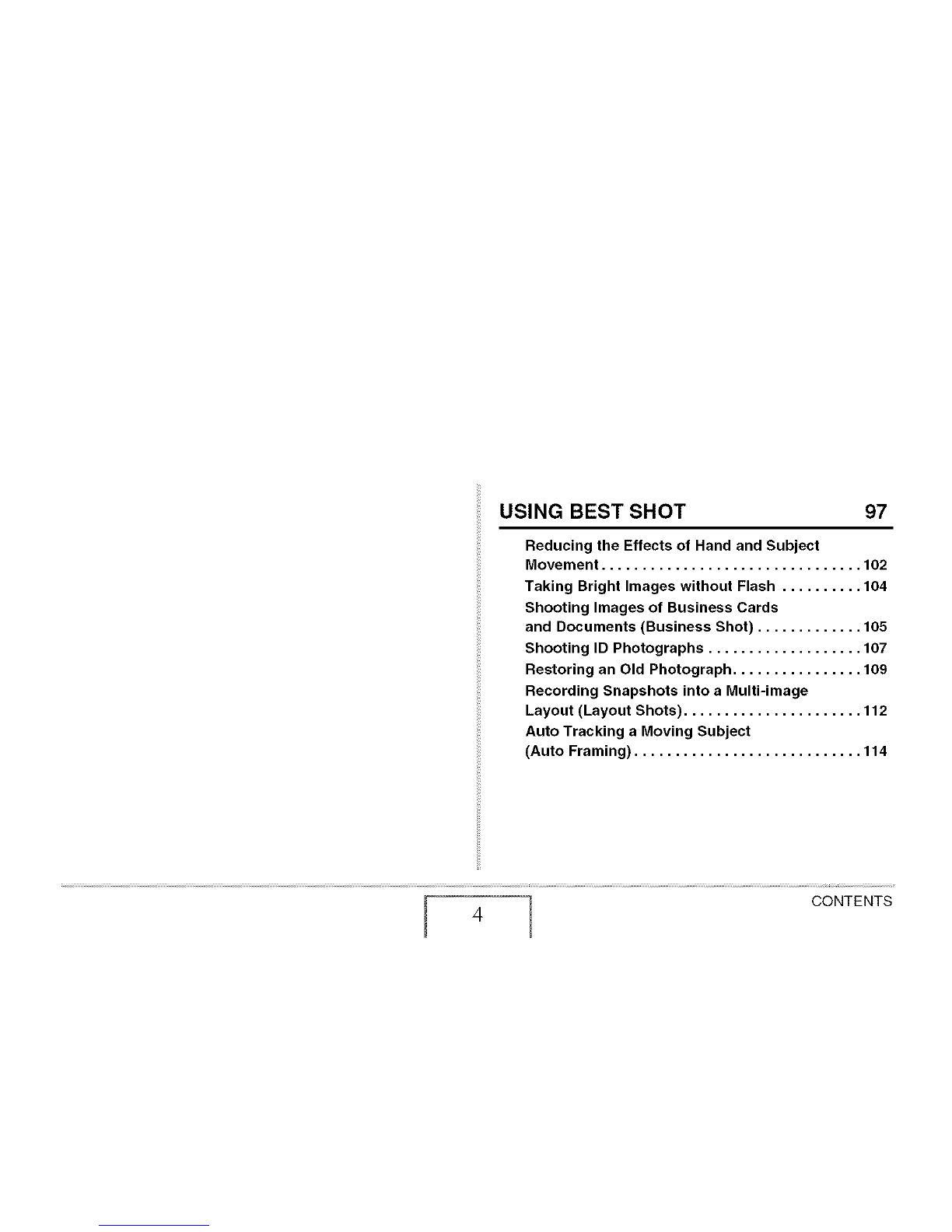

USING BEST SHOT 97

Reducing the Effects of Hand and Subject

Movement ................................ 102

Taking Bright Images without Flash .......... 104

Shooting Images of Business Cards

and Documents (Business Shot) ............. 105

Shooting ID Photographs ................... 107

Restoring an Old Photograph ................ 109

Recording Snapshots into a Multi-image

Layout (Layout Shots) ...................... 112

Auto Tracking a Moving Subject

(Auto Framing) ............................ 114

CONTENTS

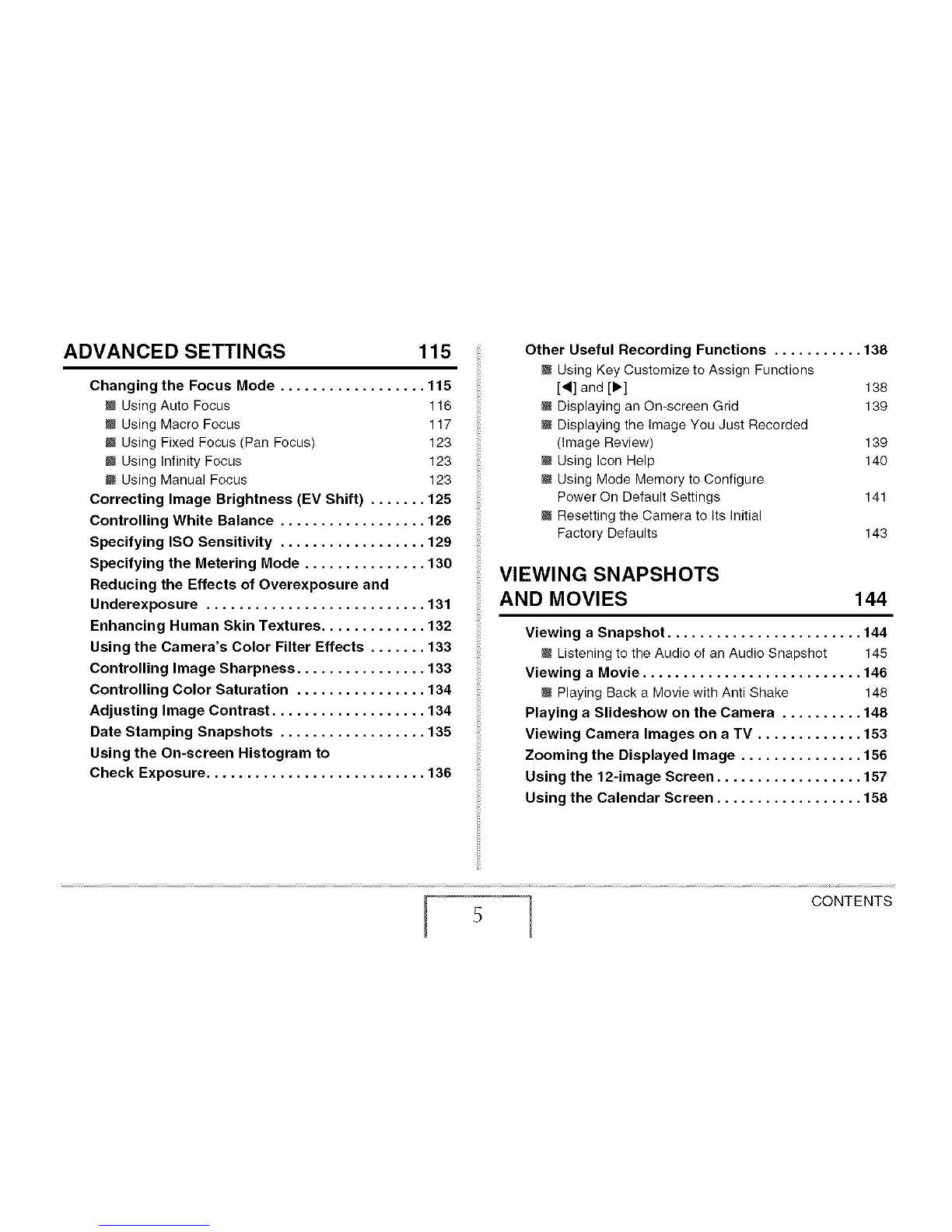

ADVANCED SETTINGS 115

Changing the Focus Mode .................. 115

J Using Auto Focus 116

J Using Macro Focus 117

J Using Fixed Focus (Pan Focus) 123

J Using Infinity Focus 123

WUsing Manual Focus 123

Correcting Image Brightness (EV Shift} ....... 125

Controlling White Balance .................. 126

Specifying ISO Sensitivity .................. 129

Specifying the Metering Mode ............... 130

Reducing the Effects of Overexposure and

Underexposure ........................... 131

Enhancing Human Skin Textures ............. 132

Using the Camera's Color Filter Effects ....... 133

Controlling Image Sharpness ................ 133

Controlling Color Saturation ................ 134

Adjusting Image Contrast ................... 134

Date Stamping Snapshots .................. 135

Using the On-screen Histogram to

Check Exposure ........................... 136

Other Useful Recording Functions ........... 138

J Using Key Custornize to Assign Functions

[_1] and [1_-] 138

J Displaying an On-screen Grid 139

J Displaying the Image You Just Recorded

(image Review) 139

J Using Icon Help 140

J Using Mode Memory to Configure

Power On Default Settings 141

J Resetting the Camera to Its Initial

Factory Defaults 143

VIEWING SNAPSHOTS

AND MOVIES 144

Viewing a Snapshot ........................ 144

W Listening to the Audio of an Audio Snapshot 145

Viewing a Movie ........................... 146

J Playing Back a Movie with Anti Shake 148

Playing a Slideshow on the Camera .......... 148

Viewing Camera Images on a TV ............. 153

Zooming the Displayed Image ............... 156

Using the 12-image Screen .................. 157

Using the Calendar Screen .................. 158

CONTENTS

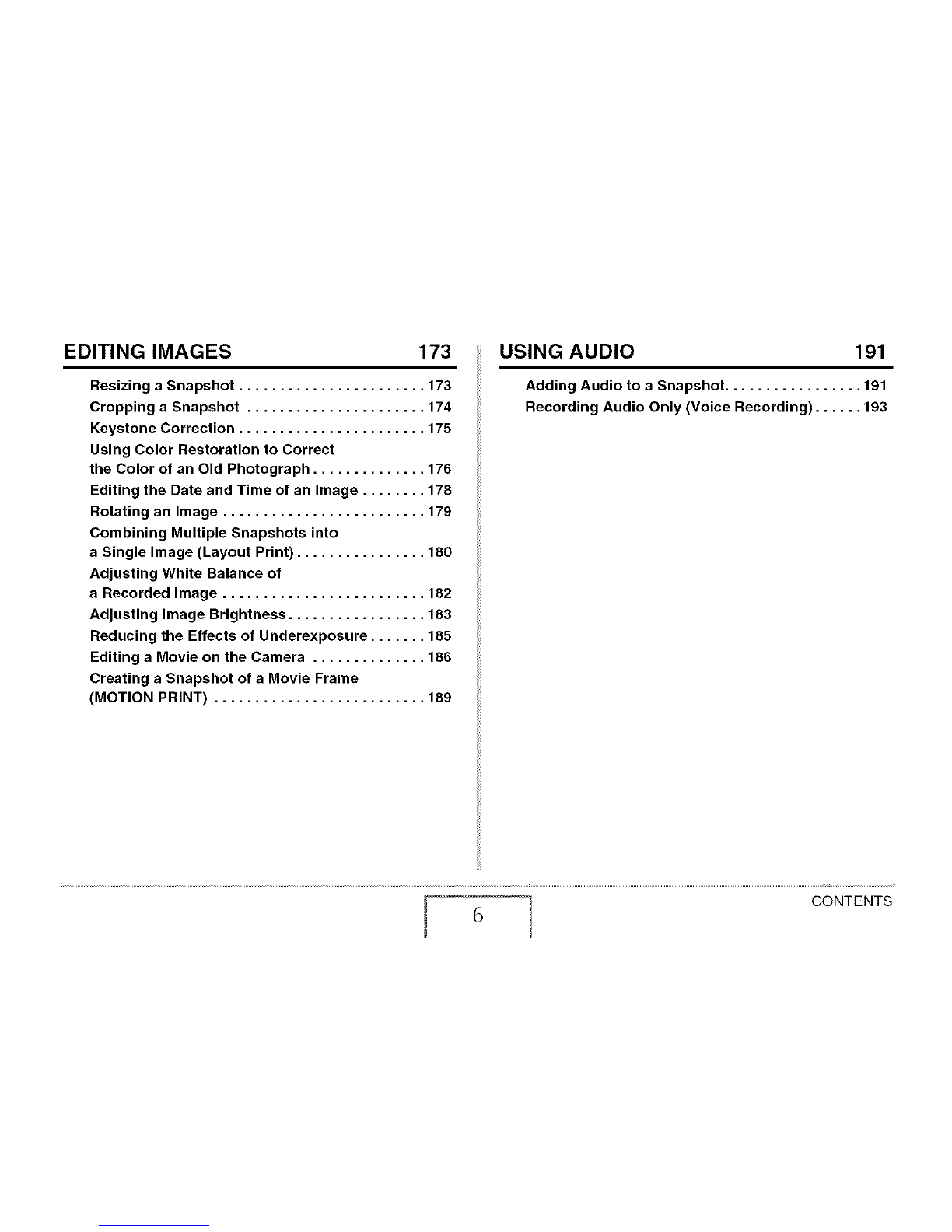

EDITING IMAGES 173

Resizing a Snapshot ....................... 173

Cropping a Snapshot ...................... 174

Keystone Correction ....................... 175

Using Color Restoration to Correct

the Color of an Old Photograph .............. 176

Editing the Date and Time of an Image ........ 178

Rotating an Image ......................... 179

Combining Multiple Snapshots into

a Single Image (Layout Print) ................ 180

Adjusting White Balance of

a Recorded Image ......................... 182

Adjusting Image Brightness ................. 183

Reducing the Effects of Underexposure ....... 185

Editing a Movie on the Camera .............. 186

Creating a Snapshot of a Movie Frame

(MOTION PRINT) .......................... 189

USING AUDIO 191

Adding Audio to a Snapshot ................. 191

Recording Audio Only (Voice Recording) ...... 193

CONTENTS

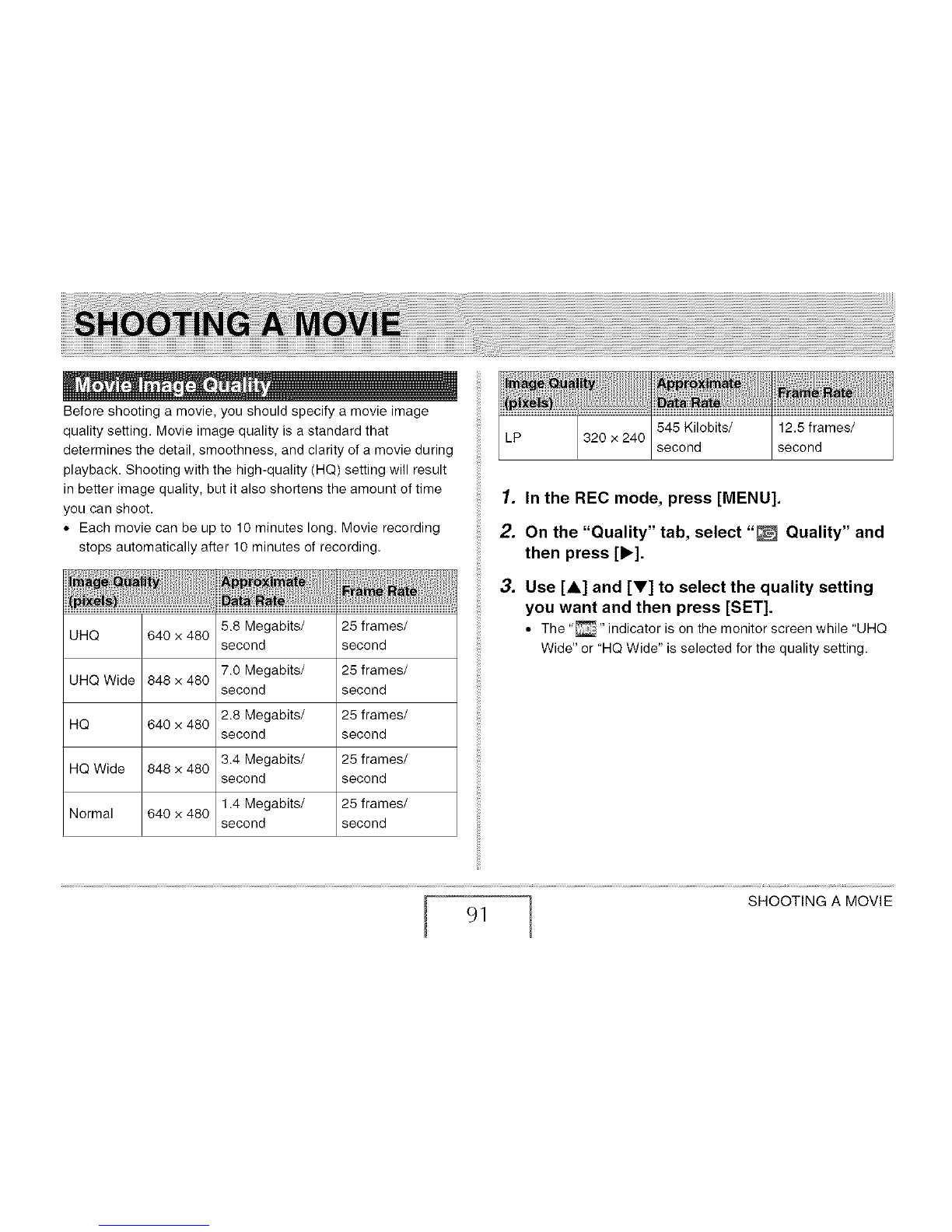

Before shooting a movie, you should specify a movie image

quality setting. Movie image quality is a standard that

determines the detail, smoothness, and clarity of a movie during

playback. Shooting with the high-quality (HQ) setting will result

in better image quality, but it also shortens the amount of time

you can shoot.

•Each movie can be up to 10minutes long. Movie recording

stops automatically after 10 minutes of recording.

UHQ 640 x 480

UHQ Wide 848 x 480

HQ 640 x 480

HQ Wide 848 x 480

Normal 640 x 480

5,8 Megabits/

second

7,0 Megabits/

second

2,8 Megabits/

second

3,4 Megabits/

second

1,4 Megabits/

second

25 frames/

second

25 frames/

second

25 frames/

second

25 frames/

second

25 frames/

second

545 Kilobits/ 12.5 frames/

LP second second

1. In the REC mode, press [MENU].

2. On the "Quality" tab, select "_ Quality" and

then press [11_].

3. Use [A] and [V] to select the quality setting

you want and then press [SET].

• The "_" indicator is on the monitor screen while "UHQ

Wide" or "HQ Wide" is selected for the quality setting.

SHOOTING A MOVIE

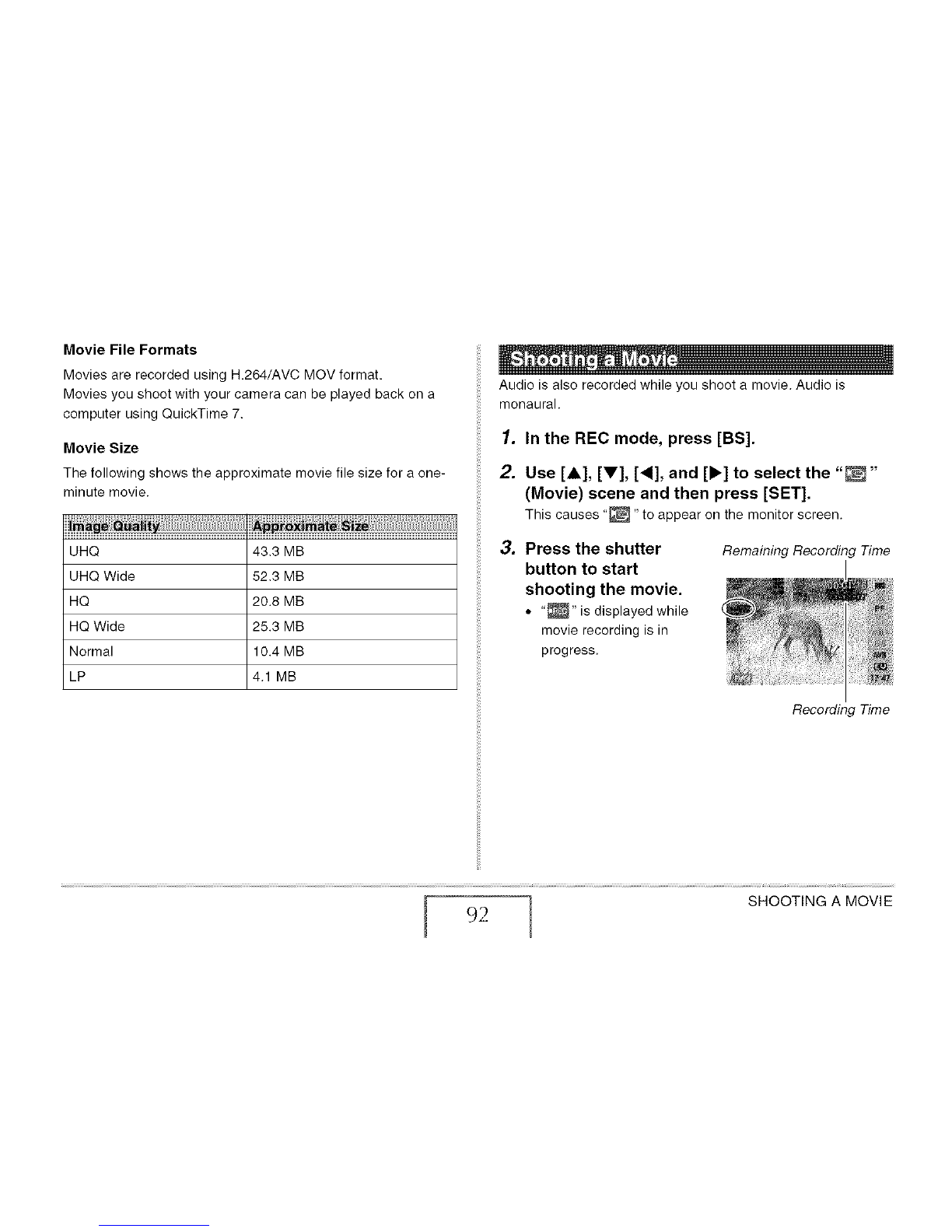

Movie File Formats

Movies are recorded using H,264/AVC MOV format.

Movies you shoot with your camera can be played back on a

computer using QuickTime 7.

Movie Size

The following shows the approximate movie file size for a one-

minute movie. pp

UHQ 43.3 MB

UHQ Wide 52.3 MB

HQ 20.8 MB

HQ Wide 25.3 MB

Normal 10.4 MB

LP 4.1 MB

Audio is also recorded while you shoot a movie. Audio is

monaural.

1. In the REC mode, press [BS].

2. Use [A], [V], [_], and [1_] to select the "_"

(Movie) scene and then press [SET].

This causes"_" to appearon the rnonitorscreen.

3. Press the shutter

button to start

shooting the movie.

•"_" isdisplayedwhile

rnovierecordingis in

progress.

Remaining Recording Time

Recording Time

SHOOTING A MOVIE

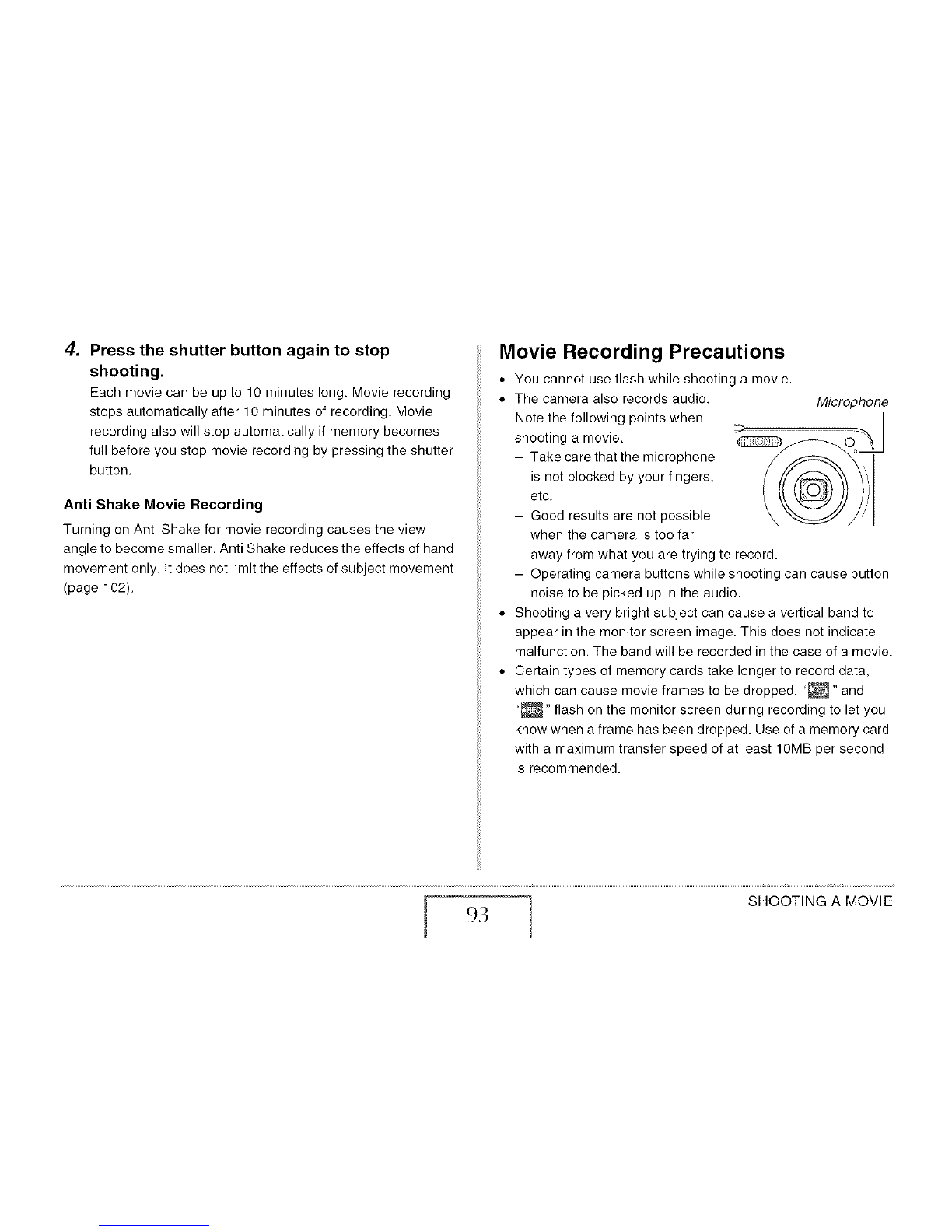

4. Press the shutter button again to stop

shooting.

Each rnovie can be up to 10 rninutes long. Movie recording

stops automatically after 10 minutes of recording. Movie

recording also will stop automatically if memory becomes

full before you stop movie recording by pressing the shutter

button.

Anti Shake Movie Recording

Turning on Anti Shake for movie recording causes the view

angle to become smaller. Anti Shake reduces the effects of hand

movement only. It does not limit the effects of subject movement

(page 102).

Movie Recording Precautions

• You cannot use flash while shooting a movie.

• The camera also records audio.

Note the following points when

shooting a movie.

- Take care that the microphone

is not blocked by your fingers,

etc.

- Good results are not possible

when the camera is too far

Microphone

away from what you are trying to record.

- Operating camera buttons while shooting can cause button

noise to be picked up in the audio.

Shooting a very bright subject can cause a vertical band to

appear in the monitor screen image. This does not indicate

malfunction. The band will be recorded in the case of a movie.

Certain types of memory cards take longer to record data,

which can cause movie frames to be dropped. "_" and

"_" flash on the monitor screen during recording to let you

know when a frame has been dropped. Use of a memory card

with a maximum transfer speed of at least 10MB per second

is recommended.

SHOOTING A MOVIE

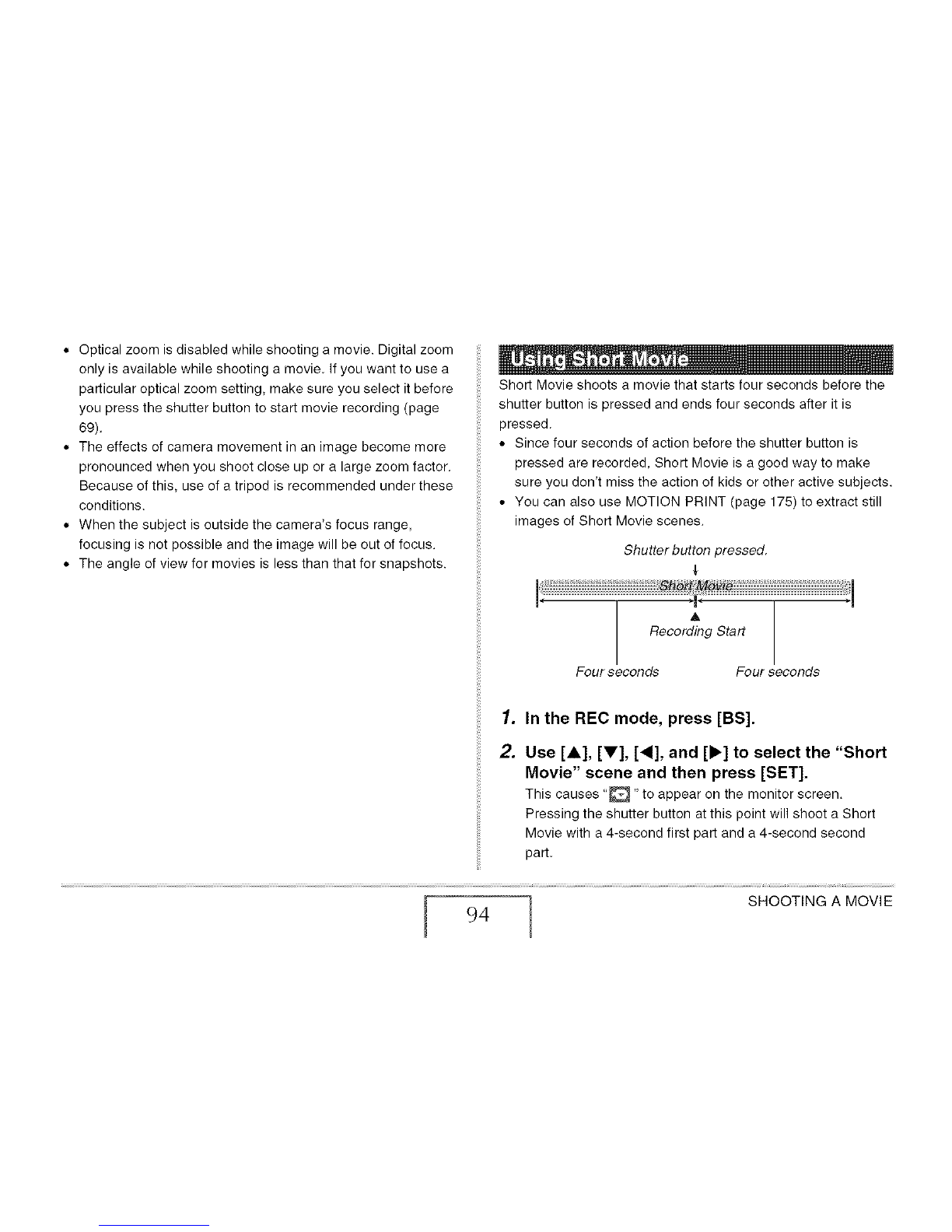

• Optical zoom is disabled while shooting a movie. Digital zoom

only is available while shooting a movie. If you want to use a

particular optical zoom setting, make sure you select it before

you press the shutter button to start movie recording (page

69).

• The effects of camera movement in an image become more

pronounced when you shoot close up or a large zoom factor.

Because of this, use of a tripod is recommended under these

conditions.

• When the subject is outside the camera's focus range,

focusing is not possible and the image will be out of focus.

• The angle of view for movies is less than that for snapshots.

Short Movie shoots a movie that starts four seconds before the

shutter button is pressed and ends four seconds after it is

pressed.

• Since four seconds of action before the shutter button is

pressed are recorded, Short Movie is a good way to make

sure you don't miss the action of kids or other active subjects.

• You can also use MOTION PRINT (page 175) to extract still

images of Short Movie scenes.

Shutter button pressed.

Recording Start

Fourseconds Four seconds

1. In the REC mode, press [BS].

2. Use [A], [V], [_1],and [1_] to select the "Short

Movie" scene and then press [SET].

This causes "_" to appear on the monitor screen.

Pressing the shutter button at this point will shoot a Short

Movie with a 4-second first part and a 4-second second

part.

SHOOTING A MOVIE

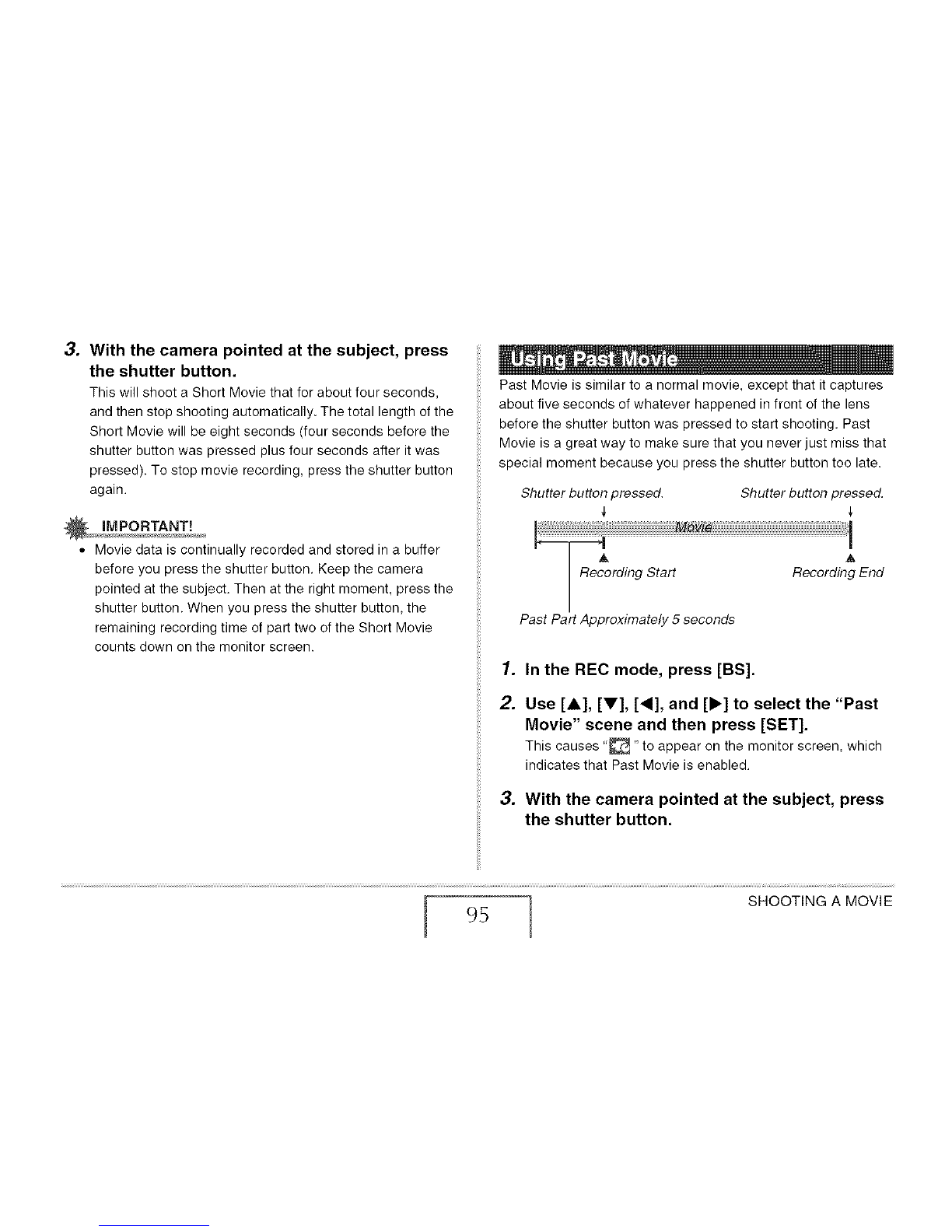

3. With the camera pointed at the subject, press

the shutter button.

This will shoot a Short Movie that for about four seconds,

and then stop shooting automatically. The total length of the

Short Movie will be eight seconds (four seconds before the

shutter button was pressed plus four seconds after it was

pressed). To stop movie recording, press the shutter button

again.

• Movie data is continually recorded and stored in a buffer

before you press the shutter button. Keep the camera

pointed at the subject. Then at the right moment, press the

shutter button. When you press the shutter button, the

remaining recording time of part two of the Short Movie

counts down on the monitor screen.

Past Movie is similar to a normal movie, except that it captures

about five seconds of whatever happened in front of the lens

before the shutter button was pressed to start shooting. Past

Movie is a great way to make sure that you never just miss that

special moment because you press the shutter button too late.

Shutter button pressed. Shutter button pressed.

Past Part Approximately 5 seconds

1. In the REC mode, press [BS].

2. Use [A], [V], [_], and [1_] to select the "Past

Movie" scene and then press [SET].

This causes "_" to appear on the monitor screen, which

indicates that Past Movie is enabled.

3. With the camera pointed at the subject, press

the shutter button.

SHOOTING A MOVIE

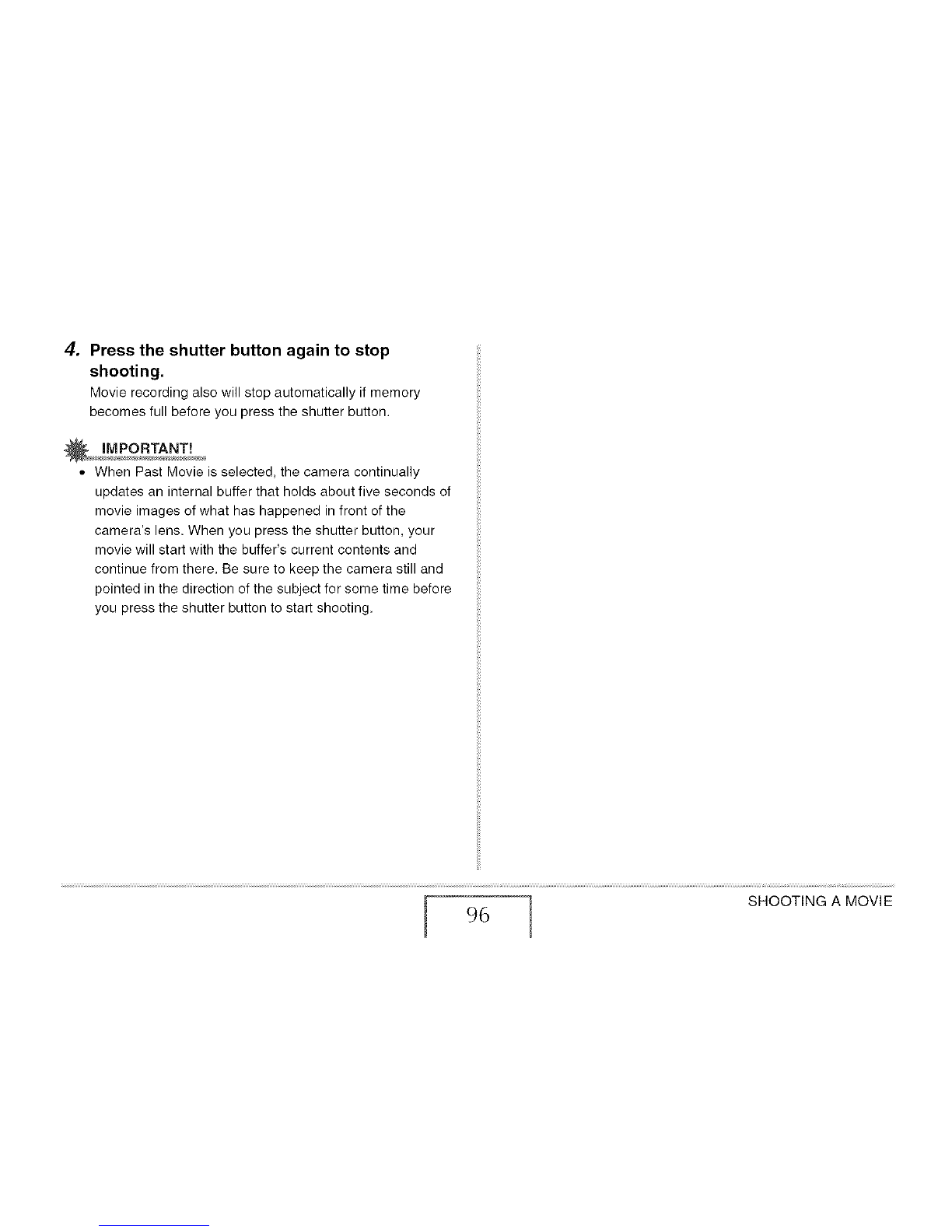

4. Press the shutter button again to stop

shooting.

Movie recording also will stop automatically if memory

becomes full before you press the shutter button.

• When Past Movie is selected, the camera continually

updates an internal buffer that holds about five seconds of

movie images of what has happened in front of the

camera's lens. When you press the shutter button, your

movie will start with the buffer's current contents and

continue from there. Be sure to keep the camera still and

pointed in the direction of the subject for some time before

you press the shutter button to start shooting.

SHOOTING A MOVIE

Autres manuels pour EX-Z1080 - EXILIM Digital Camera

Autres manuels Casio Appareil photo numérique

Casio

Casio EX-Z155 - EXILIM Digital Camera Manuel utilisateur

Casio

Casio EX-TR600 Manuel utilisateur

Casio

Casio EX-Z800BE Manuel utilisateur

Casio

Casio Exilim EX-FC200S Manuel utilisateur

Casio

Casio Exilim EX-H10 Manuel utilisateur

Casio

Casio Exilim EX-Z4U Manuel d'instructions et de sécurité

Casio

Casio QV-3EX Guide de dépannage

Casio

Casio Exilim EX-Z850 Manuel utilisateur

Casio

Casio Exilim EX-Z10 Manuel utilisateur

Casio

Casio EX-Z700 - EXILIM Digital Camera Guide d'installation

Casio

Casio QV-2400UX Manuel utilisateur

Casio

Casio EXILIM EX-S300 Manuel utilisateur

Casio

Casio Exilim EX-Z2300 Manuel utilisateur

Casio

Casio EX-Z21 - EXILIM Digital Camera Manuel utilisateur

Casio

Casio EX-10 Manuel utilisateur

Casio

Casio QV-2000UX/Ir Manuel utilisateur

Casio

Casio EXILIM Exilim EX Z 33 Manuel utilisateur

Casio

Casio EX Z77 - EXILIM ZOOM Digital Camera Manuel utilisateur

Casio

Casio QV-3500 Manuel utilisateur

Casio

Casio Exilim EX-ZS160 Manuel utilisateur

Casio

Casio EXS20 A EX-M20 Manuel utilisateur

Casio

Casio EX-Z2000 - EXILIM Digital Camera Manuel utilisateur

Casio

Casio QV-200 Manuel utilisateur

Casio

Casio QVR61 - Digital Camera - 6.0 Megapixel Manuel utilisateur

Manuels Appareil photo numérique populaires d'autres marques

Mercury

Mercury 350K Manuel utilisateur

Pentax

Pentax Optio LS 465 Manuel utilisateur

Sanyo

Sanyo VPC-S1085 Manuel utilisateur

GE SMART A1255 Manuel utilisateur

Point Grey

Point Grey Gazelle Manuel utilisateur

Nikon

Nikon COOLPIX A Manuel utilisateur

Pentax

Pentax P-5 Manuel utilisateur

BlazeVideo

BlazeVideo A280 Manuel utilisateur

Sony

Sony MCA-20 Manuel utilisateur

Sony

Sony Alpha DSLR-A290 Manuel utilisateur

ATIK Cameras

ATIK Cameras One Manuel utilisateur

CohuHD Costar

CohuHD Costar 3930 Series Manuel utilisateur

Leica

Leica M10-R Manuel utilisateur

FujiFilm

FujiFilm FinePix A700 Manuel utilisateur

Lorex

Lorex LNZ81P25 Series Manuel utilisateur

GE J1470S Manuel utilisateur

Sony

Sony A6700 Guide de l'utilisateur

Canon

Canon EOS ELAN7 Manuel utilisateur
