Luxxum

Quick Instruction

This booklet gives a brief overview of

the most important controls.

The quick instruction is not a

substitute for the operator´s

manual! To operate the vehicle

follow the instructions in the

operator´s manual!

Case IH

Luxxum

Date:

08.01.2018

Language:

English

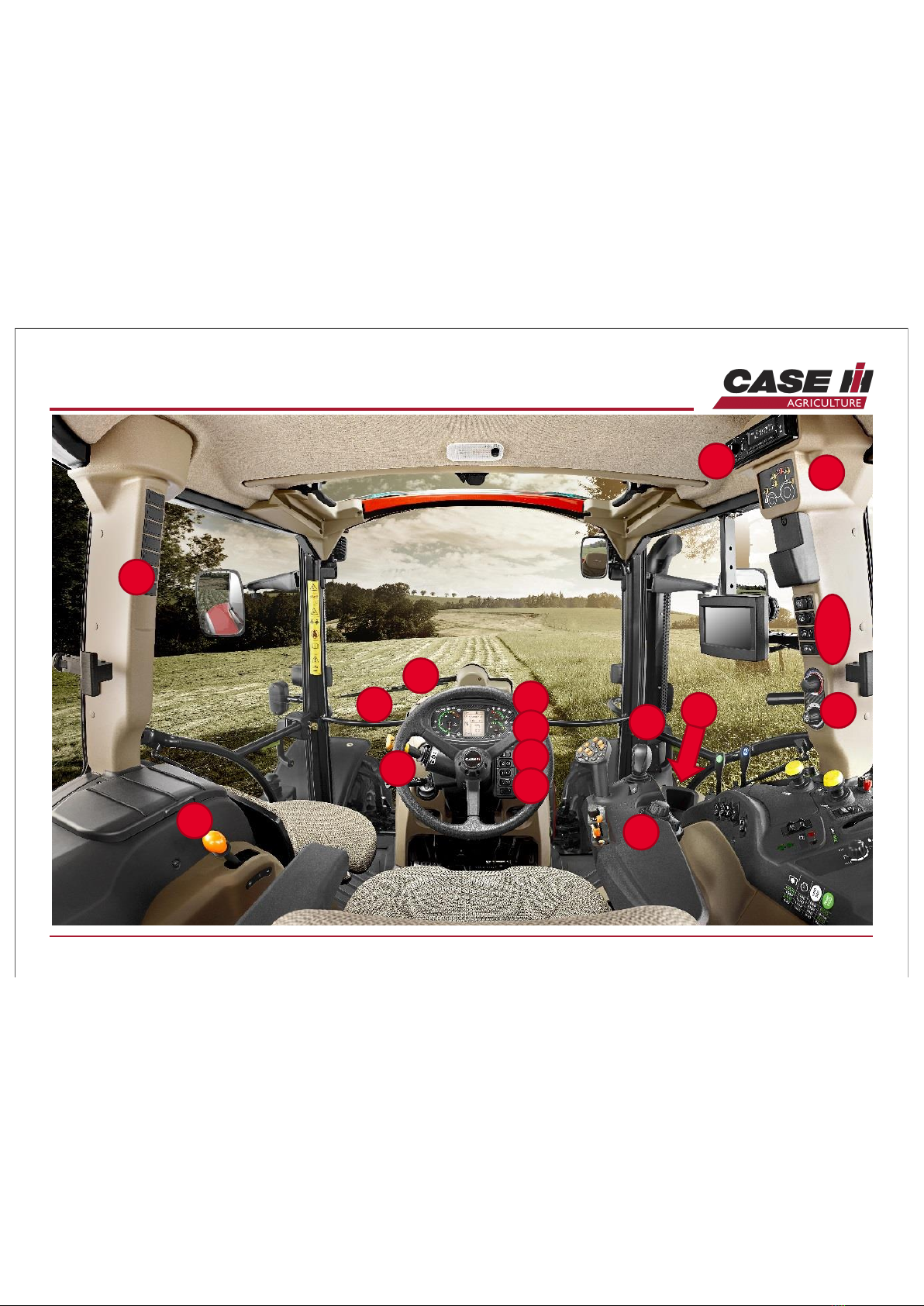

Cab

1-4

910

1. Heating switch for Front/Rear Screen

2. Heating switch for Rear mirrors

3. Rear Mirror Adjustment

4. Trailerbrake test switch

5. Shuttle Lever + Neutral Button

6. Dashboard (Speed, gear settings, etc…)

7. Front Wiper, Indicator

8. Multicontroller armrest

9. Electrical Joystick (with transmission

functions) for remotes (front loader)

10. Mechanical Front Loader Joystick (NOT

together with electrical, arrow shows only

position, lever is not in picture)

11. Hazard Light

12. Display - Home/Enter, Up/Down

13. Tractor light main switch

14. Battery Main switch

15. AC/Heating Control Unit

16. Rear Screen Wiper/Washer

17. Auxiliary Light Switch

18. Front axle suspension switch

19. Front axle manual leveling

20. Work Light Panel

21. Radio

22. Transport/Field group lever

Controls

161514

1. Mechanical rear remotes

2. Multicontroller

3. Electronical remotes (f/r)

4. Mechanical lever for front remotes

5. Toggle switch f/r remotes

6. Encoder for remote settings (timer, flow)

7. Hand throttle

8. Shiftpoint adjustment

9. Transmission programming

10. Shuttle reactivity

11. Maximum working depth

12. Draft control encoder

13. Constant engine speed switch +

adjustment

14. 4WD switch

15. Differential lock

16. Manual switch for rear hitch raise / lower

17. EDC master switch

18. PTO soft start

19. EDC controls

20. Signal socket

21. ISO-BUS cabIN socket

22. Power socket

23. Eco / Normal pto lever

24. 540 / 1000 PTO lever

25. Front & rear pto switch

26. Screw type 12V socket

27. power socket

28. EFH panel

29. Slip control

First steps

When starting your tractor make sure:

1. Depress clutch pedal You can only

start the engine when the clutch is fully

depressed.

2. Shuttle lever has to be in neutral position

3. Activate hitch and hydraulic functions

up: remote valves active

center: remotes and rear hitch

deactivated

down: remotes and rear hitch

activated

Multicontroller

Multicontroller(Backside)

Shift

Multicontroller

(version mechanical remotes)

Constant engine speedPowerClutch

Transmission

modes

Remote Valve

F1/R4 –R3

Remote Valve

F1/R4 –R3 Powershift

gears

Rear Hitch

up/down,

quick

penetration,

stop

Power

Shuttle

(Version: electro-hydraulic remotes)

Dashboard

Rear/Front

DiffLock

4WD

Rear/Front

PTO

Indicator

Trailer I/II

High Beam

Side lights

STOP

Turn

left

WARNING

Front axle suspension

Hand

brake

Trailer Brake

Brakes not

latched

Eng. Oil

pressure

Grid

heater

Constant

ERPM

Turn

right

Alternator

charging

Remotes

Low fuel

level

Rear AUTO

PTO

Display

Driving

direction

Current gear

gear shift

mode

Delta

Powershift

gear

Ground speed

•rear pto speed

•rear hitch position

•front pto speed

•EFH pressure

•EFH position

•slippage (with radar o)

•Ad Blue status

•odometer

•area worked

•area per hour

•service message

•remote valve values

•battery voltage

•air brake pressure

•error message

1 = Home / Enter

2 = Up / Down

GEAR SHIFT Modes

Gear match: (standard setting)

•Automatically adapting the

powershift steps that fits

best to the present speed

while up- & downshifting

ranges.

Auto FIELD:

•Only PS-steps in a range

will be shifted automatically

Auto TRANSPORT:

•All gears will be shifted

automatically

Manual:

•Gears will be shifted with

+/- completely manually
