CasaCam VS2104 Manuel utilisateur

VS2104

8 Channel Wireless NVR with

10.1’’ LCD Monitor and 4 1296P Cameras

User Manual

Table of Contents

1. SAFETY INSTRUCTION............................................................................................................................................. 3

2. WHAT’S IN THE BOX?.............................................................................................................................................. 3

3. AT A GLANCE........................................................................................................................................................... 4

3.1 NVR (receiver)...................................................................................................................................................4

3.2 CAMERA............................................................................................................................................................ 6

3.2.1 Night Vision Camera.............................................................................................................................. 6

3.2.2 Floodlight Camera..................................................................................................................................7

4. SET UP THE HARDWARE..........................................................................................................................................8

4.1 NVR....................................................................................................................................................................8

4.2 Camera.............................................................................................................................................................. 8

4.3 Set the Antenna Extension............................................................................................................................... 9

5. SYSTEM OPERATION................................................................................................................................................9

5.1 Setup Wizard.....................................................................................................................................................9

5.2 NVR SCREEN....................................................................................................................................................12

5.2.1 Live View Screen..................................................................................................................................13

5.2.2 Log In & Password................................................................................................................................14

5.2.3 Main Menu Toolbar......................................................................................................................15

6. FUNCTIONS........................................................................................................................................................... 15

7.1 Camera & Display............................................................................................................................................16

7.2 Record............................................................................................................................................................. 18

7.3 Playback.......................................................................................................................................................... 19

7.4 Light Setting.................................................................................................................................................... 21

7.5 Motion & Alarm.............................................................................................................................................. 22

7.6 Hard Drive....................................................................................................................................................... 23

7.7 System.............................................................................................................................................................23

7.8 Advanced........................................................................................................................................................ 24

7. REMOTE FROM APP.............................................................................................................................................. 24

8.1 Get the App.....................................................................................................................................................24

8.2 APP Remote.................................................................................................................................................... 25

8.2.1 Add camera..........................................................................................................................................25

8.2.2 Operating the App............................................................................................................................... 26

8. SPECIFICATIONS.................................................................................................................................................... 28

9. TROUBLE SHOOTING.............................................................................................................................................30

10. FCC REGULATIONS................................................................................................................................................ 31

Please read carefully before using this equipment.

1. SAFETY INSTRUCTION

1Install the NVR in sufficiently ventilated spaces to prevent plug vents.

2Install the NVR on a flat wall or other flat surfaces, avoid mounting in a severe vibration environment.

3Only use the power adapter plug contained in the material supplied since other power adapter plugs

could damage the devices. Ensure access to the power adapter plug is not obstructed by

furniture or such. Pay attention that the plug and cable are in perfect condition. Kinked or worn cable

represents the risk of a fatal accident!

4Unauthorized modification or reconstruction is not permitted. Under no circumstances open the

devices or complete any repair work yourself. Observe all local directives and regulations.

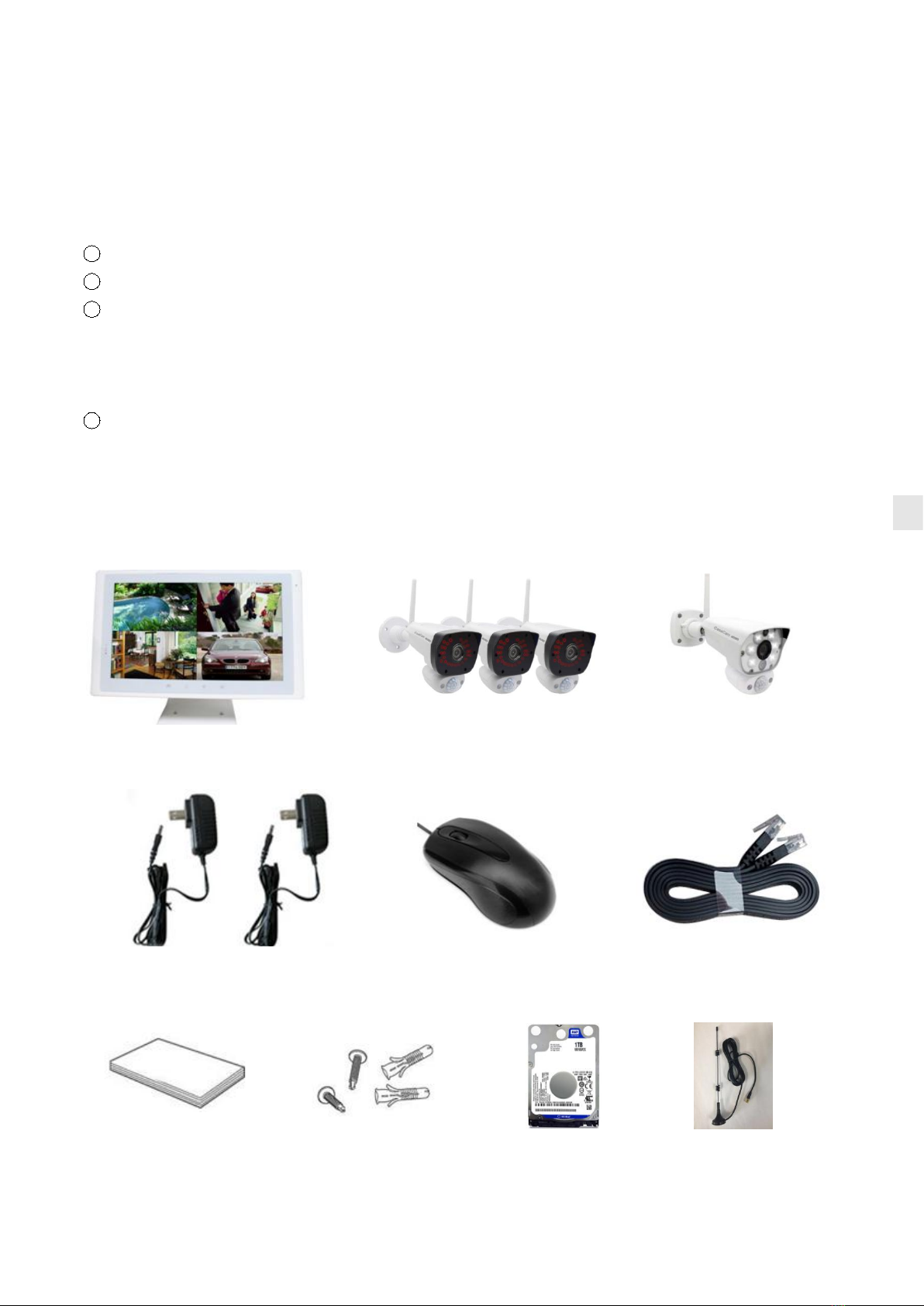

2. WHAT’S IN THE BOX?

10.1 Inch NVR

Mouse

Adapters

(4pc for camera, 1pc for NVR)

Ethernet Cable

User Manual &

Quick Start

Guide

Screws and Anchors

kit

1TB HDD

(pre-installed)

Antenna Extension

(With Magnetic

Stand Base)

VC2000

Night Vision Camera*3pcs

VC2000L

Floodlight Camera*1pcs

3. AT A GLANCE

3.1 NVR (receiver)

Item

What it is

What it does

NVR Screen

10.1” LCD panel

Microphone

Captures the sound on monitor and transmits the sound from

monitor to camera. (Intercom)

Power Indicator

The indicator LED will turn on when NVR is powered

HDD Indicator

The indicator LED will turn on when HDD is installed

NVR Antenna

Transmitting wireless signal with wireless camera.

HDMI port

Connect the HDMI cable

USB port

Connect the mouse to control the NVR or connect to USB storage

for back up.

RJ-45 port

Connect the Ethernet cable to get access to enable

Smartphone/tablet connectivity.

Power port

DC 12V power port. Connect to a local power outlet using te

included 12V power adapter.

Speaker

Produces the sound transmitted from cameras.

Screen ON/OFF &

Auto Config Button

* Press the button to turn ON/OFF the screen (enter/exit power

save mode, with only audio on)

* Press and Hold the button to use the AUTO CONFIG setting.

When you adjust the display resolution, displayed picture may not

in the center of the screen. In this case, you can use auto config to

adjust the picture to central position.

NVR Stand

Stand the NVR on table or other flat surfaces. You can also mount

the stand to the wall.

HDD compartment

Open up the cover to install the HDD (2.5"). Close the cover after

installation

3.2 CAMERA

3.2.1 Night Vision Camera

Item

What it is

What it does

Microphone

Captures the sound on camera side and transmits the sound from

camera to monitor.

Lens

Catches the video in front of the lens and transmits video from

camera to Monitor.

Working Indicator

Indicates the working status of camera. (Green LED)

Flashing rapidly——Ready to pair/ pairing mode

Solid green——Paired / working

Light sensor

Sensing light and give order to the IR cut to switch between

daytime and night vision mode.

PIR sensor

Detects motion in front of the lens and emits detection signal to

transmitter.

Speaker

Produces the sound transmitted from the monitor.

IR LED

Infrared LEDs provide viewing in no/low light conditions.

Bracket

Use the bracket to mount the camera on a wall or other flat

surfaces.

Camera antenna

Receives & Sends signals to or from the Monitor.

Reset button

The reset button is located on the back of the camera. Press and

hold the reset button (until the indicator LED flashes) to reset the

camera.

3.2.2 Floodlight Camera

Item

What it is

What it does

Microphone

Captures the sound on camera side and transmits the sound from

camera to monitor.

Lens

Catches the video in front of the lens and transmits video from

camera to Monitor.

Working Indicator

Indicates the working status of camera. (Green LED)

Flashing rapidly——Ready to pair/ pairing mode

Solid green——Paird / working

IR LED

Infrared LEDs provide viewing in no/low light conditions.

Light sensor

Sensing light and give order to the IR cut to switch between

daytime and night vision mode.

PIR sensor

Detects motion in front of the lens and emits detection signal to

transmitter.

Speaker

Produces the sound transmitted from the monitor.

Floodlight

White LED floodlight.

Bracket

Use the bracket to mount the camera on a wall or other flat

surfaces.

Camera antenna

Receives & Sends signals to or from the Monitor.

Reset button

The reset button is located on the back of the camera. Press and

hold the reset button (until the indicator LED flashes) to reset the

camera.

4. SET UP THE HARDWARE

4.1 NVR

1Place the stand on the back of the NVR on a table or install to other flat surfaces, position the

antenna.

2Connect the mouse to the mouse port on the back of the NVR.

3Connect an AC adaptor to the power input on the back of the NVR. Connect the other end of the

adapter to a standard indoor power outlet. The NVR will power on automatically and start initialize,

Please wait until initialization is completed.

4The screen of NVR remains dark until the cameras are powered on.

4.2 Camera

General

The camera included with your monitor is weatherproof and have an IP66 rating. Water can be sprayed

on them and they will still work; however, the cameras cannot be submerged.

Although the cameras can be exposed directly to the rain, it is recommended that, if they are used

outdoors, they should be mounted under some type of cover like a patio overhang or eave. As rainwater

drops start to dry on the camera glass, it can create spots that will reflect the light from the infrared LEDs

used for night vision, thus causing lower quality video.

Also, as dust, grime, and cobwebs accumulate on the camera glass, they can reflect light from the

infrared LED and might lower video quality. Periodically clean the lens glass with a soft cloth.

Placement Considerations

Consider the following when placing cameras:

• The clearest line-of-sight between the camera and NVR is best.

- Walls, especially brick and concrete, shorten the transmission distance.

- Placement next to windows allows better transmission.

• Optimized motion detection range is 6~30 feet for the camera. The farther away an object is, the less

accurate the motion detection.

• Avoid having a direct light source in the view of the camera, including street lights, ceiling or floor lamps,

spotlights in the driveway, etc.

• Rainfall, pool water ripples/reflections, tree/shrub leaves blowing in the wind – and the shadows they

create can generate motion detection false alarms.

• When you are positioning the camera, bring the monitor along; it’s much easier to get the camera into

the right position when you have the display handy.

Install the Camera(s)

1Position the camera where you want it, plug it into power, and check video on the NVR. Move the

camera if the view is not what you want.

2Hold the base of the camera stand where you want to mount it and mark the location of the screw

holes.

3Use the included screws and anchors to attach the base to the wall or ceiling.

4Tug gently on the stand to make sure it is securely in place.

4.3 Set the Antenna Extension

The included antenna extension is supplied to extend the transmitting distance between the camera and

NVR and provide a better signal.

You can use the included Antenna Extension cable

if your setup requires the signal be transmitted

through an obstacle that severely weakens it.

Simply replace the camera antenna with the

Antenna Extension cable and mount it on the

opposing side of the obstacle.

5. SYSTEM OPERATION

5.1 Setup Wizard

Before using the system, please follow the setup wizard to set your system.

NOTE: Among this section, for each step, on the bottom will display a notification to let you

select/unselect.

Default value: select.

Select means next time you reboot/turn on the NVR, system will remember your previous setting and skip

the setup wizard surface to enter the live view section directly.

Unselect means you have to follow the setup wizard every time reboot/turn on the NVR.

1Setup New Password

The default user name is “admin”.

Please enter your new password and confirm the new

password.

Select Remember Password, the system will remember

the password you have set.

After confirm the new password, click Next to enter the

next step.

Note: Password should be 4~10 digits. The password can be letter(s) and/or

number(s). Do not use symbols or space in password.

2General System Configuration

This step allows you to set below items:

Date

System Time

Date Format

Time Format (12h or 24h)

Language

Menu Timeout

Confirm above then click Next to enter the next step.

3HDD management

This section display the hard disk list, you can check the

basic information of your HDD (model/capacity/used

space/status).

Select here then click Formate to format

the HDD.

Select here to enable the overwrite

function.

Overwrite on: system will overwrite earliest recorded files when HDD is full.

Confirm above then click Next to enter the next step.

4Record Schedule

Channel

Select the Channel you want to set.

Copy To

Select here copy the same setting to any channel or all channels.

Select the type of recording you’d like to activate

Table des matières

Autres manuels CasaCam Appareil photo numérique

CasaCam

CasaCam CM825735 Manuel utilisateur

Manuels Appareil photo numérique populaires d'autres marques

Mercury

Mercury 350K Manuel utilisateur

Pentax

Pentax Optio LS 465 Manuel utilisateur

Sanyo

Sanyo VPC-S1085 Manuel utilisateur

GE SMART A1255 Manuel utilisateur

Point Grey

Point Grey Gazelle Manuel utilisateur

Nikon

Nikon COOLPIX A Manuel utilisateur

Pentax

Pentax P-5 Manuel utilisateur

BlazeVideo

BlazeVideo A280 Manuel utilisateur

Sony

Sony MCA-20 Manuel utilisateur

Sony

Sony Alpha DSLR-A290 Manuel utilisateur

ATIK Cameras

ATIK Cameras One Manuel utilisateur

CohuHD Costar

CohuHD Costar 3930 Series Manuel utilisateur

Leica

Leica M10-R Manuel utilisateur

FujiFilm

FujiFilm FinePix A700 Manuel utilisateur

Lorex

Lorex LNZ81P25 Series Manuel utilisateur

GE J1470S Manuel utilisateur

Sony

Sony A6700 Guide de l'utilisateur

Canon

Canon EOS ELAN7 Manuel utilisateur
