CAS S2000 Jr. Series Manuel utilisateur
2
e
3
CONTENTS
PRECAUTIONS................................................. .4
PREFACE............................................................
6
OVERALL VIEW.................................................6
DISPLAY & KEYBOARD ...................................7
OPERATIONS................................................... 11
I. Programming Mode ................................. 11
Chapter 1. Basic Operation.........................12
Chapter 2. PLU Saving & Calling-up ...........15
Chapter 3. User’s Set-up Mode ...................19
Chapter 4. Formatting Printing Receipt ......25
II. Sales Mode...............................................32
Chapter 5. Sales Transaction ........................ 33
Chapter 6. Daily Total Sales ........................
35
ASCII CODE .....................................................37
ERROR MESSAGES .......................................38
SERIAL INTERFACE .......................................38
SPECIFICATION ..............................................39
4

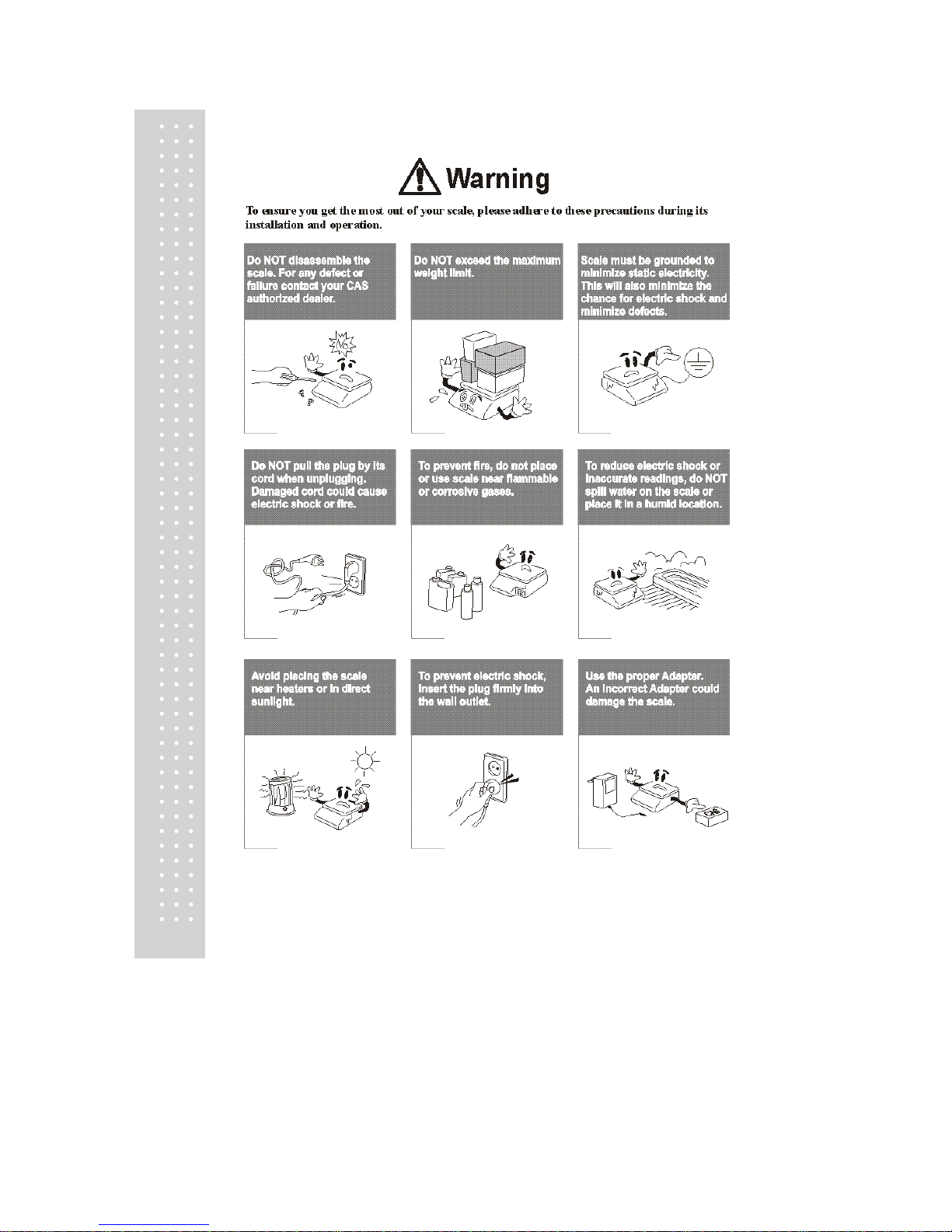

PRECAUTIONS
5
6
PREFACE
Thank you for purchasing the CAS S2000 Jr. This series has been designed with
CAS reliability, under rigid quality control and with outstanding performance. Your
specialty departments can enjoy this CAS product. We hope that this CAS product
meets your needs. The user manual is designed to help you to understand the
proper operation and care of the product.
OVERALL VIEW
■S2000 Jr.
■S2000 Jr - M
7
DISPLAY & KEYBOARD
■S2000 Jr. LCD TYPE : Front Display
■S2000 Jr. LCD TYPE : Rear Display
■S2000 Jr. VFD TYPE : Front Display
■S2000 Jr. VFD TYPE : Rear Display
8
■S2000 Jr. – M LCD TYPE : Front Display
Table : Symbols on Display
SYMBOLS DESCRIPTION
ZERO (▼)To adjust Zero reference point
NET (▼) Tar e on
kg (▼) Unit of weight is kilograms
lb (▼) Unit of weight is pounds
oz (▼)Unit of weight is ounces
(▼)Low battery warning
☼(▼) Back light on
$/kg (▼) Unit Price is per kilogram
$/lb (▼) Unit Price is per pound
$/oz (▼) Unit Price is per ounce
SAVE (▼)Save function is enabled
CHARGE (▼) Charge Status
9
■KEYBOARD
■S2000 Jr. Direct PLU Key pad
1
0
Table: Key Functions
KEYS FUNCTIONS
To input all numerical data
Direct PLU keys
To save PLU
To call up PLU
Used to prevent the auto clearing of unit price and weight
Used to select weighing unit value. (kg, lb or oz)
To clear data
To set zero
To set or clear tare value
To turn on & off the scale
Used to convert a unit price to a half pound
Used to convert a unit price to a quarter pound
Used to print out a label
Direct PLU key (S2000 Jr. - M)
11
OPERATIONS
I. Programming Mode
Chapter 1. Basic Operation
a. Turning the scale on / off
b. Turning backlight on / off(LCD version only)
c. Zero function
d. Tare function
– One Time tare
– Successive tare
– Preset tare
Chapter 2. PLU Saving & Calling-up
a. Saving unit price on PLU
b. Saving tare weight on PLU
c. Saving valid date set on PLU(Option)
d. Saving PLU item code
e. Saving PLU name
f. Calling up PLU
- Indirect PLU
- Direct PLU
Chapter 3. User’s Set-up Mode
a. Auto power-off
b. LCD backlight ON/OFF function (LCD version only)
c. Brightness control (LCD version only)
d. Low battery backlight auto off function(LCD version only)
e. Stand By Mode Function (Only VFD version)
f. Selecting the printer
g. Use Tare with PLU
h. Unit of Tare weight
Chapter 4. Formatting Printing Receipt
a. Setting the Printer
b. Receipt header setting
c. Receipt currency (unit) setting
d. Receipt DATE setting
e. Receipt TIME setting
f. Receipt Date format setting
g. Samples of Print format
